ABB ABRC-01C Brake Chopper Control Board – ACS800 Braking Unit – Tested

Product Overview

Original ABB ABRC-01C brake chopper control board for ACS800 series drives. Monitors DC bus voltage and controls the braking IGBT to dissipate regenerative energy through an external braking resistor during motor deceleration. Prevents DC bus overvoltage and protects drive components from damage in high-inertia applications. Supports communication with higher-level automation systems via Modbus-RTU, Profibus, and CANopen protocols.

Key Features

• Genuine ABB original – for ACS800 series high-power drives
• Brake chopper control board – monitors DC bus voltage, triggers braking IGBT
• Dissipates regenerative energy via external braking resistor
• Supports Modbus-RTU, Profibus, CANopen, EtherCAT communication
• Integrated diagnostics and lifetime monitoring – up to 10 years design life
• Reverse start, regenerative braking avoidance, PTC thermistor input
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS800 series drives and braking units
• Specifically designed for brake chopper / dynamic braking applications

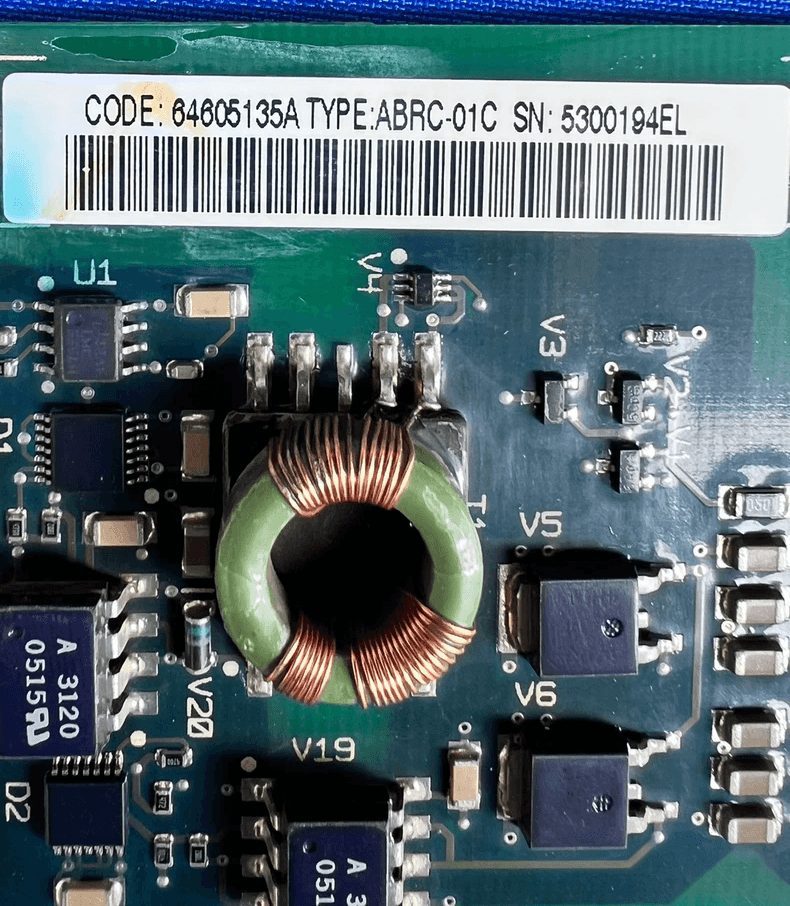

• Part numbers 64605135 / 64605135B / 64605135A – verify original board marking
• Requires external braking resistor (not included)
• Verify drive model, braking unit configuration, and board revision before ordering

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
