ABB AGBB-01C I/O Expansion Board – ACS800 8AI+2AO Analog Extension – Tested

Product Overview

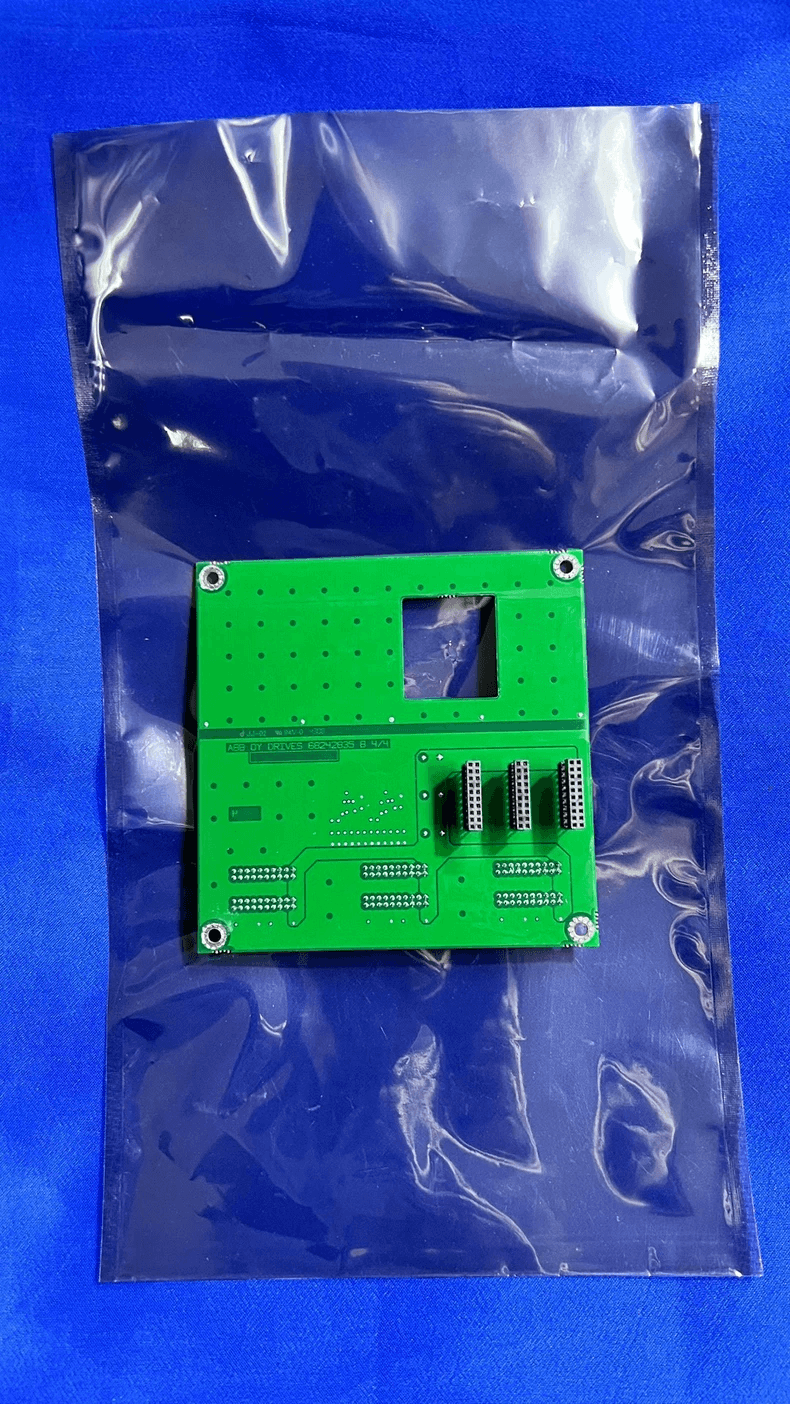

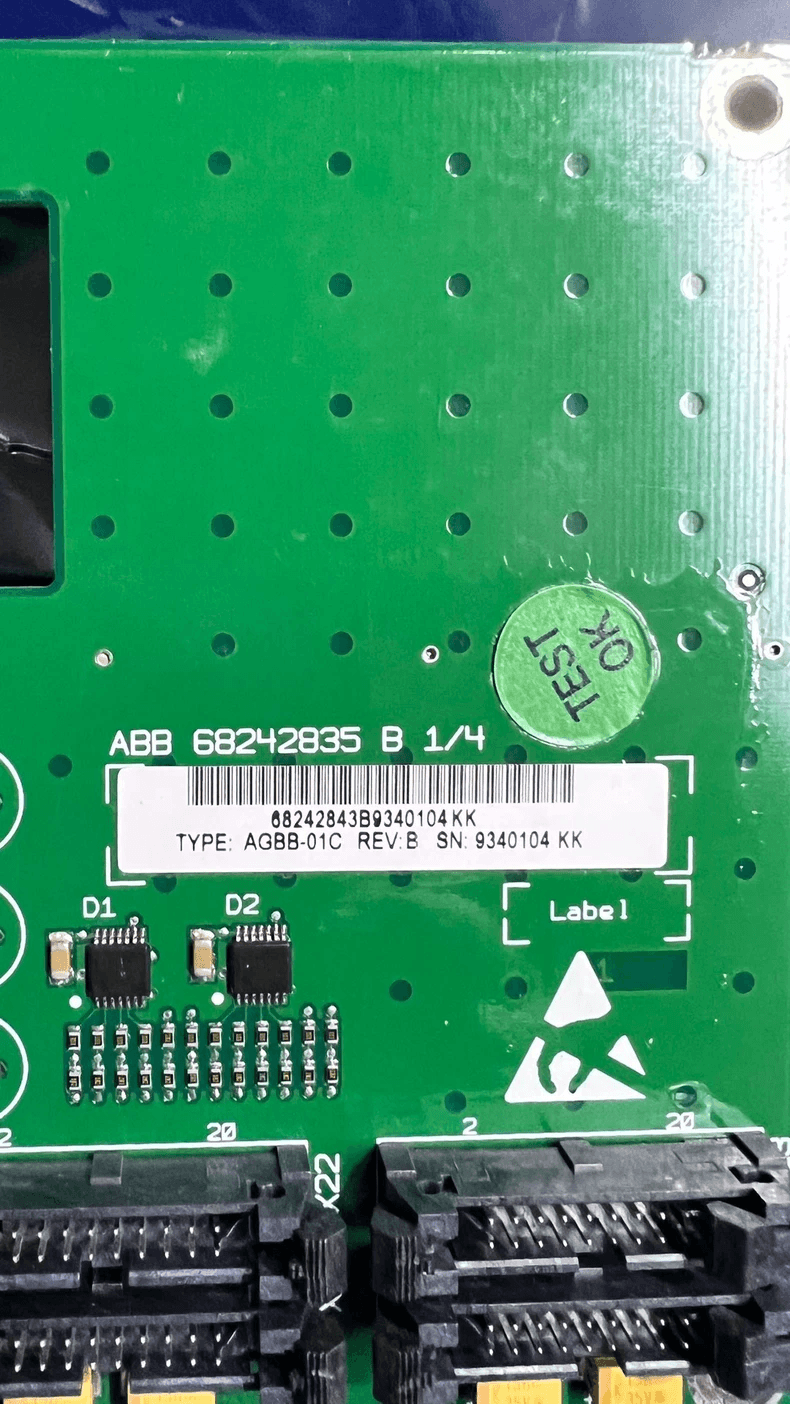

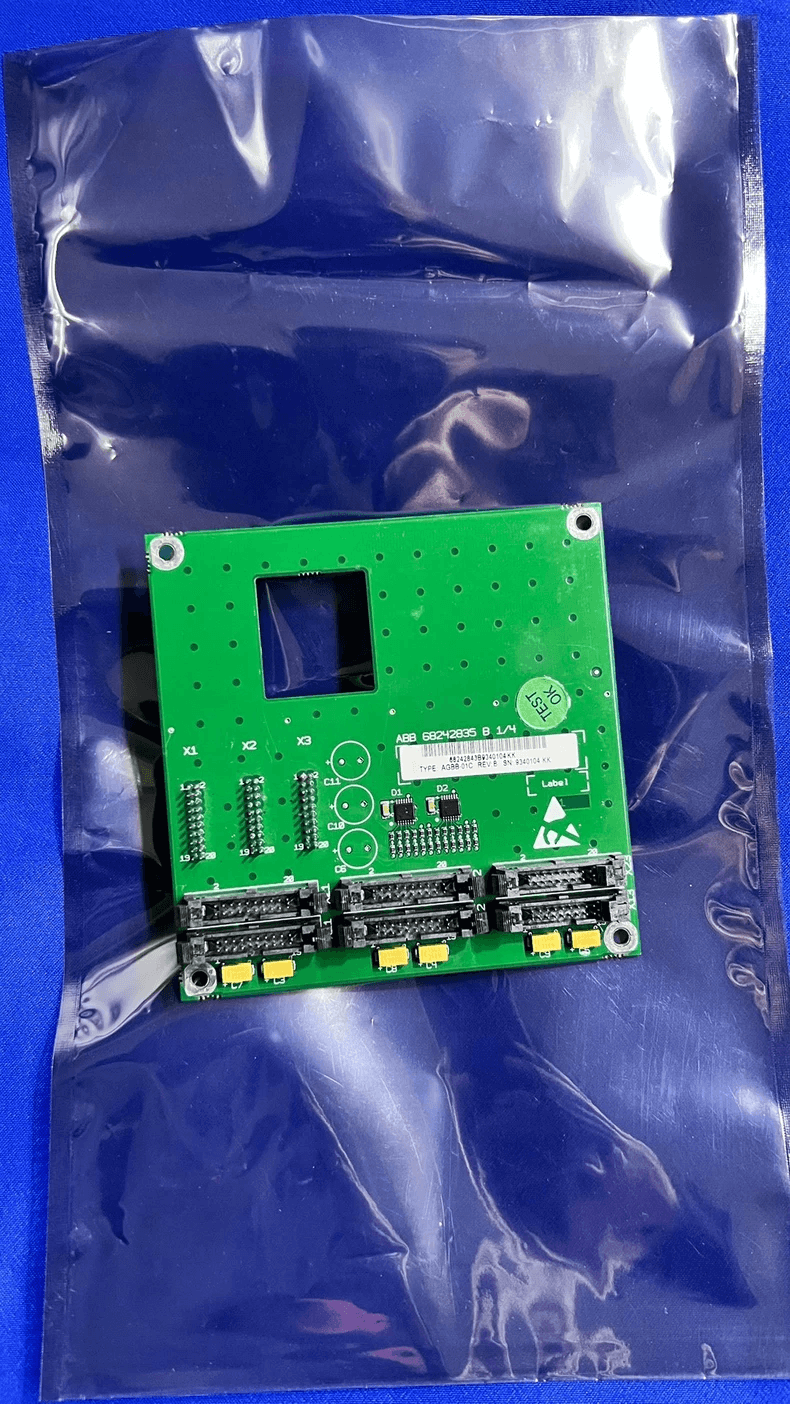

Original ABB AGBB-01C analog I/O expansion board for ACS800 series drives. Plugs into the drive’s option slot to add 8 analog input channels and 2 analog output channels. Used when built-in AI/AO channels are insufficient for process control applications. 12-bit resolution with ±0.1% accuracy. Channels are galvanically isolated to suppress inverter switching noise.

Key Features

• Genuine ABB original – for ACS800 series drives
• Analog I/O expansion – 8 AI + 2 AO channels
• Input range: -10V to +10V (4-20mA with external resistor)
• Output range: -10V to +10V (or 0/4-20mA)
• 12-bit resolution, ±0.1% accuracy
• Channel-to-channel galvanic isolation
• Powered directly from drive backplane – no external supply needed
• Plug-in option slot installation – no extra cabling
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS800 series drives only
• Requires RMIO control board with X50 option slot
• NOT compatible with ACS880 series (uses NIOC/FIO extension)
• Channels default to voltage mode (-10V to +10V); for 4-20mA add external 250Ω resistors
• Verify drive model and hardware version before ordering

Quality Assurance

• Original pulled from working drive; tested functional with no repair history

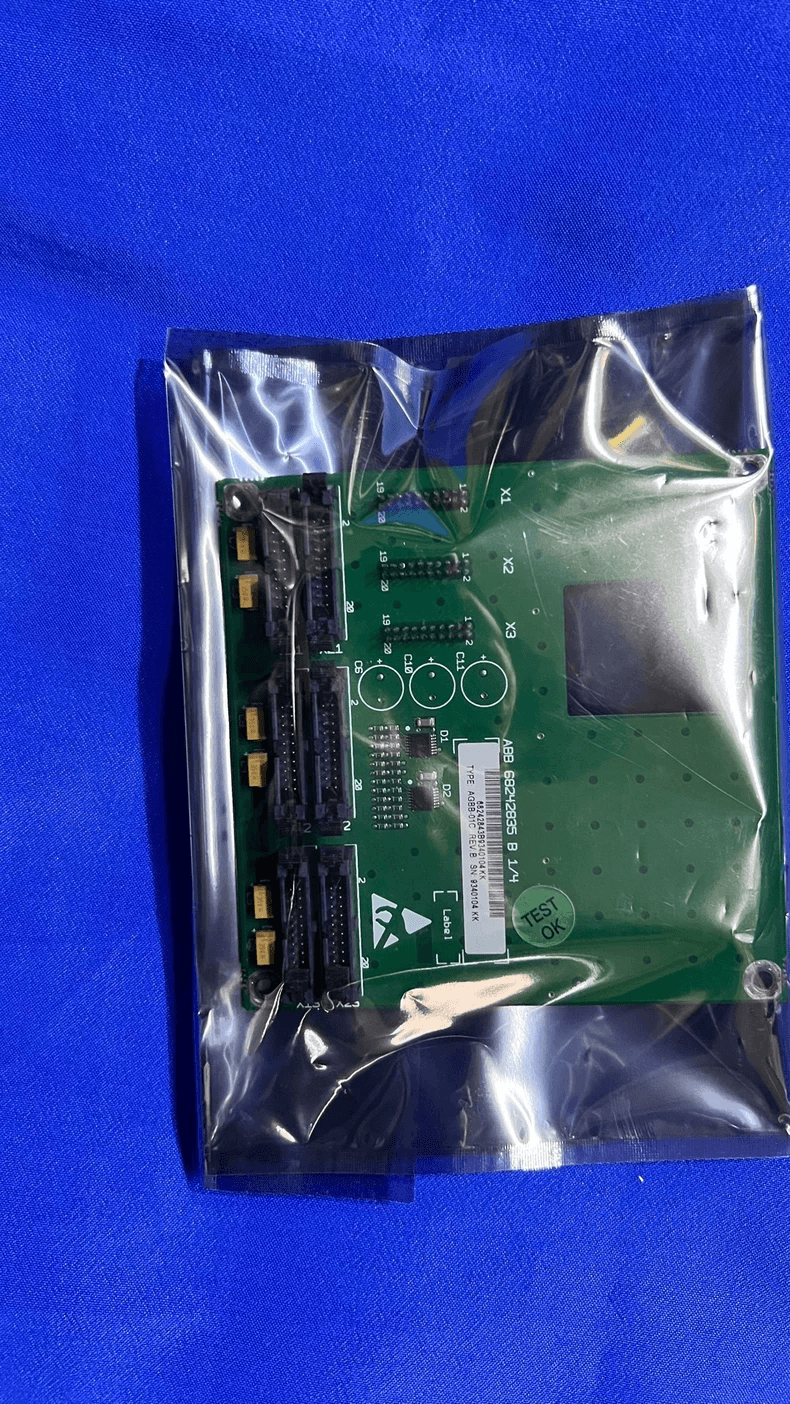

• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
