ABB BGDR-01C Gate Driver Board – ACS880/580 Series – New Original

Product Overview

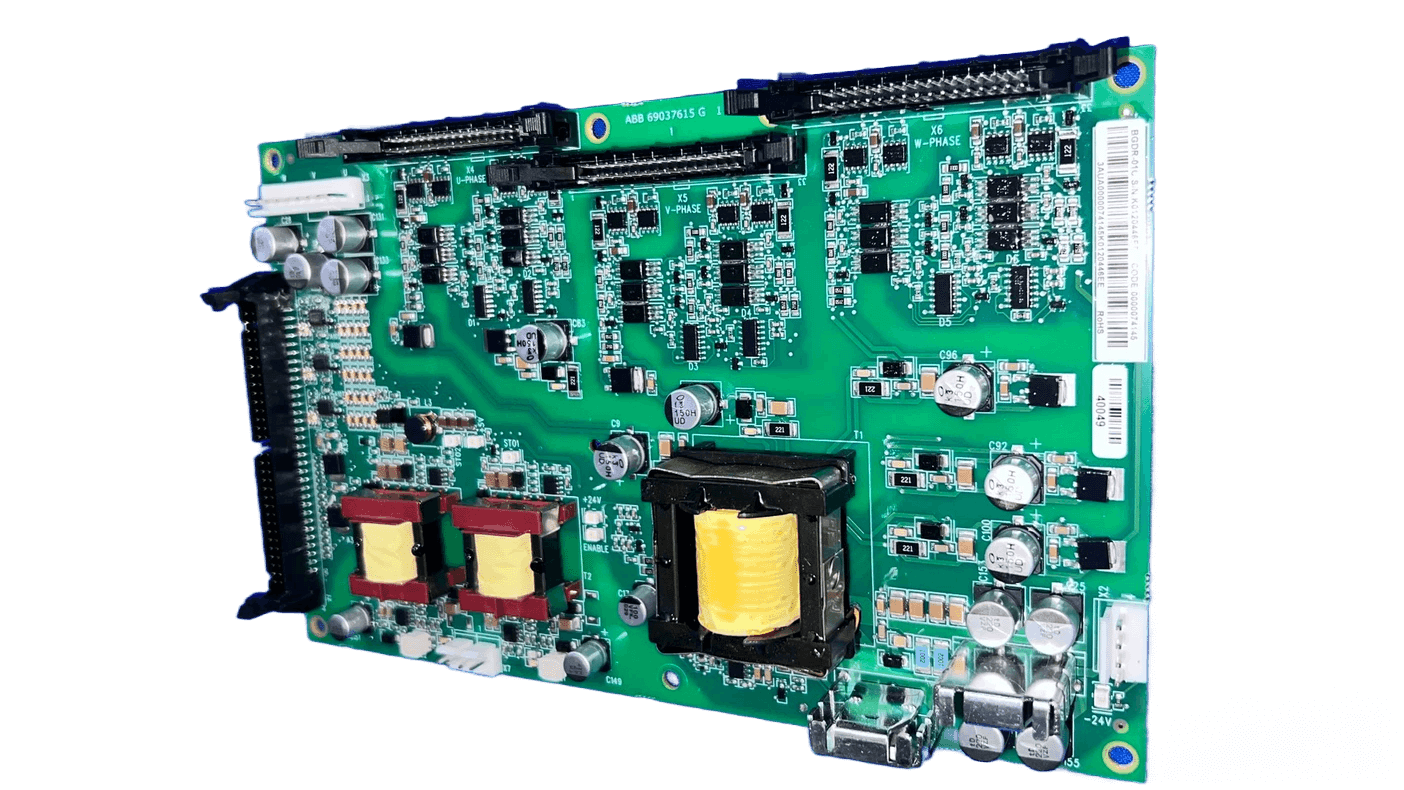

Original ABB BGDR-01C IGBT gate driver board for ACS880 and ACS580 series drives. Converts low-voltage PWM signals from the control board into high-current gate drive pulses for IGBT power modules. This board is the critical interface between the control logic and the power stage. It sits directly on the IGBT module, amplifying and isolating the gate drive signals while continuously monitoring for fault conditions.

Key Features

• Genuine ABB original – for ACS880 and ACS580 series drives
• IGBT gate driver – PWM signal amplification and isolation
• Gate drive voltage: 15V DC (typical, 12-18V range)
• Integrated desaturation (DESAT) detection – microsecond-level short-circuit protection
• UVLO (undervoltage lockout) protection
• High-voltage optical isolation (>2.5 kV)
• New original – factory sealed

Specifications

Compatibility Note

• Compatible with ACS880 and ACS580 series drives
• Specifically for ACS880-104 R8i and ACS580-04 R10/R11 frames
• Must be matched with the specific IGBT module and power rating
• Verify drive model, hardware version, and IGBT module type before ordering
• Send drive nameplate photo for accurate compatibility confirmation

Quality Assurance

• New original – factory sealed packaging
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
