ABB EBG VHP/5 2X4K7GG Equalizing Resistor – DC Bus Balancing – Tested

Product Overview

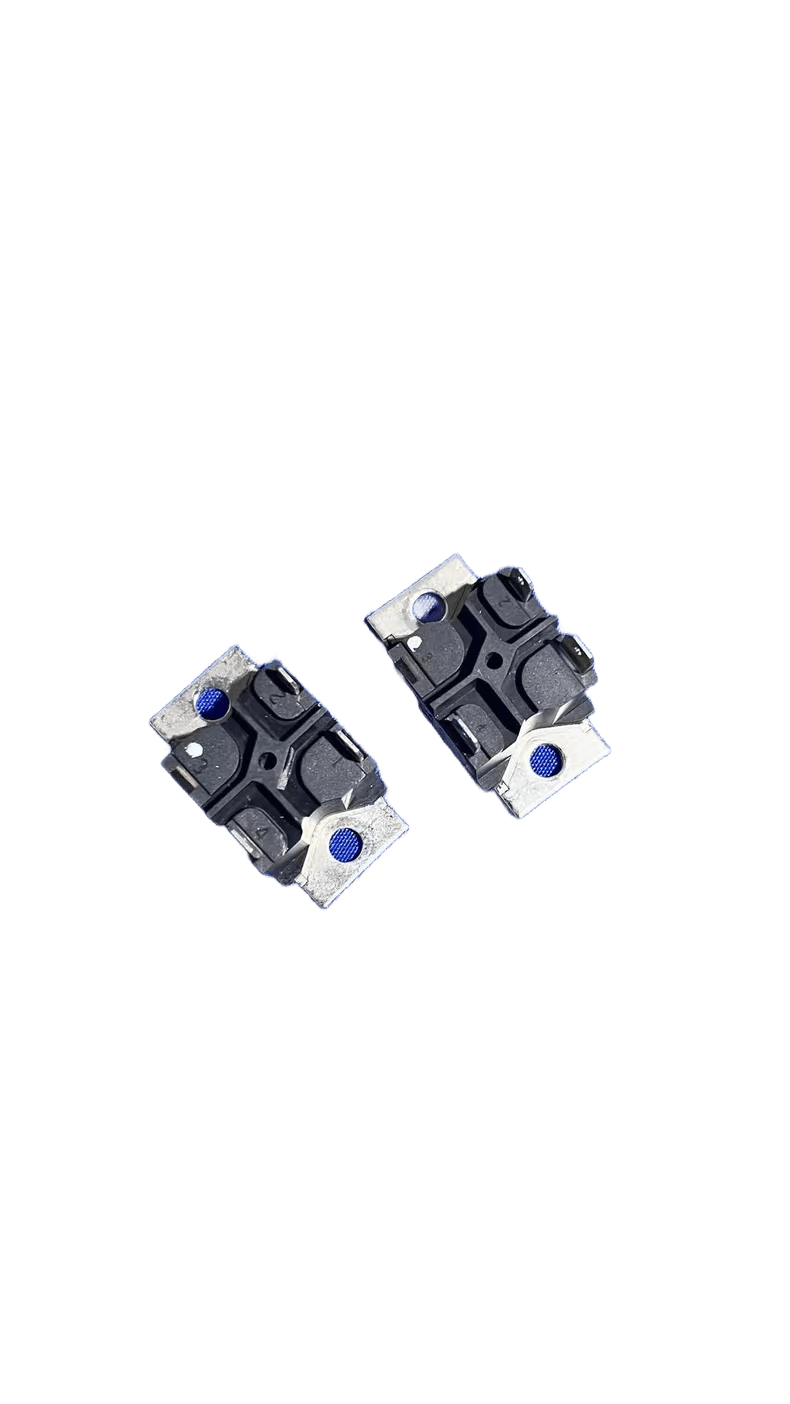

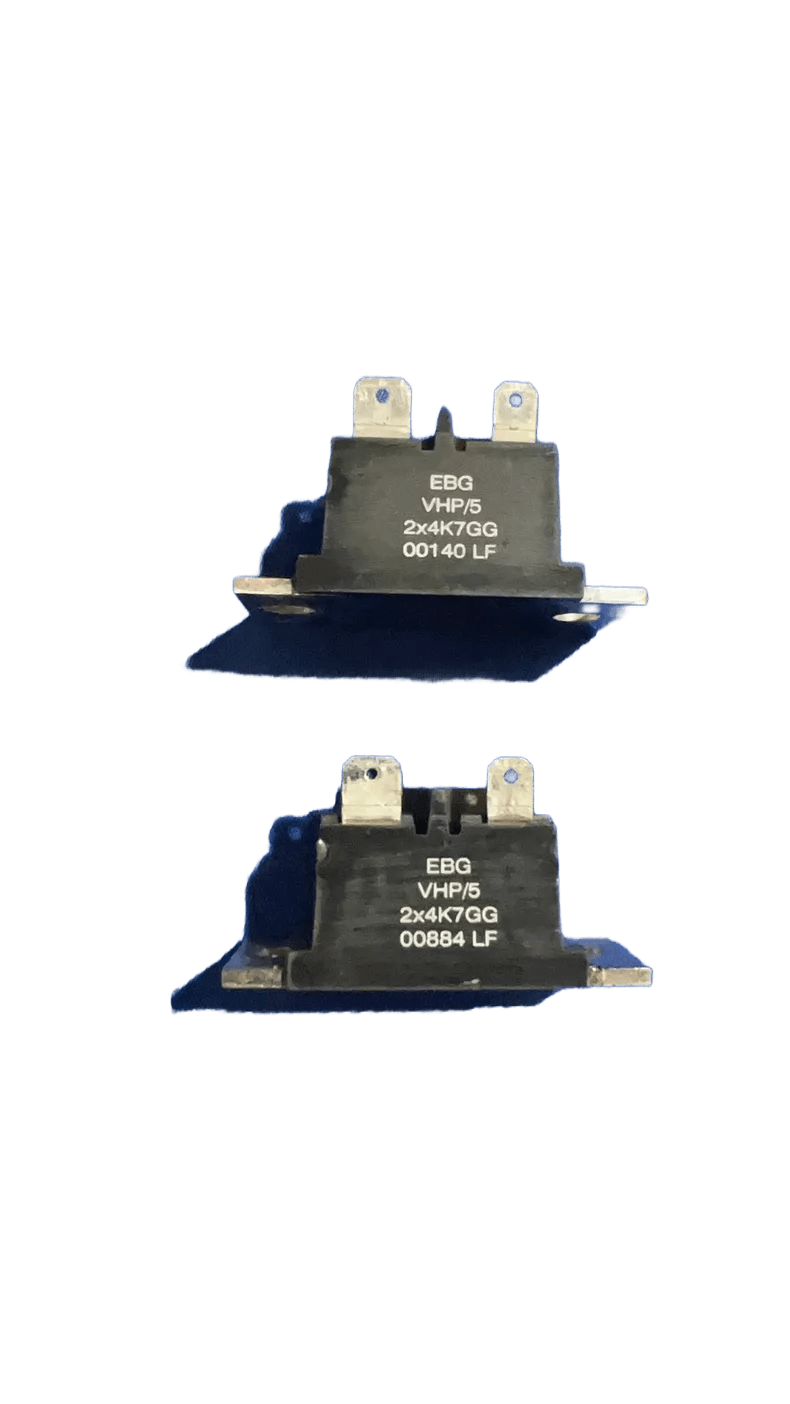

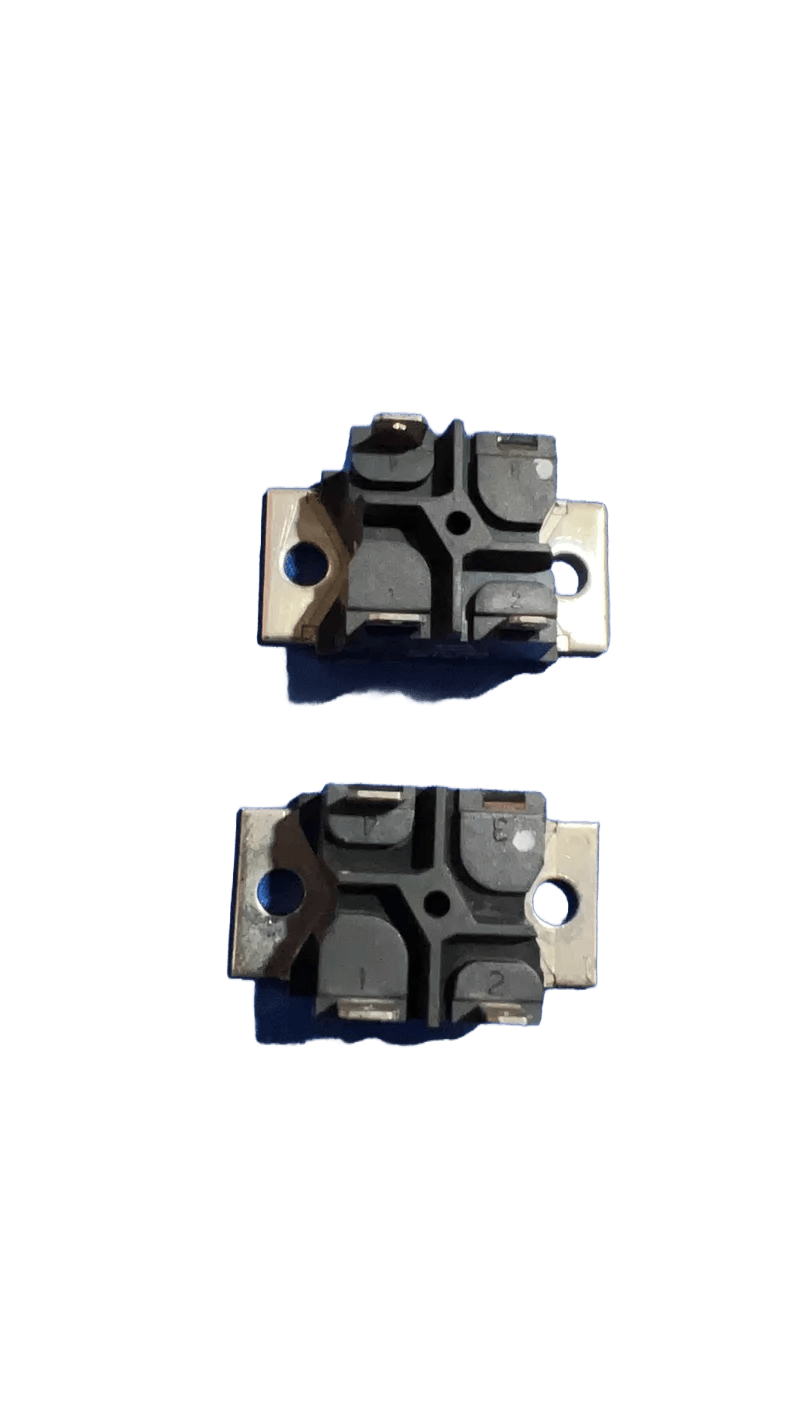

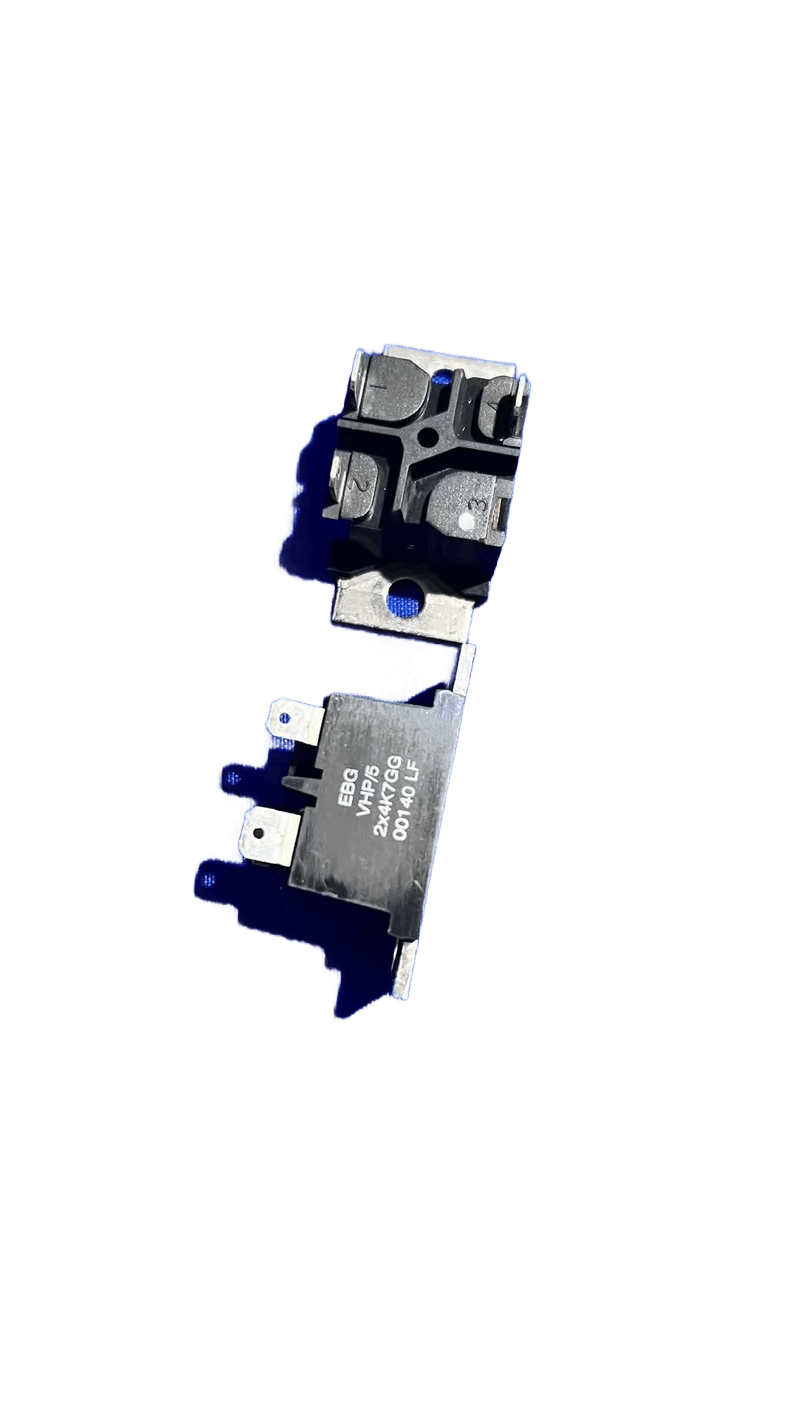

Original ABB EBG VHP/5 2X4K7GG high-voltage equalizing resistor module. Used in ABB VFD DC bus circuits for voltage balancing across series-connected electrolytic capacitors. Ensures even voltage distribution to prevent capacitor overvoltage and extend drive lifetime. The VHP/5 series is a thick-film high-voltage resistor with excellent stability and low inductance. Dual 4.7kΩ configuration.

Key Features

• Genuine ABB original – EBG VHP/5 series equalizing resistor
• Dual resistor configuration: 2 × 4.7kΩ
• High-voltage thick-film design – excellent stability
• Low inductance – suitable for fast-switching applications
• Ensures DC bus capacitor voltage balance
• Extends capacitor and drive lifetime
• Original pulled – no repair history

Specifications

Compatibility Note

• Commonly used in ACS800, ACS880, ACS580 series high-power drives
• Installed on DC bus capacitor bank for voltage equalization
• Dual resistor module – replaces two individual resistors
• Verify resistance and power rating match original component
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request

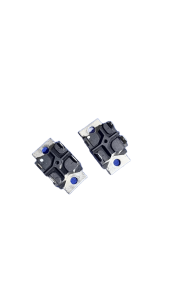

• ESD anti-static packaging
