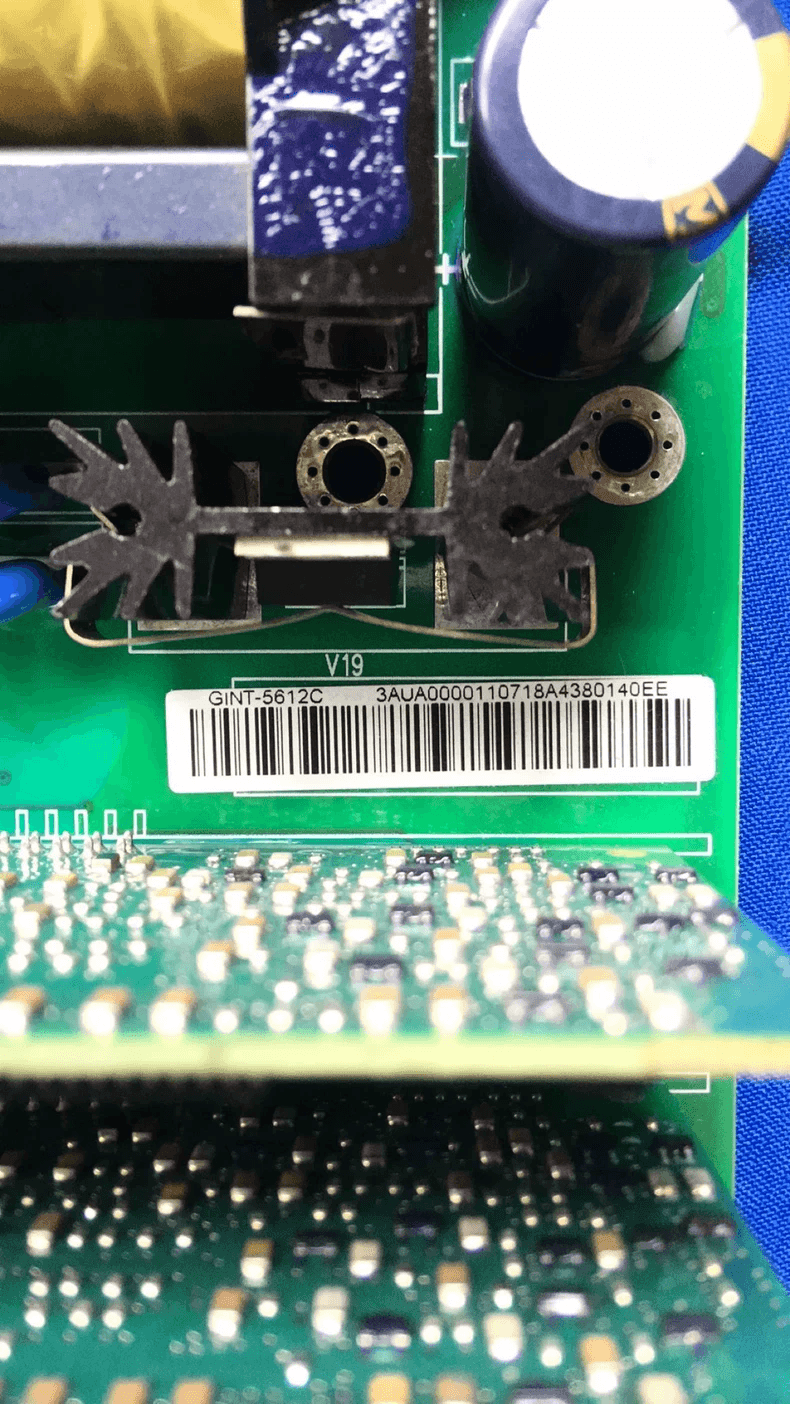

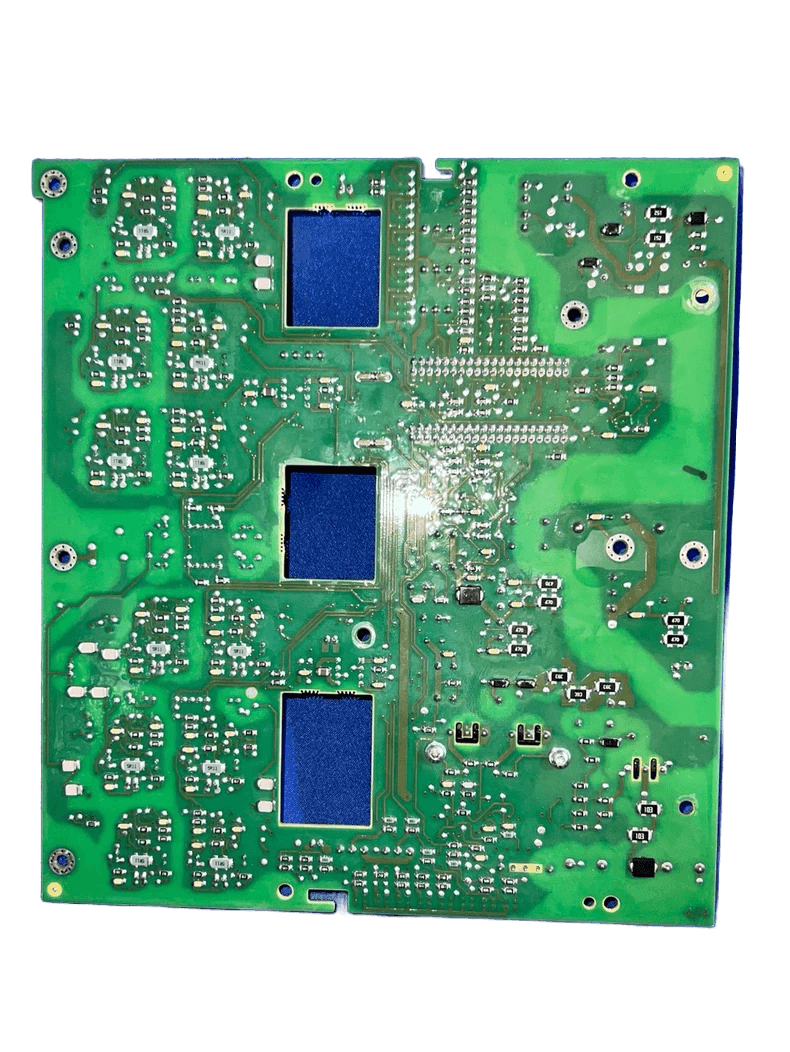

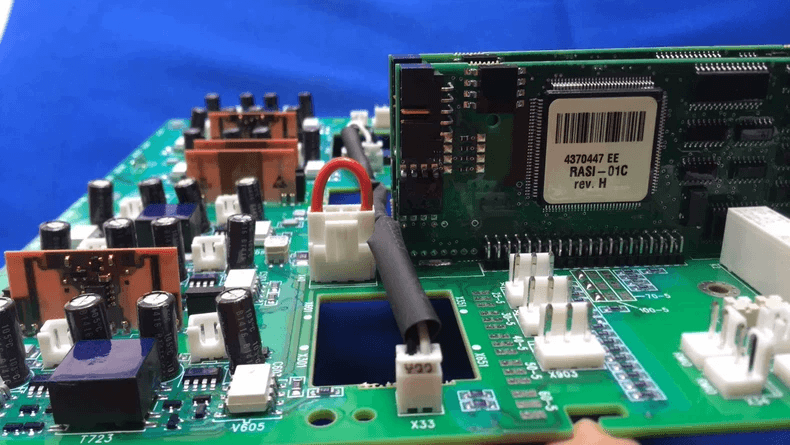

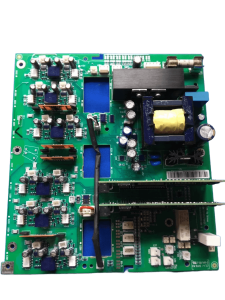

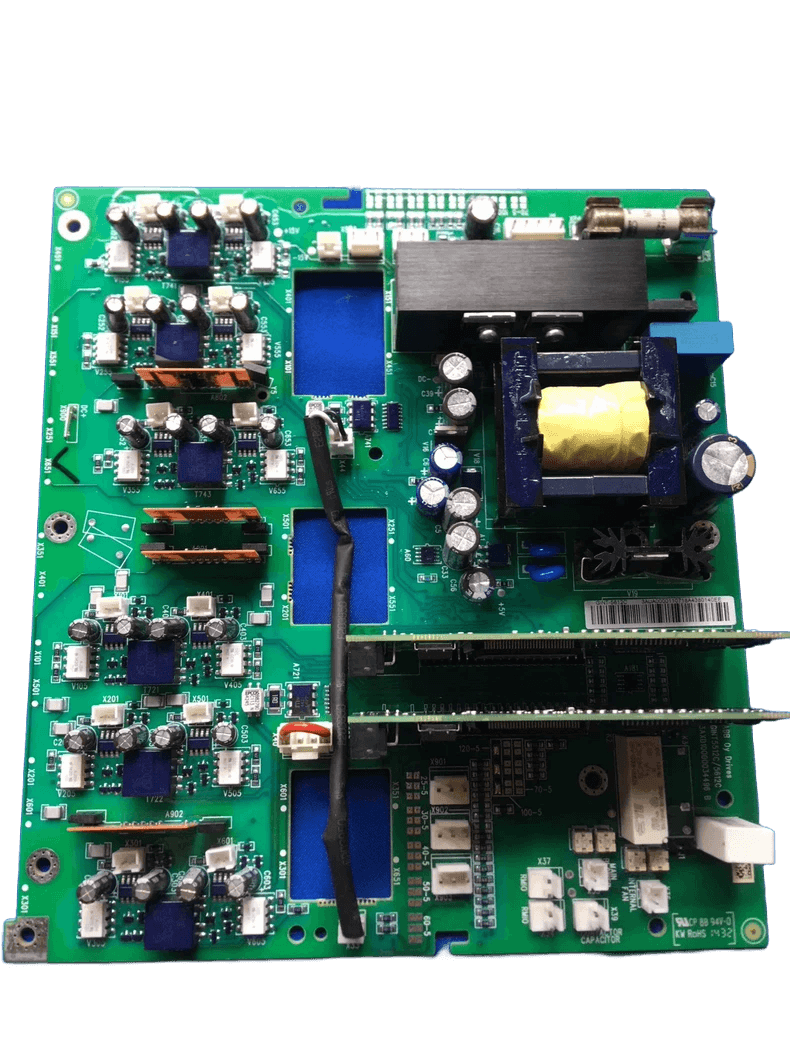

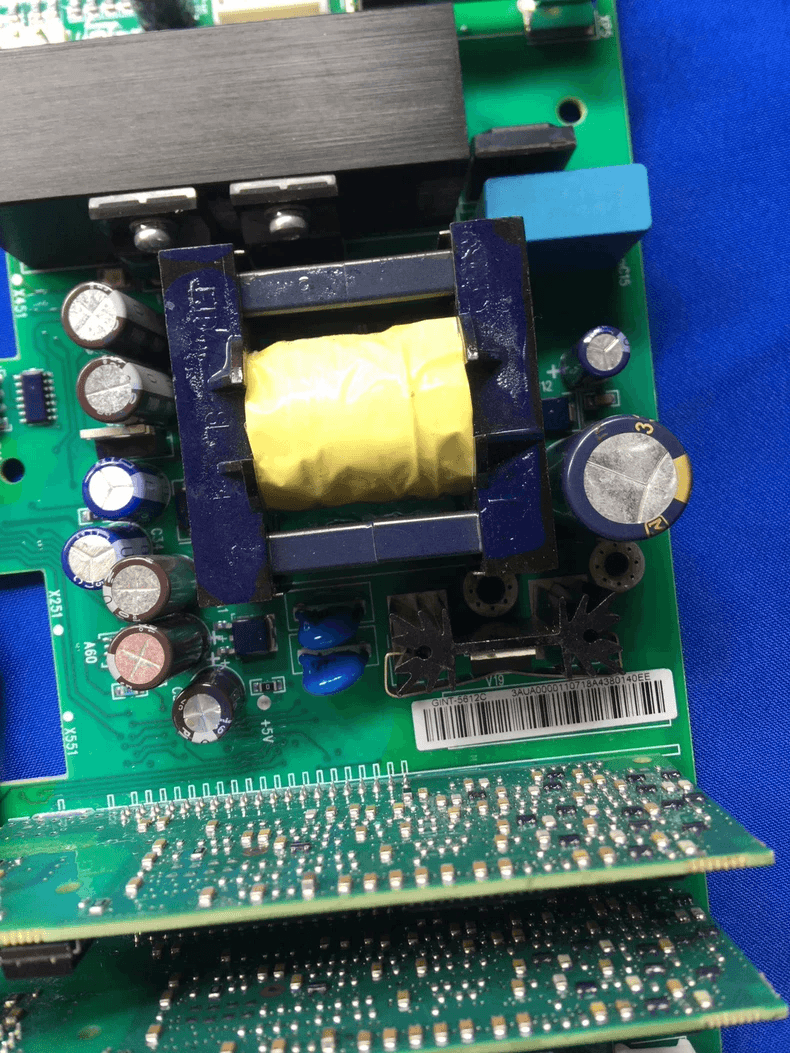

ABB GINT-5612C ACS800-11 Drive Board – IGBT Gate Driver – Reversible – Tested

Product Overview

Original ABB GINT-5612C main circuit interface and IGBT gate driver board for ACS800-11 four-quadrant reversible drives. PWM signal amplification for IGBT triggering with regenerative energy feedback control.

Key Features

• Genuine ABB original – for ACS800-11 four-quadrant / reversible drives
• Main circuit interface + IGBT gate driver
• Enables regenerative energy feedback and frequent forward/reverse switching
• Control-to-power isolation ≥2.5kV AC
• 24V DC control power supply
• Original pulled – no repair history

Specifications

Compatibility Note

• Designed for ACS800-11 four-quadrant drives only – not for standard ACS800
• Reversible version – optimized for frequent forward/reverse switching
• Verify drive model and hardware version before ordering

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
