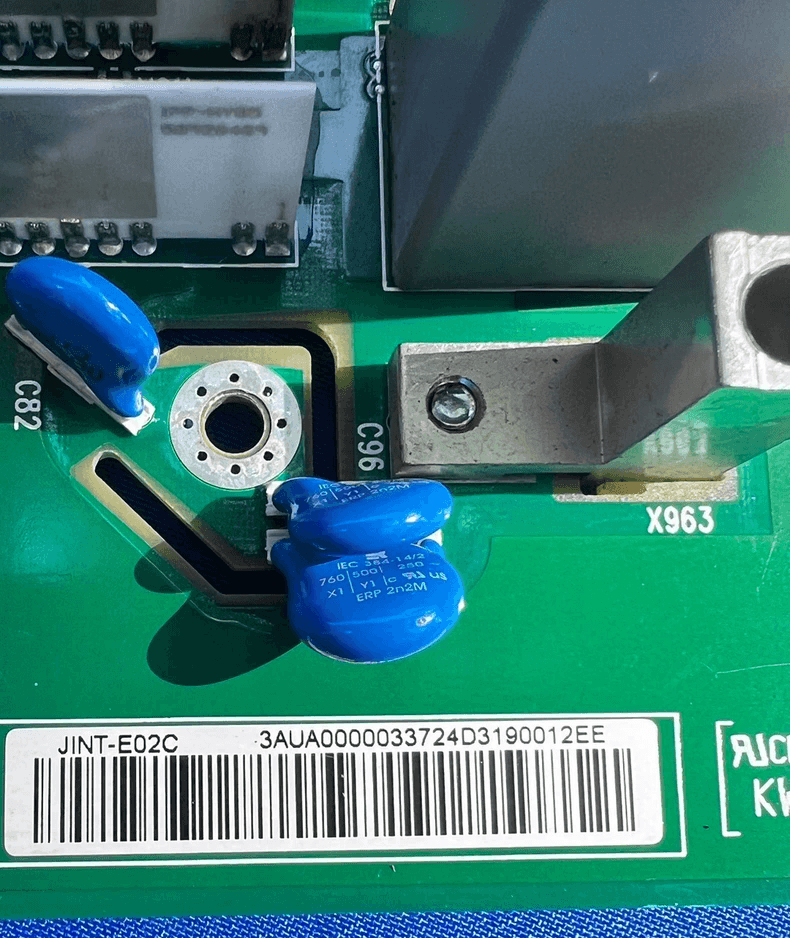

ABB JINT-E02C ACS850 Inverter Board – Power/Driver – Tested

Product Overview

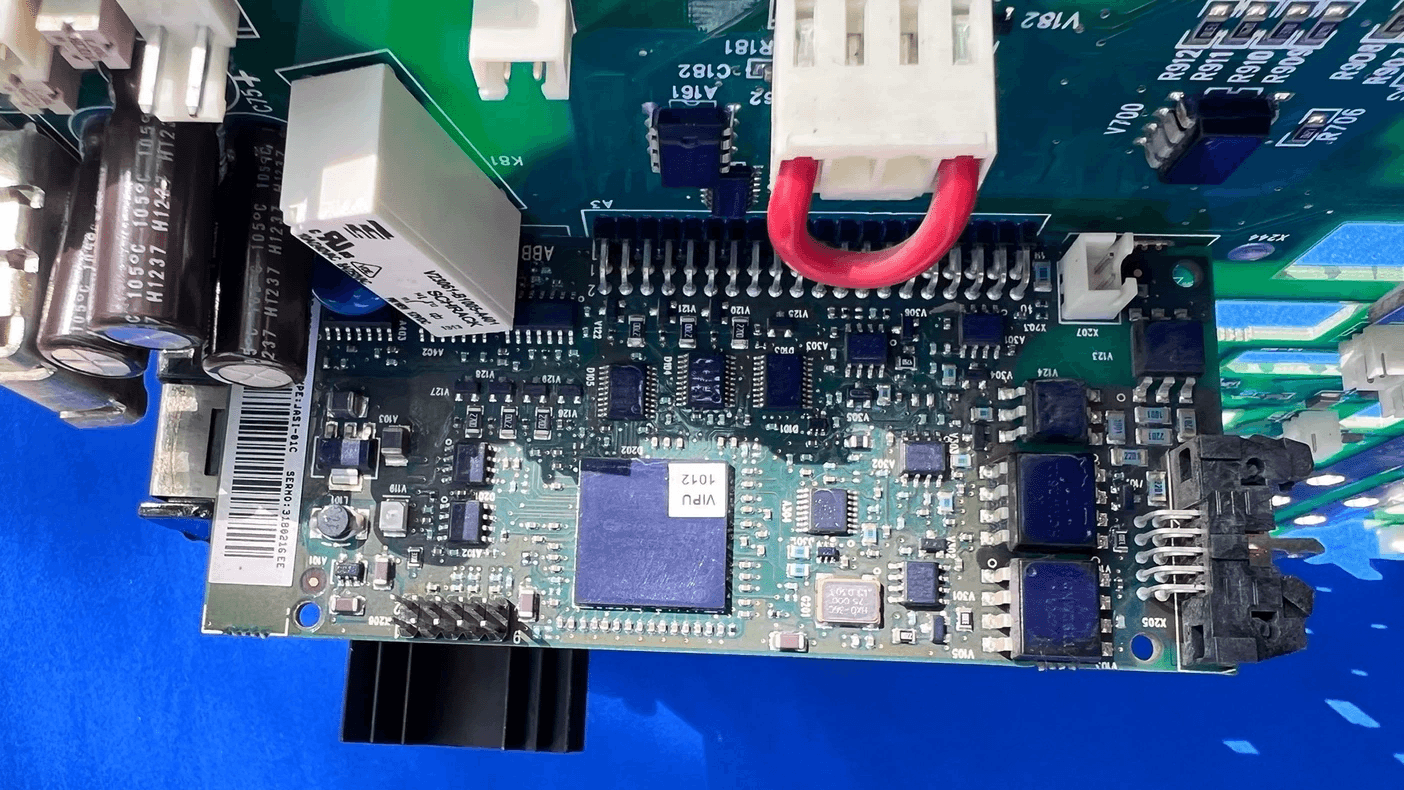

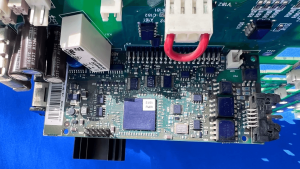

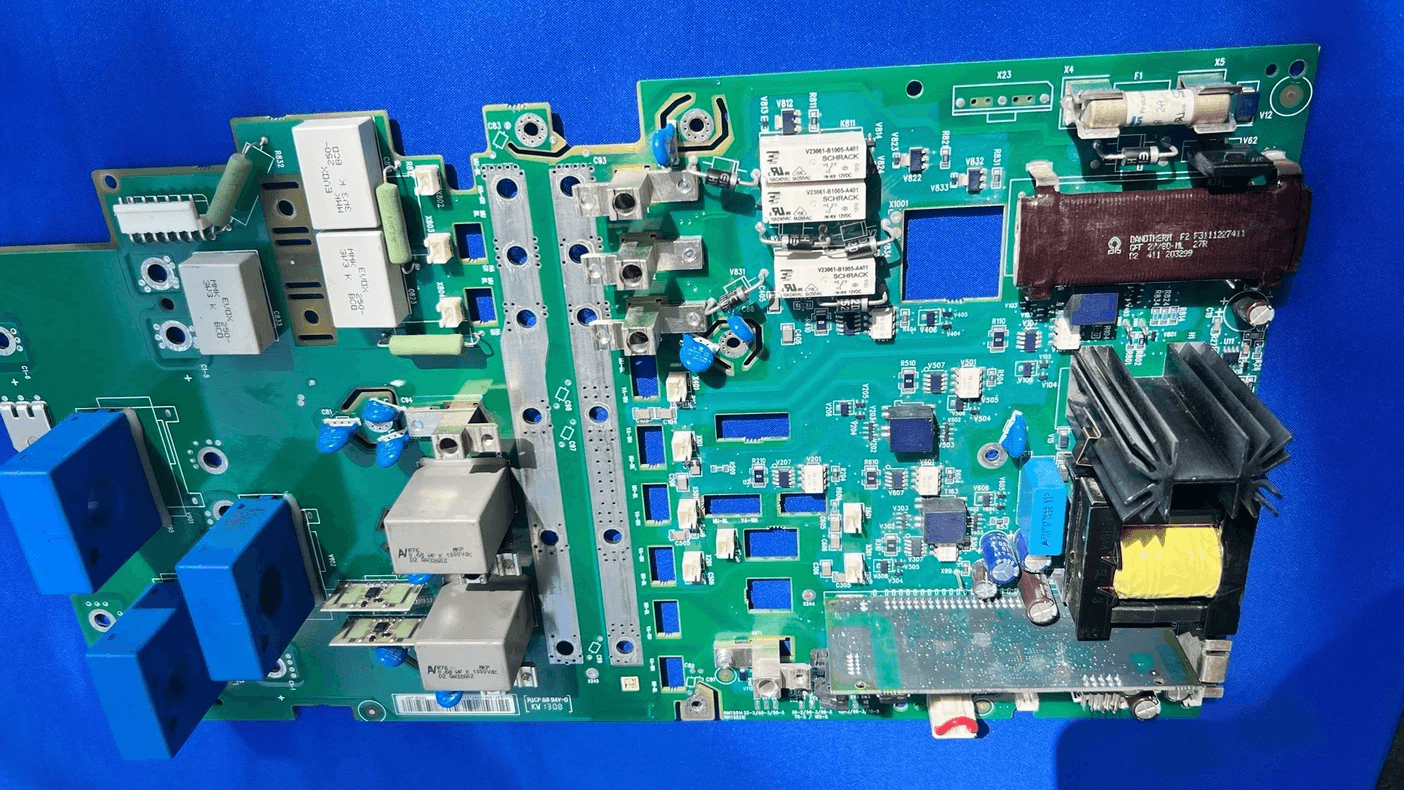

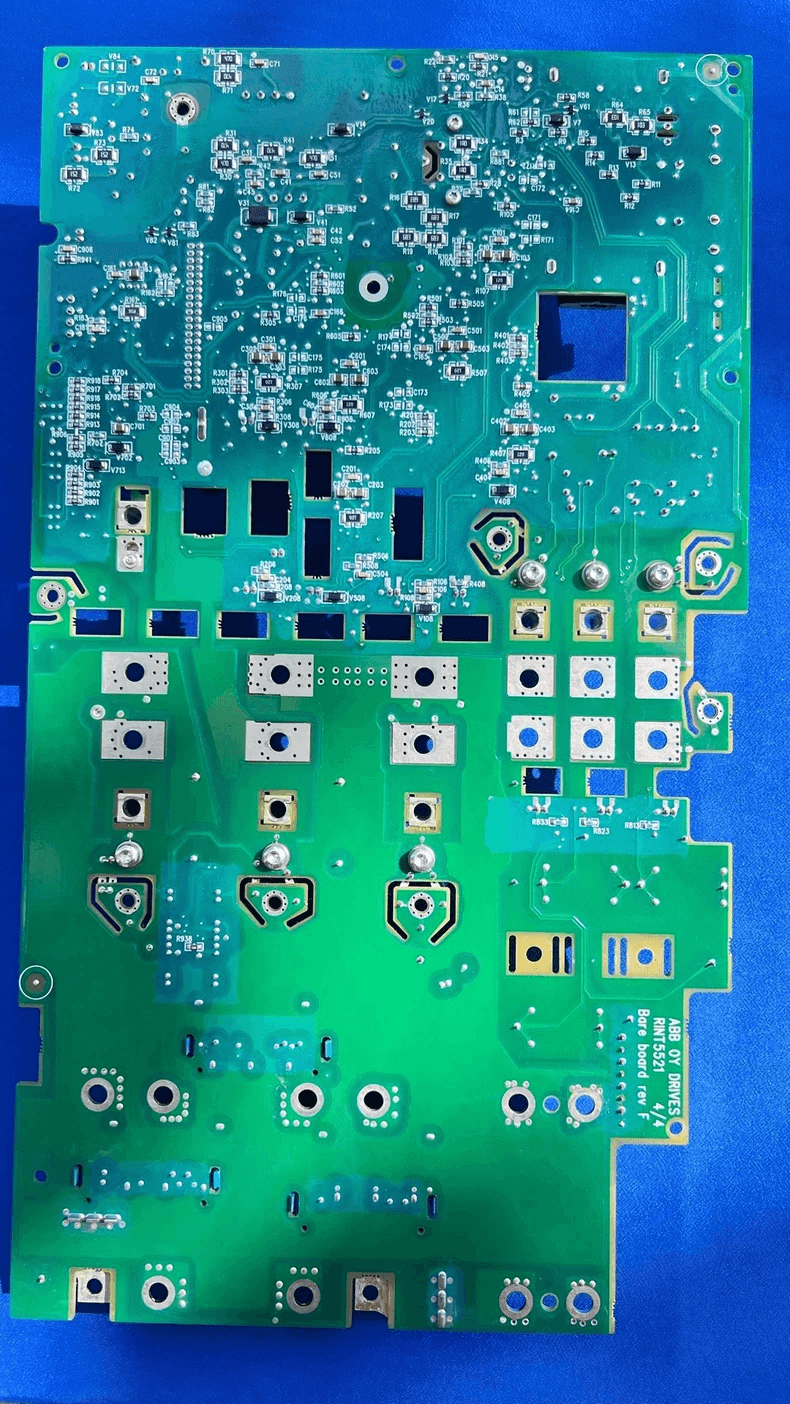

Original ABB JINT-E02C main circuit interface and power driver board for ACS850 inverter units. Interfaces between control board (AMC) and IGBT power stage – distributing PWM pulses to IGBT gate drive circuits.

Key Features

• Genuine ABB original – for ACS850 drive inverter units
• Main circuit interface + power driver board
• Input voltage: 200–500 V AC
• Communication: RS485 + CANopen
• Optical isolation + integrated thermal monitoring
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS850 inverter units only
• Interfaces with AMC control board and IGBT modules
• Not compatible with ACS880 (full fiber-optic drive architecture) [citation:1]
• Verify drive model and hardware version before ordering

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
