ABB LF 1010-S/SP16 Hall Effect Current Sensor – 1000A – Tested

Product Overview

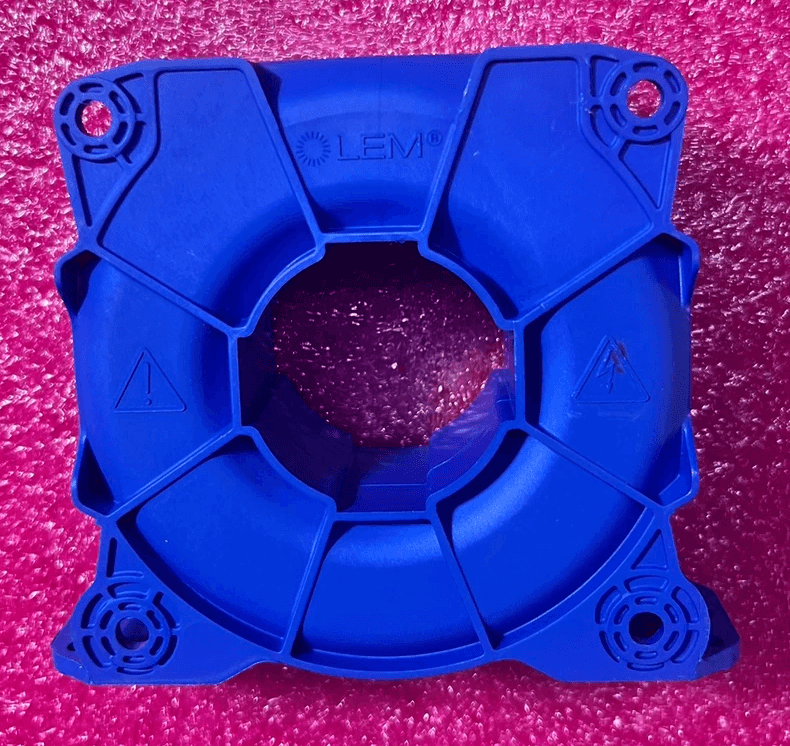

Original ABB LF 1010-S/SP16 closed-loop Hall effect current transducer. Manufactured by LEM and supplied through ABB’s drive spare parts channel, this sensor is designed for high-precision, high-current measurement in industrial drive systems. Rated at 1000A nominal with ±2100A measuring range, it provides galvanically isolated current feedback for DC bus and phase current monitoring in ABB ACS880, ACS800, and other high-power VFDs. Features <0.5µs response time and 200kHz bandwidth.

Key Features

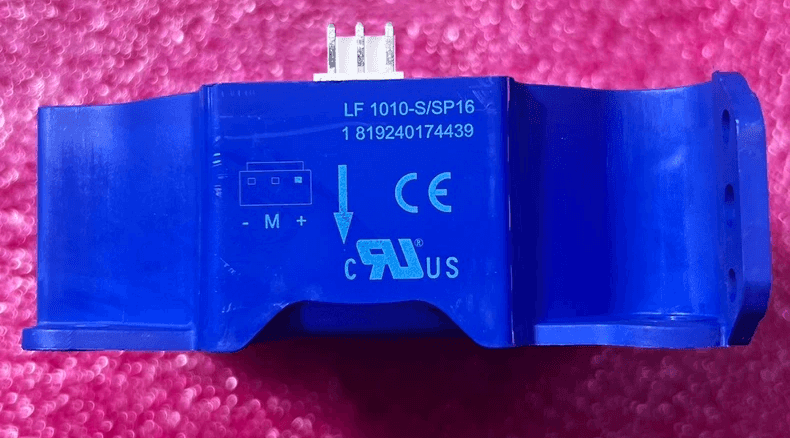

• Genuine ABB original – LF 1010-S/SP16 (LEM LF1010-SSP16)
• Closed-loop (magnetic balance / zero-flux) Hall effect technology
• Nominal current: 1000A RMS
• Measuring range: ±2100A peak
• Accuracy: ±0.4% (25°C)
• Linearity: ≤ ±0.15%[reference:9]
• Bandwidth: DC ~ 200kHz (-3dB)
• Response time: <0.5µs (di/dt = 200A/µs)
• Supply voltage: ±15 ~ ±24V DC (±14.25 ~ ±25.2V range)
• Secondary output: ±200mA (0.2mA/A sensitivity)
• Insulation voltage: 3kV AC/1min, 14.1kV impulse

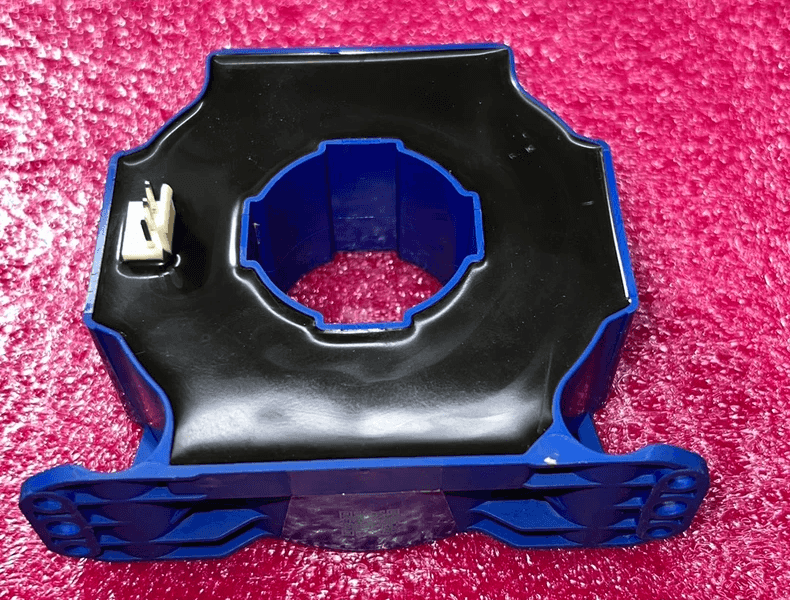

• JST S3P-VH connector

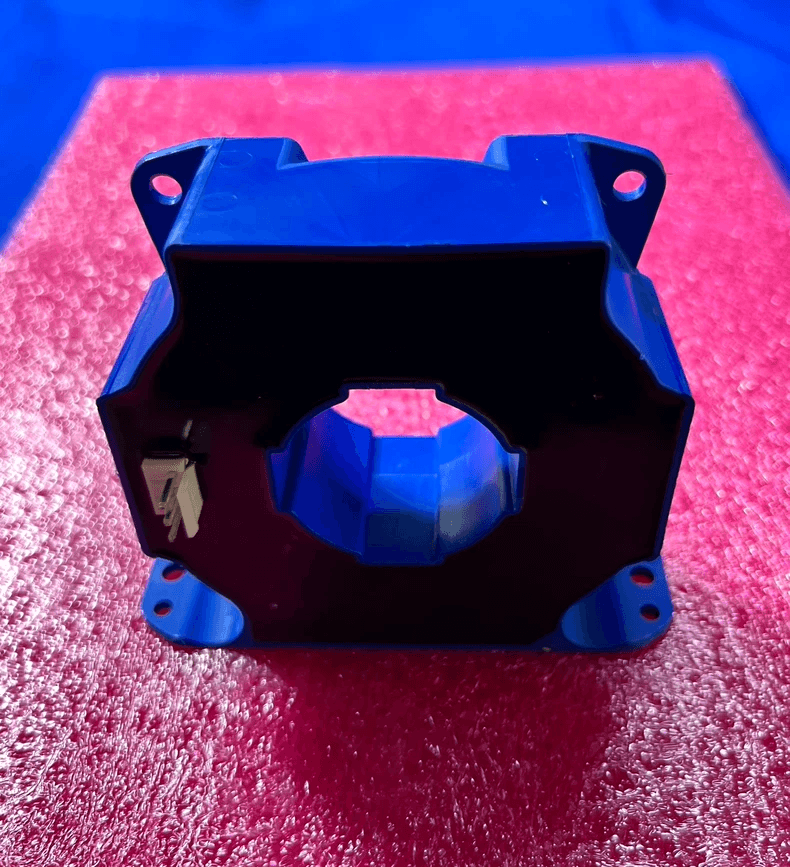

• Panel mounting – 4×Φ4.2mm mounting holes
• Weight: 435g
• Operating temperature: -40°C to +85°C
• Conforms to EN 50178, UL 508, CE
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ABB ACS880, ACS800 series drives
• Used for DC bus current and motor phase current feedback
• Commonly deployed in ABB medium and high-voltage VFDs, wind power converters, servo drives, and UPS systems
• SP16 variant features JST S3P-VH connector – verify connector compatibility with your drive[reference:21]
• Not compatible with sensors using different connector types without adapter
• Verify drive model and original sensor part number before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
