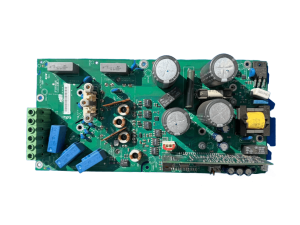

ABB RINT-5211C ACS800 Drive Board with RASI-01C – IGBT Driver & Comms Board – Tested

Product Overview

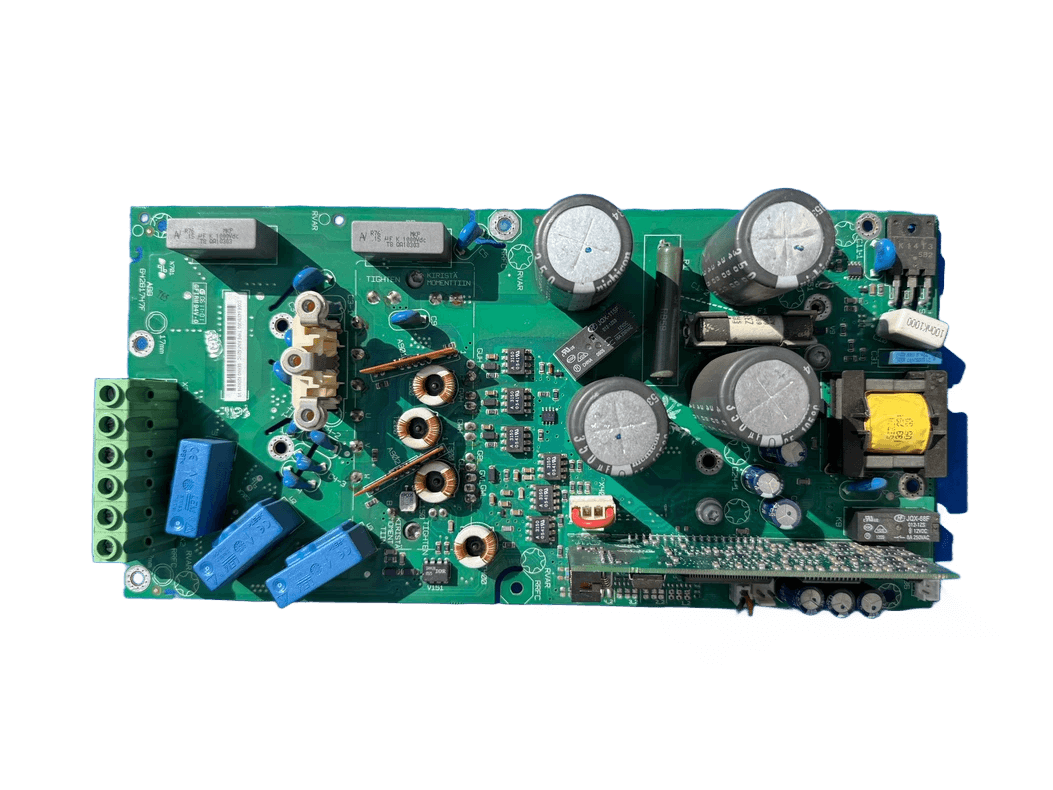

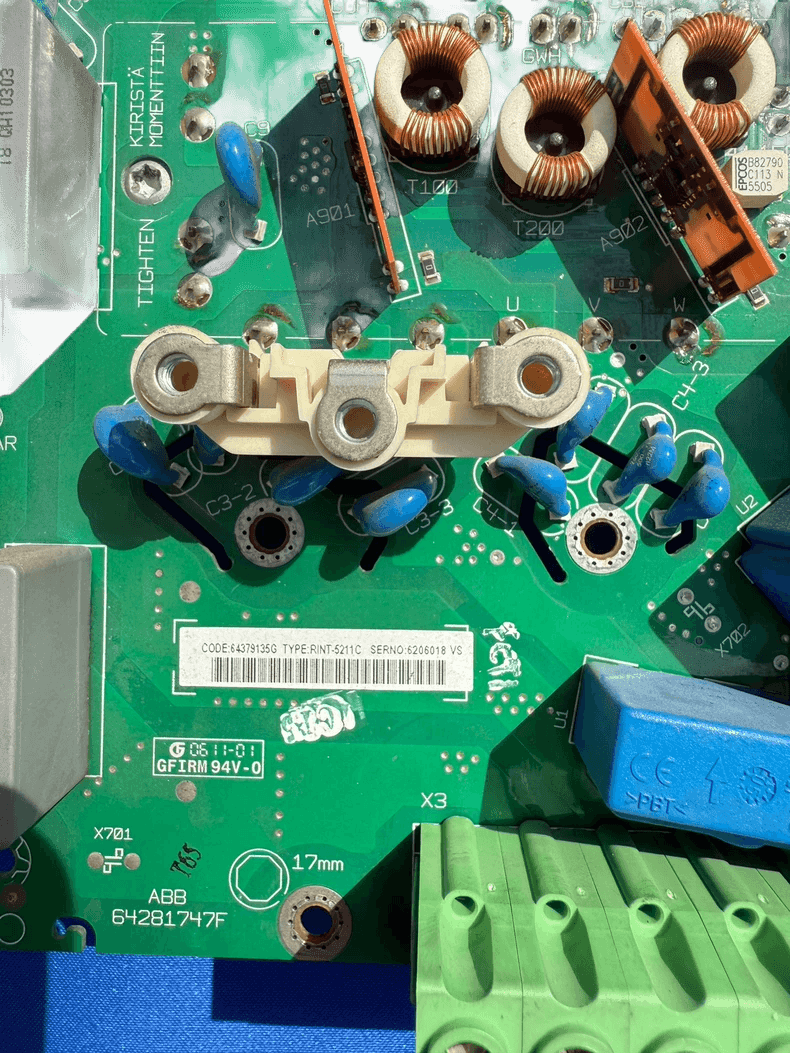

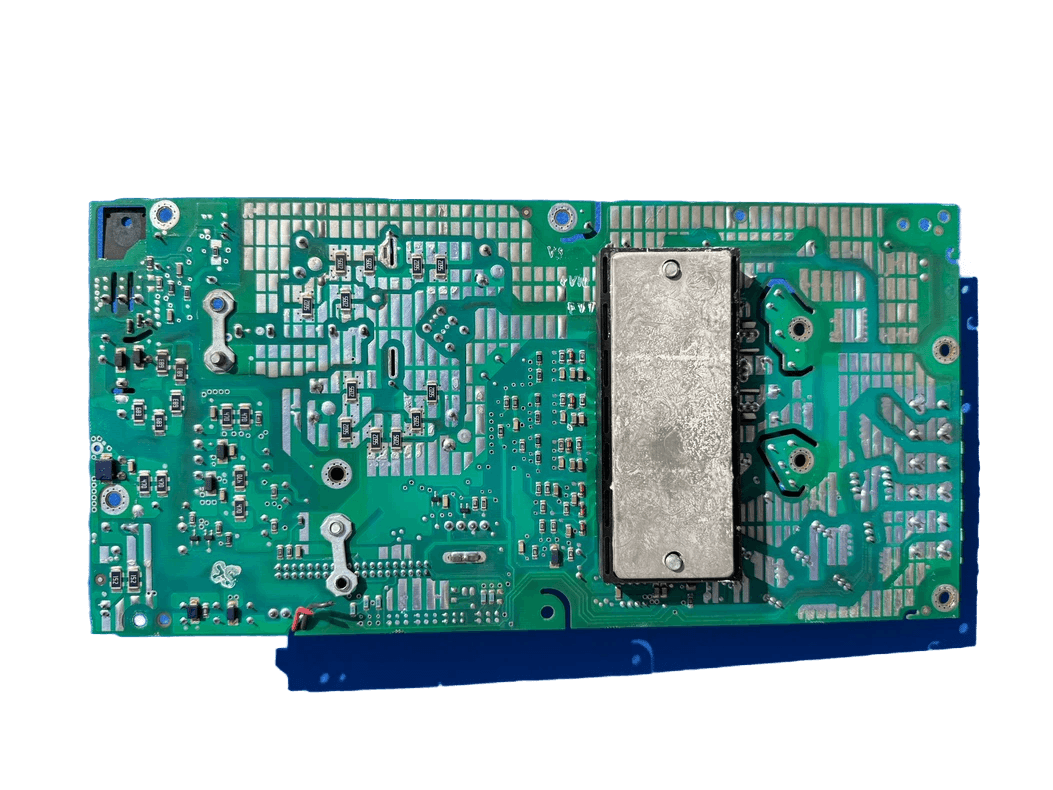

Original ABB RINT-5211C main control and IGBT driver board for ACS800 series drives, complete with RASI-01C vertical communication board. This kit provides the complete drive control and interface solution for ACS800 inverters.

Key Features

• Genuine ABB original – for ACS800 series drives
• RINT-5211C: Main control board – IGBT gate pulse generation and fault monitoring
• RASI-01C: Vertical communication riser board
• Supports drive control logic: start/stop, enable, fault handling
• Signal conditioning and routing functions
• Complete kit – both boards included
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS800 series drives (ACS800-01, ACS800-07 frames)
• Integral board combination – if these boards fail, the drive will not operate
• RASI-01C mounts vertically on RINT-5211C – provides communication interface
• Verify drive model and hardware version before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; both boards tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
