ABB RVAR-5612 Surge Absorber / Filter Board – ACS800 VFD Protection – Tested

Product Overview

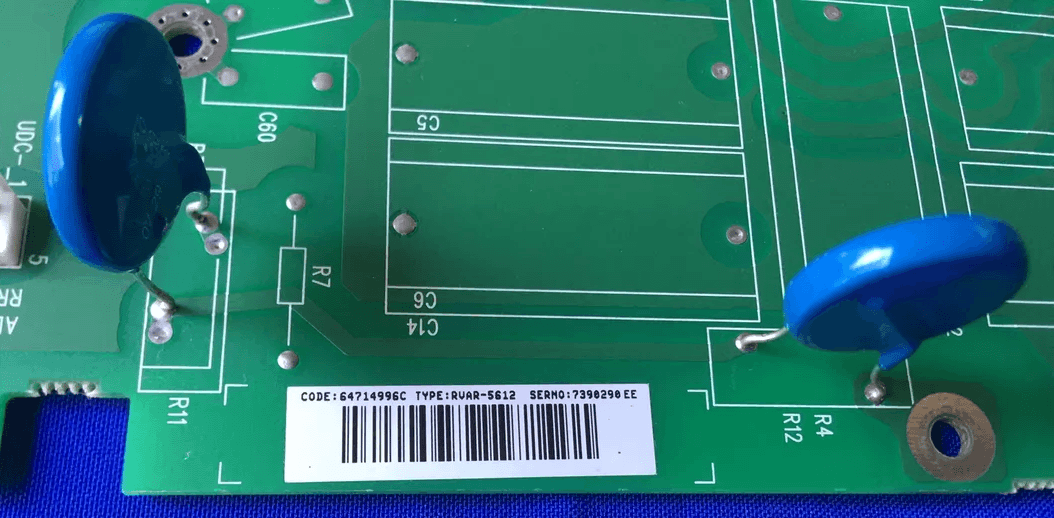

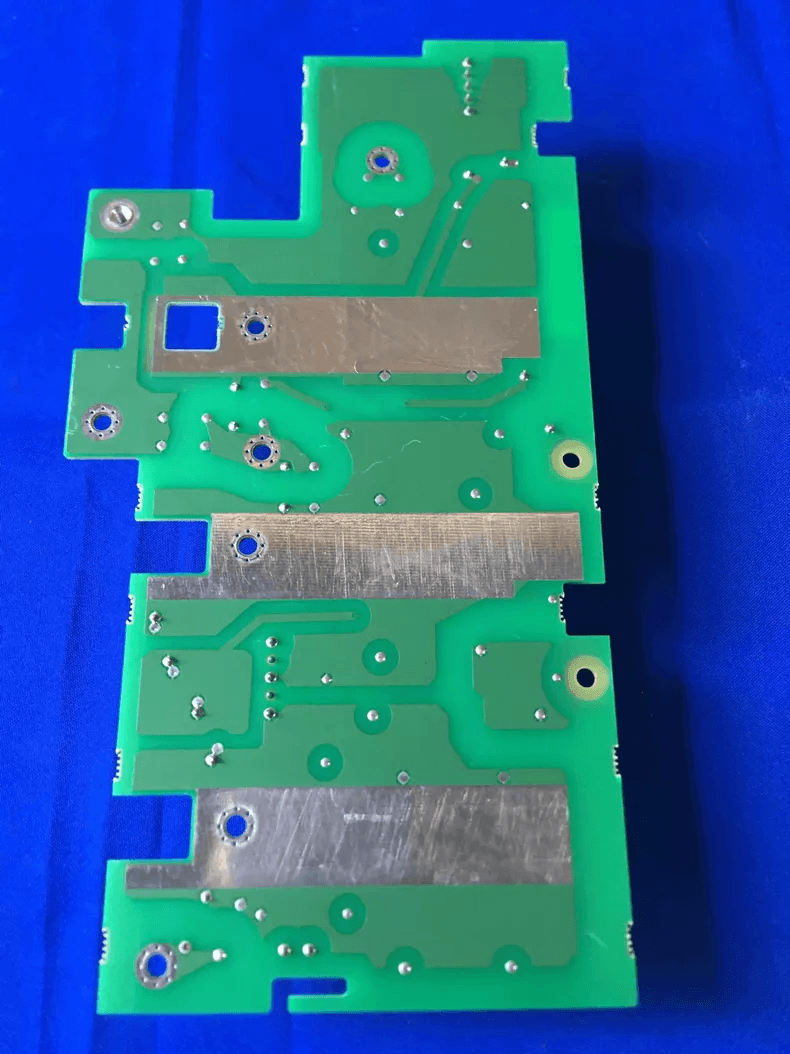

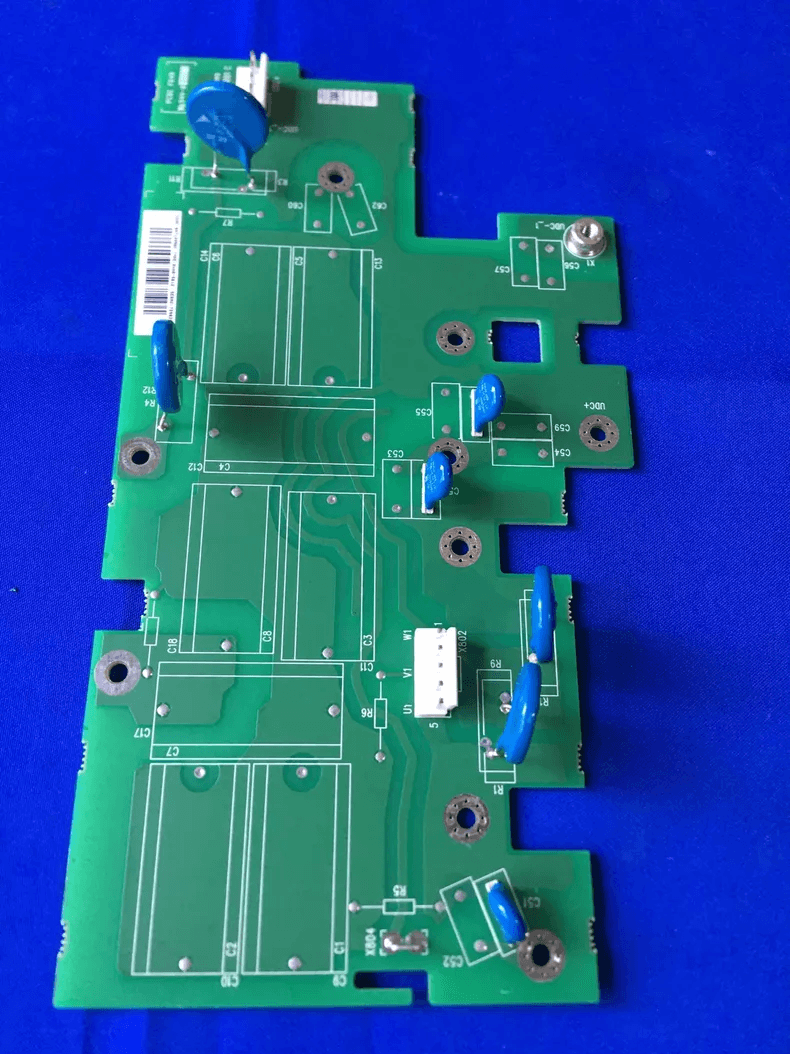

Original ABB RVAR-5612 surge absorption and EMI filter board for ACS800 series drives. Installed on the AC input side of the drive power unit, this board serves as a transient overvoltage protection barrier for the DC bus and power circuit. It integrates high-energy metal oxide varistors (MOVs) and RC snubber circuits to absorb transient grid surge voltage, lightning impulse spikes, and switching voltage spikes generated by contactors or nearby power equipment. As a passive protection component, it requires no parameter configuration, communication setup, or software download – install and it is active.

Key Features

• Genuine ABB original – RVAR-5612 surge absorption and filter board

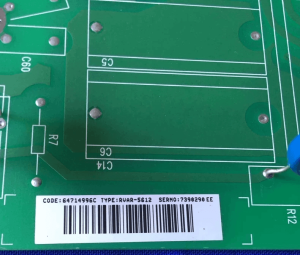

• Three-phase independent MOV varistor per phase + RC absorption loop
• Suppresses lightning-induced transients, switching surges, and grid voltage spikes
• Protects rectifier bridge, DC bus capacitors, and IGBT modules from surge breakdown
• Filters high-frequency EMI noise from the AC input
• Passive protection – no parameter configuration or software required
• Conformal coated PCB – corrosion protection for harsh environments
• Compatible with ACS800 medium/high power drives (75-132KW range)
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS800 series medium and high-power drives
• Specifically designed for 75KW / 90KW / 110KW / 132KW power ratings
• Installed on the AC input side of the power unit
• Part numbers: 68260850 / 64714996 – verify original board marking
• Also compatible with ACS600/550/500 series in some configurations
• Often works in conjunction with RDCU-02C (Control Board), RMIO-01C (Main Interface Board), and charging resistors (e.g., RVAR-5512)
• Passive component – no firmware or parameter configuration required
• Verify drive model and hardware version before ordering

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
