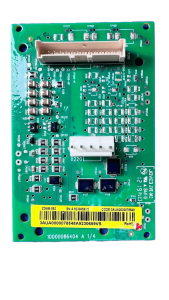

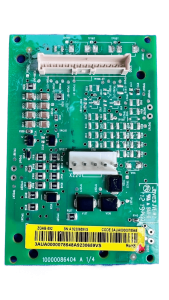

ABB ZGAB-592 Brake Chopper Adapter Board – ACS880 Braking Unit – Tested

Product Overview

Original ABB ZGAB-592 brake chopper adapter board for ACS880 series drives. Serves as the core energy dissipation unit in the drive’s regenerative braking system, controlling the braking chopper to transfer excess energy from the DC link to an external braking resistor when required. Used in ACS880 R8/R9 frame drives.

Key Features

• Genuine ABB original – ZGAB-592 brake chopper adapter board
• Part of the ACS880 braking system – core energy dissipation unit
• DC bus voltage capability: up to 1200V
• Brake chopper trigger voltage: 1180V ±15V
• Response time: <2ms from overvoltage detection to IGBT turn-on
• Designed for ACS880 R8/R9 frame drives
• Controls braking IGBT to dissipate regenerative energy through external resistor
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS880 series drives (R8/R9 frames)
• Functions as the brake chopper adapter board in the braking system
• Part of the braking chopper assembly – controls IGBT to dissipate regenerative energy
• Requires external braking resistor (not included)
• Important: This is a ZGAB board – do not confuse with ZGAD (gate driver adapter board) or ZINT (main circuit board)
• Verify drive model and hardware version before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
