ABB ZGAD-572 Drive Board with FF300R12ME4_B11 IGBT Module – 1200V 300A – Tested

Product Overview

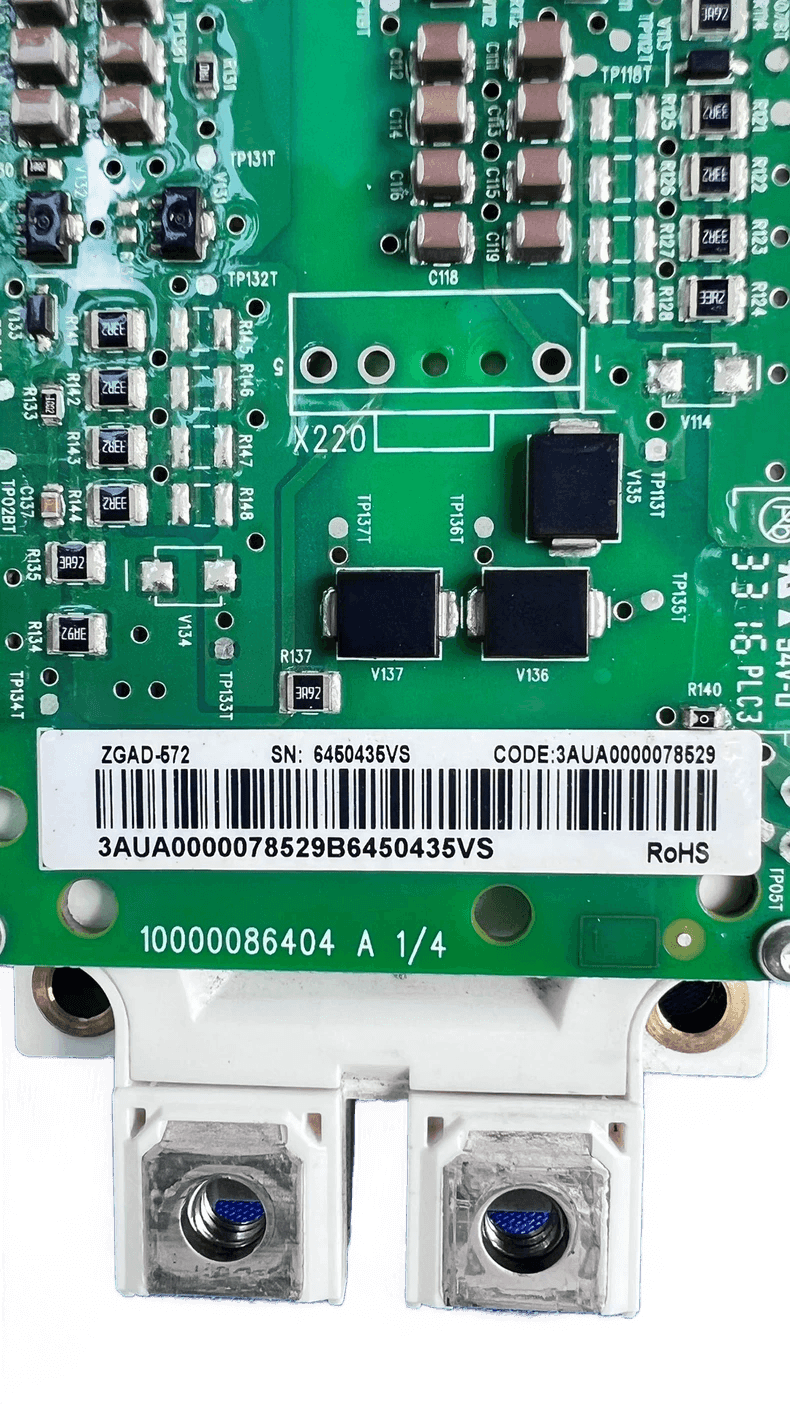

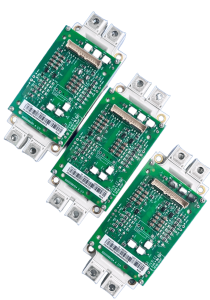

Original ABB ZGAD-572 gate driver adapter board with Infineon FF300R12ME4_B11 IGBT power module. The FF300R12ME4_B11 is an Infineon EconoDUAL 3 1200V/300A half-bridge dual IGBT module with TRENCHSTOP IGBT4 technology, Emitter Controlled HE diode, and integrated NTC thermistor. The ZGAD-572 gate adapter board provides secure plug-and-play gate signal connection and mechanical strain relief. This matched set forms the core of ABB ACS880 and ACS580 drive power units.

Key Features

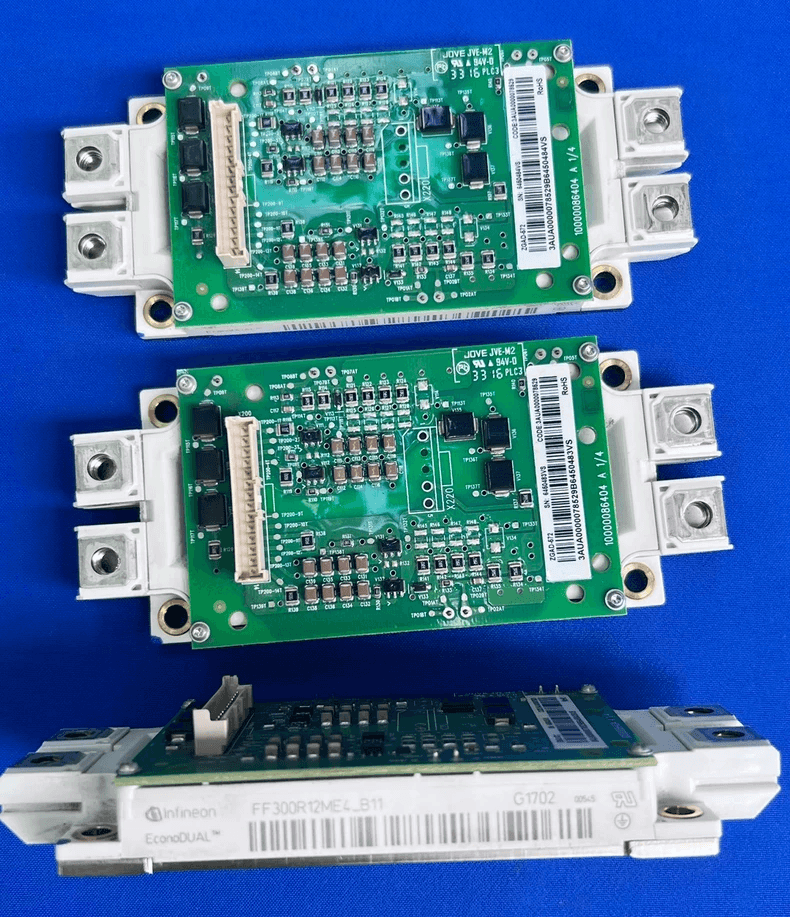

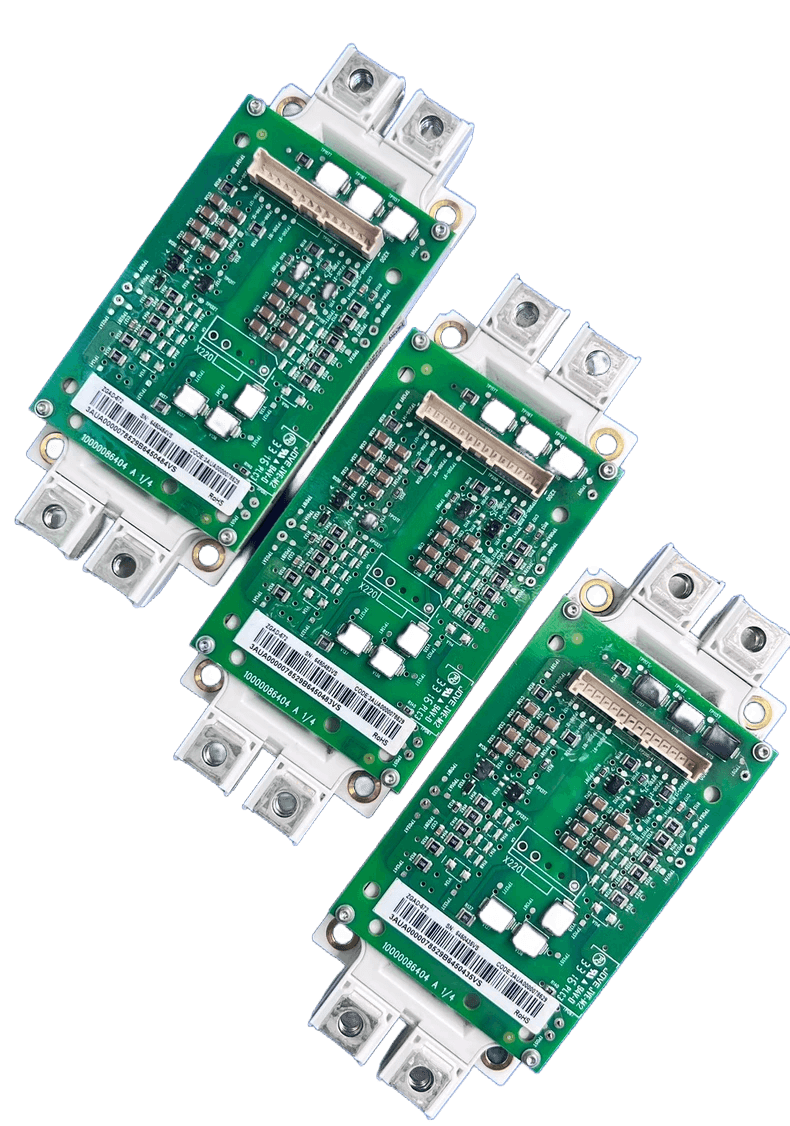

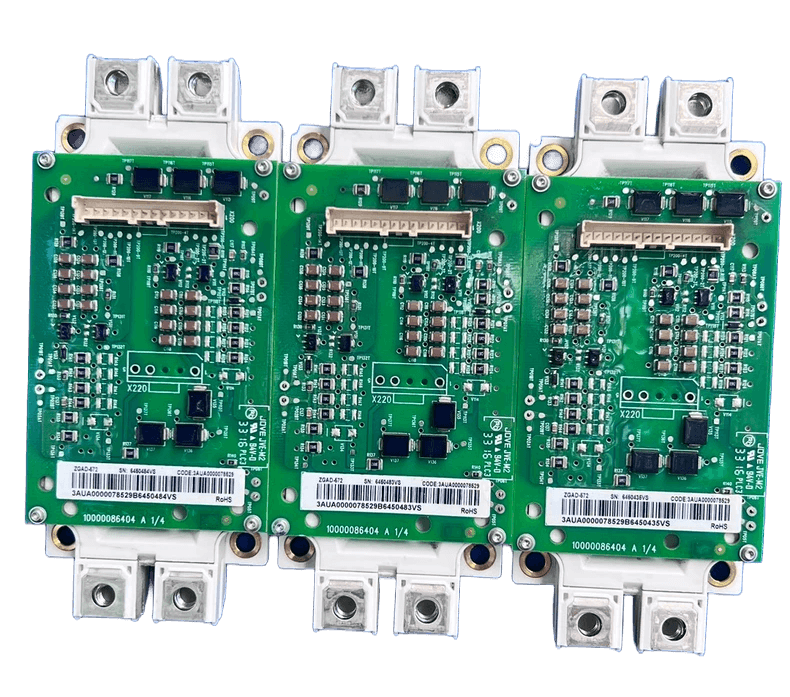

• Genuine ABB kit – ZGAD-572 gate driver adapter board + FF300R12ME4_B11 IGBT module
• IGBT: 1200V / 300A half-bridge dual configuration

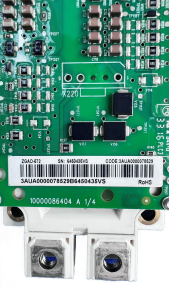

• Infineon EconoDUAL 3 package with TRENCHSTOP IGBT4 technology
• Low V_CEsat and fast switching performance
• Integrated Emitter Controlled HE diode for reduced switching losses
• Built-in NTC thermistor for real-time temperature monitoring
• PressFIT contact technology – no soldering required
• ZGAD-572 adapter: secure gate signal connection and mechanical strain relief
• Output power: up to 2000 kW (system dependent)
• Voltage range: 380-480 VAC
• Protection features: overvoltage, overcurrent, short-circuit
• Control interface: Profibus-DP, Ethernet
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS880 series drives
• Also compatible with ACS580 series drives
• ZGAD-572 adapter compatible with EconoDUAL™ 3 (ME4 series) IGBT modules
• Also supports CM300DXP-24T (Mitsubishi) and 2MBI300VX-120-50 IGBT modules in some configurations
• Matched kit – gate adapter board and IGBT module are designed as a pair
• Verify drive model, hardware version, and original component part numbers before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; both gate adapter board and IGBT module tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
