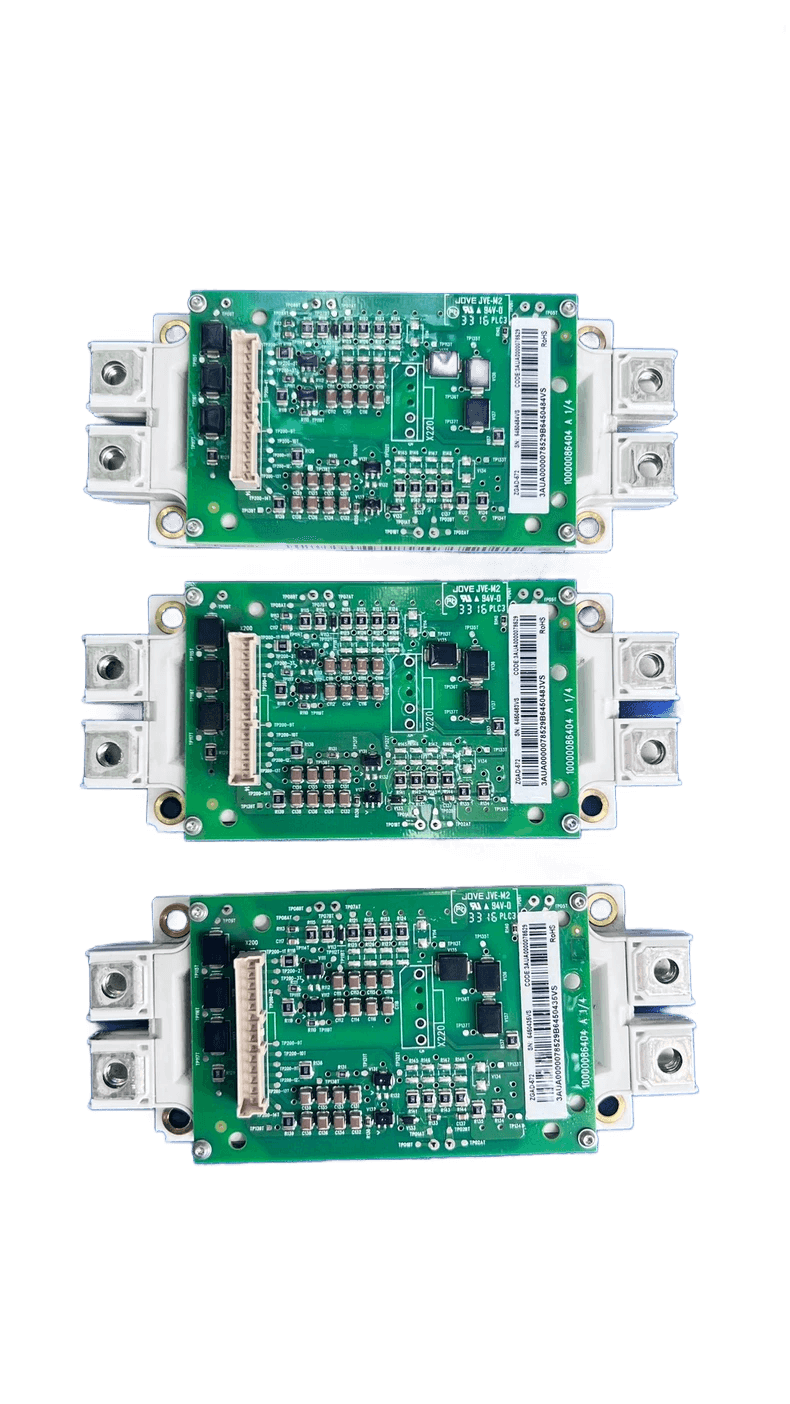

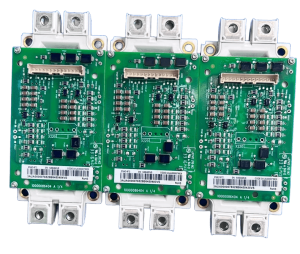

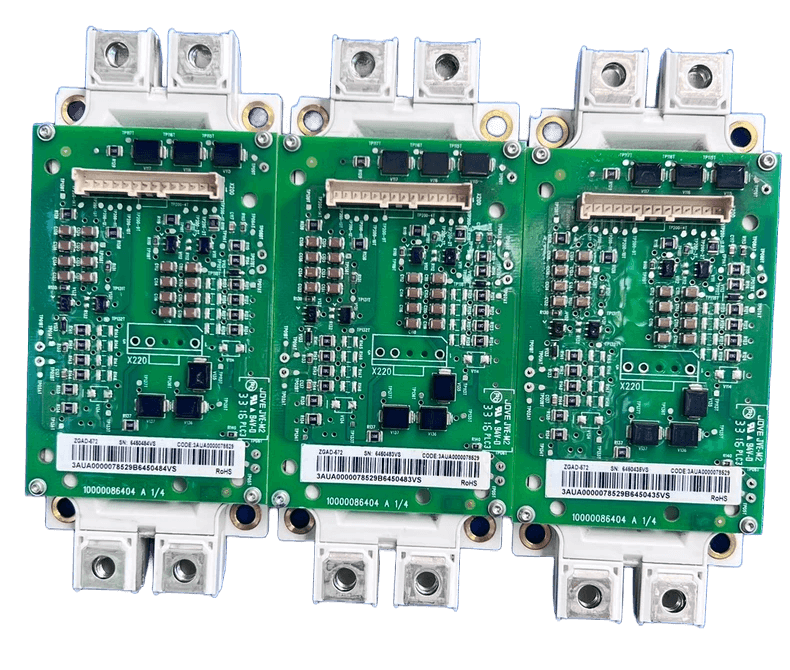

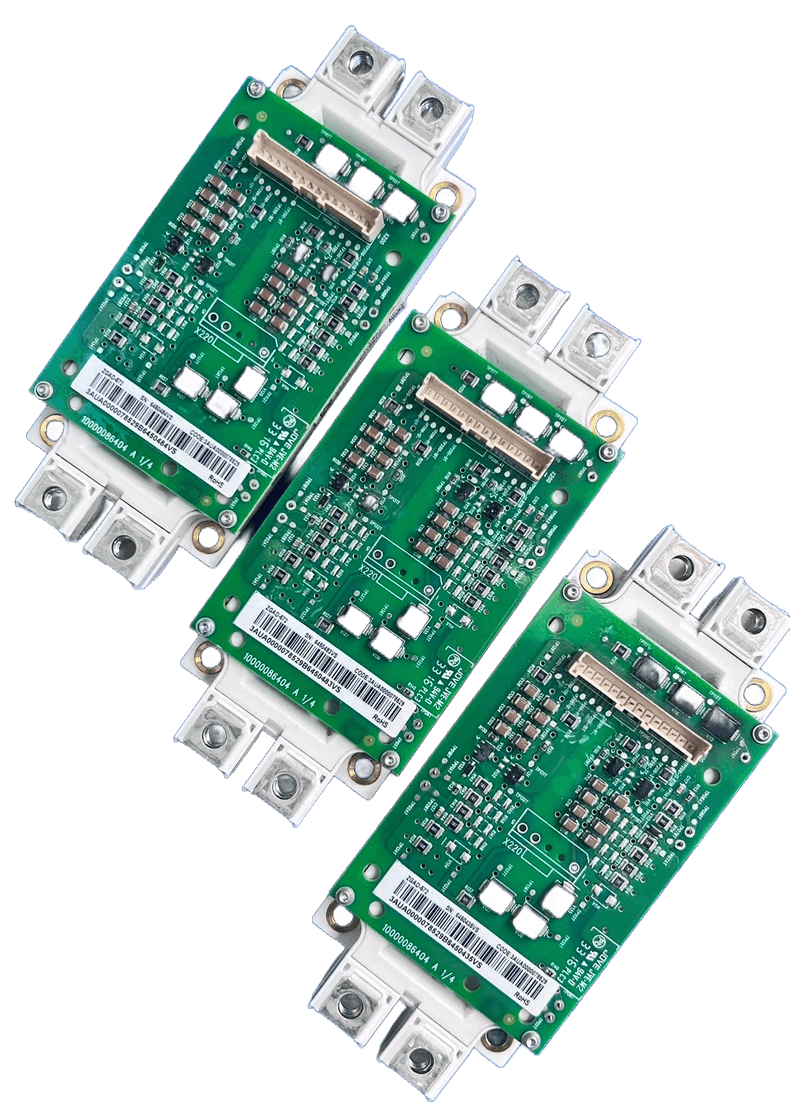

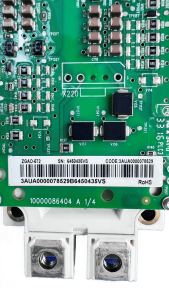

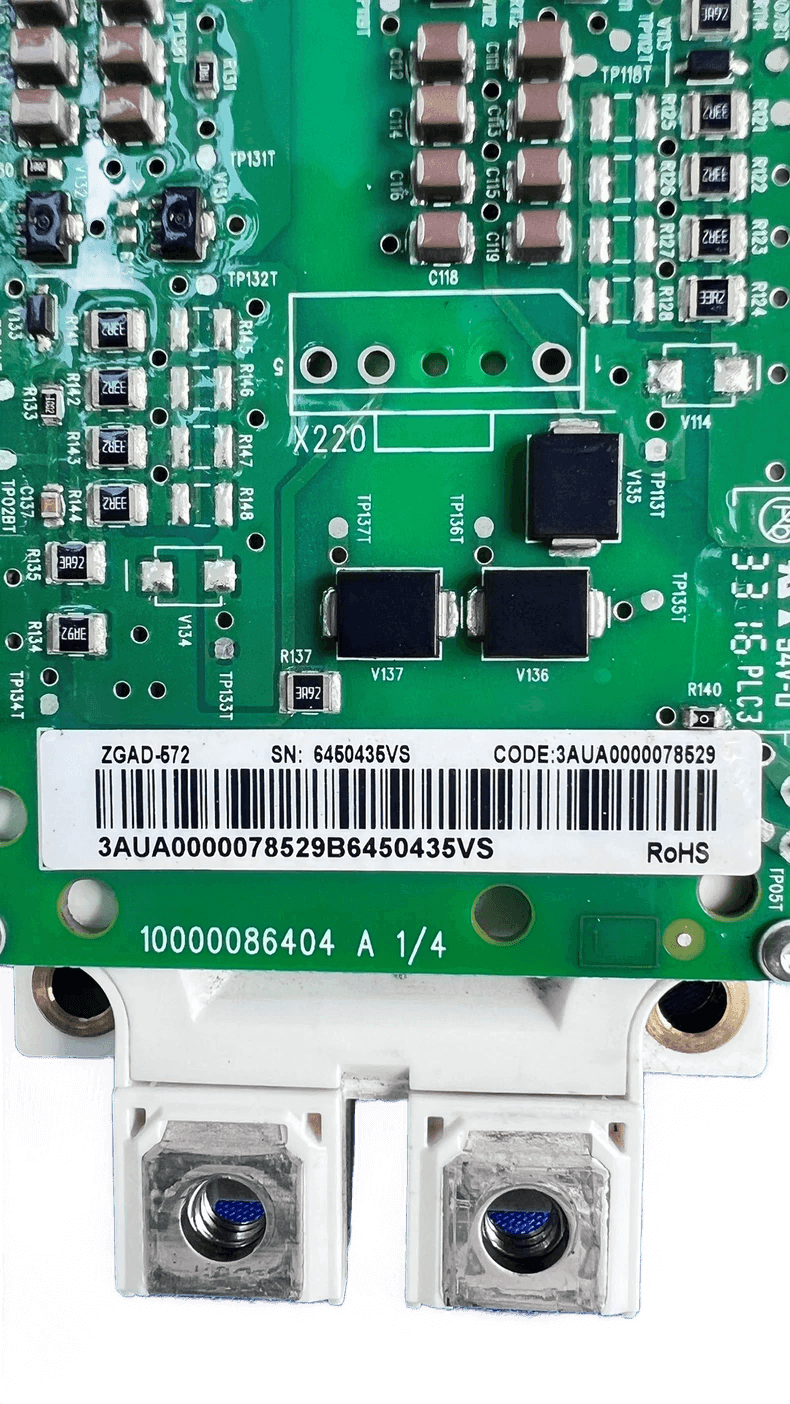

ABB ZGAD-572 IGBT Module / Drive Board – Tested

Product Overview

Original ABB ZGAD-572 IGBT power module and drive board assembly for ACS880 series drives. This module serves as the core power switching component for ACS880 three-phase inverter units, combining IGBT power semiconductor switching with integrated gate drive circuitry. Compatible with FF300R12ME4_B11 IGBT module configuration. Rated at 1200V and 300A, suitable for medium to high-power industrial drive applications.

Key Features

• Genuine ABB original – ZGAD-572 IGBT module / drive board assembly
• Compatible with FF300R12ME4_B11 IGBT module (Infineon EconoDUAL 3)
• Voltage rating: 1200V
• Current rating: 300A continuous
• Three-phase inverter power stage core
• Integrated gate driver circuitry
• Designed for ACS880 series drives
• 9/10 condition – original pulled, no repair

Specifications

Compatibility Note

• Compatible with ACS880 series drives
• Specifically designed for use with FF300R12ME4_B11 IGBT module (Infineon EconoDUAL 3)
• Also referenced as ED3 300A1200V/ZGAD-572 configuration
• May also support CM300DXP-24T IGBT module in some configurations
• Used as IGBT power module in ACS880 frequency converter units
• Verify drive model and original module configuration before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• 9/10 condition – original pulled from working drive; fully functional with minimal signs of use
• Tested with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
