ABB ZGAD-572 IGBT Module – FF300R12ME4_B11 – 1200V 300A – Tested

Product Overview

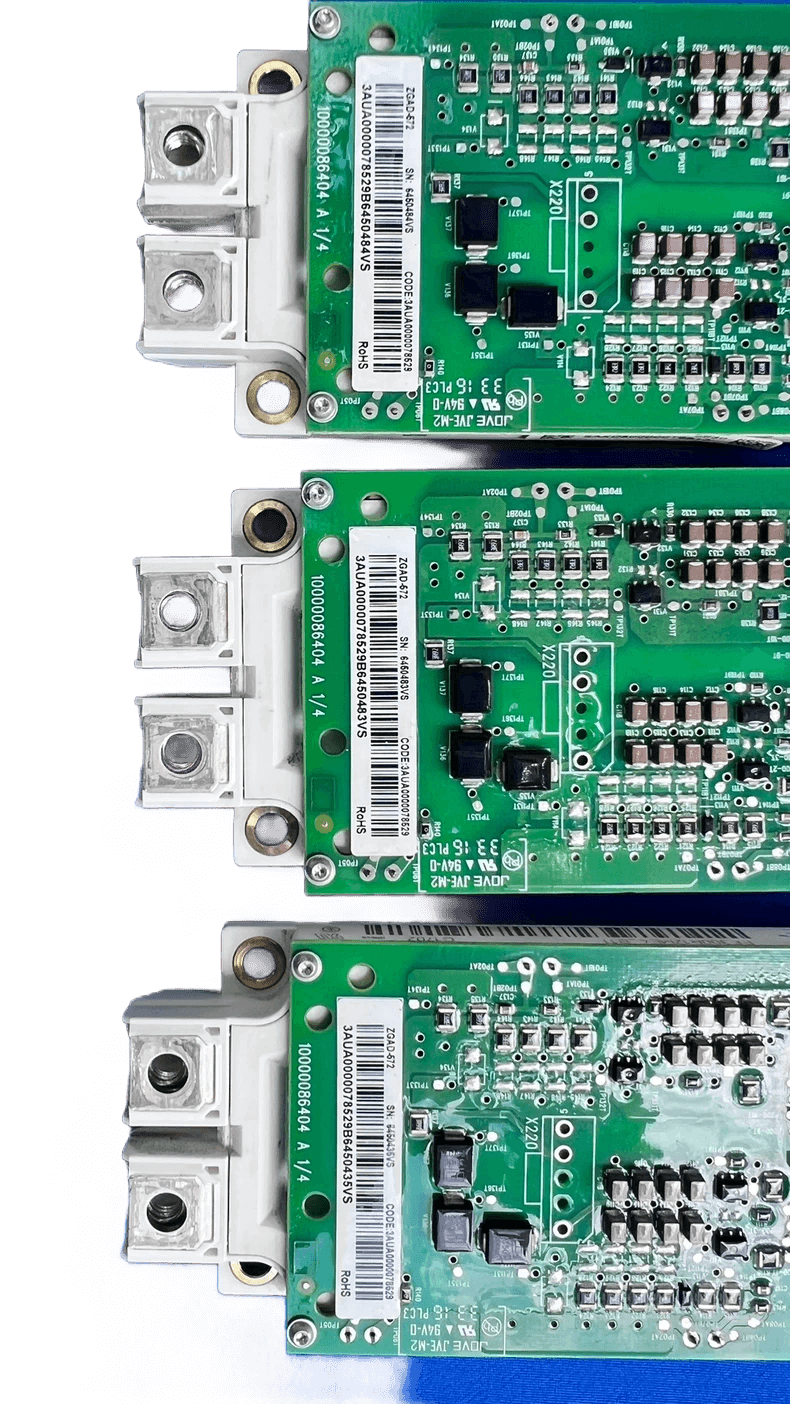

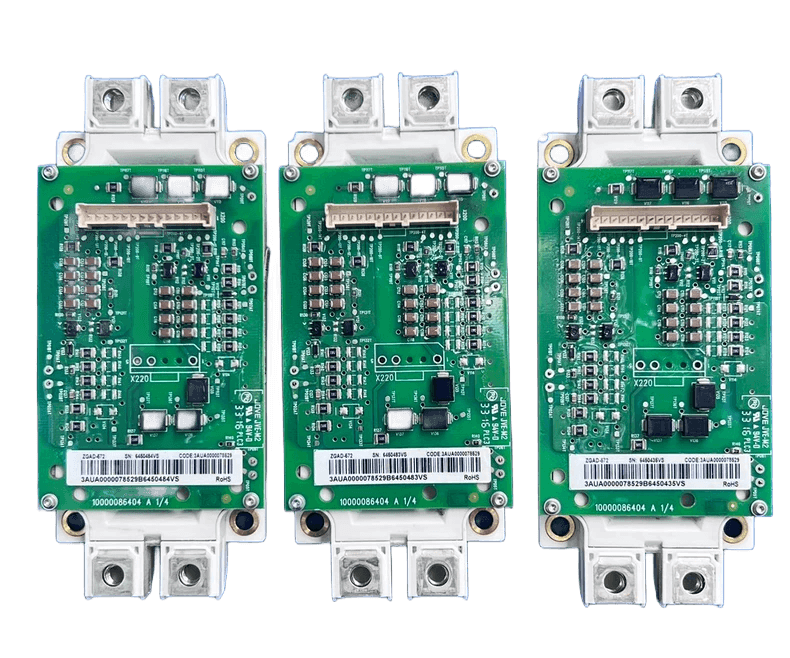

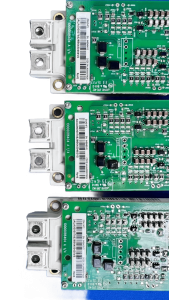

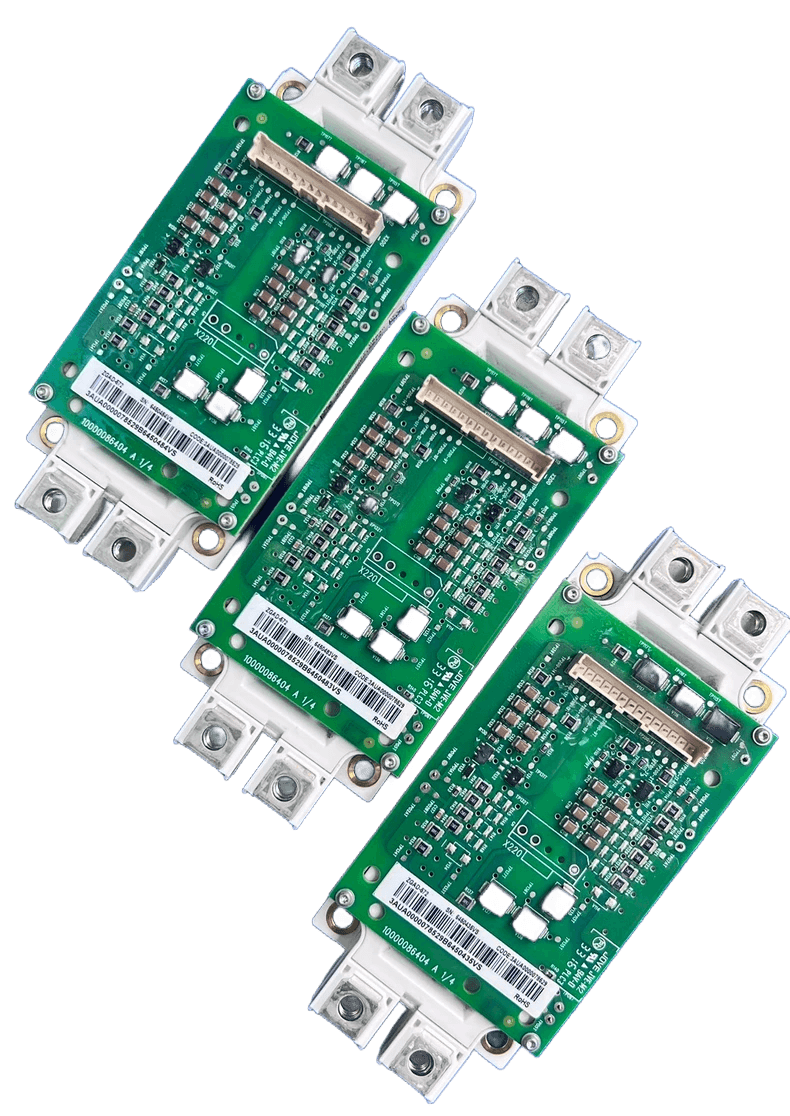

Original ABB ZGAD-572 IGBT power module featuring the FF300R12ME4_B11 dual-switch IGBT module. Designed for ACS880 series high-power drives. 1200V voltage rating, 300A continuous current capability. The module features advanced trench field-stop IGBT technology and includes a built-in NTC thermistor for temperature monitoring.

Key Features

• Genuine ABB original – for ACS880 series high-power drives

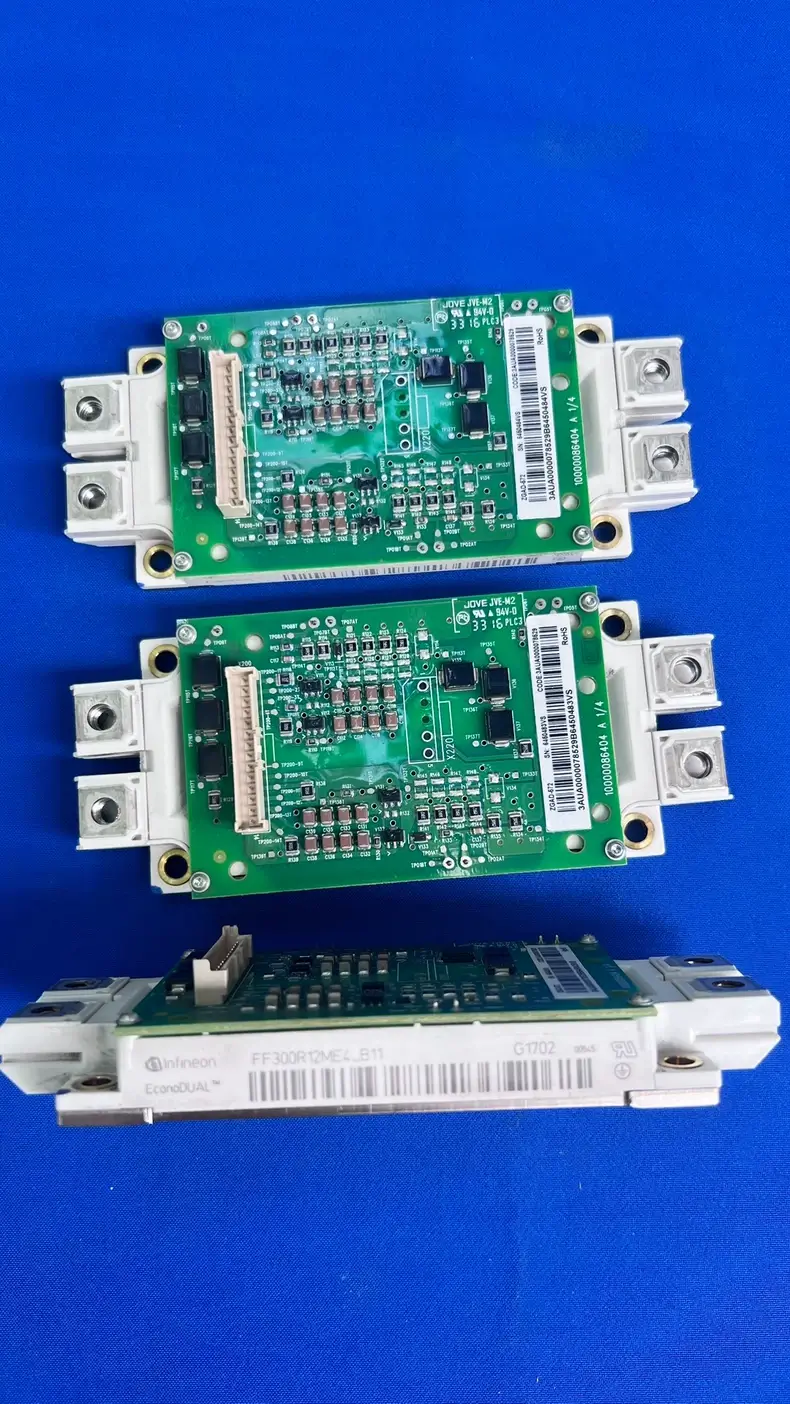

• IGBT Module: FF300R12ME4_B11 (Infineon EconoDUAL 3)
• Voltage: 1200V
• Current: 300A continuous / 600A pulse
• Dual-switch (half-bridge) configuration
• Trench field-stop IGBT technology – low V_CE,sat
• Built-in NTC thermistor for temperature monitoring
• 9/10 condition – original pulled, no repair

Specifications

Compatibility Note

• Compatible with ACS880 series high-power drives
• FF300R12ME4_B11 is a dual-switch (half-bridge) module in EconoDUAL 3 package
• Built-in NTC thermistor – provides real-time module temperature monitoring
• Commonly used in high-power inverter cabinets and drive power units
• Verify drive model, power rating, and connector layout before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• 9/10 condition – original pulled from working drive; fully functional with minimal signs of use
• Tested with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
