ABB ZGAD-592 IGBT Module – 2MBI600VX-120-50 – 1200V 600A – Tested

Product Overview

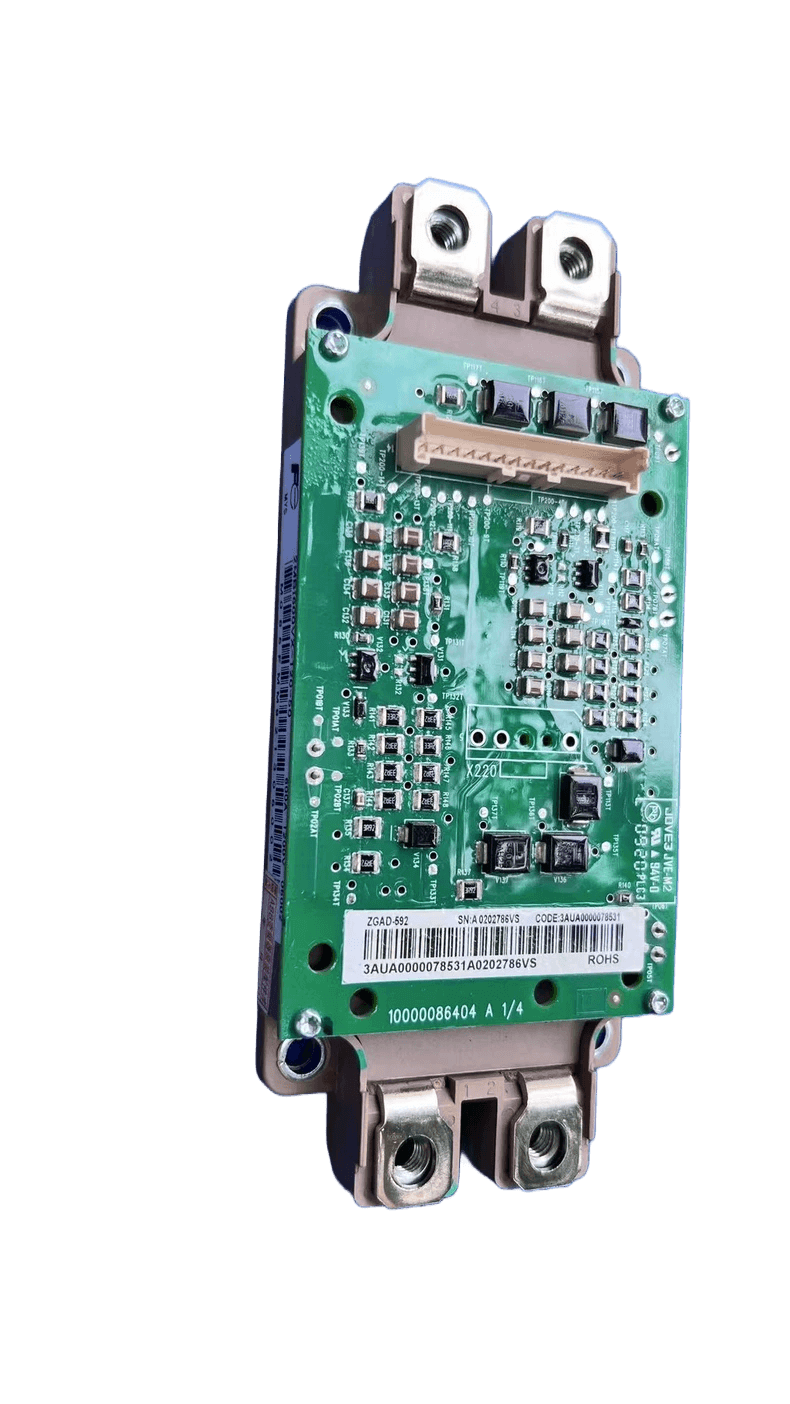

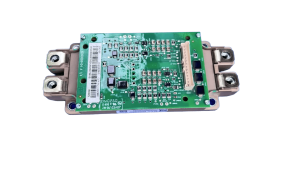

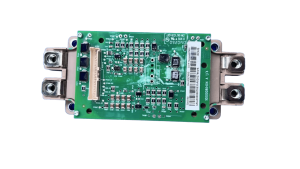

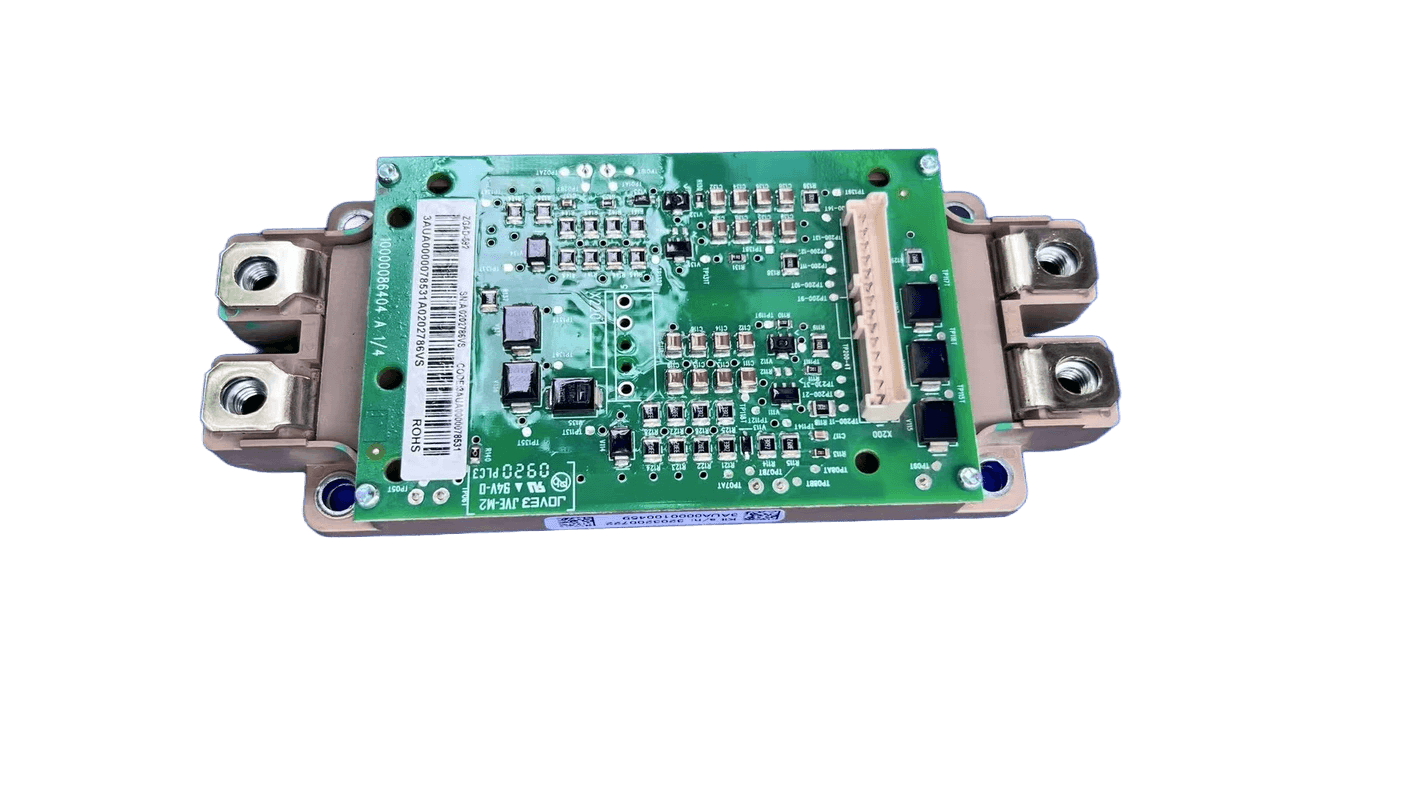

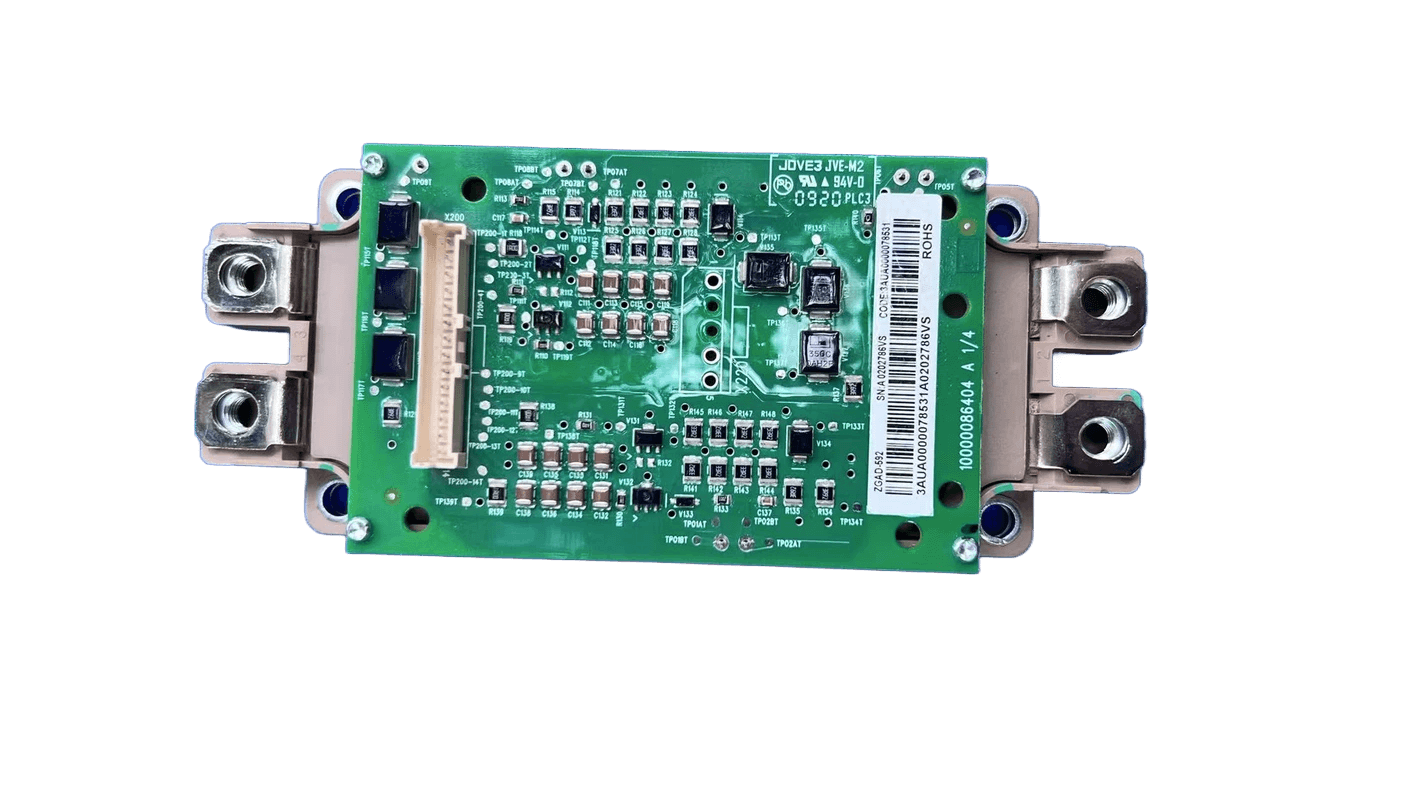

Original ABB ZGAD-592 IGBT power module featuring the 2MBI600VX-120-50 dual-switch IGBT module. Designed for ACS880 series high-power drives. 1200V voltage rating, 600A continuous current capability. The module integrates two IGBT switches in a 2-in-one package with advanced trench-field stop technology for low conduction and switching losses.

Key Features

• Genuine ABB original – for ACS880 series high-power drives

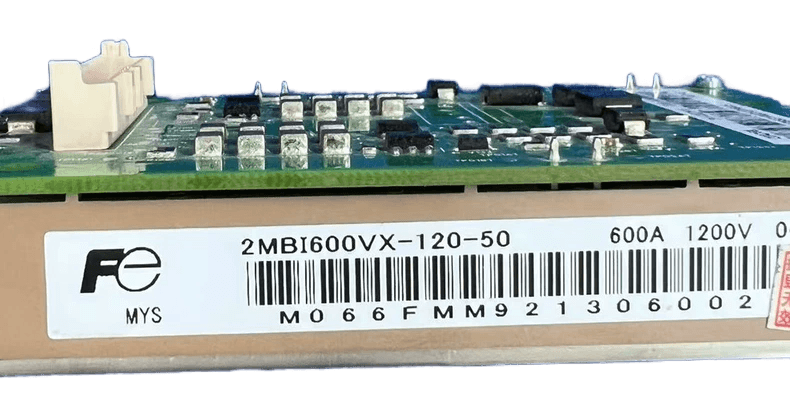

• IGBT Module: 2MBI600VX-120-50 (Fuji Electric V-series)
• Voltage: 1200V
• Current: 600A continuous (1200A pulse)
• Dual-switch (2-in-one package) configuration
• Low saturation voltage: typical 1.80V
• High junction temperature: up to 175°C
• Optimized for high-frequency PWM operation
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with ACS880 and ACS580 series high-power drives
• 2MBI600VX-120-50 is a dual-switch (2-in-one) module – half-bridge configuration
• Commonly used in high-power inverter cabinets and drive power units
• Verify drive model, power rating, and connector layout before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
