ABB ZMAC-542 ACS800 Drive Board – Main Controller & Gate Driver – Tested

Product Overview

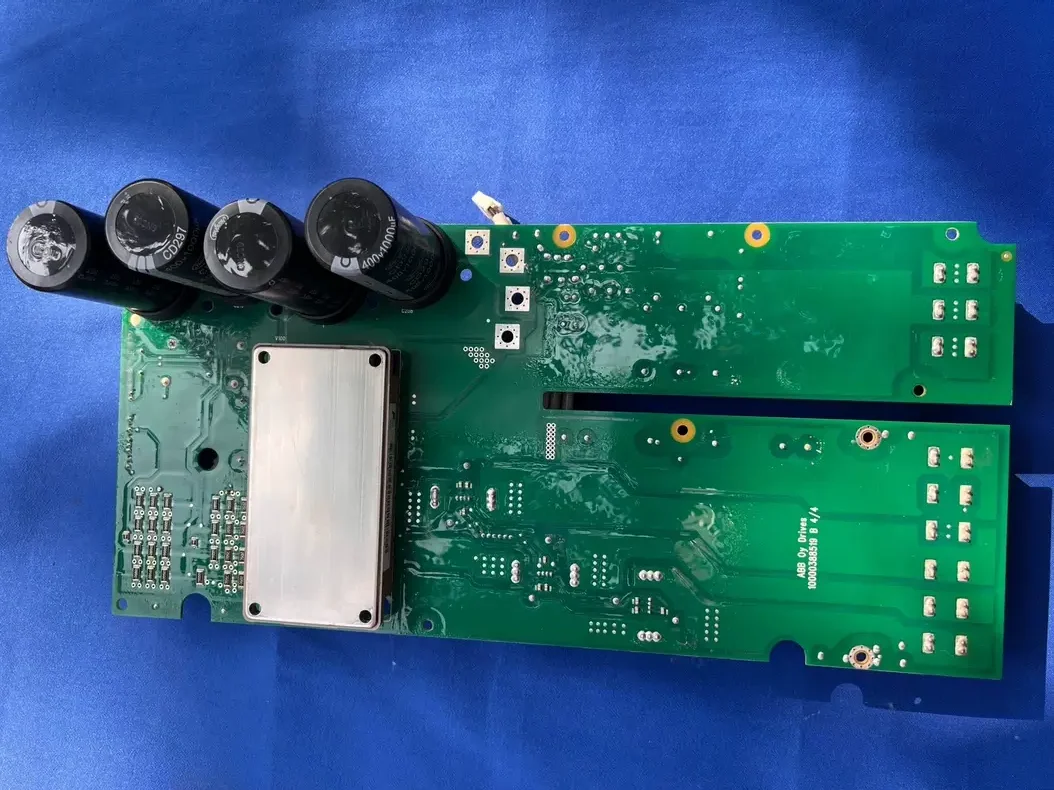

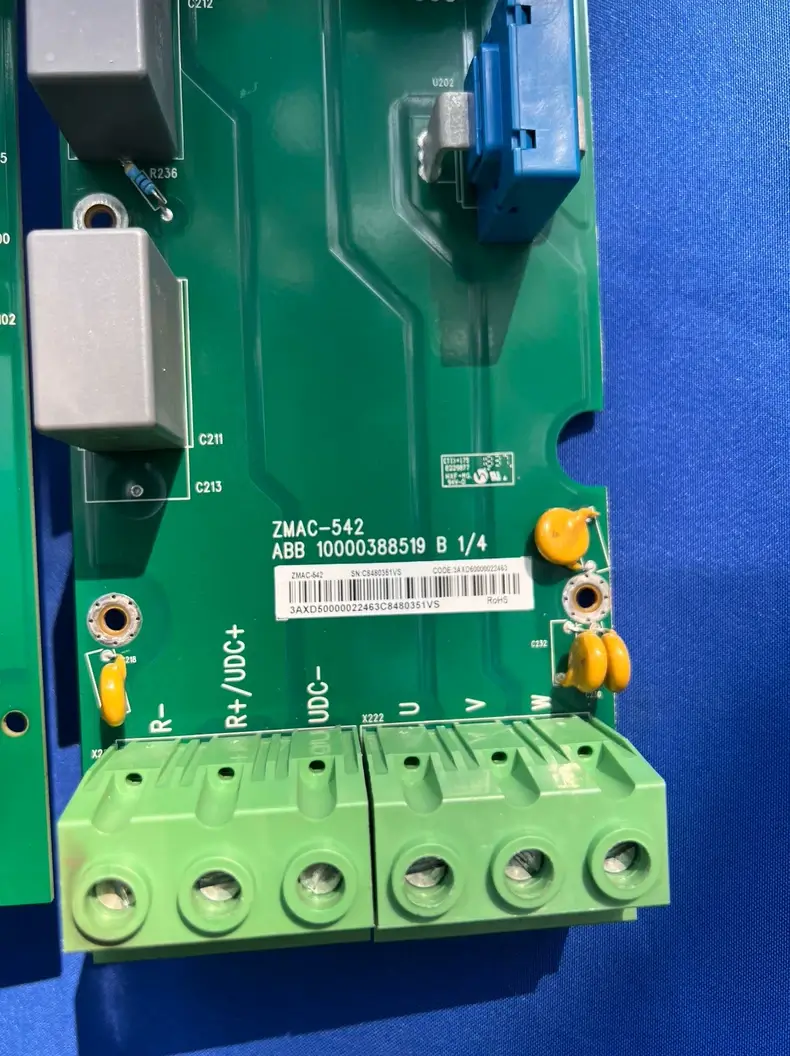

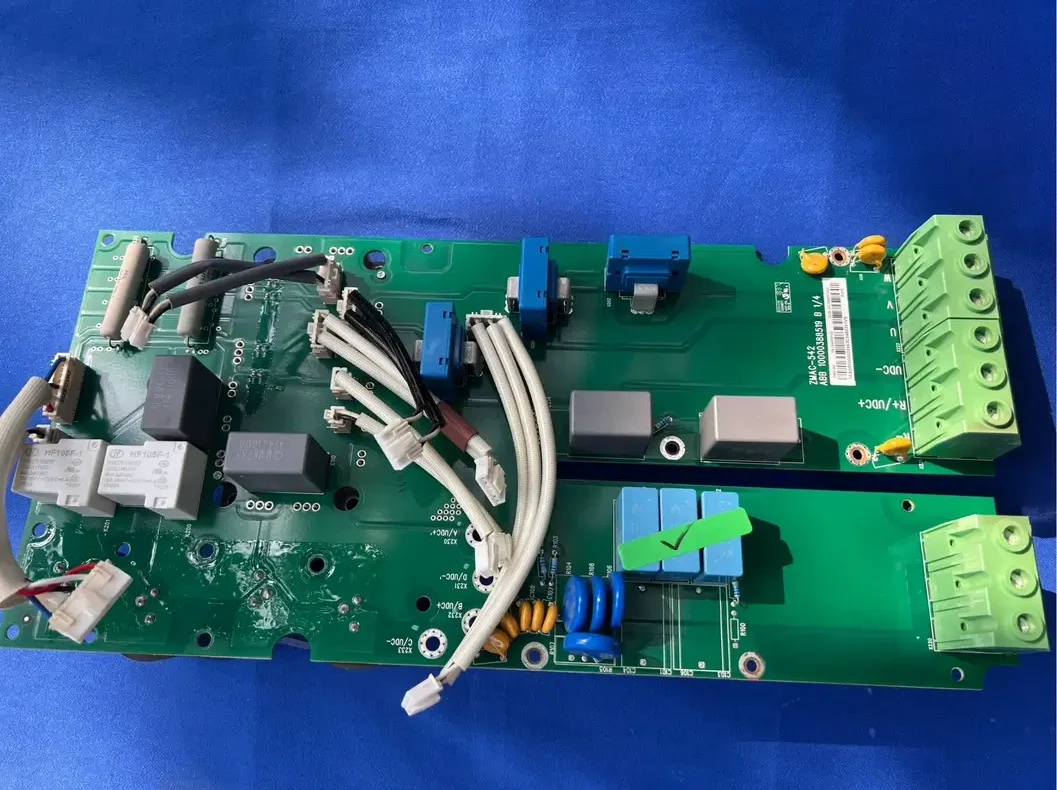

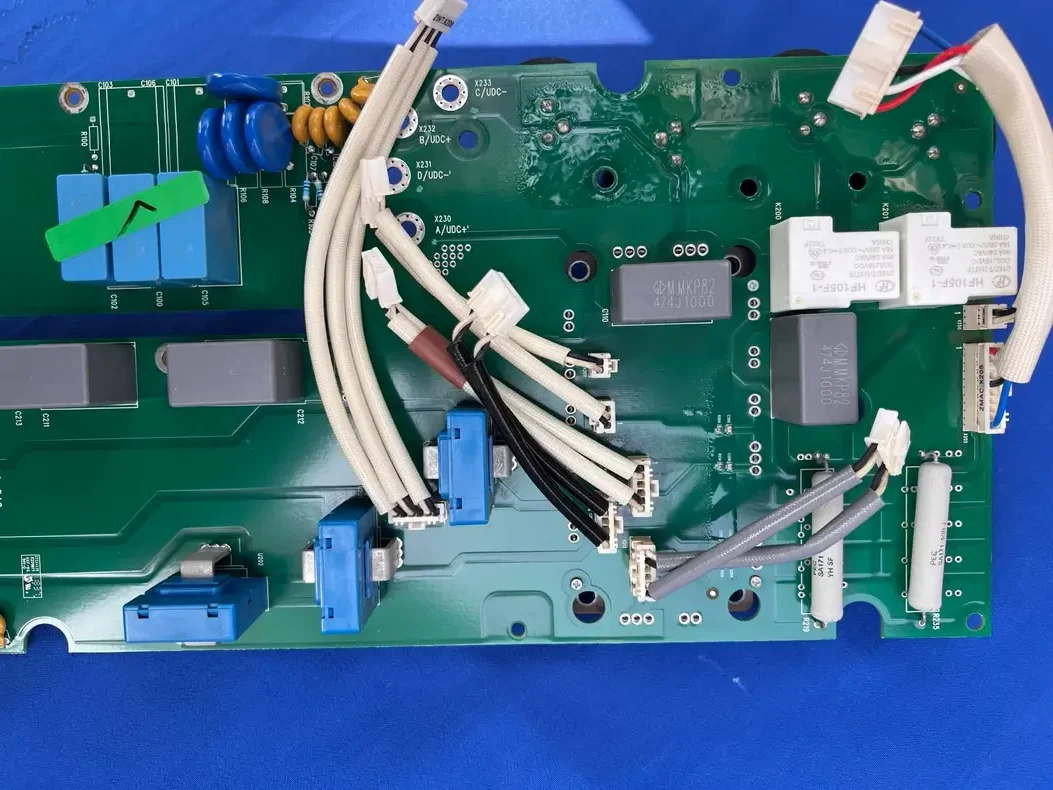

Original ABB ZMAC-542 main controller and gate driver board for ACS800 series drives. Integrates power supply management, high-performance microcontroller, six isolated PWM outputs for IGBT triggering, and communication interfaces. This board is the central control and signal generation core of the drive.

Key Features

• Genuine ABB original – for ACS800 series drives
• Integrated main controller + gate driver + power management
• 6 isolated PWM gate drive outputs for IGBT modules
• Onboard switching power supply – generates +5V, ±15V, +24V
• High-performance microcontroller – V/F and vector control algorithms
• Communication interfaces – supports fieldbus and I/O expansion
• Real-time diagnostics via LEDs and communication
• 9/10 condition – original pulled, no repair history

Specifications

Compatibility Note

• Compatible with ACS800 series drives
• Integral board – if this board fails, the drive will not operate
• Verify drive model, hardware version, and original board revision before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• 9/10 condition – original pulled from working drive; fully functional with minimal signs of use
• Tested with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
