Danfoss 130B1125 MCB101 General Purpose I/O Board – VLT Expansion Module – Tested

Product Overview

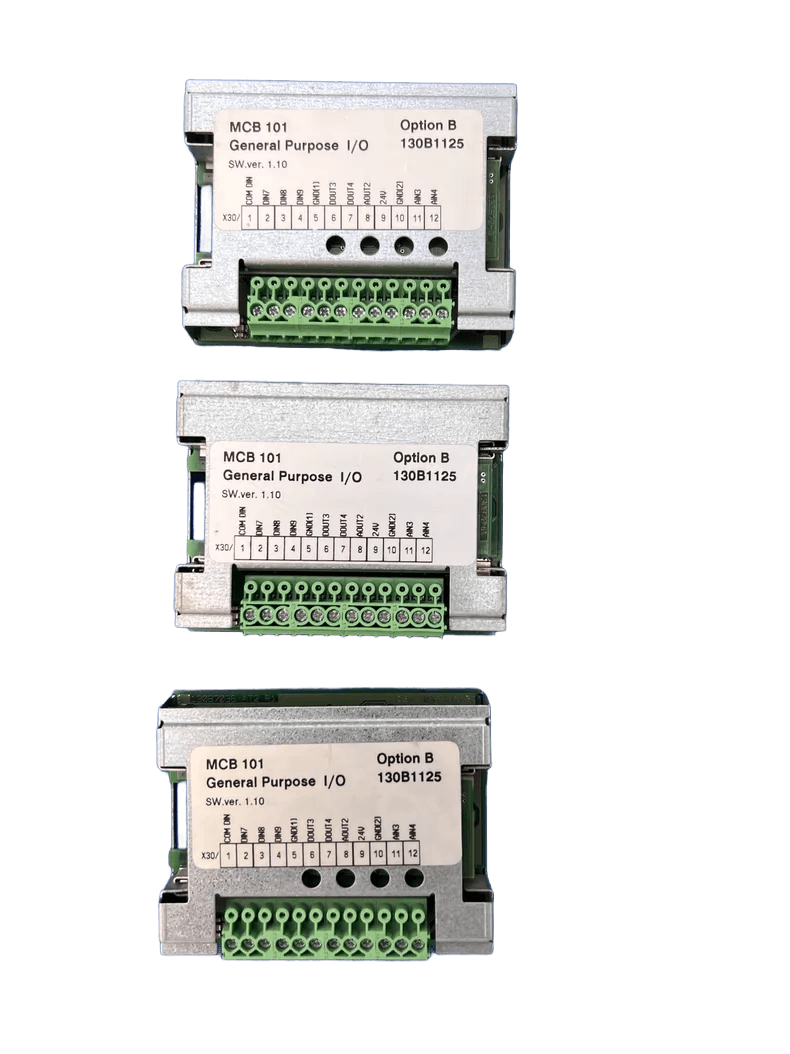

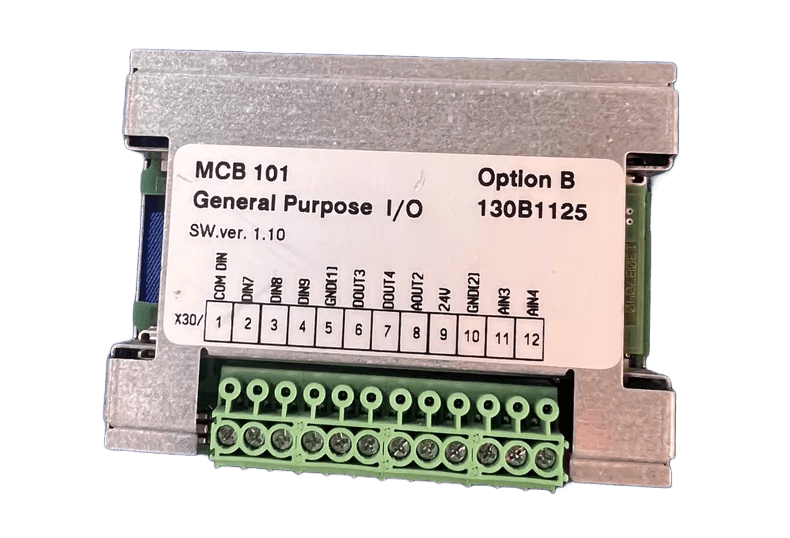

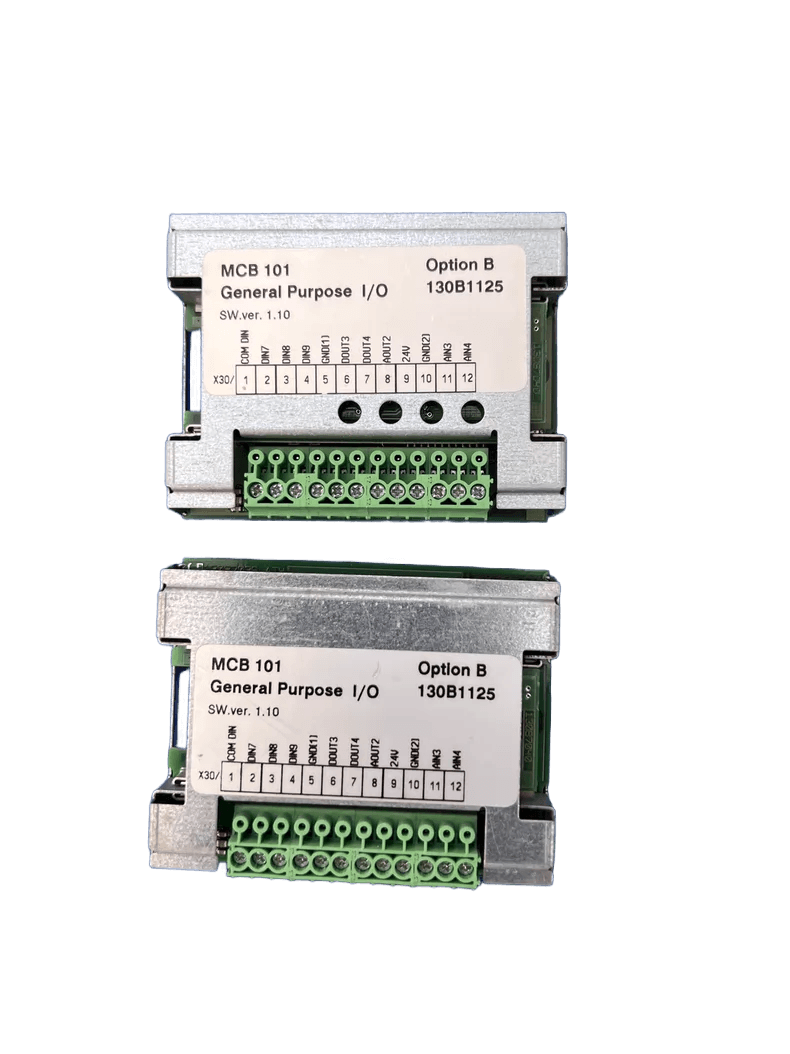

Original Danfoss 130B1125 MCB101 general purpose I/O expansion module for VLT AutomationDrive series. This option board installs into slot B of compatible Danfoss drives, expanding the number of freely programmable control inputs and outputs. The MCB101 includes 3 opto-decoupled digital inputs, 2 analog inputs, 2 NPN/PNP switchable digital outputs, and 1 analog output.

Key Features

• Genuine Danfoss original – 130B1125 MCB101 general purpose I/O board
• 3 digital inputs – opto-decoupled 0-24V
• 2 analog inputs – 0-10V
• 2 digital outputs – NPN/PNP switchable 24V
• 1 analog output – 0/4-20mA
• Plugs into slot B of VLT drives
• Standard uncoated version – type code 130B1125
• Net weight: 0.365 kg
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Danfoss VLT FC100, FC103, FC200, and FC300 series drives
• Specifically designed for FC301 and FC302 AutomationDrive series
• Also compatible with TR200 series drives – requires SW version 3.00 or later for FC series, or 1.1x for TR200
• CRITICAL: Installs into Slot B – verify your drive has a free B slot before ordering
• Firmware requirement: Drive control card software version must be 3.00 or later for FC series. Check parameter 15-43 for current version
• If mismatched: Installing the MCB101 on a drive with incompatible firmware may result in the option board not being detected or I/O functions not operating correctly
• Uncoated standard version – for harsh environments, use coated version 103B1212
• Verify drive model and firmware version before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
