Danfoss 130B6066 Driver Board with IGBT Module – FC102/202/302/CDS303 11-18.5KW – Tested

Product Overview

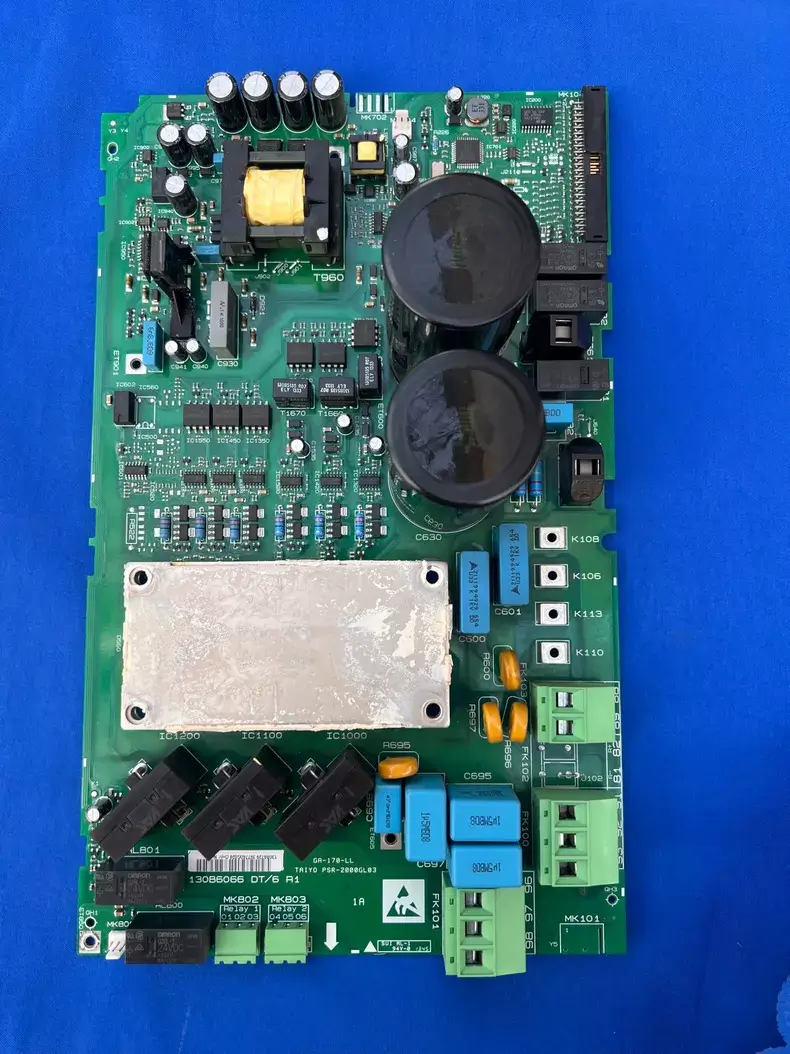

Original Danfoss 130B6066 driver board with integrated IGBT module. This complete assembly combines the gate driver circuitry and IGBT power switching module into a single unit. Designed for VLT AutomationDrive FC102, FC202, FC302, and CDS303 series drives. Covers 11KW, 15KW, and 18.5KW power ratings. Available in DT/6 and DT/11 revisions. This board serves as the core power stage component, converting DC bus voltage into variable-frequency AC output for motor control.

Key Features

• Genuine Danfoss original – 130B6066 driver board with integrated IGBT module
• Compatible with FC102, FC202, FC302, and CDS303 series drives
• Power ratings: 11KW – 15KW – 18.5KW
• Complete driver + IGBT assembly – ready for installation

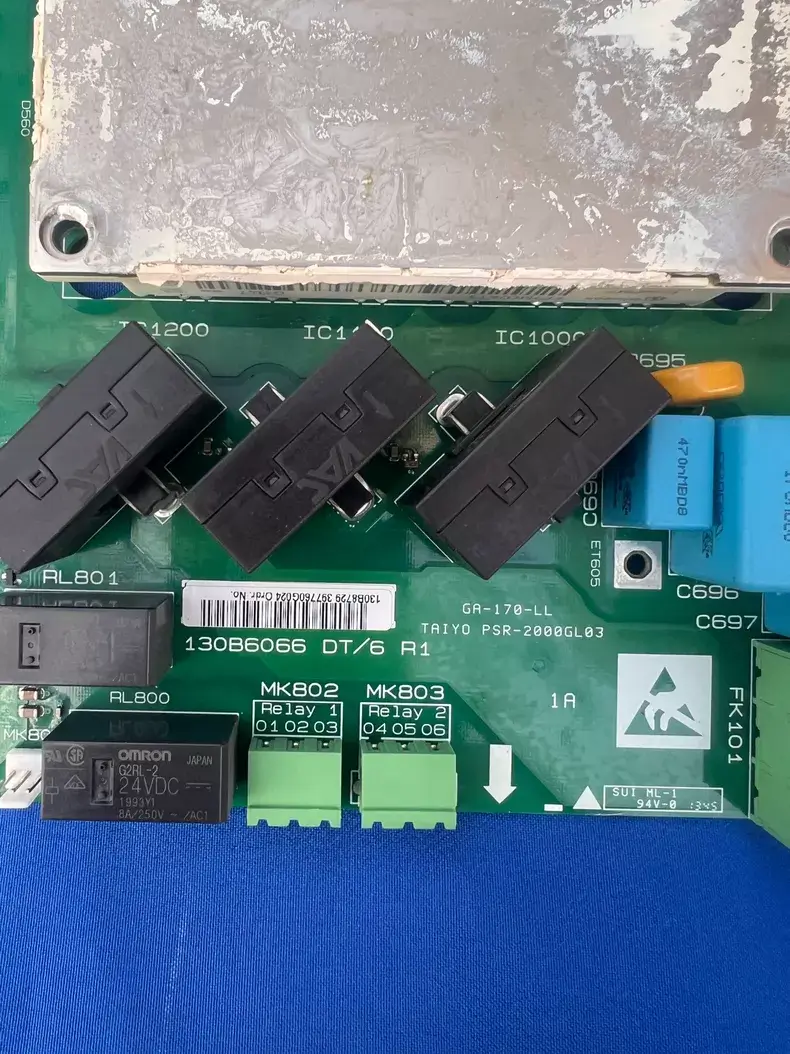

• Available in DT/6 and DT/11 revisions – verify original board marking
• Integrated IGBT power module – no separate IGBT required
• Input voltage: 3×380-480V AC
• Weight: ~1.13 kg
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Danfoss VLT AutomationDrive FC102, FC202, FC302, and CDS303 series drives
• Specifically for 11KW, 15KW, and 18.5KW power ratings
• This is a combined driver board and IGBT module assembly – replace as a complete unit
• CRITICAL: Multiple revisions exist – DT/6 and DT/11 variants are common. Different revisions may be used for different power ratings or drive configurations
• If mismatched: Incorrect revision selection may result in drive failing to power up, reporting “Power Card Fault,” or experiencing communication errors between control and power cards
• Verify the original board marking (DT/6 vs DT/11) before ordering
• Verify drive model and power rating before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
