Danfoss 130B7002 Main Control Board – FC Series – New / Tested

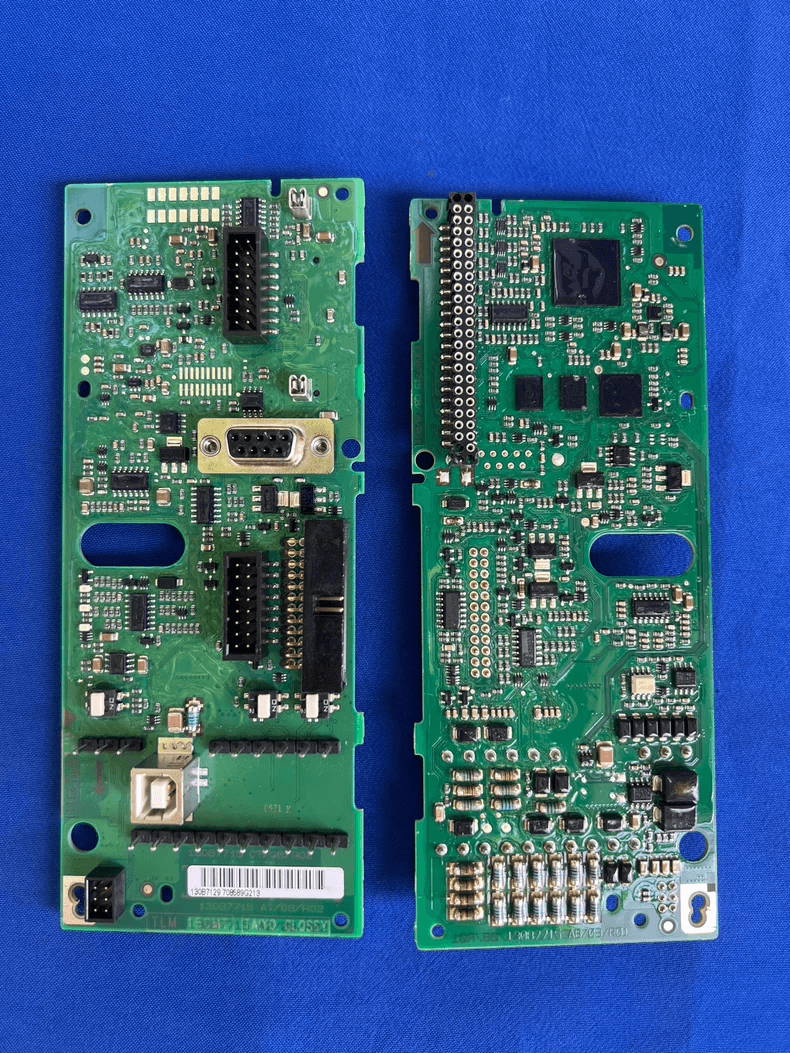

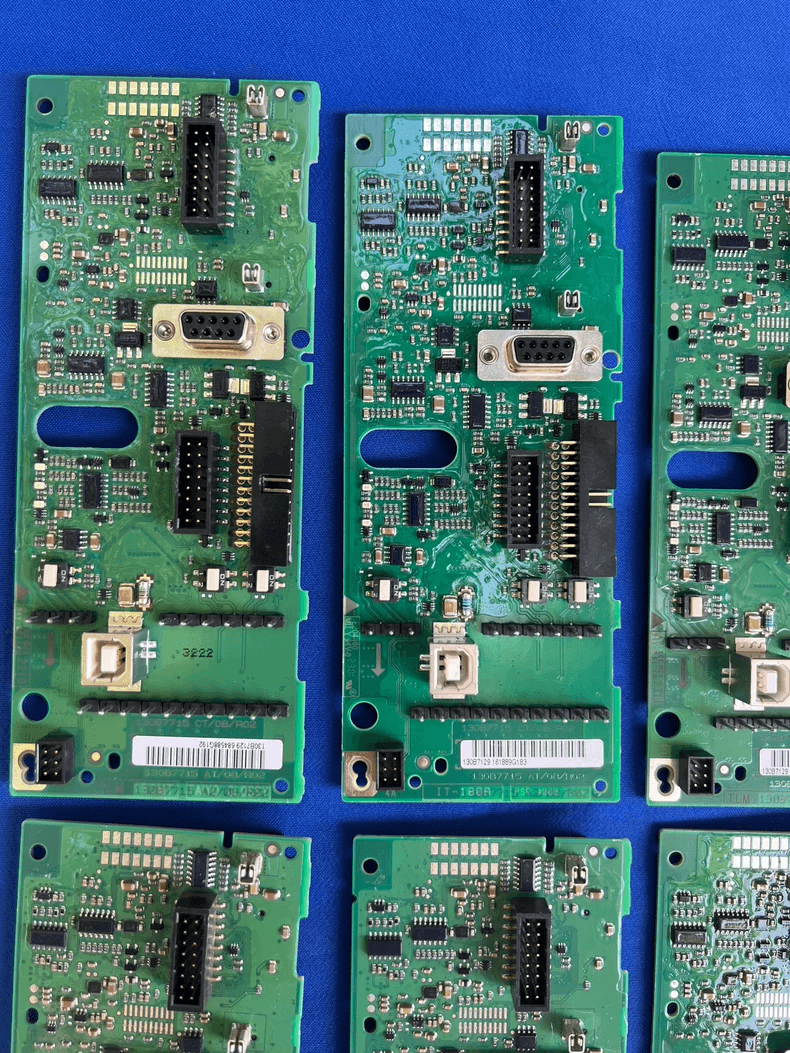

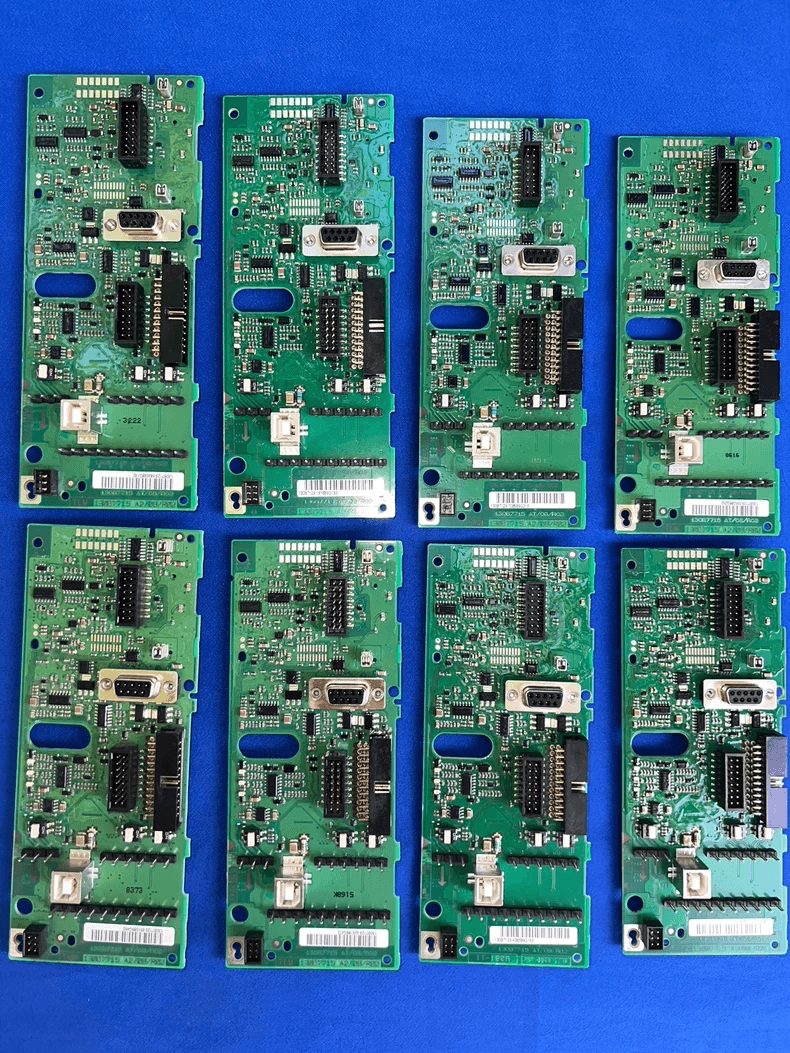

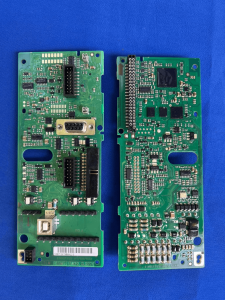

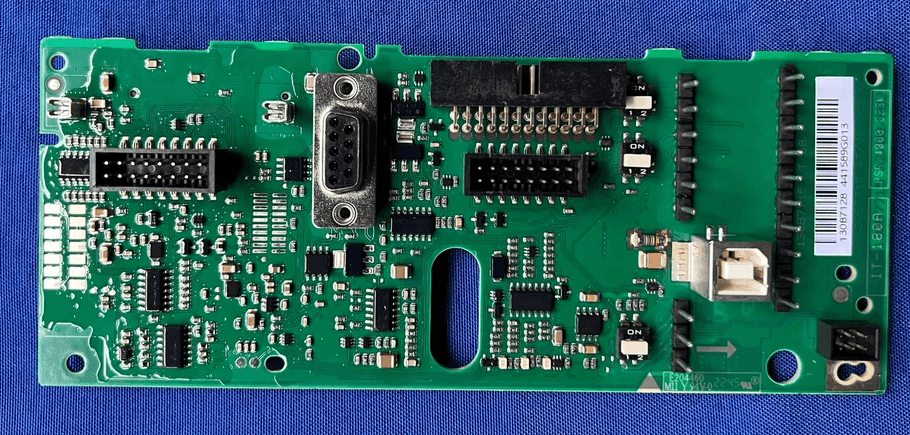

What Is the Danfoss 130B7002 Main Board?

The Danfoss 130B7002 Main Board is an industrial drive board listed for selected Danfoss VLT frequency converter applications.

It is supplied as a replacement spare part for maintenance and repair work. The board is identified by part number 130B7002.

This product listing references FC302, FC202, FC102, FC301, FC311, FC312, and FC361 drive series. However, compatibility across all models and hardware versions has not been independently confirmed. Always compare the original board number and drive identification details before ordering.

Key Specifications

Item	Details
Brand	Danfoss
Part Number	130B7002
Product Type	Main Board
Listed Drive Series	FC302 / FC202 / FC102 / FC301 / FC311 / FC312 / FC361
Version	Version dependent
Condition	New / Tested (confirm available stock condition)
Compatibility	Original board number and drive configuration must be verified
Application	Danfoss VLT frequency converter repair and maintenance

Applications and Compatibility

This board is listed for selected Danfoss VLT drive applications, including:

• FC102 – VLT HVAC Drive
• FC202 – VLT AQUA Drive
• FC301 / FC302 – VLT AutomationDrive
• FC311 / FC312 – Confirm the exact drive model and board version
• FC361 – Confirm the exact drive model and board version

The above series are seller-listed applications, not confirmation that one 130B7002 board version fits every drive in these families.

Compatibility may depend on:

• Original board part number
• Drive model and complete type code
• Hardware revision
• Software or firmware version
• Connector layout and board configuration

Please verify the original board before purchasing.

How to Identify the Correct Replacement Main Board

To help identify the correct replacement, check the following details:

• Read the part number printed on the original board.
• Check the board revision and identification labels.
• Record the complete Danfoss drive model and type code.
• Confirm the drive series and power rating.
• Compare the connectors, mounting points, and board layout.

Do not rely on the drive series name alone to determine compatibility.

When Should the Main Board Be Replaced?

A main board may require inspection or replacement when a drive experiences control-related faults, communication problems, abnormal operation, or visible board damage.

These symptoms do not automatically confirm a main-board failure. Check the drive fault history, wiring, power supply, and related components before replacing the board.

Condition and Testing

This Danfoss 130B7002 Main Board is listed in New / Tested condition.

Please confirm the actual stock condition before ordering:

• New: Confirm whether the available unit is unused and supplied in its original packaging, if applicable.
• Tested: Confirm the available test scope and inspection details with us.

The condition description does not guarantee compatibility with every listed drive model or version. The original board number and drive configuration must still be checked.

Frequently Asked Questions

Q1: Which Danfoss drive series is this board listed for?

The listing references FC302, FC202, FC102, FC301, FC311, FC312, and FC361. Exact compatibility must be verified for the individual drive.

Q2: Is the 130B7002 compatible with all versions?

Do not assume universal compatibility. Different hardware revisions and drive configurations may require different board versions.

Q3: Can I use this board for both FC102 and FC302?

Both series are included in the seller’s listing, but this does not confirm that the same board version is interchangeable between them. Check the original part number and drive type code.

Q4: Is the board available in New and Tested condition?

The listing specifies New / Tested. Please confirm which condition is currently available before placing your order.

Q5: What information is needed to confirm compatibility?

Please provide the original board part number, a clear photo of the board label, the drive nameplate, and the complete drive type code.

Q6: Can I replace the board based only on the 130B7002 part number?

No. Also compare the board revision, connectors, and drive configuration to reduce the risk of ordering an incompatible replacement.

Q7: Does the replacement board require parameter configuration?

This depends on the drive and replacement version. Parameter checks or configuration work may be required. Follow the applicable Danfoss service instructions.

Need Help Confirming Compatibility?

Not sure whether Danfoss 130B7002 is the correct replacement for your drive?

Send us:

• A photo of the original board
• The original board part number and revision
• A photo of the drive nameplate
• The complete drive type code
• The required stock condition: New or Tested

We can help compare the available information before you place your order.
