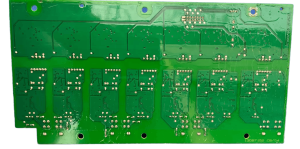

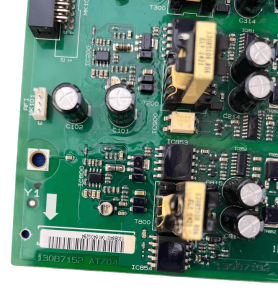

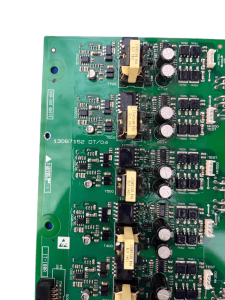

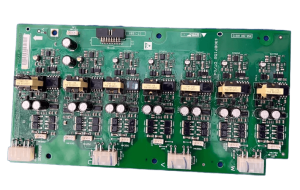

Danfoss 130B7152 High-Power Driver/Trigger Board – FC202/302/102 355-630KW 690V – Tested

Product Overview

Original Danfoss 130B7152 high-power driver and trigger board for VLT AutomationDrive FC202, FC302, and FC102 series drives. Designed for 355KW to 630KW power ratings in 690V AC systems. This board serves as the core power stage and gate driver component for large-frame high-power drives, handling IGBT gate drive signal distribution, thyristor trigger control, and power supply for the control board in high-voltage 690V drive systems. The VLT AutomationDrive FC series supports a wide power range from 0.25 kW up to 1.4 MW at 690V. This board is specifically designed for the high-power end of the 690V range.

Key Features

• Genuine Danfoss original – 130B7152 high-power driver/trigger board
• Compatible with FC202, FC302, and FC102 series high-power drives
• Power ratings: 355KW – 400KW – 450KW – 500KW – 560KW – 630KW
• Voltage class: 690V AC (3-phase 525-690V systems)
• Combined IGBT gate driver and thyristor trigger board
• Core power stage component for large-frame high-power drives
• Designed for demanding industrial applications in the 690V power range
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Danfoss VLT AutomationDrive FC202, FC302, and FC102 series drives
• Specifically for 355KW to 630KW power ratings in 690V AC (3×525-690V) systems
• Designed for large-frame / high-power drive configurations
• The VLT AutomationDrive FC series covers 690V applications from 1.1kW up to 1.4MW
• FC 302 is the advanced high-dynamic version with additional functionalities
• Verify drive model, power rating, and voltage class before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
