Danfoss 130B7192 Gate Driver / Trigger Board – FC302 90-250KW – Tested

Product Overview

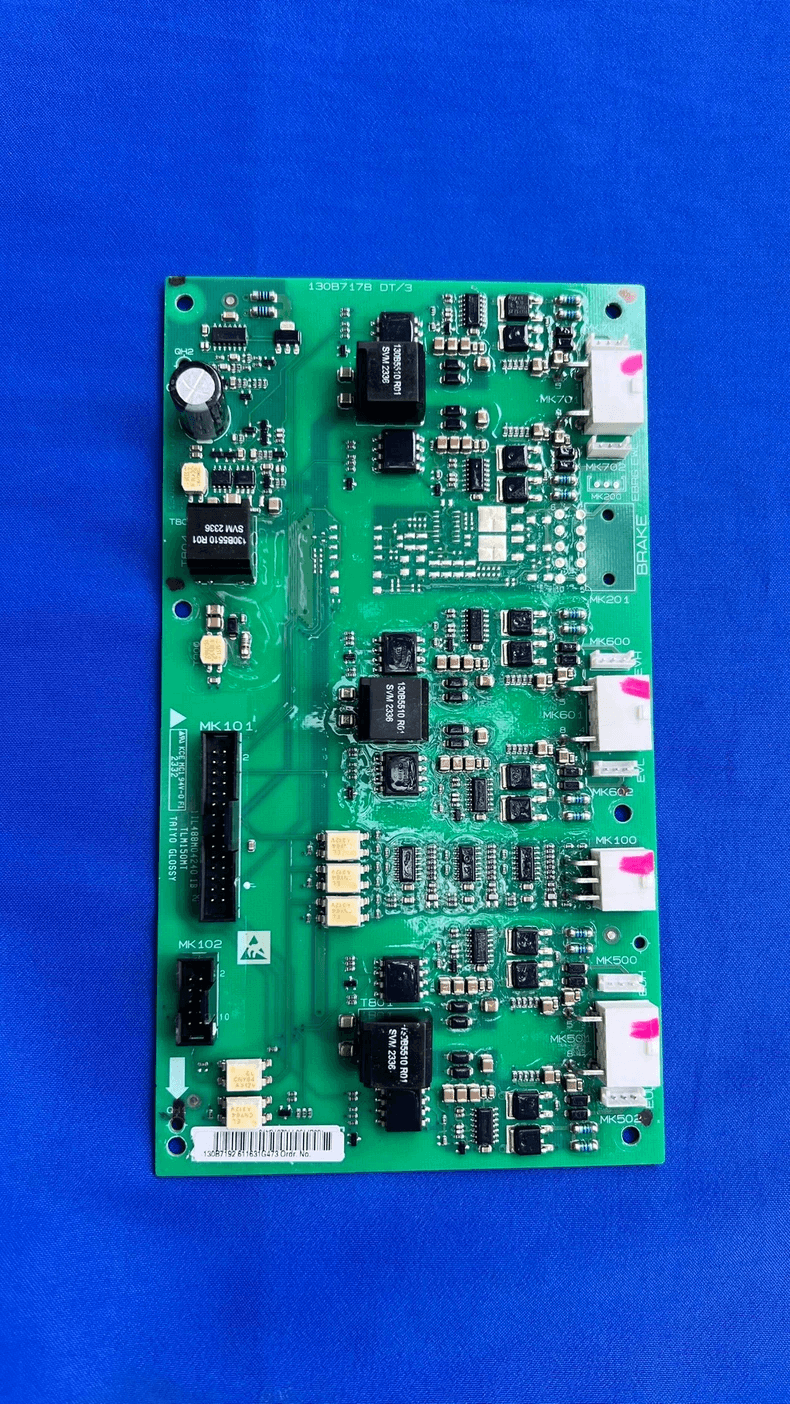

Original Danfoss 130B7192 gate driver and trigger board for VLT AutomationDrive FC302, FC202, and FC102 series high-power drives. This board serves as the critical interface between the main control board and the IGBT power modules, converting low-voltage PWM control signals into high-current gate drive pulses for precise IGBT switching control. Available in standard and brake-function variants. Nameplate photo required for accurate matching.

Key Features

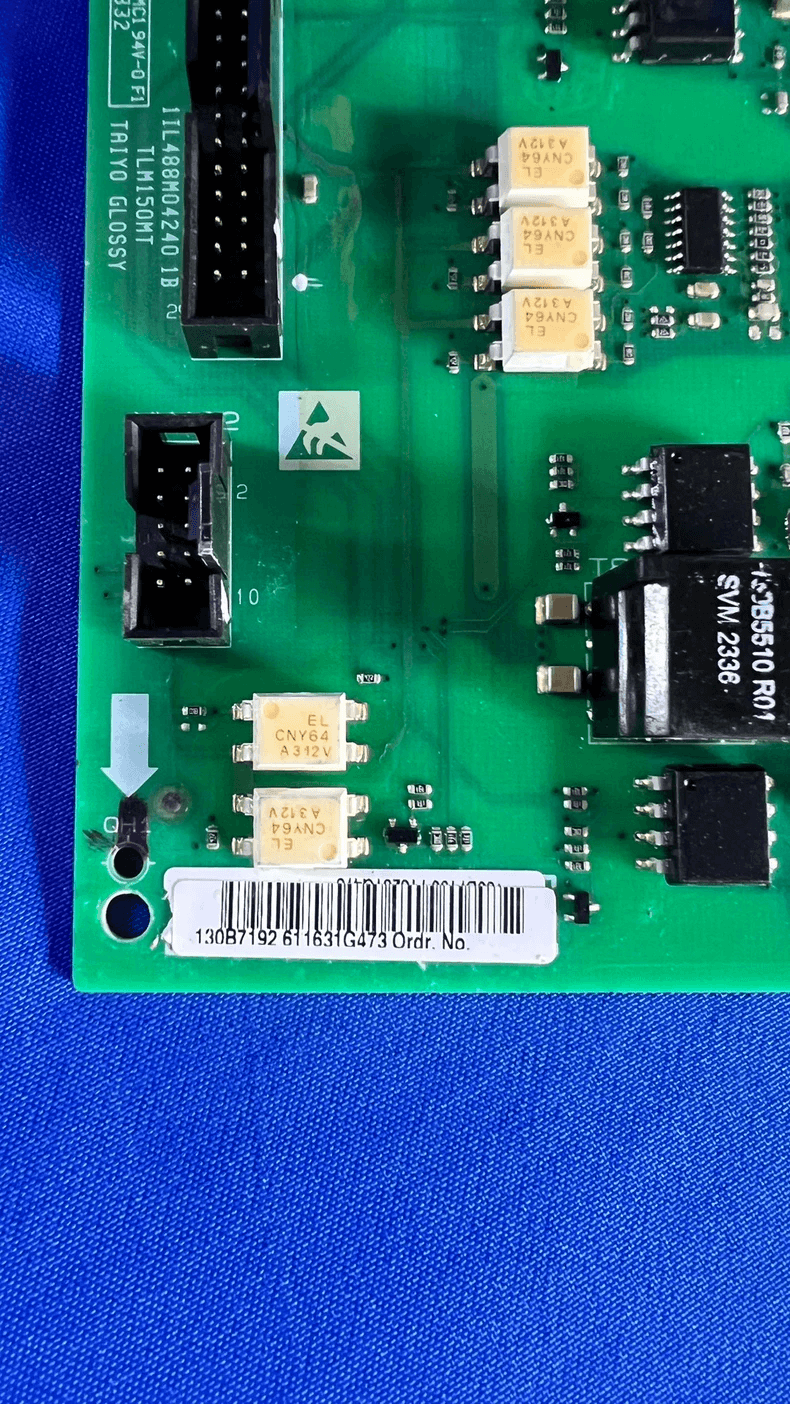

• Genuine Danfoss original – 130B7192 gate driver / trigger board
• Compatible with FC302, FC202, and FC102 series drives
• Power ratings: 90KW – 110KW – 132KW – 200KW – 250KW – 315KW
• Critical interface between control board and IGBT power modules
• Converts PWM control signals to high-current gate drive pulses
• Available in standard and brake-function variants

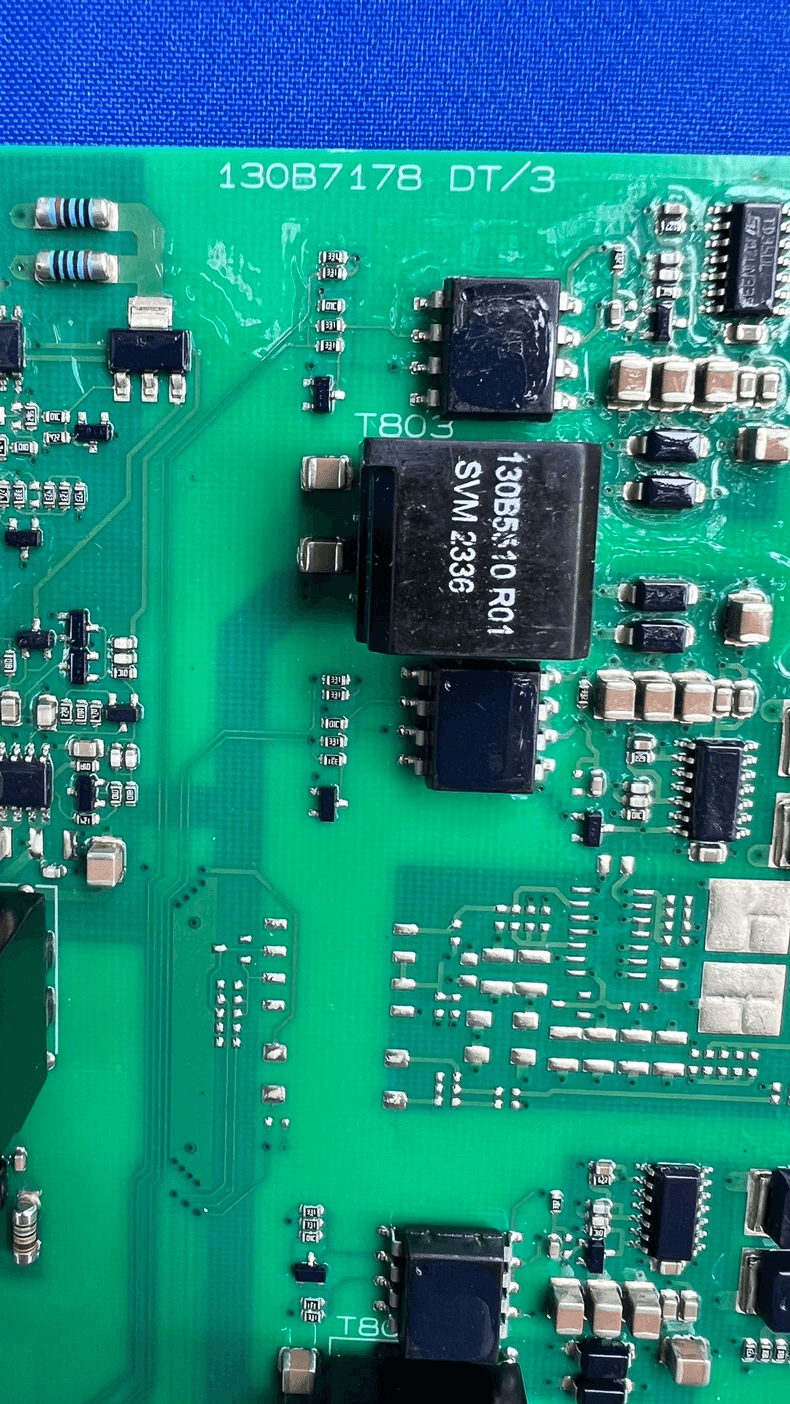

• Also referenced with 130B7178, 130B7178DT/3, 130B7390, 130B7393
• Weight: ~0.45 kg / 2 kg (gross)
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Danfoss VLT AutomationDrive FC302, FC202, and FC102 series drives
• Power ratings from 90KW to 315KW
• CRITICAL: Nameplate photo required – different power ratings and drive versions use different board variants
• Important: Board variants are available with and without brake function – confirm your drive configuration before ordering
• Related part numbers in the same family: 130B7178, 130B7178DT/3, 130B7390, 130B7393
• Verify drive model, power rating, and variant before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
