Danfoss 132B7026 / 132B7020 Main Board – FC360 0.37-75KW – Version Dependent – Tested

Product Overview

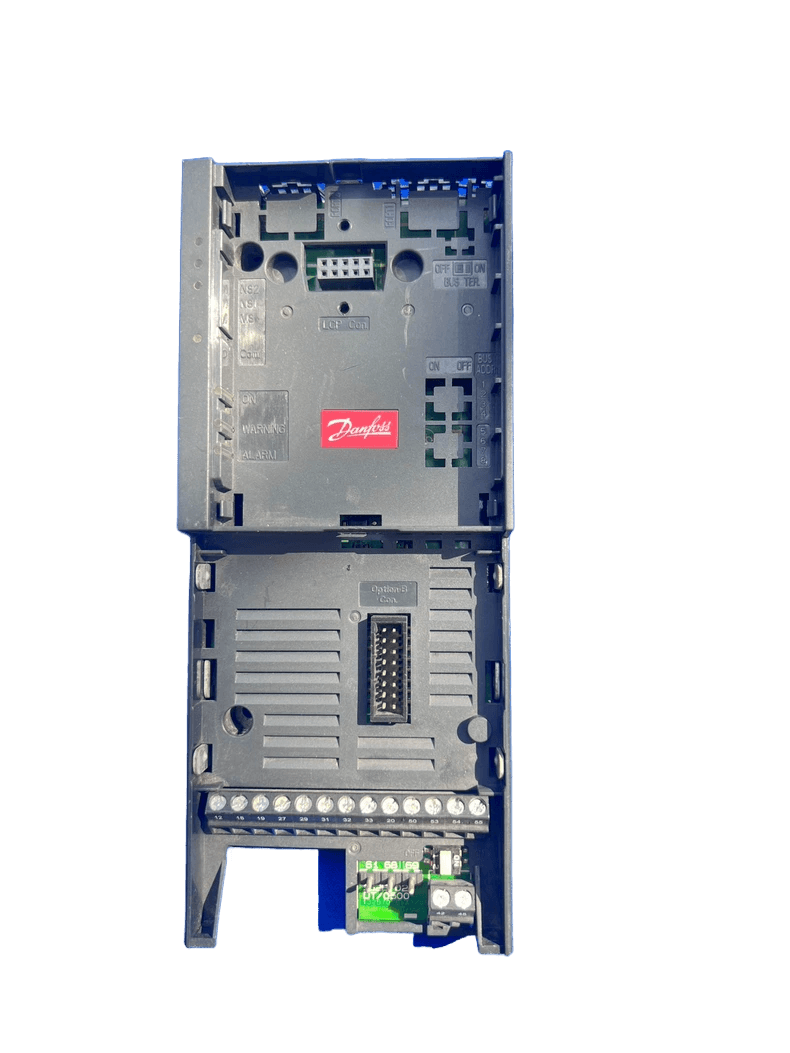

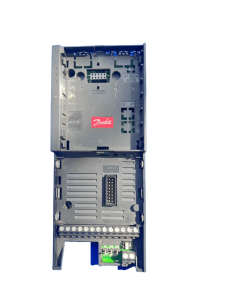

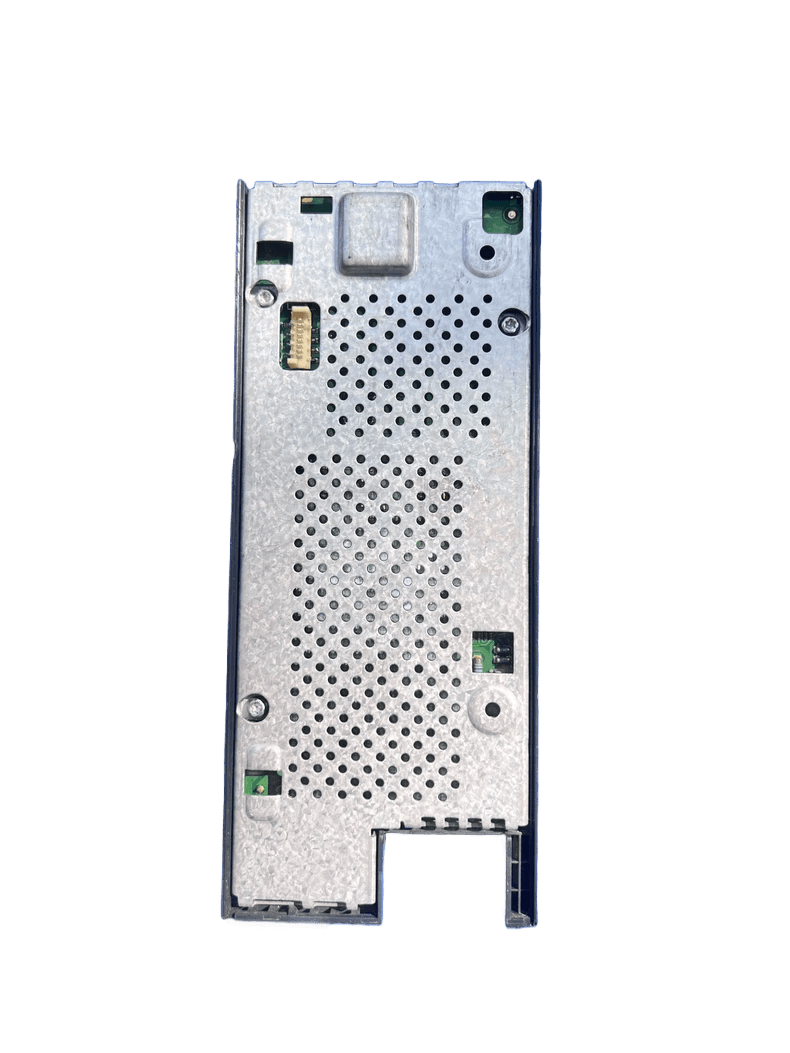

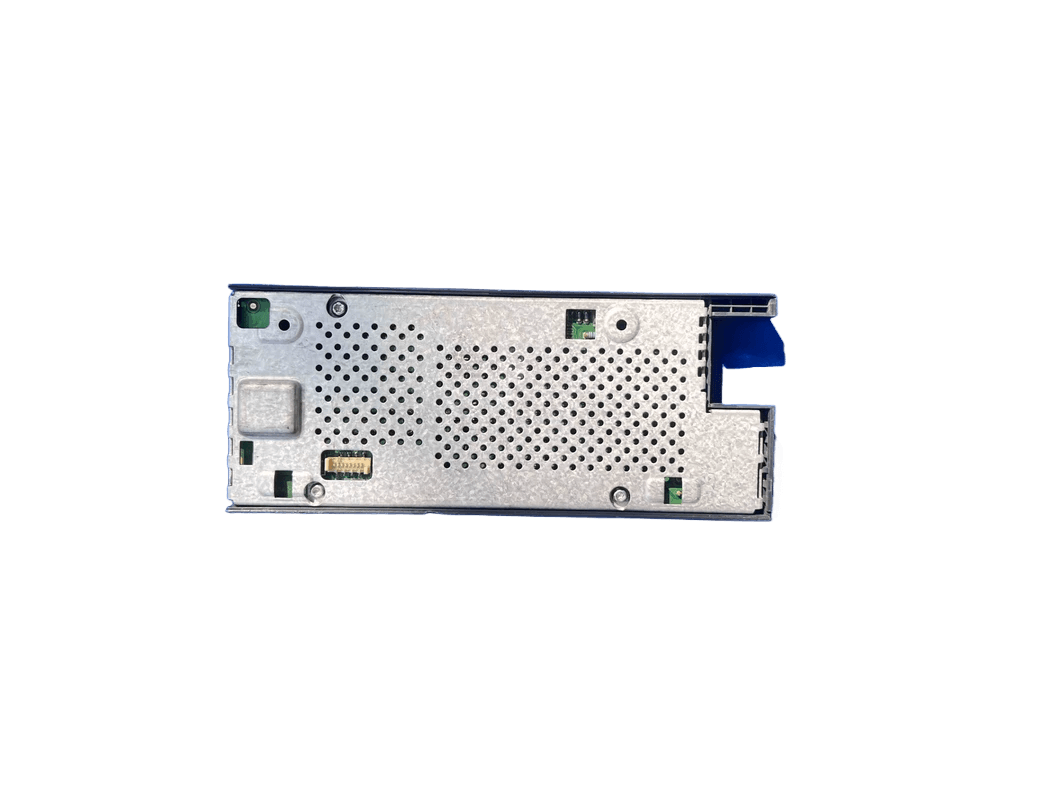

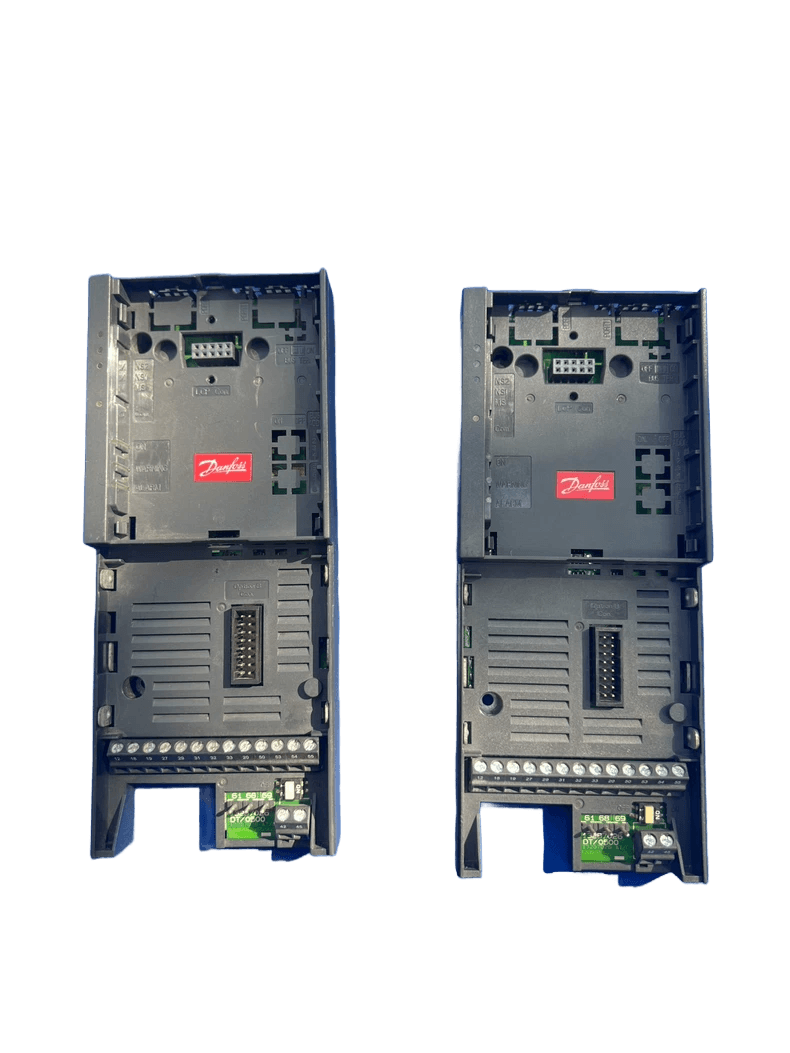

Original Danfoss 132B7026/132B7020 main control board for VLT AutomationDrive FC360 series drives. Available with integrated DP (Profibus) or Ethernet communication options. This board serves as the central control unit, housing the main processor that executes all drive control algorithms. It manages all I/O signals, communication interfaces, and serves as the base board for the LCP control panel. The FC360 series is a compact, space-saving general-purpose AC drive available in 5 frame sizes. This board is version dependent – incorrect version matching will result in drive malfunction.

Key Features

• Genuine Danfoss original – 132B7026/132B7020 main control board
• Compatible with FC360 series drives – power range 0.37KW to 75KW

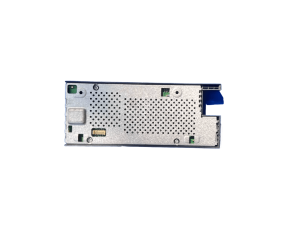

• 132B7026: DP (Profibus) communication integrated
• 132B7020: Ethernet communication integrated
• Central control unit – main processor for all drive control algorithms
• Related part numbers: 132B7022, 132B7116, 132B0348, 132B0345, 130B7026, 130B7317
• CRITICAL: Version dependent – check parameter 15-43 before ordering
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Danfoss VLT AutomationDrive FC360 series drives
• Power range: 0.37KW to 75KW
• CRITICAL: Version dependent – the drive’s software version must be checked in parameter 15-43 before ordering
• 132B7026 = Profibus DP communication integrated
• 132B7020 = Ethernet/Profinet communication integrated
• If mismatched: The drive will fail to boot, report “Control Card Fault,” or experience communication errors with the LCP panel
• Available versions include: V1.20, V1.30, V1.40, V1.50, V1.60, V1.70, V1.80, V1.85, V2.0, V3.0, V4.0
• If unsure of the version, consider purchasing the main board together with the power board as a matched set
• Verify drive model and software version before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
