Danfoss/Schneider MCD312-16 Thyristor/Diode Rectifier Bridge Module – 1600V 320A – Tested

What Is the MCD312-16IO1?

The IXYS MCD312-16IO1 is a thyristor / diode power semiconductor module designed for industrial power conversion applications.

It features a phase-leg configuration with one thyristor (SCR) and one diode in a single power module.

The module is rated at 1600V and 320A average on-state current under specified datasheet conditions. It is used in power converters, motor control systems and other industrial power electronics applications.

This unit is offered as tested stock for industrial equipment maintenance and replacement applications.

Before ordering, verify the complete part number, terminal configuration and electrical specifications to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	MCD312-16IO1
Manufacturer	IXYS / Littelfuse
Product Type	Thyristor / Diode Power Module
Circuit Configuration	Phase Leg – 1 SCR + 1 Diode
Repetitive Peak Reverse Voltage	2 × 1600V (VRRM)
Average On-State Current	320A (ITAV, specified datasheet conditions)
RMS On-State Current	520A (ITRMS)
Package	Y1
Baseplate	Copper, internally isolated
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial Power Conversion and Rectifier Systems

Applications and Compatibility

The IXYS MCD312-16IO1 is designed for industrial power semiconductor applications.

Typical applications include:

• Industrial power converters.
• Motor control systems.
• Soft starters.
• Industrial rectifier circuits.
• Heating and temperature control systems.
• High-power electronic switching applications.

The module may be considered for replacement in Danfoss or Schneider equipment only when the original equipment documentation or semiconductor specifications confirm compatibility.

Important Compatibility Checks:

Before ordering, verify:

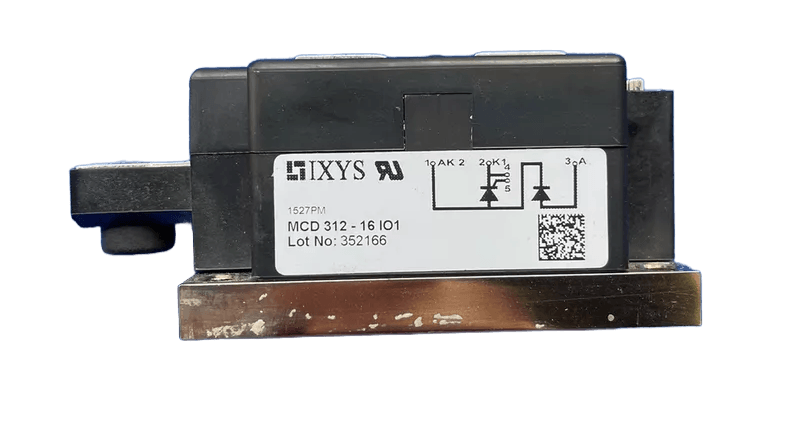

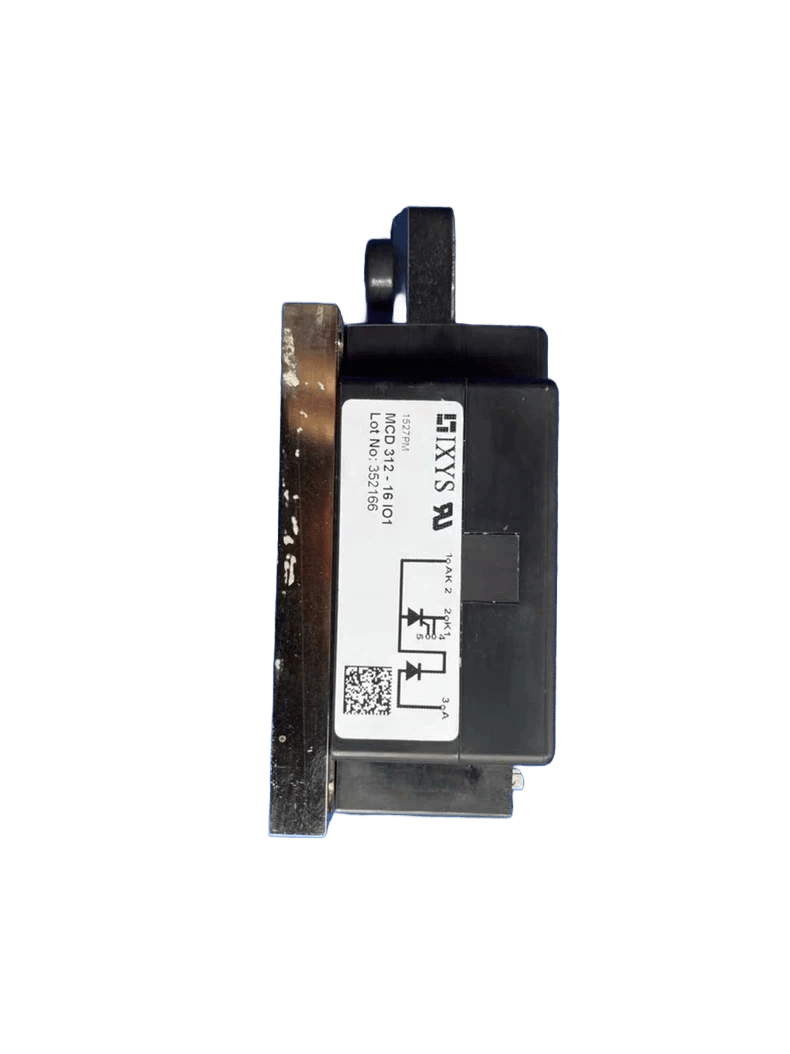

• Confirm that the original module is marked MCD312-16IO1.
• Check the voltage rating and current requirements.
• Verify the SCR / diode circuit configuration.

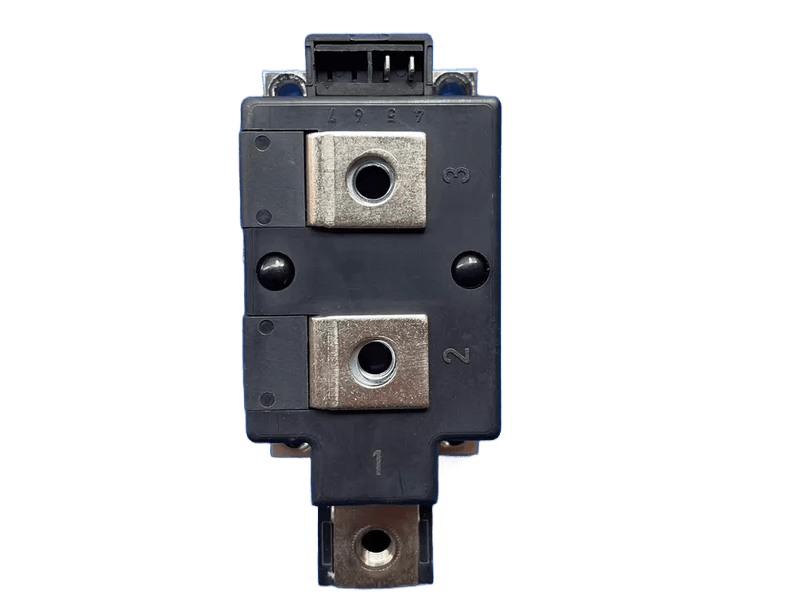

• Compare the terminal numbering and polarity.
• Check the gate and cathode connection arrangement.
• Compare module dimensions and mounting positions.
• Confirm the thermal interface and baseplate configuration.

Do not select a replacement based on the 1600V and 320A ratings alone. Circuit topology, gate characteristics and terminal configuration must also match.

How to Identify the Correct Replacement Module

When replacing a thyristor / diode module, carefully compare the original component with the replacement.

Check the following details:

• Complete semiconductor part number.
• Manufacturer identification.
• Thyristor and diode configuration.

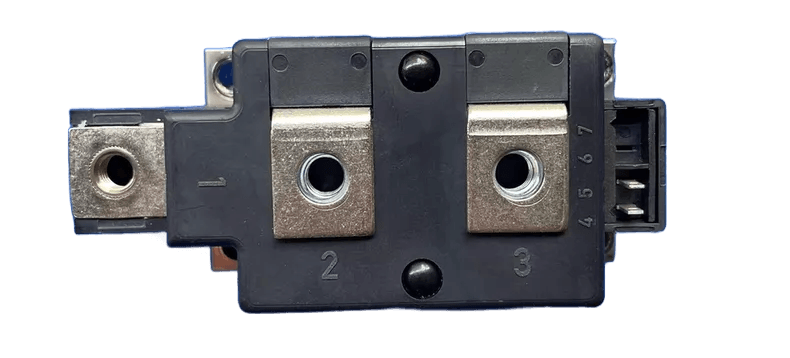

• Main terminal positions and polarity.
• Gate and cathode connections.
• Module dimensions and mounting arrangement.
• Baseplate and heatsink contact configuration.

If you are unsure about compatibility, send us clear photos of the existing module, its identification label and terminal connections before ordering.

When Should the Thyristor / Diode Module Be Replaced?

A thyristor / diode module may require inspection when the power converter experiences abnormal rectifier operation or related semiconductor faults.

Before replacing the module:

• Inspect the module for cracks or visible damage.
• Check for overheating or burnt terminal connections.
• Test the thyristor and diode junctions.
• Verify gate triggering and electrical characteristics.
• Inspect the associated rectifier circuit and connections.
• Check the heatsink and thermal contact condition.

A rectifier fault does not automatically mean the semiconductor module is defective. Other power circuit components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial power electronics maintenance and replacement.

Please contact us for available inspection and electrical testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the MCD312-16IO1 used for?

The MCD312-16IO1 is a thyristor / diode power module used in industrial power converters, motor control and rectifier applications.

Is the MCD312-16IO1 a complete rectifier bridge?

No. It is a phase-leg module containing one thyristor (SCR) and one diode. It is a semiconductor building block used in power conversion circuits, not a complete three-phase rectifier bridge.

What are the voltage and current ratings?

The datasheet specifies 2 × 1600V repetitive peak reverse voltage, 320A average on-state current under specified conditions and 520A RMS on-state current.

Is the MCD312-16IO1 manufactured by Danfoss or Schneider?

No. The MCD312-16IO1 is an IXYS semiconductor module, identified as an IXYS / Littelfuse product. Its use as a replacement in particular Danfoss or Schneider equipment must be verified separately.

Is this module tested?

This listing is for tested stock. Please request available electrical inspection and testing details before ordering.

Need Help Confirming Compatibility?

Looking for a replacement IXYS MCD312-16IO1 thyristor / diode module?

Send us:

• A clear photo of the existing module.
• A close-up photo of the MCD312-16IO1 identification label.
• Photos of the main terminals and gate connections.
• The complete equipment model.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
