Genuine Schneider PN072413P4 current detection/driver board for ATV61/71 690V 400-500KW. Original pulled.

Product Overview

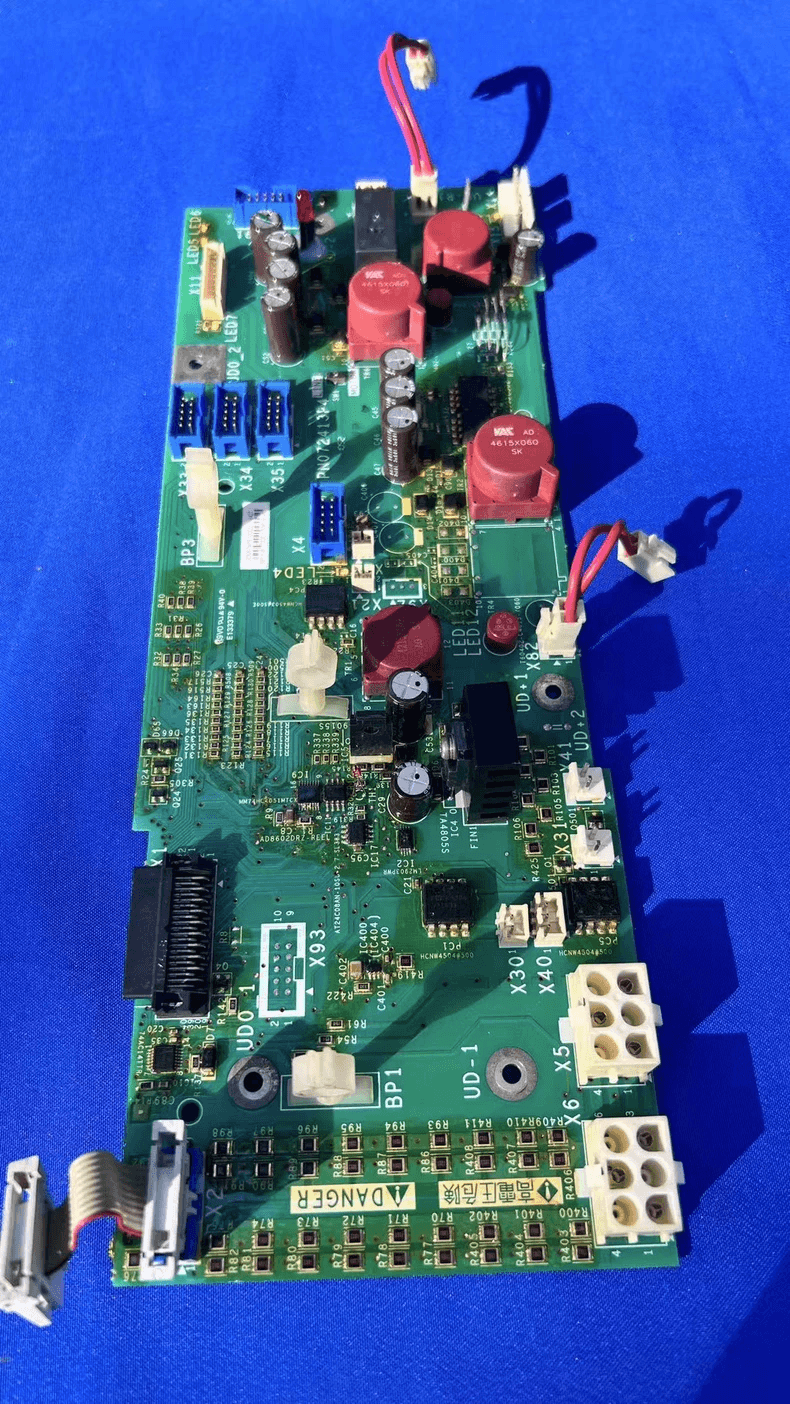

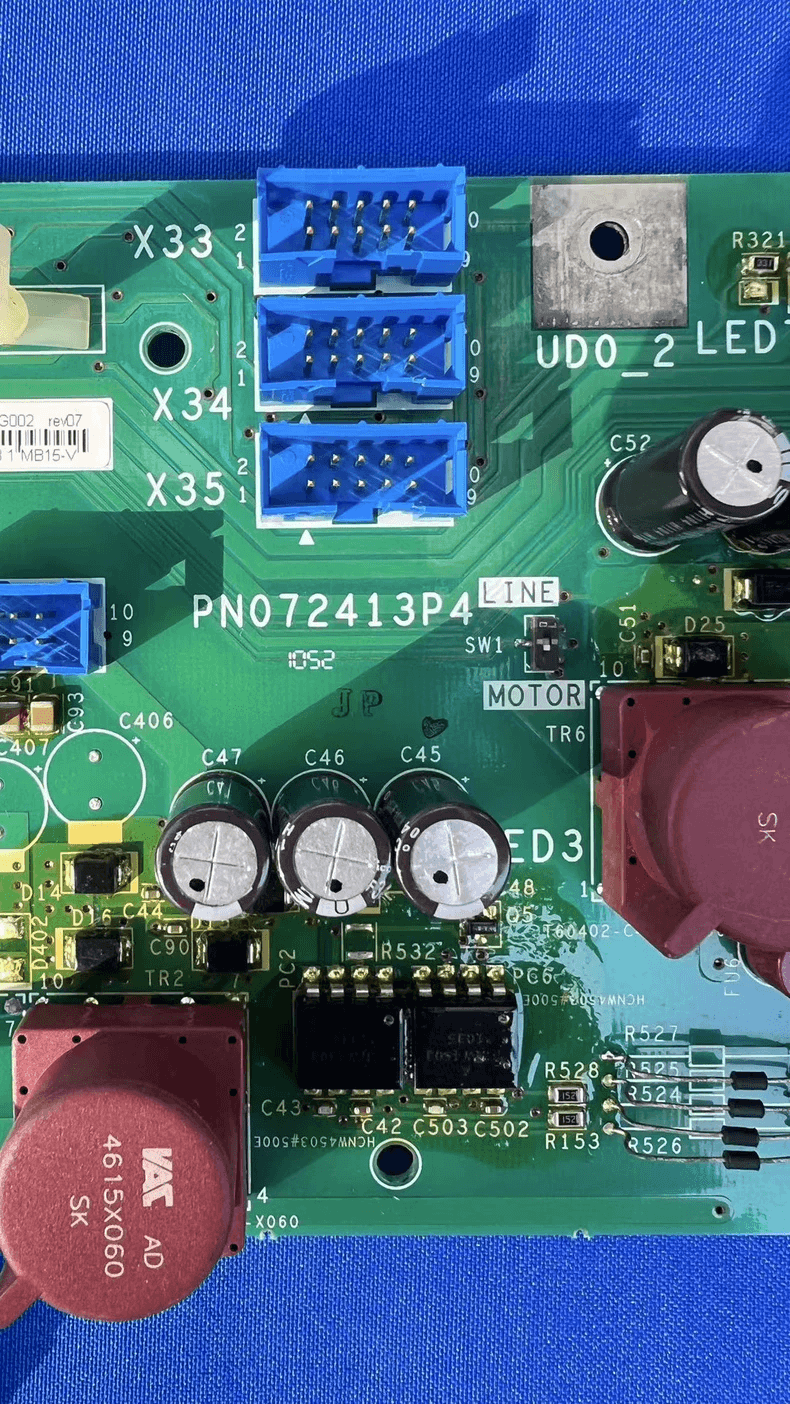

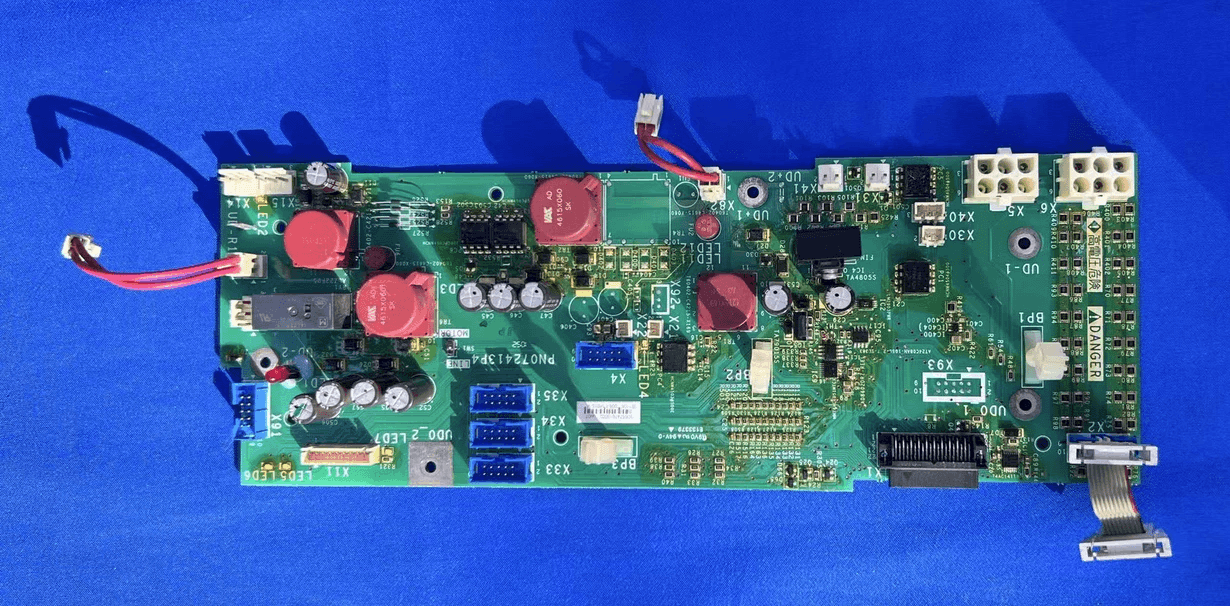

Original Schneider PN072413P4 current detection and driver board for Altivar ATV61 and ATV71 series 690V high-power drives. This board integrates motor phase current detection and gate drive functions, providing critical current feedback for precise torque control and overload protection. It is part of the ATV61/71 690V high-power platform. Also referenced as VX5A1207 gate drive PCB in Schneider’s spare parts documentation.

Key Features

• Genuine Schneider original – PN072413P4 current detection/driver board
• Compatible with Altivar ATV61 and ATV71 series drives
• Voltage class: 690V AC (500V to 690V range)
• Power ratings: 400KW – 500KW
• Also referenced as VX5A1207 gate drive PCB in Schneider documentation
• Integrates motor phase current detection and gate drive functions
• Provides critical current feedback for torque control and overload protection
• Essential for 690V high-power drive operation
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar ATV61 and ATV71 series drives on the 690V platform
• Specifically for 400KW and 500KW power ratings at 690V AC
• Typical drive models: ATV61HC40Y (400KW @ 690V), ATV61HC50Y (500KW @ 690V), ATV71HC40Y (400KW @ 690V), ATV71HC50Y (500KW @ 690V)
• Also referenced as VX5A1207 Gate Drive PCB in Schneider’s spare parts documentation
• CRITICAL: Nameplate photo required – different power ratings and drive versions may use different board revisions
• If mismatched: Incorrect board selection may result in drive reporting “InF9” (Internal – I measure) fault, incorrect current feedback, or unstable output
• According to field service documentation, the InF9 fault indicates incorrect current measurements. Remedy includes replacing the current sensors or the power card
• Related part numbers in the same family: PN072410P2, PN072418P2, PN072416P3, PN072414P3, PN072411P2 – verify original board marking
• Verify drive model, power rating, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
