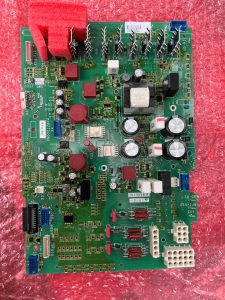

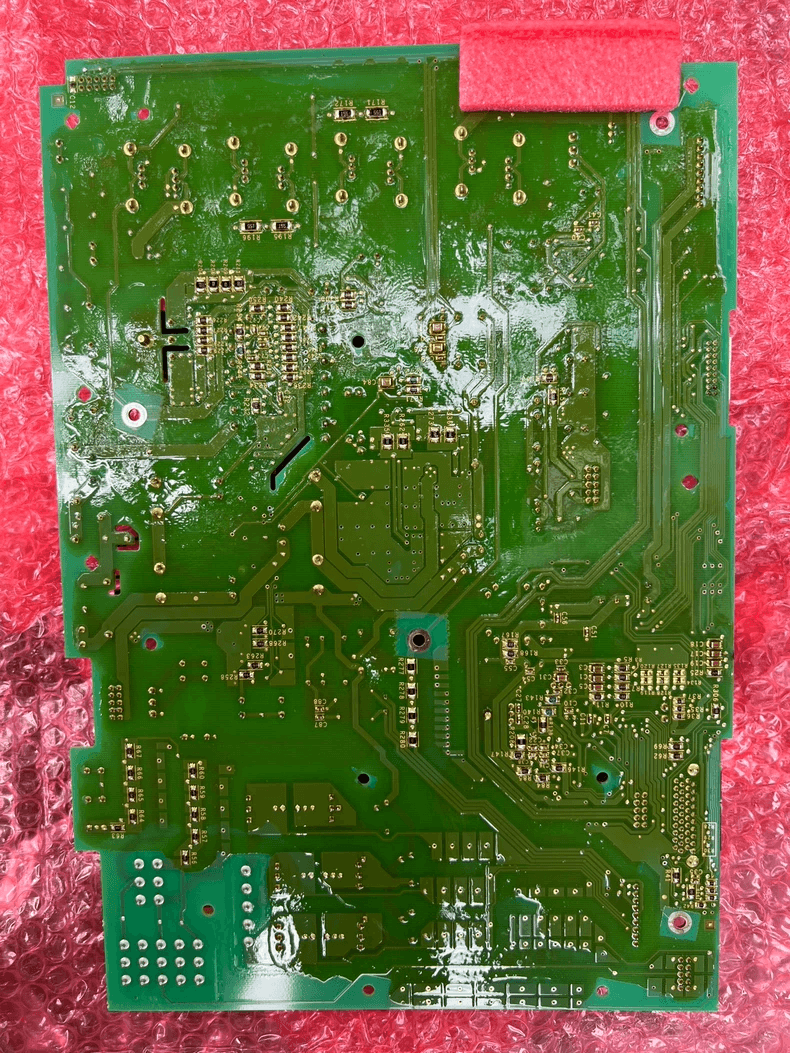

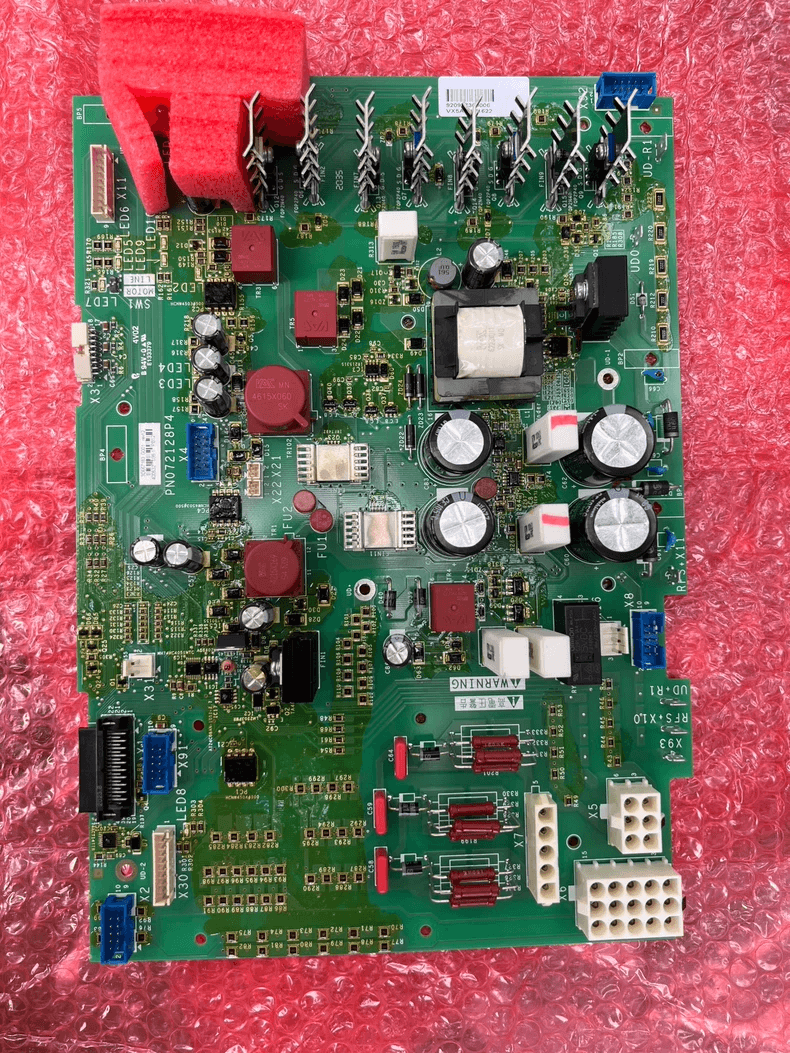

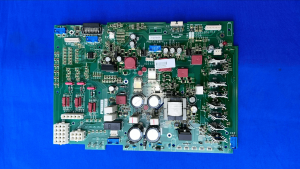

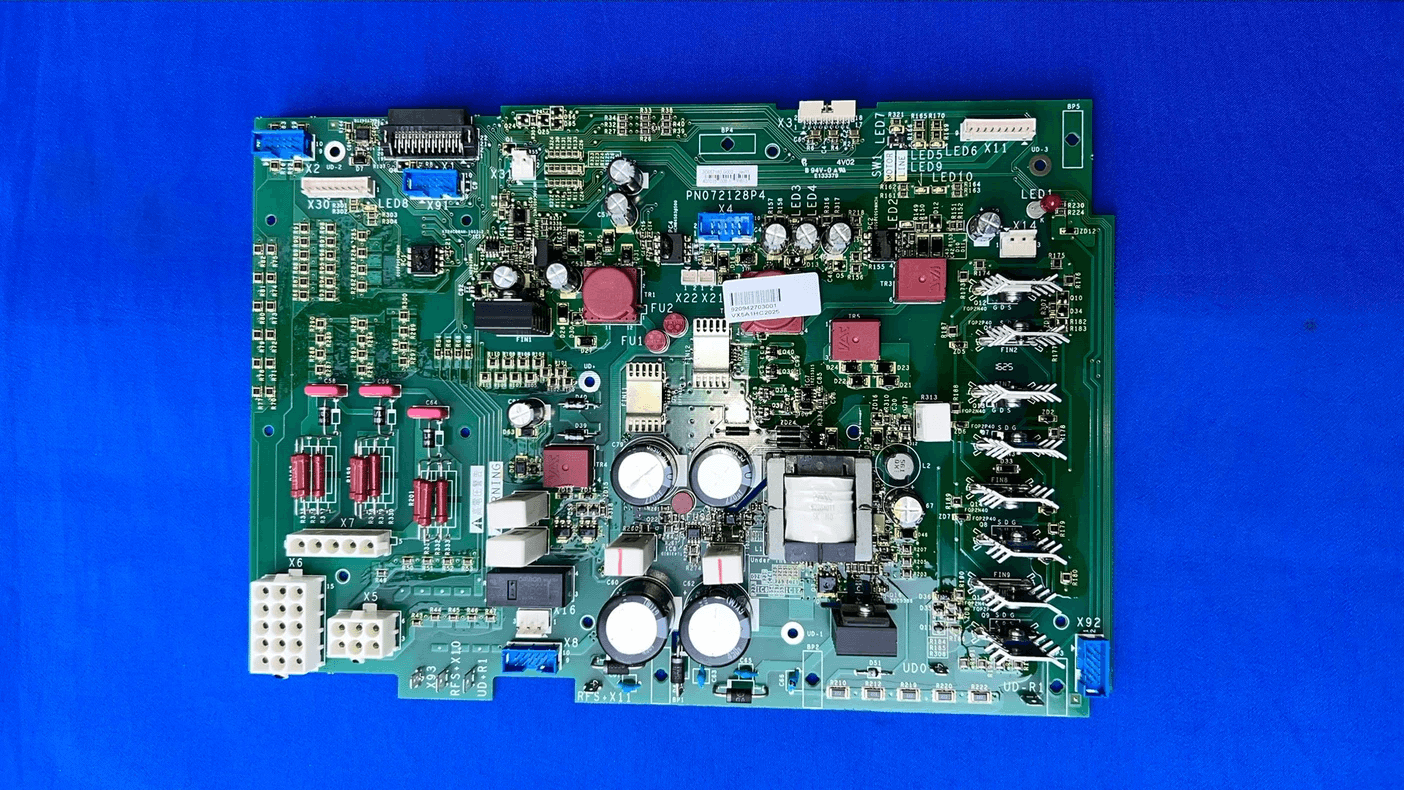

Schneider 16253930112A04 Control Power Board – ATV61/ATV71

What Is the 16253930112A04?

The Schneider Electric 16253930112A04 is a control power board used in selected Altivar 61 and Altivar 71 variable frequency drive configurations.

It is an internal electronic component designed for industrial inverter maintenance, repair and replacement applications.

This board is listed for selected 15kW and 18.5kW ATV61/ATV71 drive applications. It is supplied as tested stock for customers requiring a replacement control power board.

Before ordering, verify the complete drive model and original board part number to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	16253930112A04
Brand	Schneider Electric
Product Type	Control Power Board
Drive Series	Altivar 61 / Altivar 71
Application Power Range	15kW / 18.5kW (verify exact model)
Related Drive Reference	ATV61HD15N4
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Maintenance and Replacement

Applications and Compatibility

The Schneider 16253930112A04 is identified as a control power board for selected Altivar 61 and Altivar 71 inverter configurations.

Available supplier listings associate this part number with:

• ATV61HD15N4 – 15kW application.
• ATV71LD18N42 – 18.5kW application reference requiring verification.

Before ordering, check:

• Confirm that the existing board carries the complete part number 16253930112A04.
• Verify the complete ATV61 or ATV71 drive model.
• Check the drive power rating and voltage class.
• Compare the board revision and identification markings.
• Check connector positions and pin configuration.
• Confirm the original hardware configuration.

Important: Do not assume that all ATV61 and ATV71 drives rated 15–18.5kW use the same control power board. Always compare the original board number and complete drive reference before purchasing.

How to Identify the Correct Replacement Board

When replacing a control power board, carefully compare the original board with the replacement unit.

Check the following details:

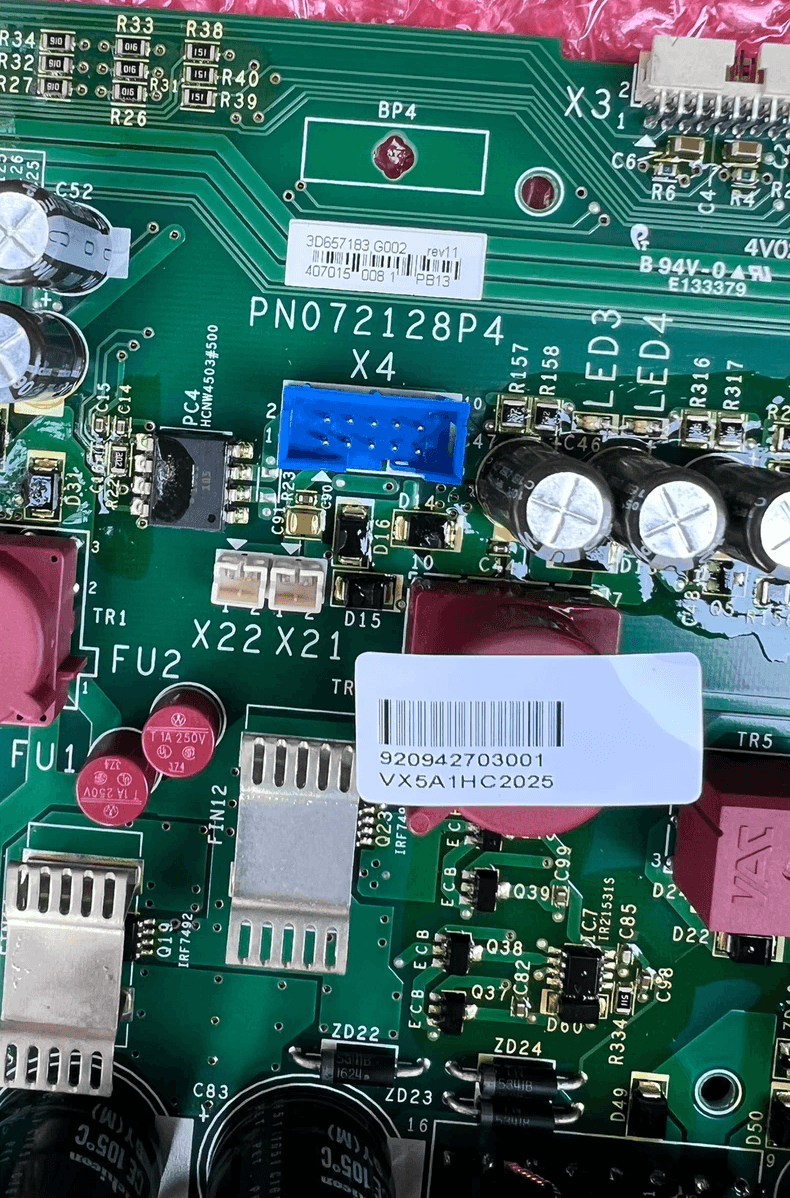

• Part number printed on the original PCB.
• Board revision and identification labels.
• Connector positions and pin configuration.
• Component layout and mounting points.
• Complete drive model and serial number.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Control Power Board Be Replaced?

A control power board may require inspection when the inverter experiences abnormal power supply operation or related internal circuit faults.

Before replacing the board:

• Check the board for visible damage or burnt components.
• Inspect connectors and wiring connections.
• Check the relevant power supply circuits.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the control power board is defective. Other power supply circuits and internal connections should also be inspected.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the 16253930112A04 used for?

The 16253930112A04 is identified as a control power board for selected Schneider Altivar 61 and Altivar 71 drive applications.

Is this board suitable for 15kW and 18.5kW drives?

Supplier listings associate this part number with 15kW and 18.5kW applications. However, compatibility depends on the exact drive model and original board configuration.

Is the 16253930112A04 a main control board?

No. It is identified as a control power board. It should not be confused with the main motor control board or other inverter circuit boards.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before ordering.

Need Help Confirming Compatibility?

Looking for a replacement Schneider 16253930112A04 control power board?

Send us:

• A clear photo of the existing board.
• A close-up photo of the 16253930112A04 identification label.
• The complete ATV61 / ATV71 drive nameplate.
• The drive model and power rating.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
