MCD312-16IO1 Thyristor Module – 320A 1600V SCR/Diode

What Is the MCD312-16IO1?

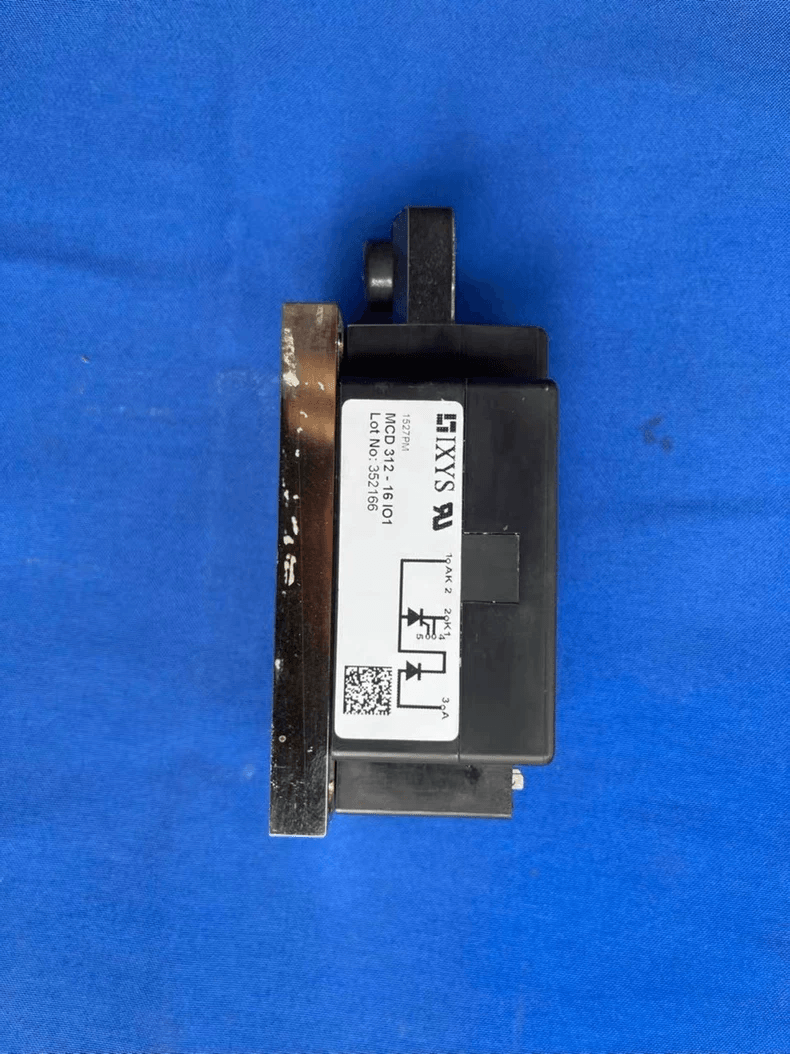

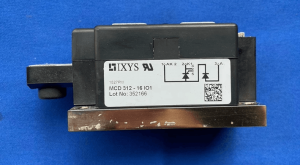

The MCD312-16IO1 is a thyristor-diode module (1 SCR + 1 Diode, series connection) in a Y1-CU package, rated 320 A average forward current and 1600 V repetitive peak reverse voltage. It is manufactured by IXYS / Littelfuse and used as the power-switching element in Danfoss MCD3000 soft starters and related Schneider soft-start / power-control equipment.

It is a module-level component, not a control board or driver board. Supplied as Tested replacement stock.

Key Specifications

When This Module Is the Suspect

The MCD312-16IO1 becomes the replacement target when the soft starter shows SCR-level failure symptoms and the power module has been isolated:

• Shorted SCR trip — Danfoss MCD3000 reports a shorted SCR fault. The manual specifies testing the SCRs; a module that fails the SCR test is the replacement target.
• Phase loss / unbalanced output — one phase shows no output or severe asymmetry after motor and wiring checks. An open-circuit SCR can produce this symptom.
• Overcurrent / overvoltage damage — surge current, supply transient, or loose power connection has stressed the module. Visible damage or a failed gate test confirms replacement.

Compatibility Check

Before ordering, confirm:

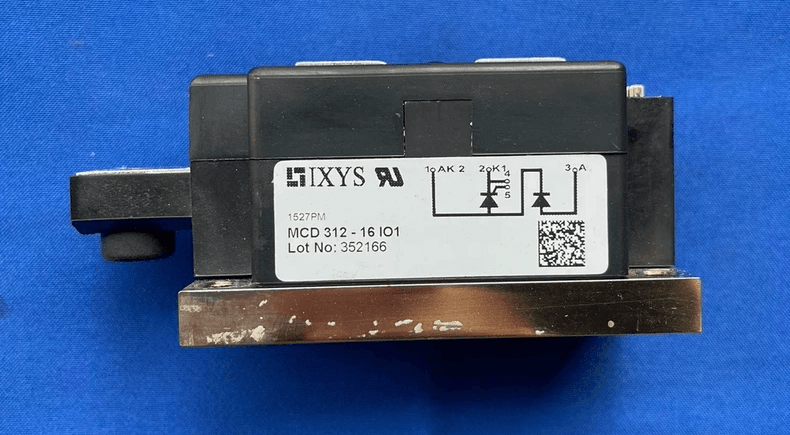

• Original module marking — confirm the existing module reads MCD312-16IO1.

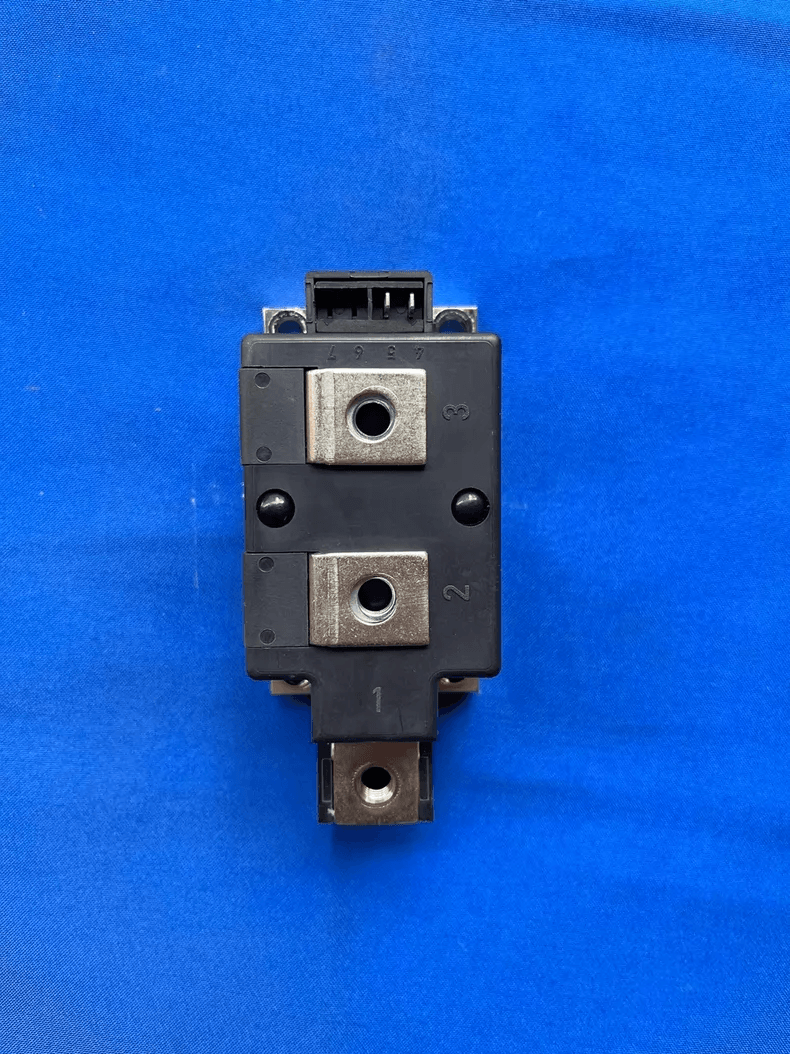

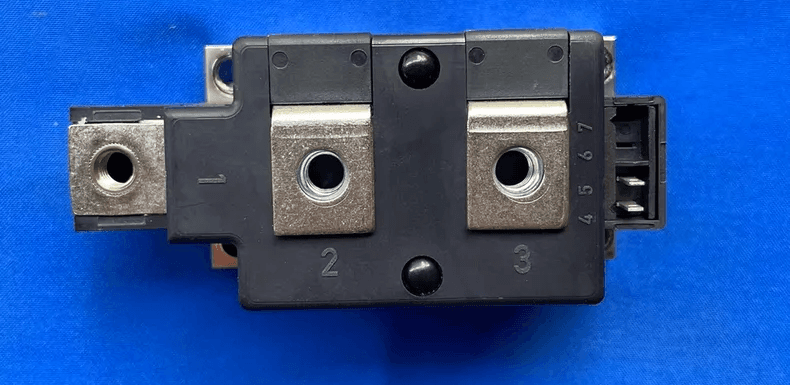

• Package style — confirm Y1-CU screw-mount footprint matches the mounting position.
• Drive / soft starter model — confirm the host unit is a Danfoss MCD3000 or a Schneider soft-start / power-control device that uses this module. Do not assume compatibility by power rating alone.
• If unsure, send a photo of the original module and the mounting position before purchase.

FAQ

Is MCD312-16IO1 a complete soft starter board?

No. It is a power semiconductor module (thyristor + diode), not a control board. It is replaced at the component level.

Does a “shorted SCR” fault always mean this module is faulty?

No. The trip indicates the soft starter detected a shorted SCR condition, but loose power connections, a shorted bypass contactor, or gate-circuit issues can produce the same trip. Perform the SCR test before replacing the module.

Is this an IXYS part or a Danfoss part?

The module is manufactured by IXYS / Littelfuse. It is used as a component in Danfoss MCD3000 and related equipment. The part number MCD312-16IO1 is the module identity, not a Danfoss-assigned spare-part number.

Condition & Dispatch

This module is supplied as Tested stock. Visual inspection covers terminal condition, housing integrity, and mounting surfaces. Photographic records are available on request before dispatch.
