Schneider EAV35793-03 Main Board – ATV610/630 Version Dependent

When This Board Is the Suspect

The main board becomes the replacement target when CPU-level symptoms persist after supply and connector checks:

• No display / panel dead with power present — the drive receives supply but the panel does not light up. A failed CPU board can produce this symptom.
• Communication fault / panel cannot connect — the drive does not respond on its communication port or the local panel, with cabling verified.
• Parameters lost / cannot save — settings do not persist after a power cycle. This points to the parameter storage section on the main board.
• Powers up but no output / no PWM — the drive initializes but does not drive the IGBTs. The PWM output stage on this board should be inspected.

Compatibility Check

Before ordering, confirm:

• Primary fitment — confirm the drive is an ATV610. If the drive is an ATV630, verify whether it uses the EAV35793 board or the official EAV35794 board before ordering.

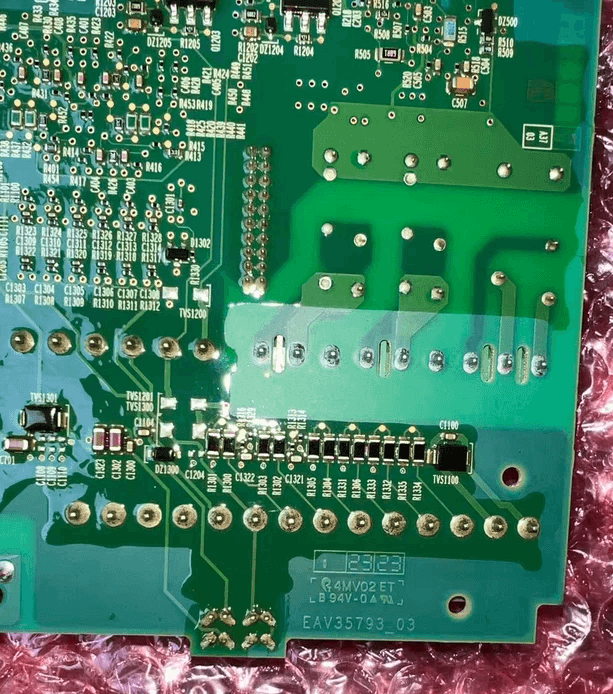

• Version suffix — confirm the original board label reads EAV35793-03. The -01 and -03 versions are not interchangeable; a mismatched version may not start.
• Power rating / firmware — ATV610 boards for different kW ratings carry different firmware. After replacement, re-flashing and motor auto-tuning may be required.
• If unsure, send a photo of the original board label（including the suffix）and the drive nameplate before purchase.

FAQ

Is EAV35793-03 the same as the ATV630 official main board?

No. The ATV630 official main board is the EAV35794 / VX4B600100. EAV35793 is primarily the ATV610 main board and is not interchangeable with the ATV630 official board.

Can I use EAV35793-01 instead of -03?

No. The -01 and -03 are different hardware versions and cannot be directly substituted. A mismatched version may power up but fail to start or report a fault.

Will the board work immediately after installation?

Not guaranteed. ATV610 boards for different power ratings carry different firmware. Re-flashing and motor auto-tuning are often required after replacement.
