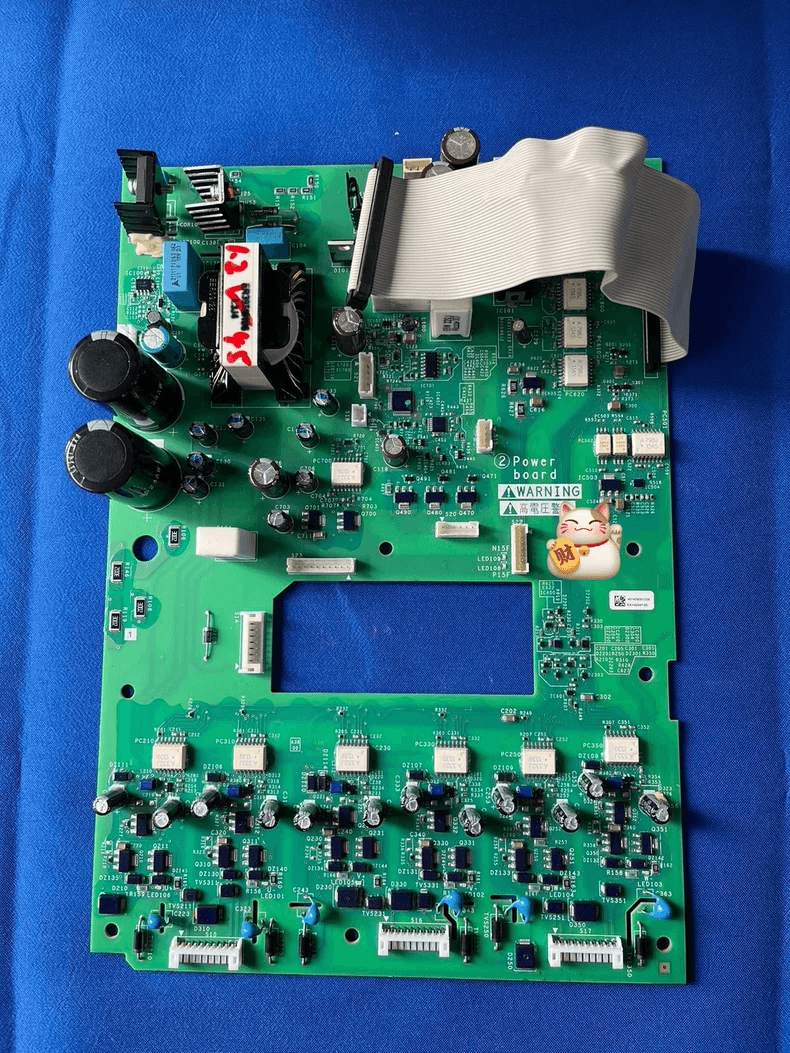

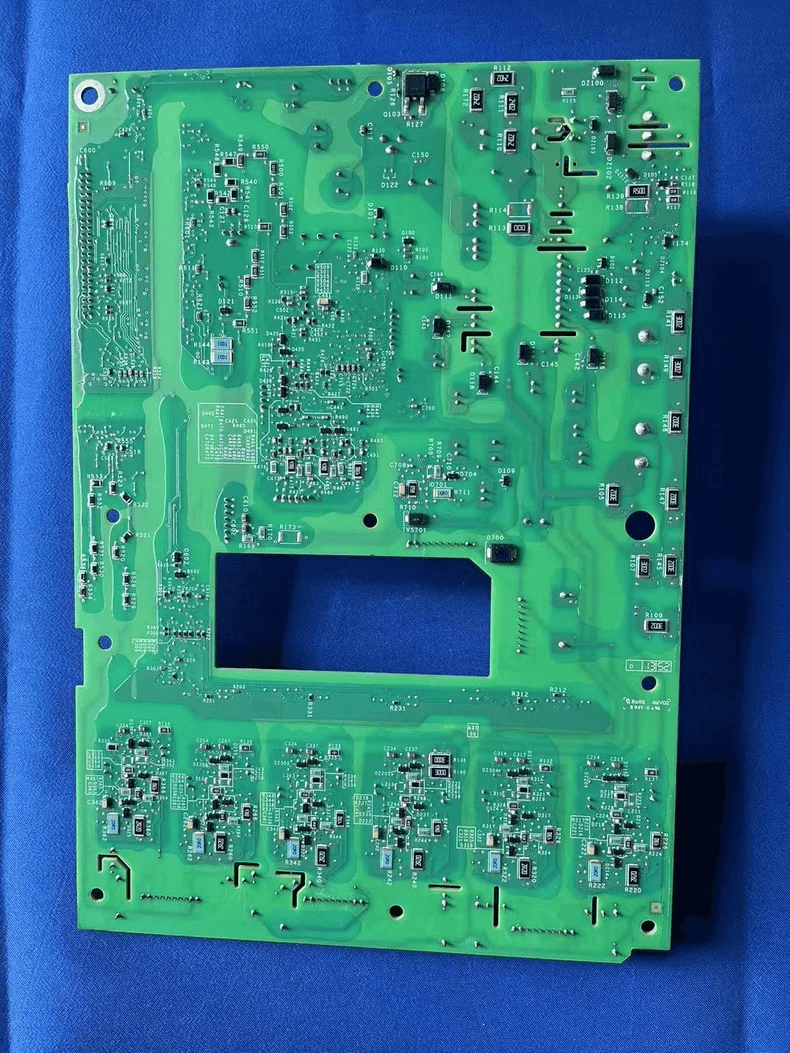

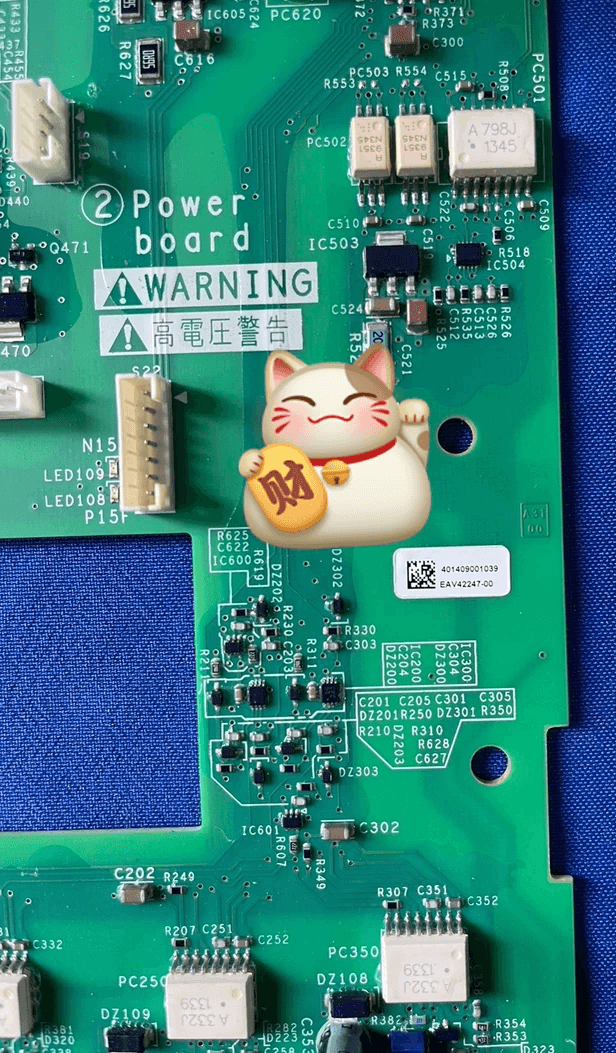

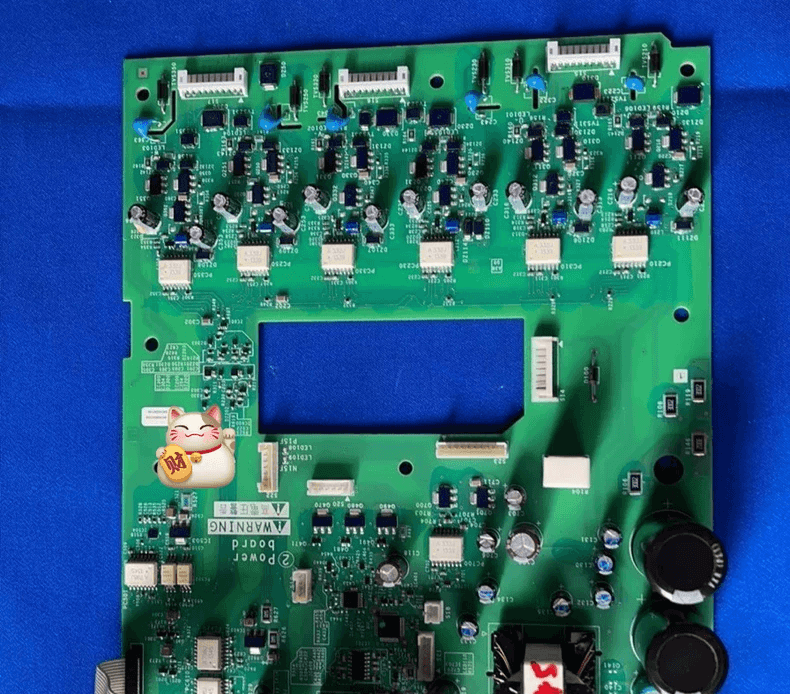

Schneider EAV42247-00 Power/Driver Board – ATV610/630/930 30-45KW VFD Spare – Tested

Product Overview

Original Schneider EAV42247-00 power and driver board for Altivar ATV610, ATV630, and ATV930 series drives. The ATV610, ATV630, and ATV930 series are Schneider Electric’s Altivar Process and Easy Altivar platforms for industrial pump, fan, and machine applications.

Key Features

• Genuine Schneider original – EAV42247-00 power/driver board
• Compatible with ATV610, ATV630, and ATV930 series drives
• Power ratings: 30KW – 37KW – 45KW
• Voltage: 3-phase 380-480V AC
• Core power stage component – power supply, IGBT gate drive, DC bus regulation
• Weight: ~1 kg
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar ATV610, ATV630, and ATV930 series drives
• Specifically for 30KW, 37KW, and 45KW power ratings at 380-480V AC
• Used in the power stage of Altivar Process and Easy Altivar drive platforms
• CRITICAL: Nameplate photo required – different power ratings and drive versions may use different board revisions
• If mismatched: Incorrect board selection may result in drive failing to power up, reporting “DC Bus Fault,” or experiencing IGBT drive errors
• Verify drive model, power rating, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
