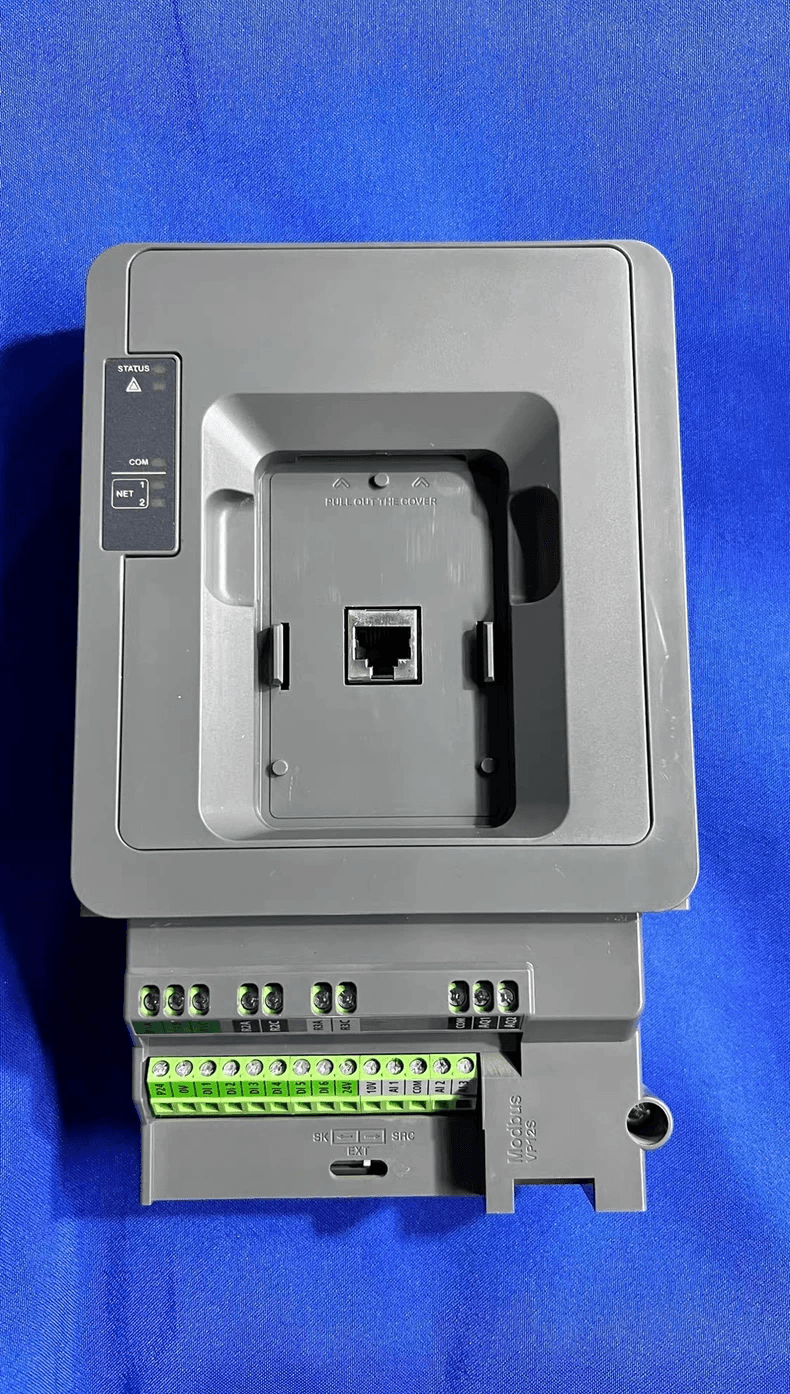

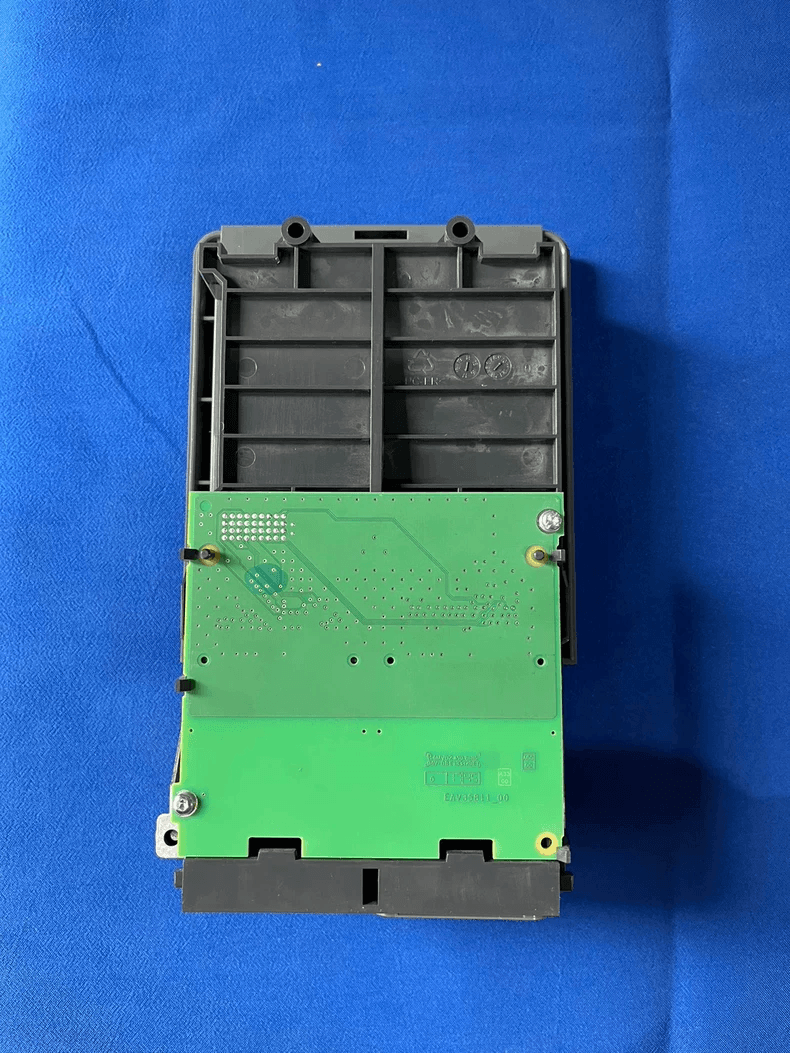

Schneider EAV52811A Control Terminal Board – Tested ATV610 18.5–37 kW

When This Board Is the Suspect

• CrF（Precharge Fault） with power confirmed present — the drive reports a precharge fault. CrF typically indicates an issue in the DC bus charging circuit, but control-board relay command or signal routing failures can also contribute. Verify the charging resistor and relay before concluding the board is faulty.
• SCF（Short Circuit） with motor cables disconnected — if the short-circuit fault persists after disconnecting the motor leads, the issue is internal to the drive. The control board’s gate signal routing is one link in that chain, but the IGBT power board is the more common source.
• No display / control unresponsive — supply is present but the board does not initialize. Confirm control-side power rails before replacing the board.

Compatibility Check

Before ordering, confirm:

• Drive MLFB — the exact ATV610 catalogue number on the nameplate. The 18.5–37 kW range spans multiple frame sizes.

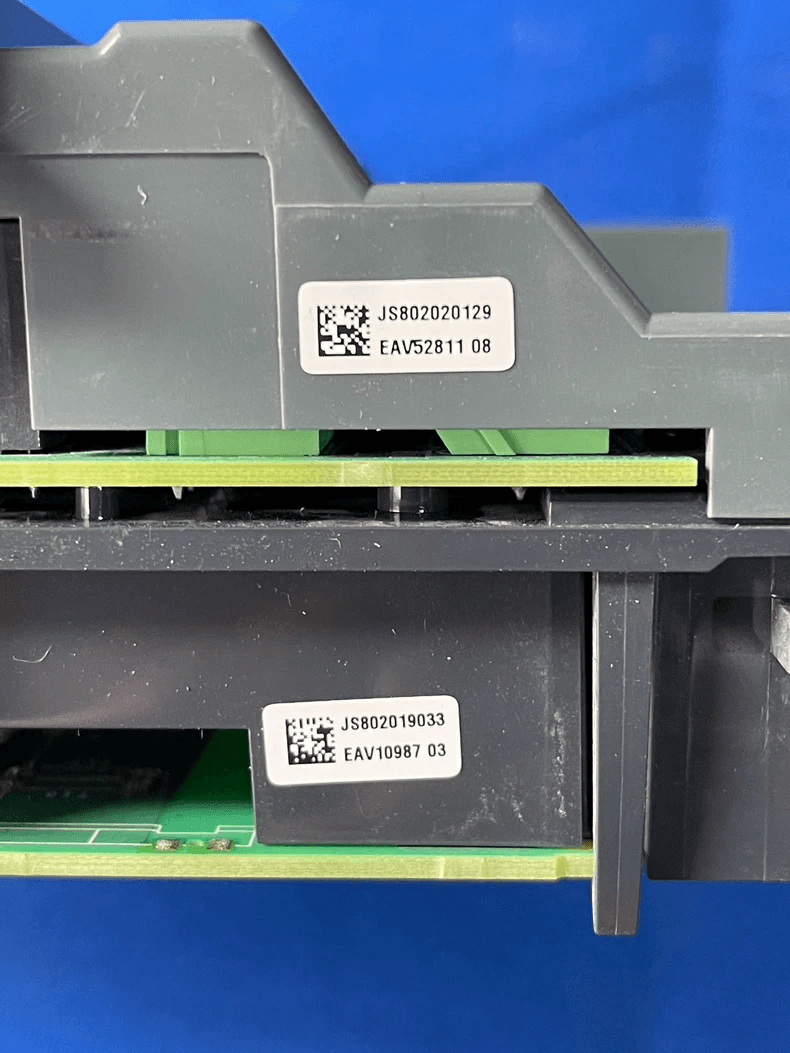

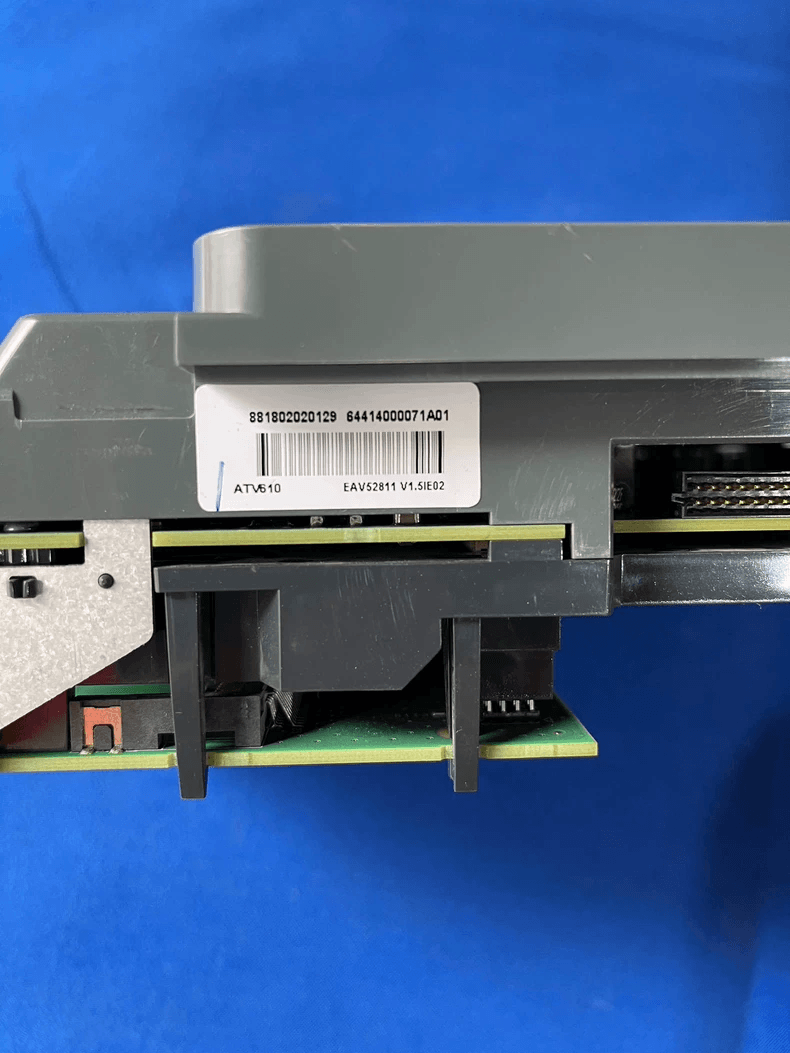

• Version verification — this board is version-dependent. Compare the revision or batch code on the original board label with the replacement.
• Fault context — confirm whether the symptom is CrF or SCF after external checks. If the fault originates from the power stage (IGBT short), this control board is not the primary replacement target.
• If unsure, send a photo of the original board label (including revision code) and the drive nameplate before purchase.

FAQ

Does CrF always mean the EAV52811A board is faulty?

No. CrF is a precharge fault. The charging resistor, relay, and DC bus circuit are common causes. The control board’s relay command path can contribute, but it is not the default cause.

What does “version-dependent” mean for this board?

Hardware revisions of the EAV52811A differ across production batches. A replacement board with the same part number may not match the original revision, and the drive’s stored configuration or firmware expectations may not align. Always verify the revision code on the original label before ordering.

Is EAV52811A compatible with all ATV610 18.5–37 kW models?

It is designated for that power range, but compatibility depends on the specific frame size and board revision. Confirm the MLFB and the original revision code before purchase.

Condition & Dispatch

This board is supplied as Tested stock. Inspection covers connector condition, terminal integrity, and PCB appearance. Photographic records are available on request before dispatch. Revision-code verification is strongly recommended before installation.
