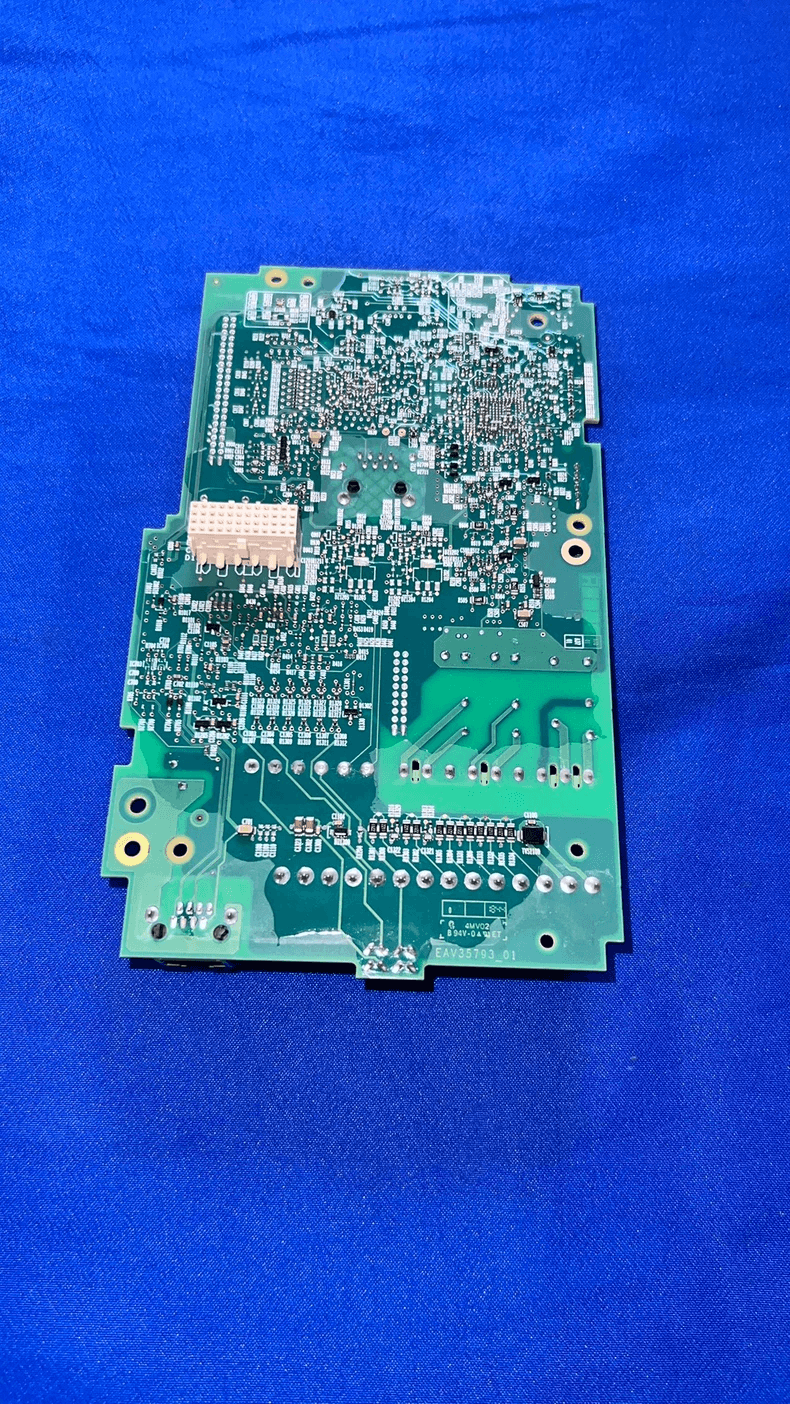

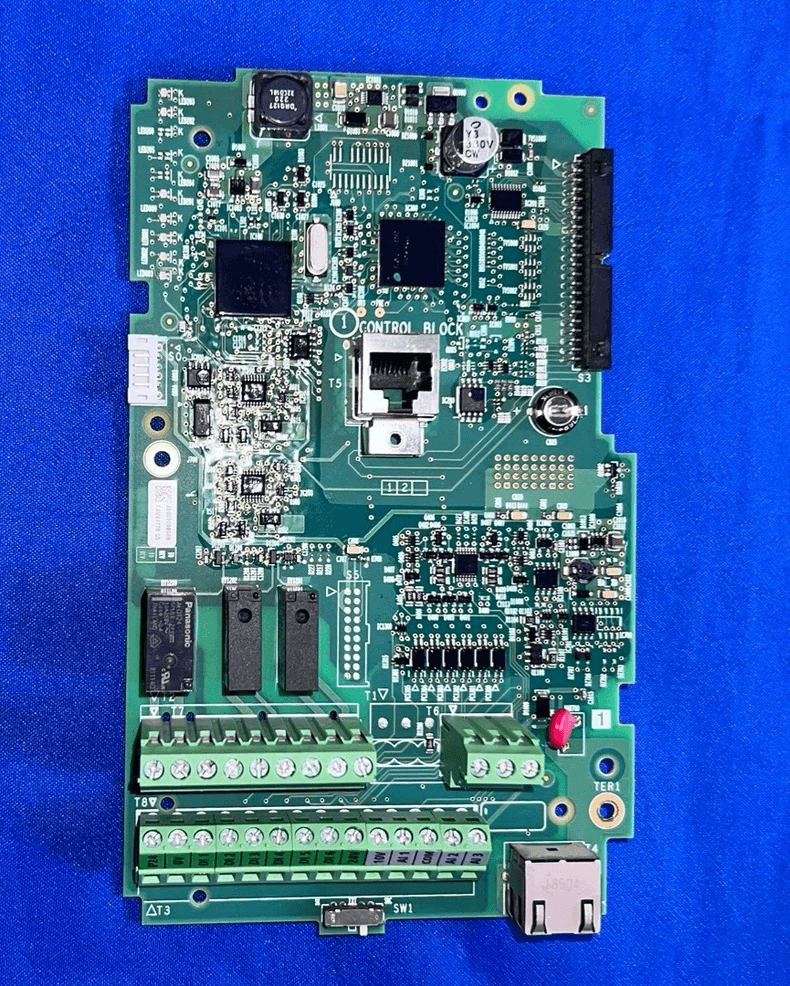

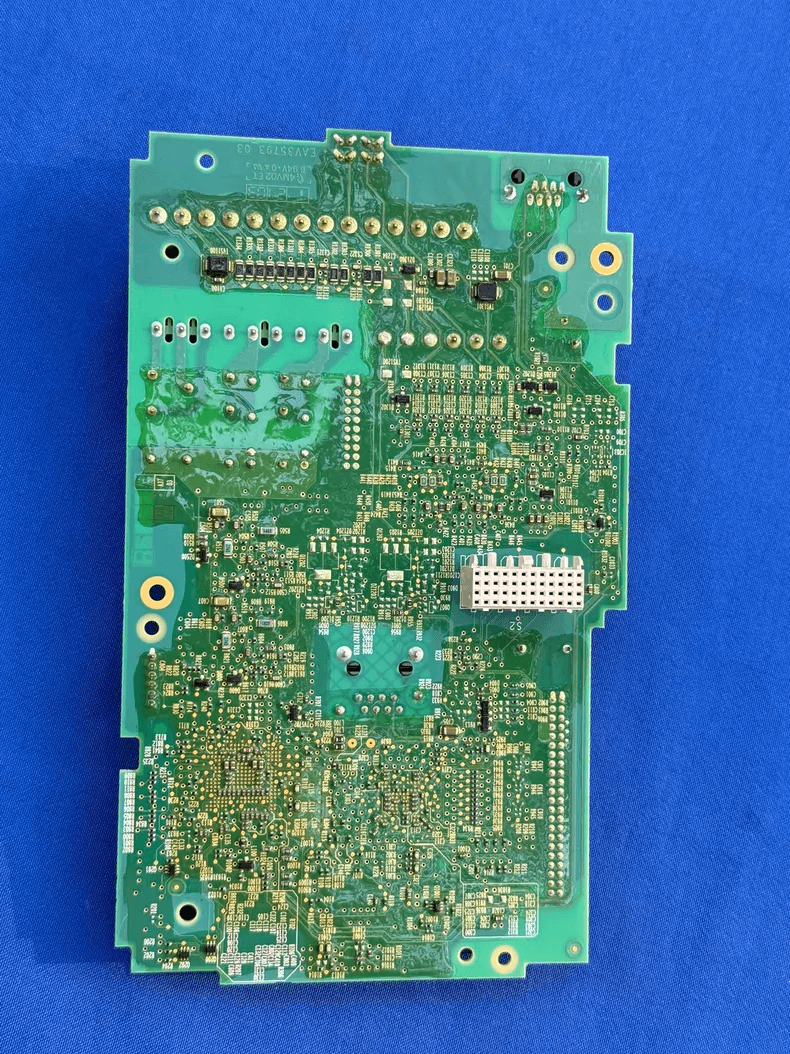

Schneider EAV97352_06 Communication Board – ATV660/680/6B0 315-400KW – Tested

Product Overview

Original Schneider EAV97352_06 communication board for Altivar Process ATV660, ATV680, and ATV6B0 series custom-engineered drives. This board serves as the communication interface module, enabling the drive to connect to industrial automation networks and control systems via fieldbus and Ethernet protocols. It is part of the Altivar Process custom drive platform (CTO) for demanding industrial applications.

Key Features

• Genuine Schneider original – EAV97352_06 communication board
• Compatible with Altivar Process ATV660, ATV680, and ATV6B0 series custom drives
• Power ratings: 315KW – 400KW
• Communication interface module – fieldbus and Ethernet connectivity
• Part of the Altivar Process CTO (Configured-to-Order) drive platform
• Works with EAV97351_01 communication board and EAV97591_00 driver board
• Designed for process drive system integration
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar Process ATV660, ATV680, and ATV6B0 series custom-engineered drives
• Specifically for 315KW and 400KW power ratings
• Important: This is a custom-engineered board for the ATV660/680/6B0 CTO platform – not a standard ATV630/ATV930 component
• Works in conjunction with EAV97351_01 (communication board) and EAV97591_00 (driver board) in the drive system

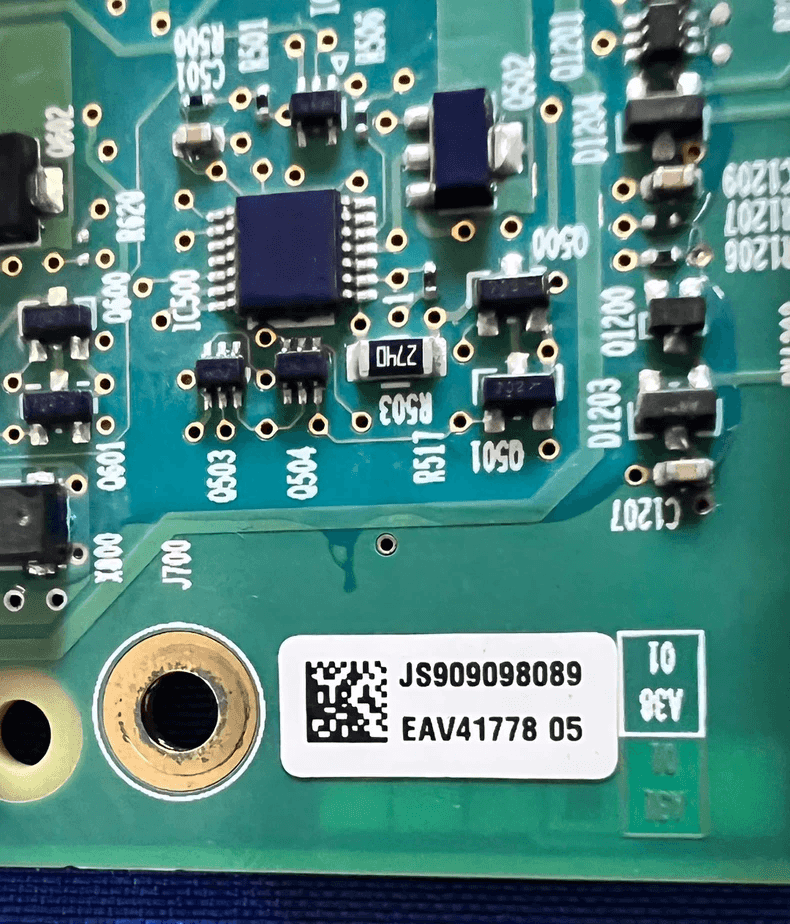

• CRITICAL: Nameplate photo and original board marking required – custom-engineered boards have specific revision requirements for each drive configuration
• If mismatched: Incorrect board selection may result in communication errors, network connectivity issues, or drive system faults
• Verify drive model, power rating, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
