Schneider EAV97591_00 Driver / Trigger Board – ATV660/680/6B0

What Is the EAV97591_00?

The Schneider Electric EAV97591_00 is an inverter driver / trigger board listed for selected Altivar Process variable frequency drive applications.

It is an internal electronic component associated with the drive’s power control system and is intended for industrial VFD maintenance, repair and replacement applications.

This board is offered as tested stock for customers requiring a replacement Schneider inverter board.

Before ordering, verify the complete original board part number and drive model to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	EAV97591_00
Alternative Part Number Format	EAV97591-00
Brand	Schneider Electric
Product Type	Power / Driver / Trigger Board
Drive Series	ATV660 / ATV680 / ATV6B0 (verify exact model)
Application Power Range	220–400kW (verify drive configuration)
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Maintenance and Replacement

Applications and Compatibility

The Schneider EAV97591_00 is offered for selected high-power Altivar Process drive applications.

The intended applications provided for this product include:

• ATV660 – selected drive configurations.
• ATV680 – selected drive configurations.
• ATV6B0 – selected drive configurations.

The stated application power range is 220kW to 400kW.

Some third-party spare parts listings also associate EAV97591-00 with ATV610, ATV630 and ATV660 trigger board applications.

Important Compatibility Checks:

Before ordering, verify:

• Confirm that the original board carries the exact part number EAV97591_00.
• Check the complete Schneider drive model and catalog reference.
• Verify the drive power rating and voltage class.
• Compare the board revision and identification markings.
• Check connector positions and pin configuration.
• Compare the original board layout and mounting points.
• Confirm the correct driver / trigger board configuration for the drive.

Do not assume that every ATV660, ATV680 or ATV6B0 drive rated 220–400kW uses the same board.

The listed drive series and power range should be checked against the original board label and complete drive nameplate before ordering.

How to Identify the Correct Replacement Board

When replacing a driver / trigger board, carefully compare the original board with the replacement unit.

Check the following details:

• Part number printed on the original PCB.
• Board revision and identification labels.
• Connector positions and pin configuration.
• Electronic component layout.
• Mounting positions and electrical connections.
• Complete drive model and nameplate information.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Driver / Trigger Board Be Replaced?

A driver / trigger board may require inspection when the inverter experiences abnormal power control operation or related electronic faults.

Before replacing the board:

• Inspect the board for visible damage or burnt components.
• Check connectors and electrical connections.
• Inspect the associated power control circuits.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the driver / trigger board is defective. Other power electronics and electrical connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available inspection and functional testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the EAV97591_00 used for?

The EAV97591_00 is listed as a Schneider inverter driver / trigger board for selected Altivar Process drive applications.

Is EAV97591_00 compatible with ATV660, ATV680 and ATV6B0 drives?

These are the intended application series provided for this product. However, compatibility must be verified against the complete drive model, original board number and hardware configuration.

Which power ratings are associated with EAV97591_00?

The stated application range is 220kW to 400kW. Confirm the exact drive model and power configuration before ordering.

Is EAV97591_00 a power board or a trigger board?

Supplier descriptions associate this part number with a trigger / power board. Please compare the original board label and actual hardware configuration before replacement.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider EAV97591_00 driver / trigger board?

Send us:

• A clear photo of the existing board.

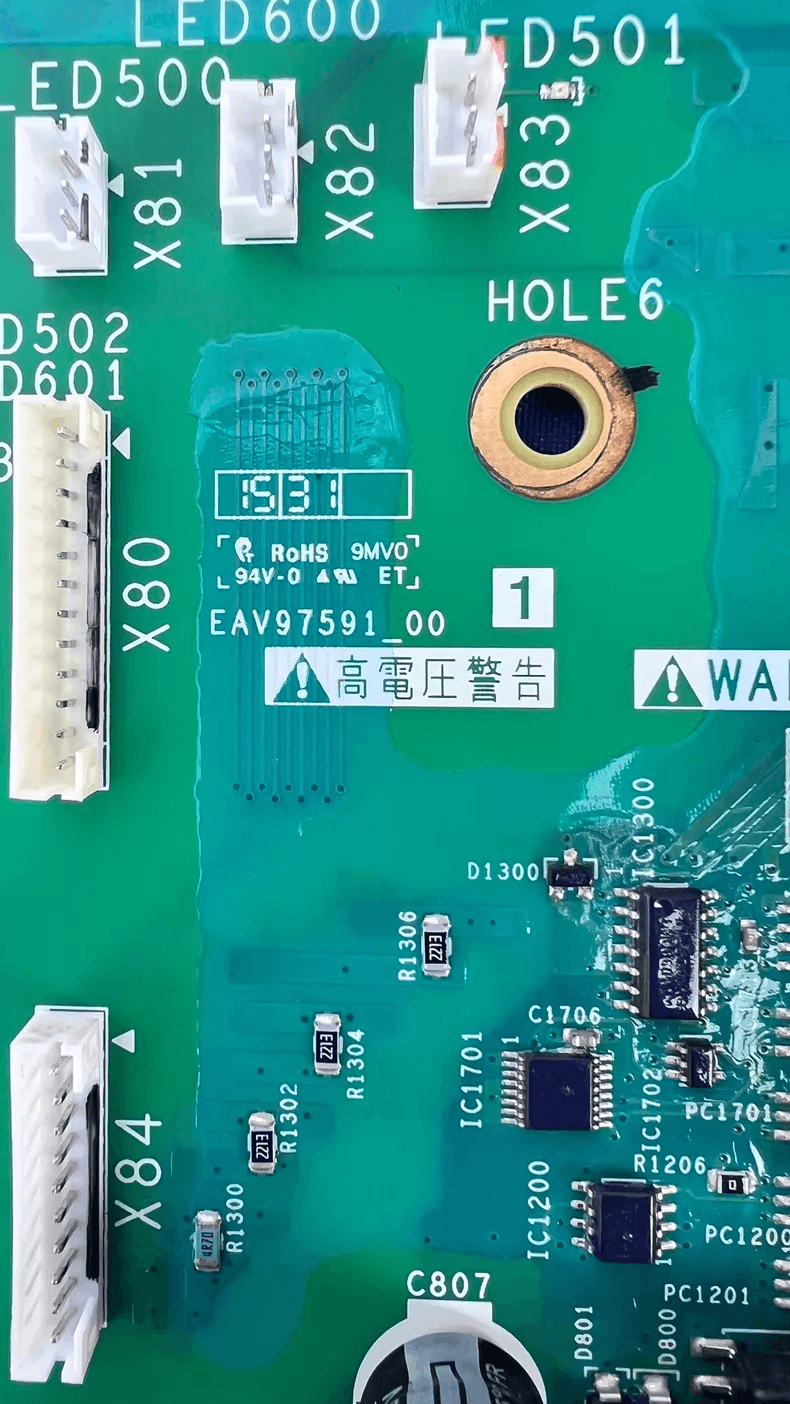

• A close-up photo of the EAV97591_00 identification label.
• The complete Schneider drive nameplate.
• The drive model, power rating and voltage.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
