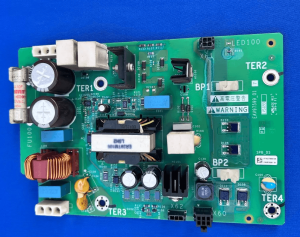

Schneider EAV97600_01 Power Board – ATV660/680/6B0

What Is the EAV97600_01?

The Schneider Electric EAV97600_01 is a power board listed for selected Altivar Process ATV660, ATV680 and ATV6B0 variable frequency drive applications.

It is an internal power electronics component intended for industrial VFD maintenance, repair and replacement applications.

This board is offered as tested stock for customers requiring a replacement power board for high-power Schneider drive systems.

Before ordering, verify the original board part number and complete drive model to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	EAV97600_01
Brand	Schneider Electric
Product Type	Power Board
Drive Series	ATV660 / ATV680 / ATV6B0
Application Power Range	250–400kW (verify exact drive model)
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Maintenance and Replacement

Applications and Compatibility

The Schneider EAV97600_01 is listed for selected high-power Altivar Process drive applications.

The listed drive families include:

• ATV660
• ATV680
• ATV6B0

The intended application power range is 250–400kW, subject to confirmation against the exact drive configuration.

Important Compatibility Checks:

Before ordering, verify:

• Confirm that the original board carries the exact part number EAV97600_01.
• Check the complete Schneider drive model and catalog reference.
• Verify the drive power rating and voltage class.
• Compare the board revision and identification markings.
• Check connector positions and pin configuration.
• Compare the original board layout and mounting points.

Do not assume that every ATV660, ATV680 or ATV6B0 drive rated 250–400kW uses the same power board.

How to Identify the Correct Replacement Power Board

When replacing a power board, carefully compare the existing board with the replacement unit.

Check the following details:

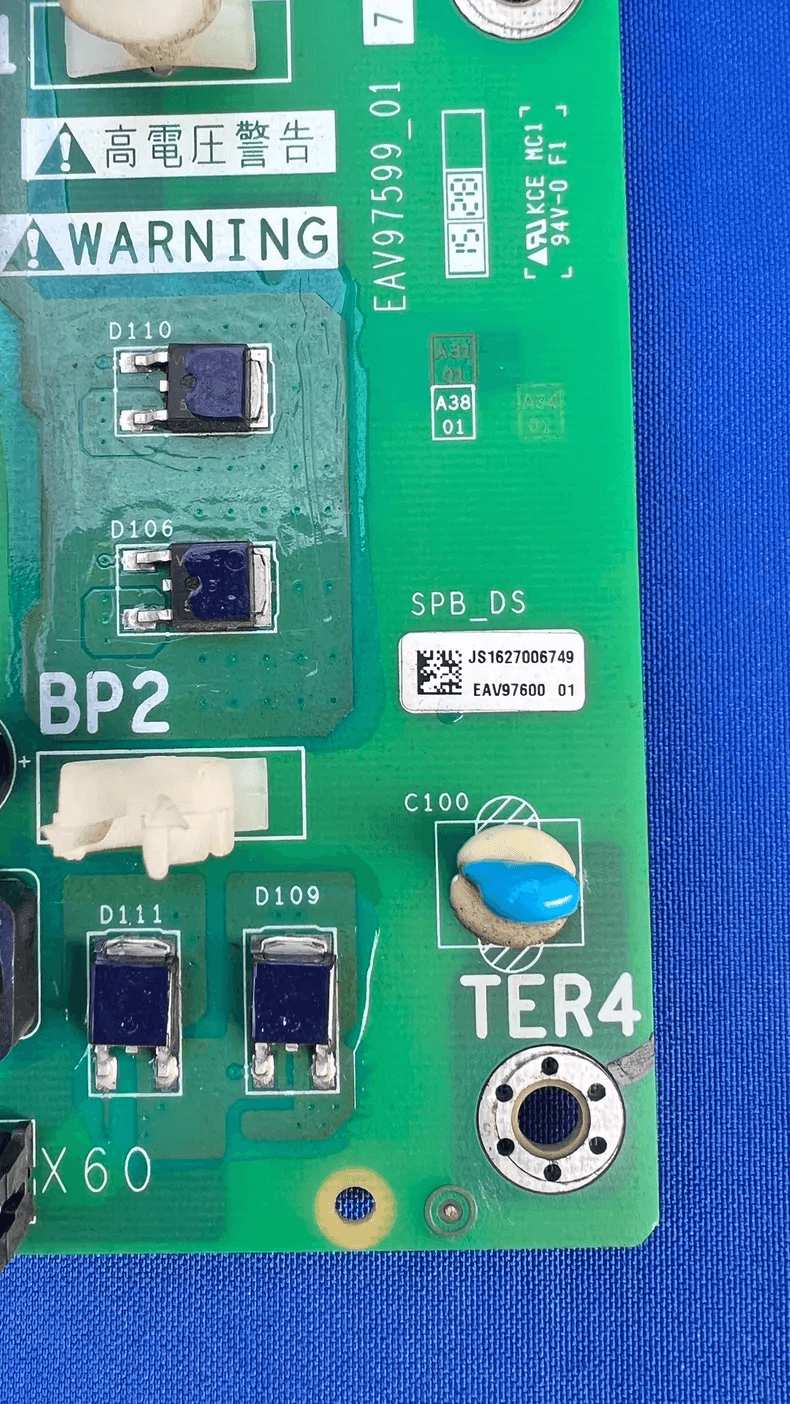

• Part number printed on the original PCB.
• Board revision and identification labels.
• Connector positions and pin configuration.
• Electronic component layout.
• Mounting positions and connection points.
• Complete drive model and nameplate information.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Power Board Be Replaced?

A power board may require inspection when the inverter experiences power-stage faults or abnormal operation.

Before replacing the board:

• Check for visible damage or burnt components.
• Inspect connectors and power connections.
• Check the associated power electronics.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the power board is defective. Other power circuit components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the EAV97600_01 used for?

The EAV97600_01 is listed as a Schneider power board for selected Altivar Process ATV660, ATV680 and ATV6B0 drive applications.

Is EAV97600_01 suitable for 250–400kW drives?

The listed application range is 250–400kW. However, compatibility depends on the complete drive model, voltage rating and original hardware configuration.

Is EAV97600_01 compatible with all ATV660 and ATV680 drives?

No universal compatibility is confirmed. Always check the complete drive reference and original board identification before ordering.

Is this power board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider EAV97600_01 power board?

Send us:

• A clear photo of the existing power board.
• A close-up photo of the EAV97600_01 identification label.
• The complete ATV660 / ATV680 / ATV6B0 drive nameplate.
• The drive model, power rating and voltage.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
