Schneider EAV97601-00 Surge Absorption Board – ATV610/630/660

What Is the EAV97601-00?

The Schneider Electric EAV97601-00 is identified in industrial spare parts listings as a surge absorption / filter board used in selected Altivar Process variable frequency drive configurations.

It is an internal electronic component associated with the rectifier and power filtering section of the inverter.

This board is intended for industrial VFD maintenance, repair and replacement applications.

It is offered as tested stock. Before ordering, verify the original board part number and complete drive model to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	EAV97601-00
Alternative Part Number Format	EAV97601_00
Brand	Schneider Electric
Product Type	Surge Absorption / Filter Board
Drive Series	ATV610 / ATV630 / ATV660 (listed applications)
Additional Applications	ATV680 / ATV6B0 (verify exact model)
Application Power Range	250–400kW (verify exact drive reference)
Main Function	Surge Absorption and Power Filtering
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Rectifier and Power Circuit Maintenance

Applications and Compatibility

The Schneider EAV97601-00 is listed for selected Altivar Process variable frequency drive applications.

Available supplier references associate this board with:

• ATV610 – selected drive configurations.
• ATV630 – selected drive configurations.
• ATV660 – selected drive configurations.

ATV680 and ATV6B0 are also included in the supplied application information, but their compatibility with this exact board should be verified against the original equipment configuration.

The intended application power range is 250–400kW, subject to confirmation against the complete drive model.

Important Compatibility Checks:

Before ordering, verify:

• Confirm that the original board carries the exact part number EAV97601-00.
• Check the complete Schneider ATV drive model and catalog reference.
• Verify the drive power rating and voltage class.
• Compare the board revision and identification markings.
• Check connector positions and pin configuration.
• Compare the original board layout and mounting points.
• Confirm the rectifier and power filtering configuration.

Do not assume that all ATV610, ATV630, ATV660, ATV680 or ATV6B0 drives use the same surge absorption board.

How to Identify the Correct Replacement Board

When replacing a surge absorption or filter board, carefully compare the original board with the replacement unit.

Check the following details:

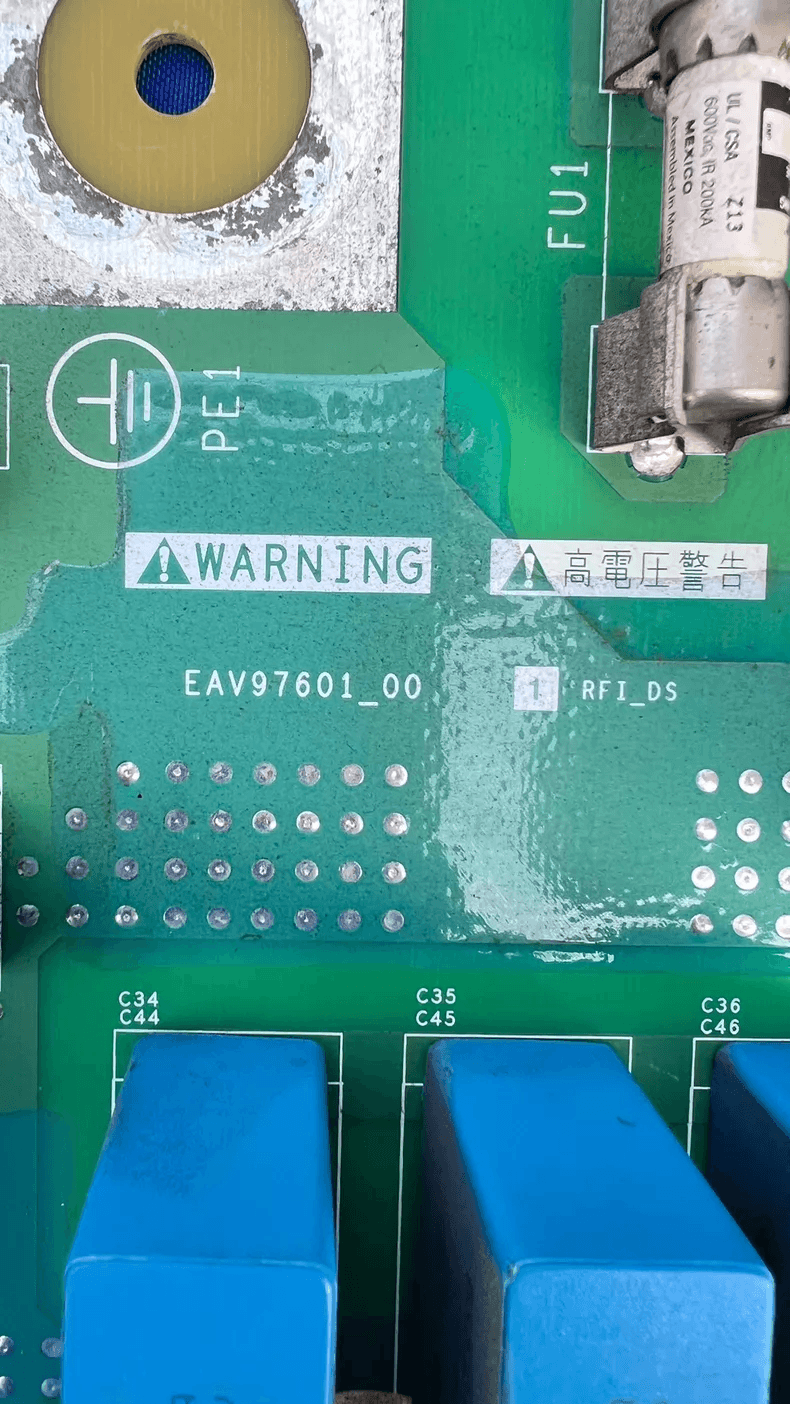

• Part number printed on the original PCB.
• Board revision and identification labels.
• Connector positions and pin configuration.
• Electronic component layout.
• Mounting positions and electrical connection points.
• Complete drive model and nameplate information.

If you are unsure about compatibility, send us clear photos of the existing board and drive nameplate before ordering.

When Should the Surge Absorption Board Be Replaced?

A surge absorption or filter board may require inspection when the inverter experiences abnormal power circuit operation or visible damage to its filtering components.

Before replacing the board:

• Inspect the board for burnt or damaged components.
• Check for visible cracks or overheating.
• Inspect connectors and electrical connections.
• Check the associated rectifier and power circuit components.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the surge absorption board is defective. Other power circuit components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available inspection and testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the EAV97601-00 used for?

The EAV97601-00 is listed as a surge absorption / filter board for selected Schneider Altivar Process drive applications.

Is EAV97601-00 a power board or a filter board?

It is identified in supplier listings as a surge absorption and filter board associated with the inverter rectifier and power filtering section.

Is EAV97601-00 compatible with ATV610, ATV630 and ATV660?

Third-party supplier listings associate this part number with these three drive series. However, compatibility depends on the complete drive model and original hardware configuration.

Is EAV97601-00 compatible with ATV680 and ATV6B0?

These additional applications require confirmation. Please provide the complete drive reference and original board identification before ordering.

Is this board tested?

This listing is for tested stock. Please request available inspection and testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider EAV97601-00 surge absorption / filter board?

Send us:

• A clear photo of the existing board.
• A close-up photo of the EAV97601-00 identification label.
• The complete Schneider drive nameplate.
• The drive model, power rating and voltage.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
