Schneider VX4A61100Y Main Control Board Kit – ATV61 Series 0.75-75KW – Original Pulled

Product Overview

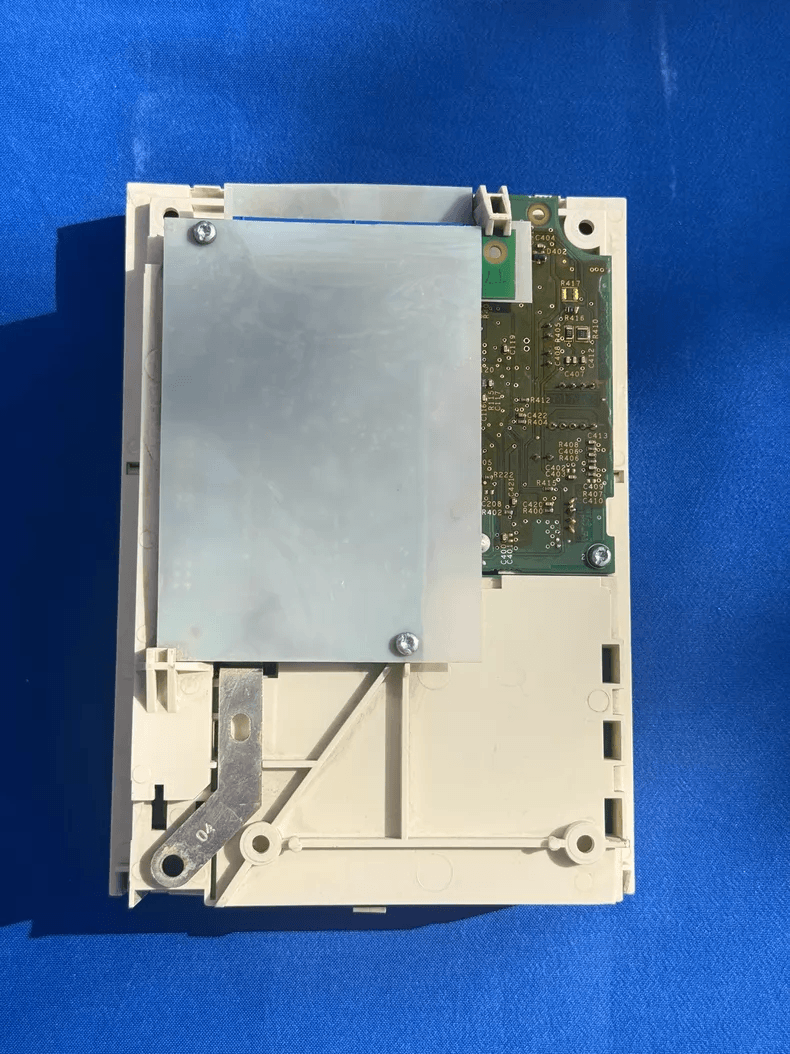

Original Schneider VX4A61100Y main control board kit (control block) for Altivar ATV61 series drives. This is the central processing unit for the ATV61 drive, housing the main processor that executes all drive control algorithms, manages parameter storage, handles communication interfaces, and serves as the base for the control panel connection.

Key Features

• Genuine Schneider original – VX4A61100Y control board kit
• Compatible with Altivar ATV61 series drives, frame sizes 1 through 9
• Power range: 0.75KW to 75KW
• Complete kit – includes motor control PCBA, interface PCBA, terminal PCBA, and mounting hardware
• Central processing unit – operation calculations, parameter storage, communication
• ATV61 series only – NOT compatible with ATV71 series
• Firmware cannot be upgraded in the field – requires Schneider Electric service center or new replacement board
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar ATV61 series drives only
• Specifically for frame sizes 1 through 9 (0.75KW to 75KW)
• Typical drive catalog numbers: ATV61H075M3, ATV61H075N4, ATV61HU15N4, ATV61HU22N4, ATV61HU30N4, ATV61HU40N4, ATV61HU55N4, ATV61HU75N4, ATV61HD11N4, ATV61HD15N4, ATV61HD18N4, ATV61HD22N4, ATV61HD30N4, ATV61HD37N4, ATV61HD45N4, ATV61HD55N4, ATV61HD75N4
• CRITICAL: NOT compatible with ATV71 series – ATV71 uses VX4A71100Y for frame sizes 1-9
• NOT compatible with ATV61 frame sizes 10-16 – those use VX4A61101Y
• IMPORTANT: Drive firmware cannot be upgraded in the field. Control board replacement may require firmware version matching with the drive’s power board
• If mismatched: Installing VX4A61100Y on an ATV71 drive or on an ATV61 frame size 10-16 drive will result in control failure, parameter incompatibility, or communication errors
• Verify drive model, frame size, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
