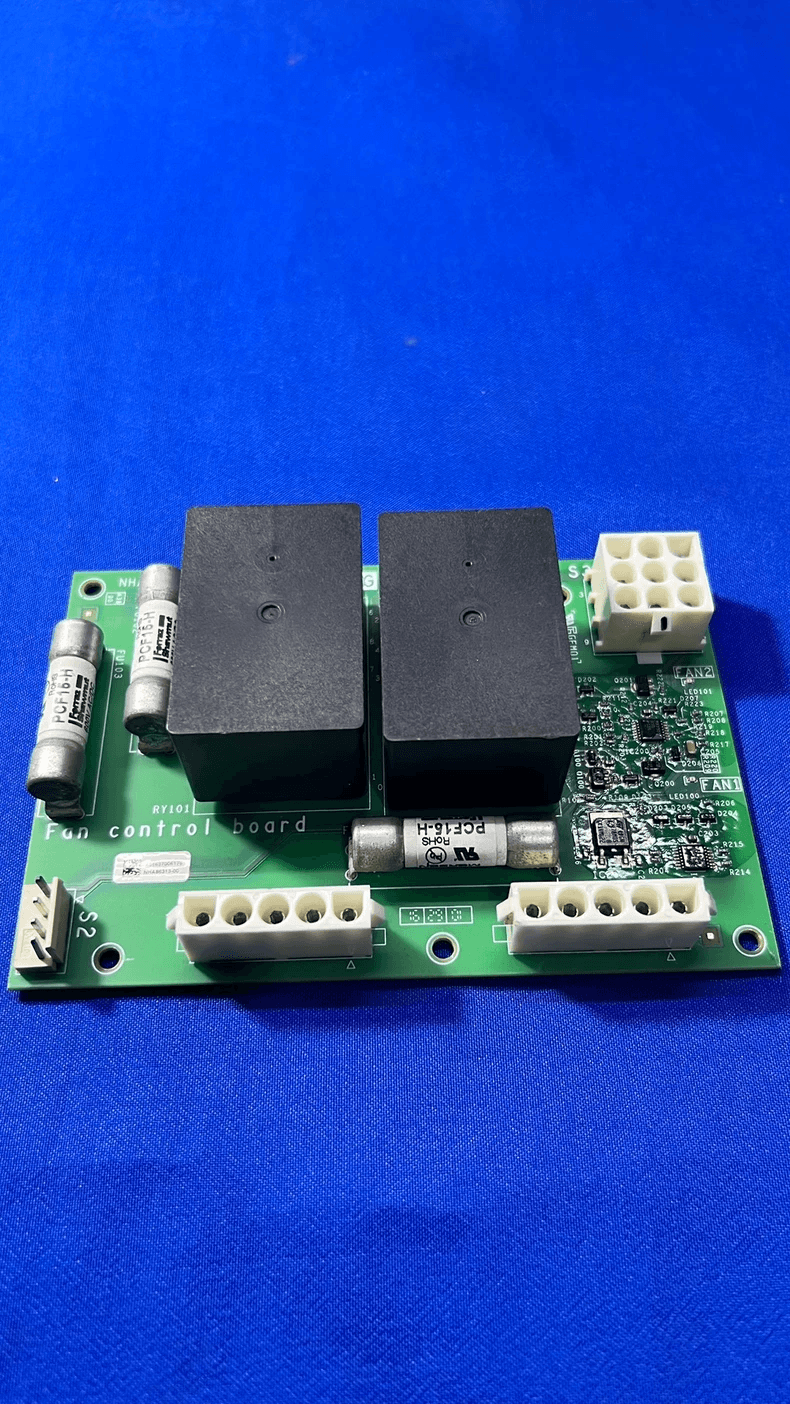

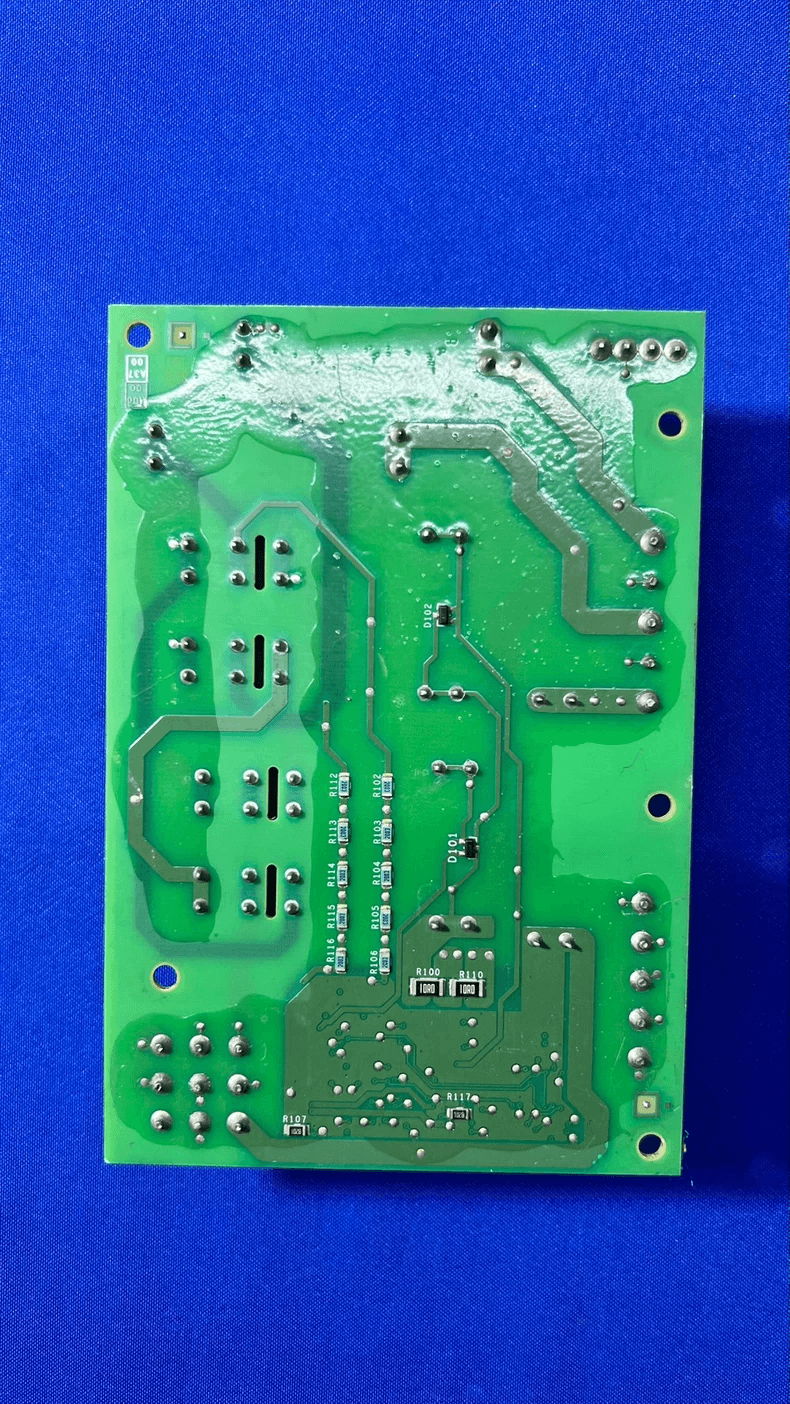

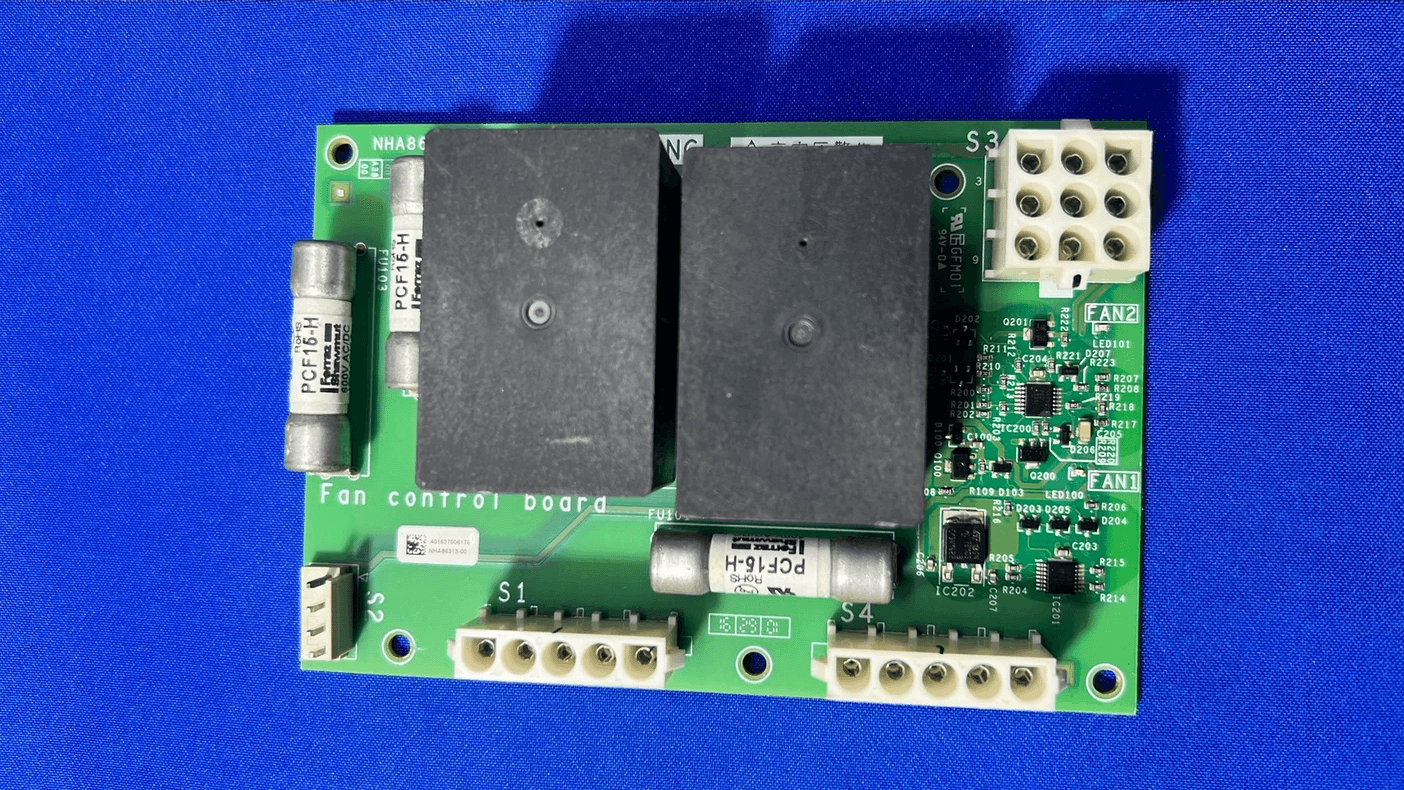

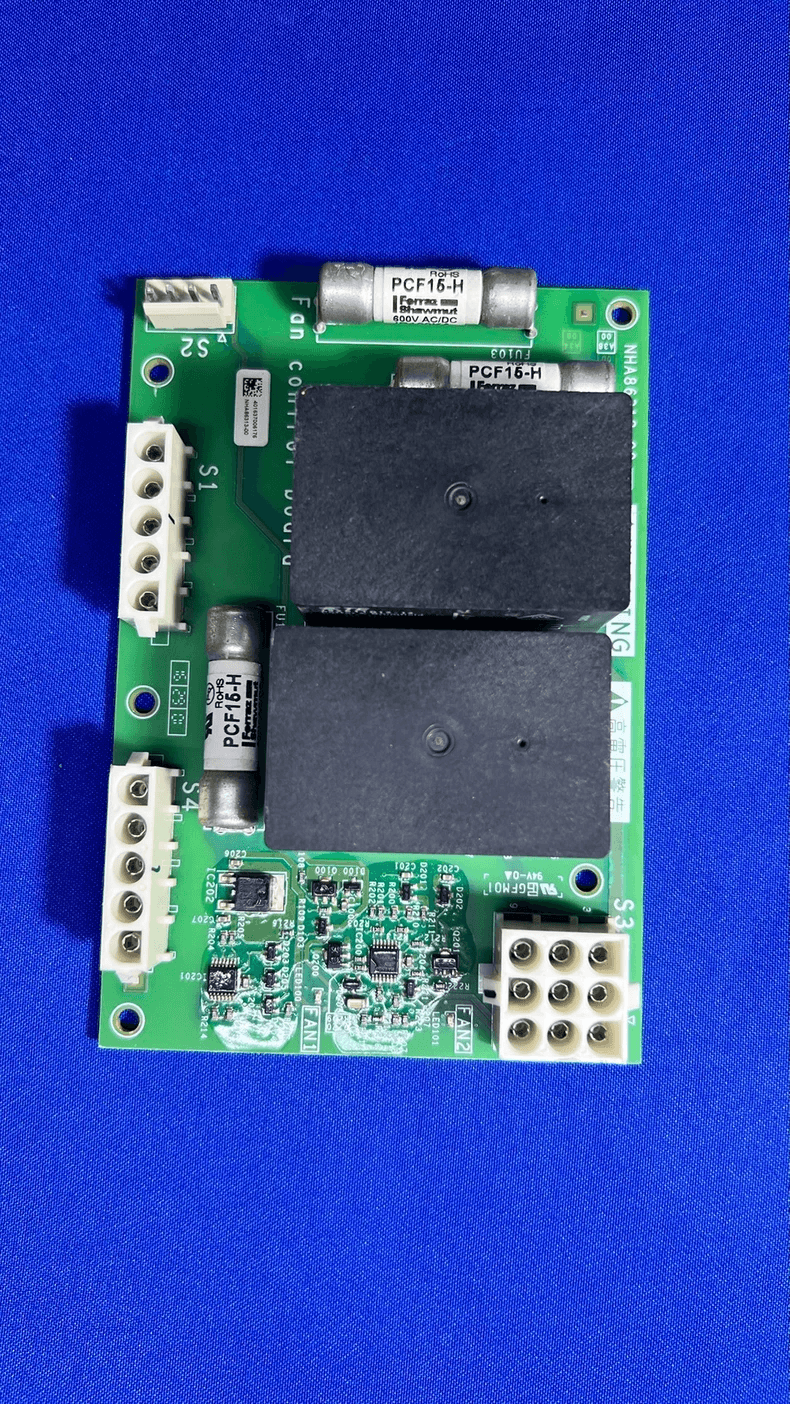

Schneider NHA86312-00 Fan Power Control Board – ATV610/630/930 220-315KW – Tested

Product Overview

Original Schneider NHA86312-00 fan power control board for Altivar ATV610, ATV630, and ATV930 series drives. This board serves as the dedicated fan power control board, managing the power supply and operation of the drive’s cooling fans. Essential for maintaining proper thermal management in high-power Altivar Process and Easy Altivar drive systems.

Key Features

• Genuine Schneider original – NHA86312-00 fan power control board (also referenced as VX4VP1400)
• Compatible with ATV610, ATV630, and ATV930 series drives
• Power ratings: 220KW – 250KW – 315KW
• Fan power supply and control management
• Essential for drive thermal management
• Common for power ratings 220-315KW
• Weight: ~0.8 kg
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar ATV610, ATV630, and ATV930 series drives
• Specifically for 220KW, 250KW, and 315KW power ratings
• CRITICAL: Nameplate photo required – different power ratings and drive versions may use different fan control board variants
• If mismatched: Incorrect board selection may result in fan not operating, OHF (Over Heating Fault), or drive thermal protection activation
• This board is also referenced as VX4VP1400 – direct replacement for ATV610/630/930 high-power drives
• Verify drive model, power rating, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
