Schneider PN072125P3 Power/Trigger Board – ATV61/71 200-250KW – Tested

Product Overview

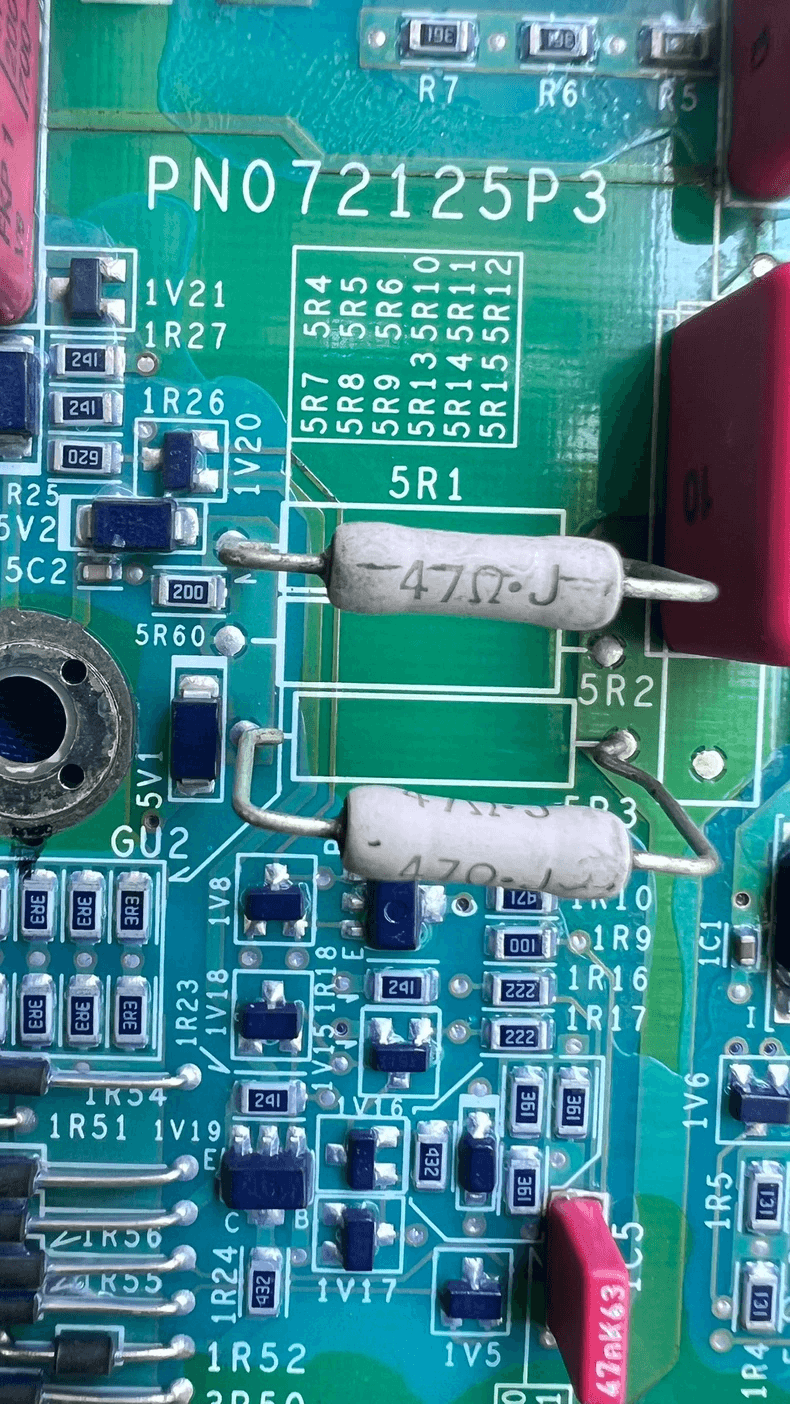

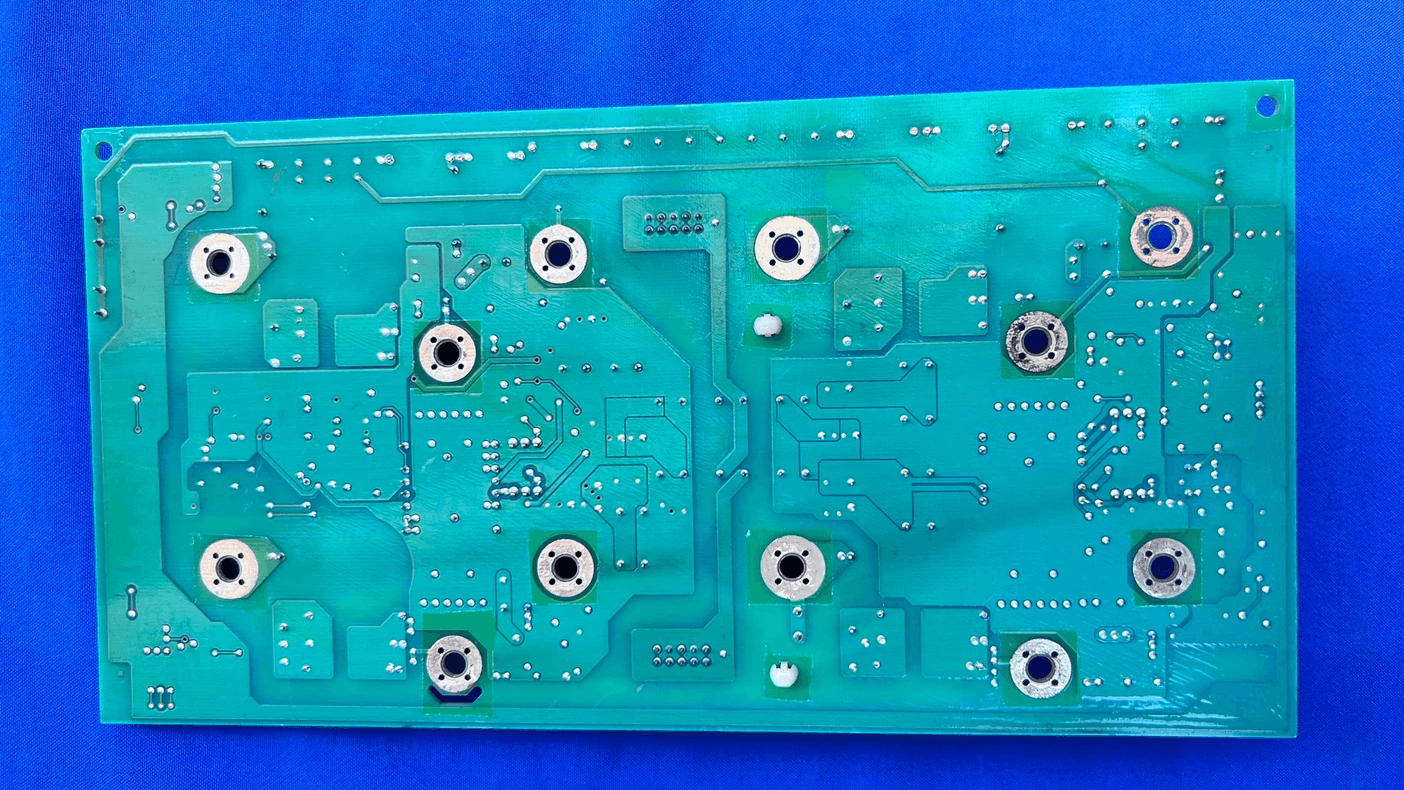

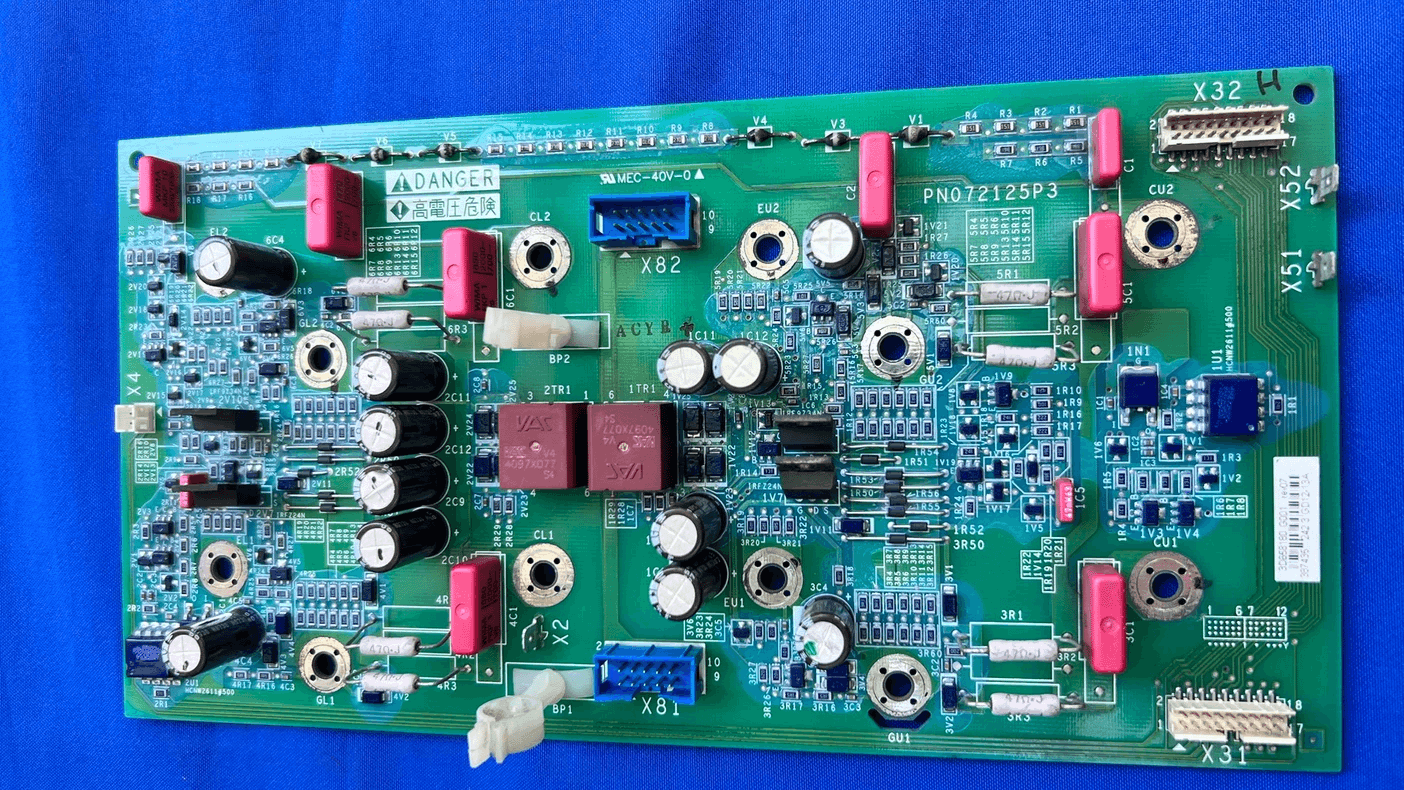

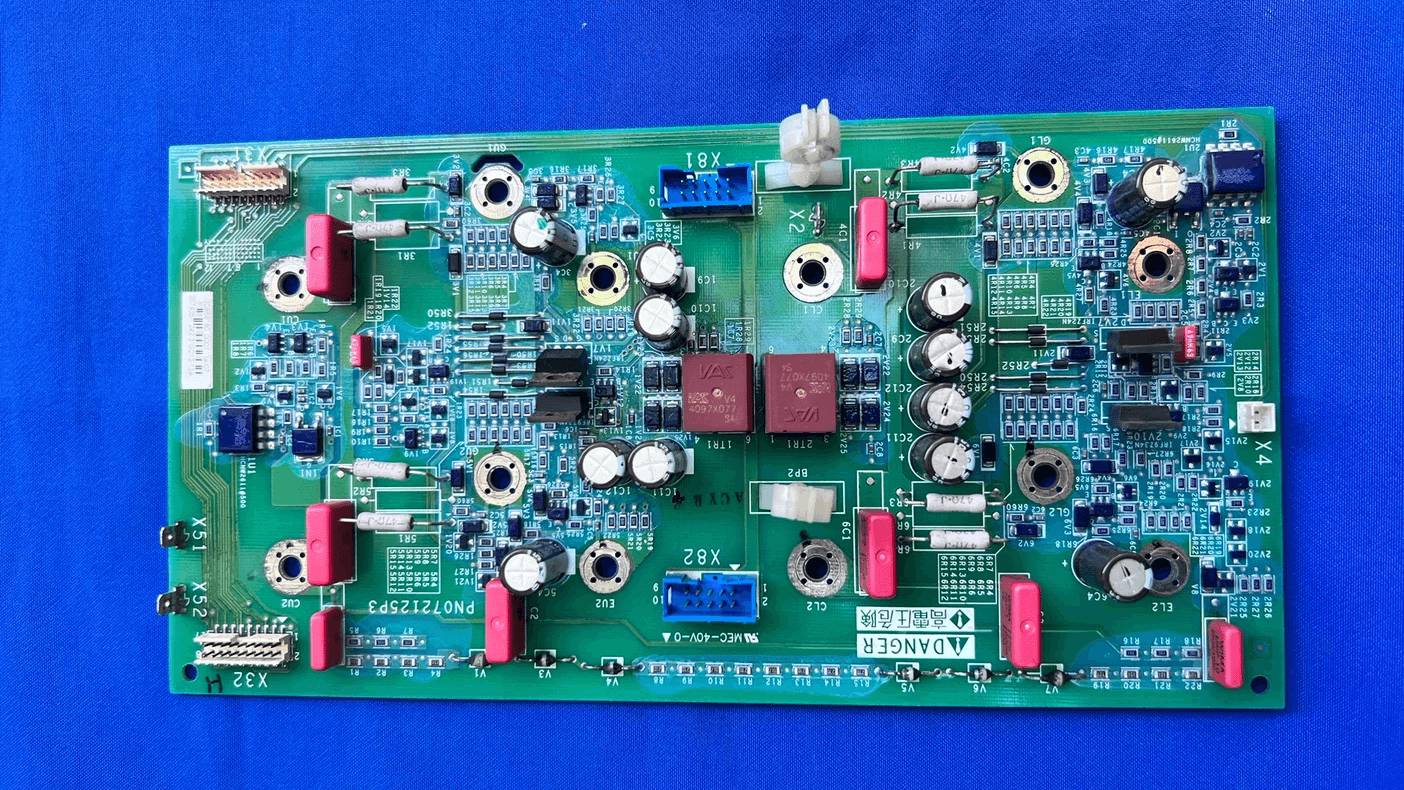

Original Schneider PN072125P3 power and trigger board for Altivar ATV61 and ATV71 series high-power drives. This board generates precise switching signals to ensure optimal and safe operation of the variable frequency drives. The board provides electrical isolation and protection against overcurrent and overvoltage, preventing damage to the IGBTs from sudden voltage fluctuations.

Key Features

• Genuine Schneider original – PN072125P3 power/trigger board (also referenced as VX5A1200 series)
• Compatible with Altivar ATV61 and ATV71 series high-power drives
• Power ratings: 200KW – 250KW
• IGBT gate drive: sends precise switching signals to IGBTs in the inverter power module
• Electrical isolation between power circuit and control circuit
• Overcurrent and overvoltage protection – prevents IGBT damage from sudden voltage fluctuations
• Industrial design: built for heavy-duty operation and high-power systems
• Standardized interface design – easy replacement and maintenance
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar ATV61 and ATV71 series high-power drives
• Power ratings: 200KW and 250KW
• Also referenced with alternative codes: VX5A1200, VX5A1201, VX5A1202 – verify original board marking
• CRITICAL: Nameplate photo required – different power ratings and drive versions may use different board revisions
• If mismatched: Incorrect board selection may result in drive failing to power up, reporting “IGBT Fault,” or experiencing unstable output
• The PN072125P3 is also referenced as a thyristor/SCR trigger board in some applications
• Used in heavy industrial applications: steel, cement, mining, pumping, ventilation
• Verify drive model, power rating, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
