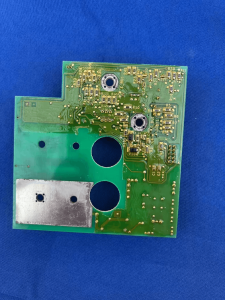

Schneider PN072132P902 Brake Chopper Board – Tested Spare

What Is the PN072132P902 Brake Unit Trigger Board?

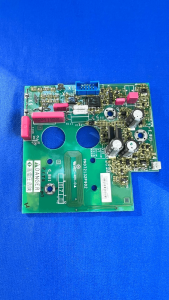

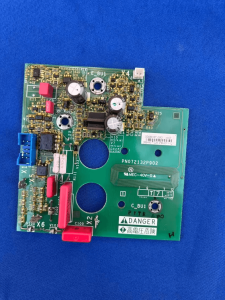

The Schneider PN072132P902 is the brake unit trigger board (also listed as a braking control PCBA) used in high-power Altivar ATV61 and ATV71 drives. It is a component of the VZ3F1110 dynamic braking kit, working alongside a 75 A / 1200 V diode module and a 600 A / 1200 V IGBT module to manage regenerative energy during motor deceleration. The board itself is a control board, not the complete braking kit or the IGBT/diode power modules.

It is associated with Frame Size 11 and Frame Size 12 high-power models, covering applications typically in the 132–220 kW range. Supplied as a tested replacement unit, it is intended for cases where the trigger board has been isolated as the fault source after the braking resistor and application-side causes have been excluded.

Technical Specifications

Important Diagnostic Boundary: OBF is triggered when DC bus voltage reaches the braking threshold during operation. Schneider’s official guidance for OBF lists deceleration time too short, high-inertia load, missing or incorrectly sized braking resistor, and supply-side overvoltage spikes as primary causes. The bLF fault is distinct — it indicates the brake did not release as commanded, pointing toward brake contactor feedback, mechanical jam, or release current parameter settings, not necessarily the trigger board. The PN072132P902 should be replaced only after the braking resistor, wiring, and relevant parameters have been verified.

When to Investigate or Replace the PN072132P902 Board

The trigger board becomes a legitimate suspect under the following conditions, after external causes have been excluded:

• OBF with verified braking resistor and correct deceleration time — if the braking resistor is correctly sized, properly connected, and the deceleration ramp is adequate for the load inertia, but OBF persists during deceleration, the trigger board’s firing control may be faulty.
• No braking action despite a serviceable resistor — the drive commands braking, but the chopper does not activate. This points toward the trigger board’s gate-drive output path.
• Visible damage on the trigger board — burn marks, failed components, or damaged connectors on the braking control PCBA.
• OBF/bLF persists after parameter and wiring checks — confirm the braking resistor value, wiring continuity, and relevant brake parameters before concluding the board is at fault.

Caution: Before ordering, confirm the braking resistor is correctly sized and connected, and that deceleration time is appropriate for the load inertia. A significant share of OBF trips are resolved by adjusting these application-side parameters without replacing the trigger board.

Compatibility & Verification

Before ordering, confirm the following:

• Drive MLFB and frame size — this trigger board is associated with Frame Size 11/12 models within the VZ3F1110 braking kit. Confirm the exact catalogue number on the drive nameplate.-1

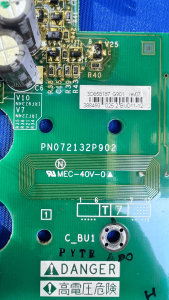

• Original board marking — confirm the existing board reads PN072132P902 (or the OEM cross-reference 3D658187G901).
• Braking resistor and wiring — confirm the resistor is correctly sized, connected, and not open-circuit before ordering a trigger board replacement.
• If uncertain, send a photo of the drive nameplate and the original trigger board label for review before purchase.

Frequently Asked Questions

Does OBF always mean the brake trigger board is faulty?

No. OBF is an overbraking fault triggered by high DC bus voltage during deceleration. Deceleration time, load inertia, and braking resistor sizing are the primary causes. The trigger board is one possible contributor, not the default cause.

What is the difference between OBF and bLF?

OBF is an overvoltage/overbraking fault during deceleration. bLF is a brake control fault — the brake did not release when commanded, which points toward contactor feedback, mechanical binding, or release current parameters rather than the chopper trigger board.

Is PN072132P902 the complete braking kit?

No. It is the trigger/control PCBA within the VZ3F1110 braking kit. The kit also includes a diode module, an IGBT module, bus bars, and mounting hardware. Confirm whether you need the board alone or the complete kit
