Schneider PN072135P903 Fan Control Board – Tested ATV61/71 Spare

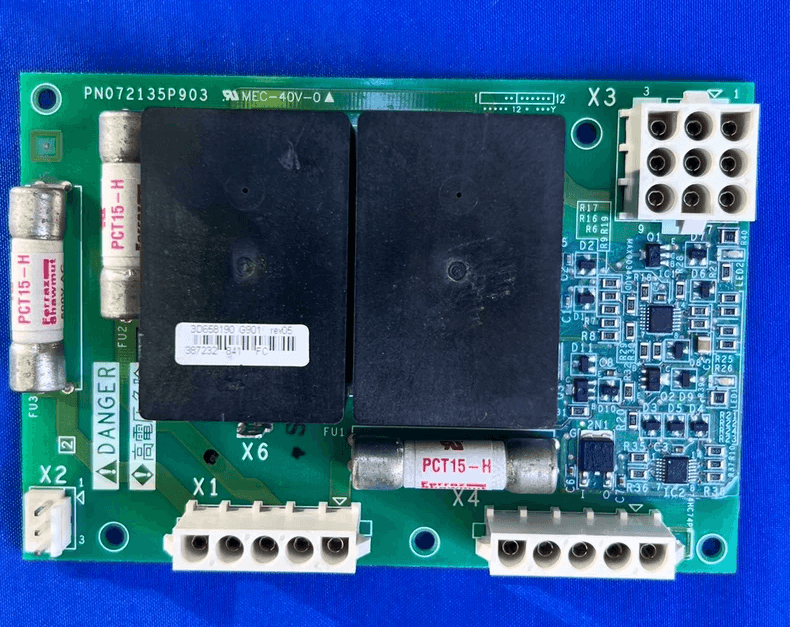

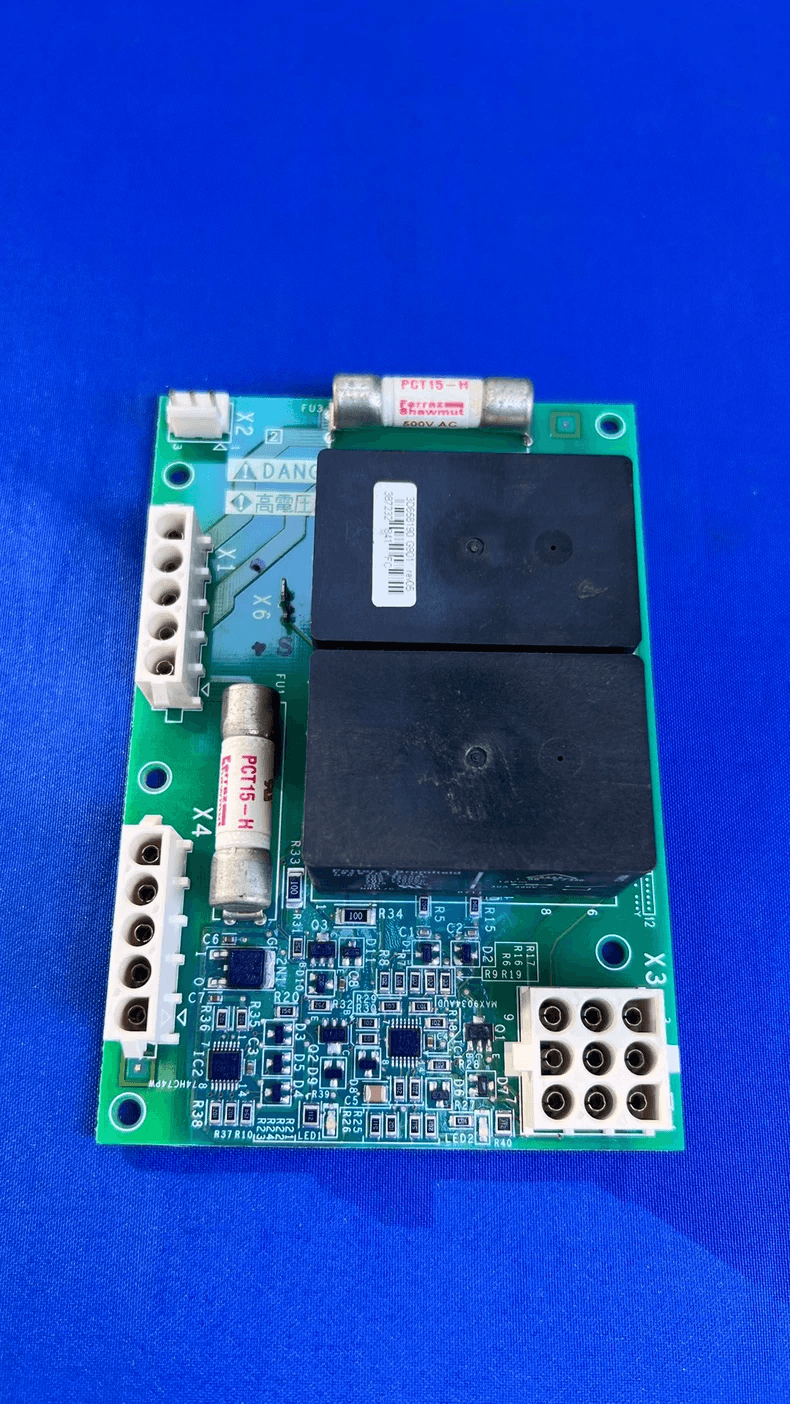

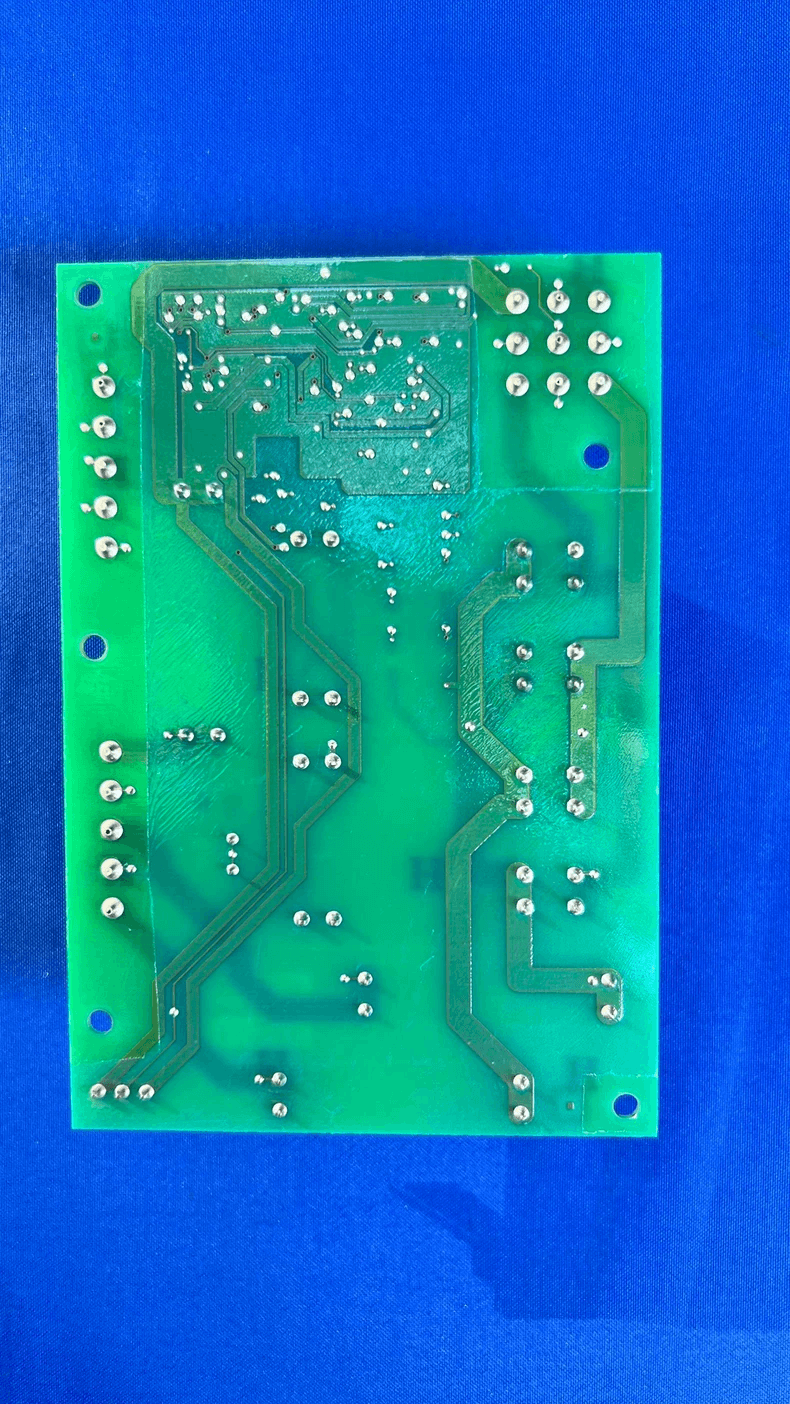

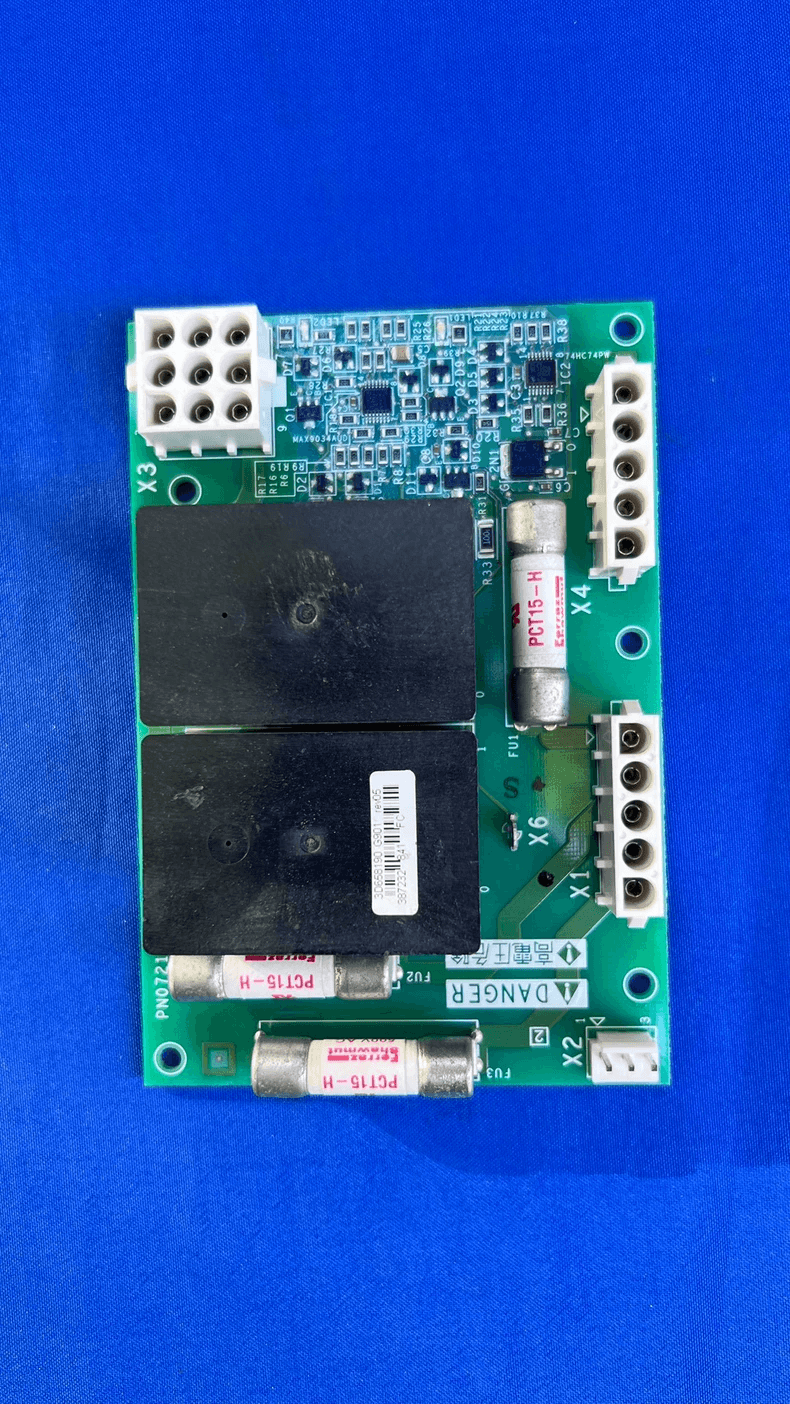

What Is the PN072135P903 Fan Control Board?

The Schneider PN072135P903 is the dedicated fan control board for high-power Altivar ATV61 and ATV71 drives, covering models typically above 110 kW. It carries the spare-part designation VX5A1400. In the ATV61/71 platform, large-frame drives use a separate fan control card rather than an integrated cooling circuit; this board drives and regulates the heatsink cooling fan, translating the drive’s thermal management commands into fan speed and on/off control.

The board supports PWM fine speed regulation and is compatible with multiple fan types (including dual-speed / triple-speed variants). It communicates with the main control board and includes self-diagnostic capability for overvoltage, short-circuit, and open-circuit conditions on the fan supply path. Supplied as a tested replacement unit, it is intended for cases where the fan control board is confirmed faulty, or where fan operation is abnormal despite a serviceable fan and clear airflow path.

Technical Specifications

Important Diagnostic Boundary: The PN072135P903 is the fan control board, not the fan assembly itself. When the drive trips on OHF, the correct diagnostic sequence is to first confirm whether the fan is physically running, whether the impeller or airflow path is blocked, and whether the thermal sensor signal is stable — before concluding the board is defective. Schneider’s official OHF troubleshooting for ATV61/71 specifies checking fan operation, top-of-drive blockage, and thermal state signal stability in menu 1.2 as the first steps.

When to Investigate or Replace the PN072135P903 Board

The fan control board becomes the primary suspect under these conditions:

• OHF fault with no fan rotation — the drive reports overheat, and the heatsink fan is confirmed not spinning despite the drive being powered. If the fan spins freely by hand and receives no drive voltage, the control board’s output stage is implicated.
• Fan speed / regulation abnormality — the fan runs at a fixed speed regardless of thermal state, or does not respond to the drive’s cooling strategy. The PN072135P903 is responsible for PWM speed regulation; a board-level fault can manifest as loss of speed control rather than a total fan stop.
• OHF persists after fan and airflow checks — fan spins freely, airflow path is clean, ambient temperature is within derating limits, and the thermal state signal in menu 1.2 is stable (not jumping erratically), but the drive still reports abnormal heat rise; the control board’s regulation function should then be verified.
• Visible damage on the board — burn marks, failed power components, or damaged connectors on the fan control board.

Critical caution: Before replacing the board, confirm the fan motor itself is serviceable (free rotation, no bearing noise, no physical obstruction) and that the heatsink fins and airflow path are not clogged. A blocked or worn fan will produce OHF even with a perfectly functional PN072135P903. Also verify that the thermal sensor signal is not jumping erratically in menu 1.2 — an unstable sensor reading can mimic a cooling fault.

Compatibility & Verification

Before ordering, confirm the following:

• Drive model and power rating — this fan control board is associated with high-power ATV61/71 models (typically > 110 kW). Confirm the exact catalogue number on the drive nameplate, as fan control hardware varies by power frame.
• Original board marking — confirm the existing board reads PN072135P903, and check whether the spare-part marking VX5A1400 is also present.
• Fan physical condition — confirm the fan spins freely and the airflow path is clear before ordering a control board replacement.
• If uncertain, send a photo of the drive nameplate and the original fan control board label for review before purchase.

Frequently Asked Questions

Does the PN072135P903 include the fan itself?

No. It is the fan control board only. The heatsink fan assembly is a separate component. Confirm whether the fan motor or the control board is faulty before ordering.

Does OHF always mean the fan control board is faulty?

No. OHF is triggered when the drive’s thermal state reaches 118%. A blocked fan impeller, clogged heatsink fins, an unstable thermal sensor, or high ambient temperature can all produce OHF with a functional PN072135P903. Check the fan’s physical operation, airflow path, and thermal signal stability in menu 1.2 first.

What is the spare-part designation for this board?

VX5A1400 is the commonly used spare-part designation for the PN072135P903 fan control board in ATV61/71 high-power drives.
