Schneider PN072175P3 Detection Board – ATV61/ATV71

What Is the PN072175P3?

The Schneider Electric PN072175P3 is an inverter power supply detection / measurement board used in selected Altivar 61 and Altivar 71 variable frequency drive configurations.

It is an internal electronic component designed for monitoring and detection functions within the inverter’s power system.

This board is used in high-power industrial drive maintenance and replacement applications.

It is offered as tested stock. Before ordering, verify the original board part number and the complete drive model to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	PN072175P3
Brand	Schneider Electric
Product Type	Power Supply Detection / Measurement Board
Drive Series	Altivar 61 / Altivar 71
Application Power Rating	ATV61: 160kW / ATV71: 132kW
Related Reference	VX5A1500 / VX5A71HC13N4
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Maintenance and Replacement

Applications and Compatibility

The Schneider PN072175P3 is associated with selected high-power Altivar 61 and Altivar 71 inverter applications.

Published supplier listings identify the following applications:

• Schneider ATV61 – 160kW
• Schneider ATV71 – 132kW

The board is also associated with the VX5A1500 inverter platform in some replacement listings.

Important: These are reference applications based on available third-party listings, not a guarantee of compatibility with every ATV61 or ATV71 drive.

Before ordering, check:

• Confirm that the original board is marked PN072175P3.
• Verify the complete ATV61 or ATV71 drive model.
• Check the drive power rating and voltage class.
• Compare the original board revision and identification labels.
• Check connector positions and pin configuration.
• Confirm the original VX5A1500 / VX5A71HC13N4 configuration where applicable.

Do not select a replacement based on power rating alone.

How to Identify the Correct Replacement Board

When replacing an inverter detection or measurement board, compare the original board with the replacement unit.

Check the following details:

• Part number printed on the existing PCB.
• Board revision and identification markings.
• Connector positions and pin configuration.
• Component layout and mounting points.
• Complete drive nameplate and model reference.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Detection / Measurement Board Be Replaced?

A detection or measurement board may require inspection when the inverter reports abnormal monitoring readings or power-system detection faults.

Before replacing the board:

• Check the existing board for visible damage or burnt components.
• Inspect connectors and wiring connections.
• Check the related power supply and sensing circuits.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the detection board is defective. Other power circuit components and connections should also be inspected.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available testing information, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the PN072175P3 used for?

The PN072175P3 is identified as an inverter detection / measurement board for selected Schneider Altivar 61 and Altivar 71 drive applications.

Which power ratings are associated with PN072175P3?

Available supplier listings associate it with ATV61 160kW and ATV71 132kW applications. Always verify the complete drive reference before ordering.

Is PN072175P3 a power board or a detection board?

PN072175P3 is listed as an inverter detection / measurement board. It should not be confused with other power boards used in ATV61 and ATV71 drives.

Is this board tested?

This listing is for tested stock. Please request the available testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider PN072175P3 detection / measurement board?

Send us:

• A clear photo of the existing board.

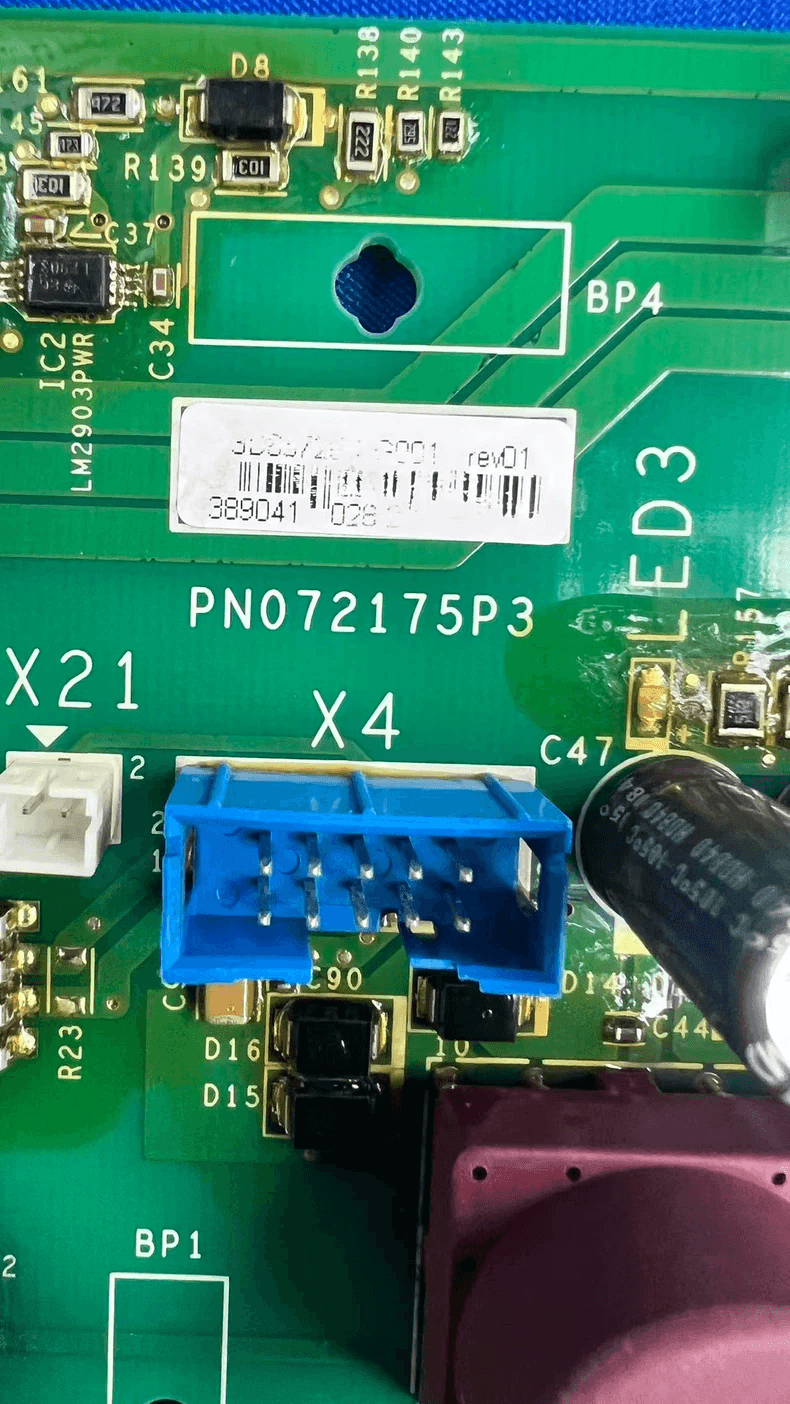

• A close-up photo of the PN072175P3 identification label.
• The complete ATV61 / ATV71 drive nameplate.
• The drive model and power rating.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
