Schneider PN072186P7 Power Board – ATV61/ATV71 110–132kW

What Is the PN072186P7?

The Schneider Electric PN072186P7 is a main power supply board used in selected Altivar 61 and Altivar 71 variable frequency drive configurations.

It is an internal power electronics component designed for industrial inverter maintenance, repair and replacement applications.

This board is associated with the VX5A1HC1113 power board reference and selected ATV61 / ATV71 high-power drive configurations.

It is offered as tested stock for customers requiring a replacement Schneider power board.

Before ordering, verify the original board number, complete drive model and hardware configuration to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	PN072186P7
Brand	Schneider Electric
Product Type	Main Power Board / Power Supply Board
Drive Series	Altivar 61 / Altivar 71
ATV71 Application	ATV71HC11N4 – 110kW
ATV61 Application	ATV61HC13N4 – 132kW
Related Power Board Reference	VX5A1HC1113 (verify before substitution)
Application Power Range	110kW / 132kW
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Power Board Maintenance and Replacement

Applications and Compatibility

The Schneider PN072186P7 is listed as a main power board for selected Altivar 61 and Altivar 71 variable frequency drive applications.

Available supplier references associate this board with the following drive configurations:

• ATV71HC11N4 – 110kW.
• ATV61HC13N4 – 132kW.

The related power board reference VX5A1HC1113 is also documented by Schneider Electric for these two drive models.

Important Compatibility Checks:

Before ordering, verify:

• Confirm that the original board carries the exact part number PN072186P7.
• Check the complete ATV61 / ATV71 drive model.
• Verify the drive power rating and voltage class.
• Compare the original board revision and identification markings.
• Check connector positions and pin configuration.
• Compare the original board layout and mounting points.
• Confirm the correct IGBT configuration.

Do not assume that every 90kW, 110kW or 132kW ATV61 / ATV71 drive uses the same power board.

The ATV61F application also requires separate model verification before compatibility can be confirmed.

Important IGBT Version Check:

Some ATV61 / ATV71 drives use Fuji IGBTs instead of standard Mitsubishi IGBTs.

Schneider Electric specifies that if the eighth digit of the drive serial number is 2, the drive uses Fuji IGBTs. The corresponding replacement power board may require an additional F suffix.

For example, VX5A1HC1113F is the modified version specified for certain Fuji IGBT configurations.

Always check the original board number and drive serial number before ordering.

How to Identify the Correct Replacement Power Board

When replacing a main power board, carefully compare the original board with the replacement unit.

Check the following details:

• Part number printed on the original PCB.
• Board revision and identification markings.
• Power electronic component layout.
• Connector positions and pin configuration.
• Mounting positions and electrical connections.
• Complete ATV61 / ATV71 drive nameplate.
• Drive serial number and IGBT configuration.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Main Power Board Be Replaced?

A main power board may require inspection when the inverter experiences abnormal power supply or power-stage operation.

Before replacing the board:

• Inspect the board for visible damage or burnt components.
• Check connectors and electrical connections.
• Inspect the associated power electronics.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the main power board is defective. Other power circuit components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available inspection and functional testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the PN072186P7 used for?

The PN072186P7 is identified as a Schneider main power board for selected Altivar 61 and Altivar 71 inverter applications.

Which drive models are associated with PN072186P7?

Available supplier references associate this board with ATV71HC11N4 110kW and ATV61HC13N4 132kW configurations. Verify the complete drive reference before ordering.

Is PN072186P7 the same as VX5A1HC1113?

Third-party supplier listings associate these two references. Schneider documentation confirms VX5A1HC1113 as the power board for the ATV71HC11N4 and ATV61HC13N4. Check the actual board label before treating them as interchangeable.

Is PN072186P7 suitable for 90kW drives?

Do not assume compatibility. Certain 90kW ATV61/ATV71 configurations use a different power board reference. Confirm the original board number before ordering.

Does the IGBT version affect compatibility?

Yes. Certain drives use Fuji IGBTs instead of Mitsubishi IGBTs and may require a modified board with an additional F suffix. Check the drive serial number and original board identification.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider PN072186P7 main power board?

Send us:

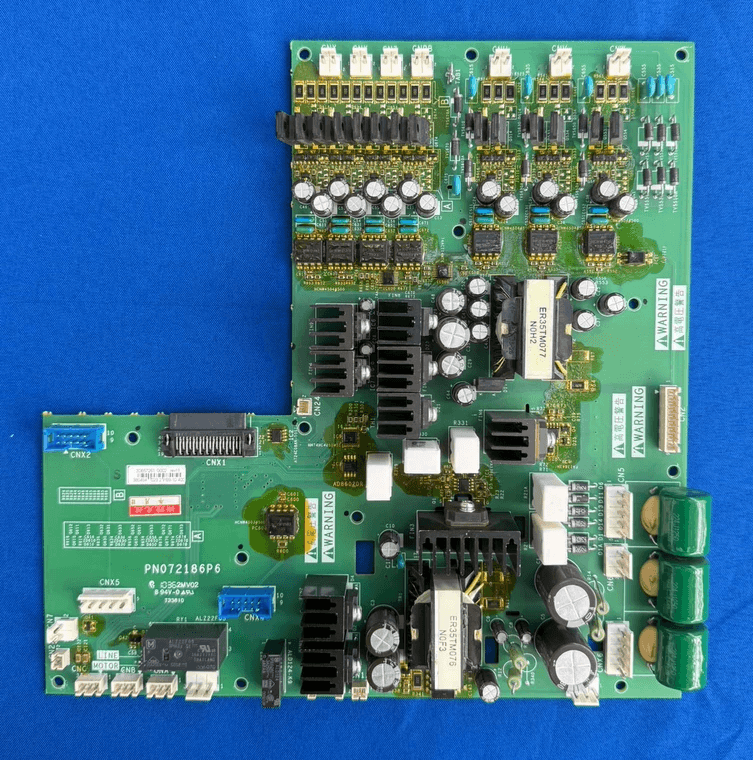

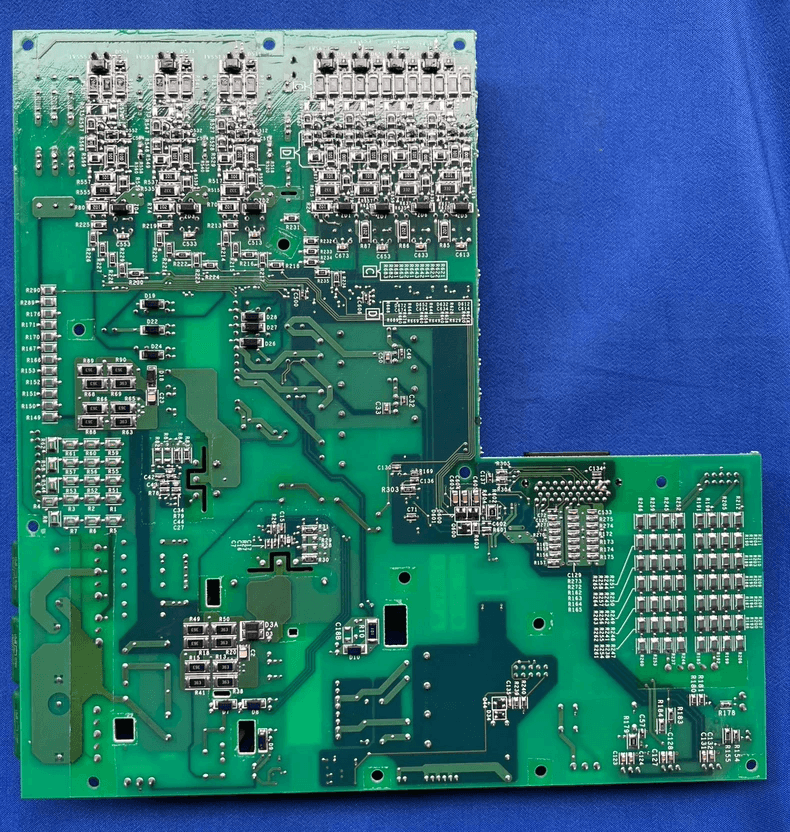

• A clear photo of the existing power board.

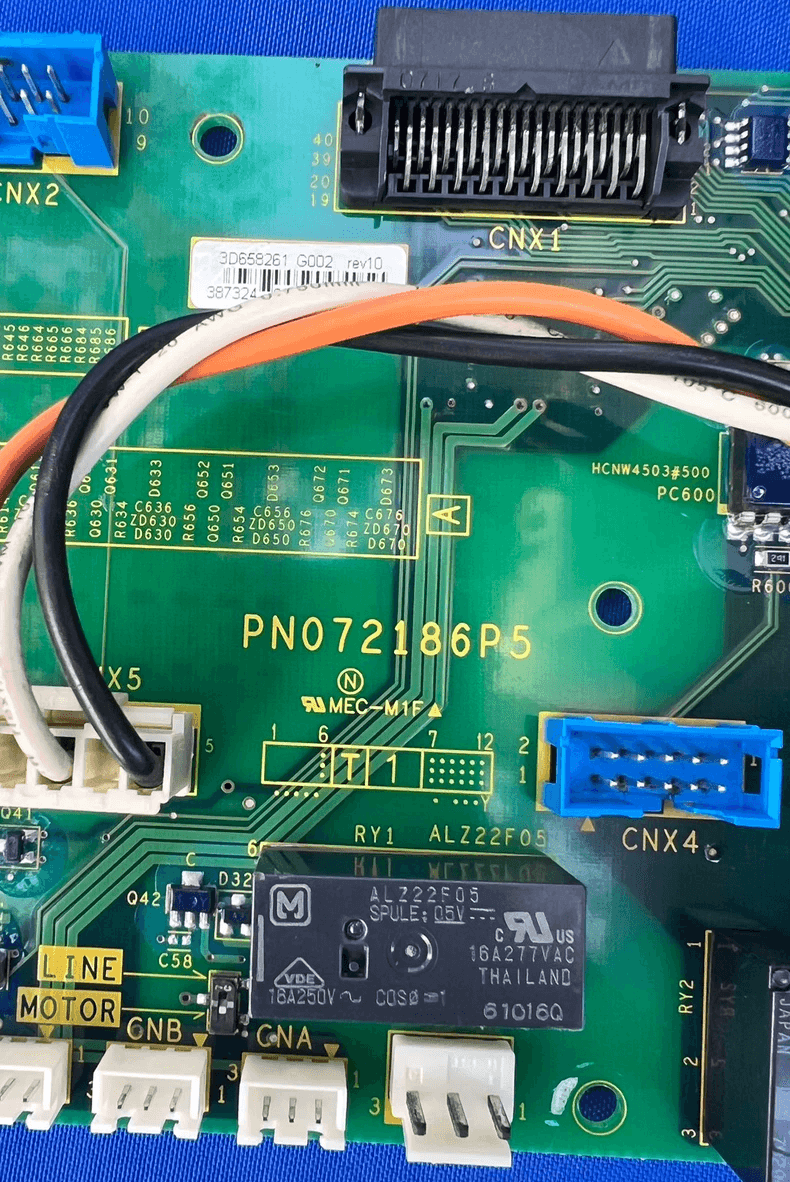

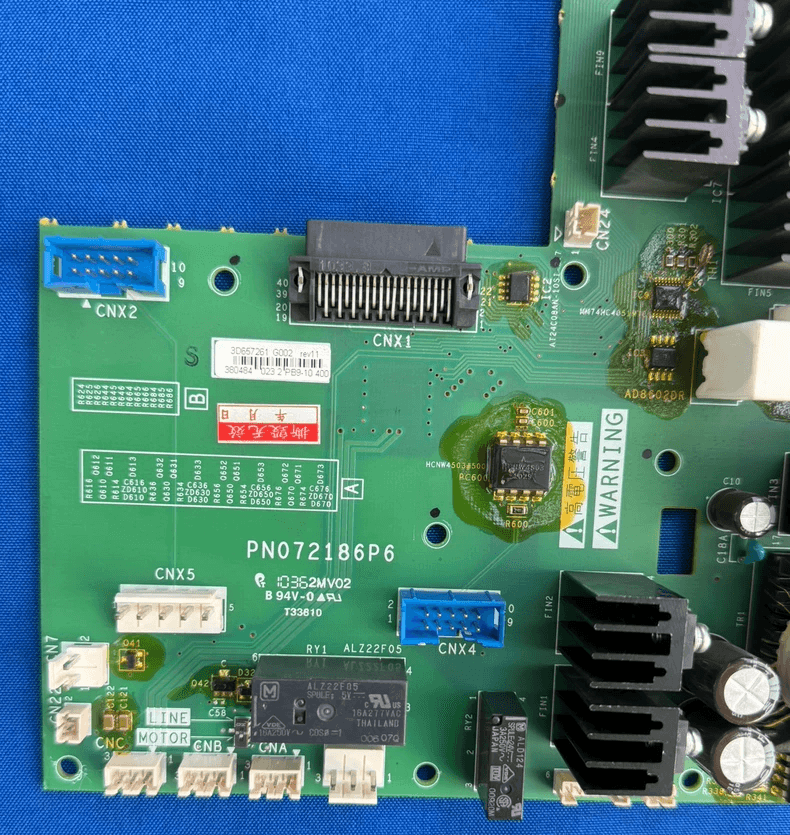

• A close-up photo of the PN072186P7 identification label.
• The complete ATV61 / ATV71 drive nameplate.
• The drive serial number.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
