Schneider PN072416P3 High-Power Board – ATV61/ATV71

What Is the PN072416P3?

The Schneider Electric PN072416P3 is a high-power inverter board listed for selected Altivar 61 and Altivar 71 variable frequency drive applications.

It is an internal electronic component intended for industrial inverter maintenance, repair and replacement applications.

Third-party spare parts listings describe this part as a power board or switching power supply board. It is offered as tested stock for customers requiring a replacement Schneider inverter board.

Before ordering, verify the original board part number, complete drive model and electrical configuration to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	PN072416P3
Brand	Schneider Electric
Product Type	High-Power Board / Power Supply Board
Drive Series	Altivar 61 / Altivar 71
Application Power Range	400kW / 500kW (verify exact drive model)
Voltage Class	Verify original drive nameplate
Related Reference	3D657479 (verify before substitution)
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	High-Power Industrial VFD Maintenance and Replacement

Applications and Compatibility

The Schneider PN072416P3 is listed for selected high-power Altivar 61 and Altivar 71 inverter applications.

Available third-party product listings associate this board with:

• ATV61 – selected high-power drive configurations.
• ATV71 – selected high-power drive configurations.
• 400kW / 500kW application references, subject to verification.

Some supplier listings describe a wider application range of 315kW to 500kW, while others associate the part with 690V, 500kW to 630kW applications.

Important Compatibility Checks:

Before ordering, verify:

• Confirm that the original board carries the exact part number PN072416P3.
• Check the complete ATV61 / ATV71 drive model.
• Verify the drive power rating and voltage class.
• Compare the original board revision and identification markings.
• Check connector positions and pin configuration.
• Compare the original board layout and mounting points.
• Confirm the correct electrical configuration of the replacement board.

Do not assume that every 400kW or 500kW ATV61 / ATV71 drive uses the same power board.

Schneider Electric also confirms that ATV61 and ATV71 power boards are not universally interchangeable, even when the drives have the same frame size. Some board components are specific to the drive’s horsepower and voltage rating.

How to Identify the Correct Replacement Power Board

When replacing a high-power inverter board, carefully compare the existing board with the replacement unit.

Check the following details:

• Part number printed on the original PCB.
• Board revision and identification labels.
• Power supply and electronic component layout.
• Connector positions and pin configuration.
• Mounting positions and electrical connections.
• Complete drive model and nameplate information.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Power Board Be Replaced?

A power board may require inspection when the inverter experiences abnormal power supply or power-stage operation.

Before replacing the board:

• Inspect the board for visible damage or burnt components.
• Check connectors and electrical connections.
• Inspect the associated power electronics.
• Review the drive fault history and diagnostic results.
• Verify that the replacement part number matches the original board.

A drive fault does not automatically mean the power board is defective. Other power circuit components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available inspection and functional testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the PN072416P3 used for?

The PN072416P3 is listed as a high-power inverter board for selected Schneider Altivar 61 and Altivar 71 drive applications.

Is PN072416P3 suitable for 400kW and 500kW drives?

Third-party listings associate this part number with several high-power applications, including 400kW and 500kW. Always verify the complete drive reference and voltage rating before ordering.

Is PN072416P3 a power board or a driver board?

Supplier descriptions vary between power board, switching power supply board and driver board. Check the original board label and electrical configuration to confirm the exact function.

Is PN072416P3 compatible with all ATV61 and ATV71 drives?

No universal compatibility is confirmed. Power board selection depends on the exact drive model, horsepower, voltage rating and hardware configuration.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider PN072416P3 high-power inverter board?

Send us:

• A clear photo of the existing board.

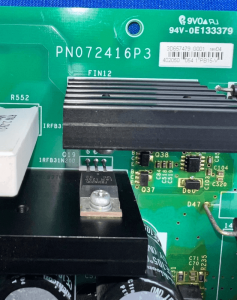

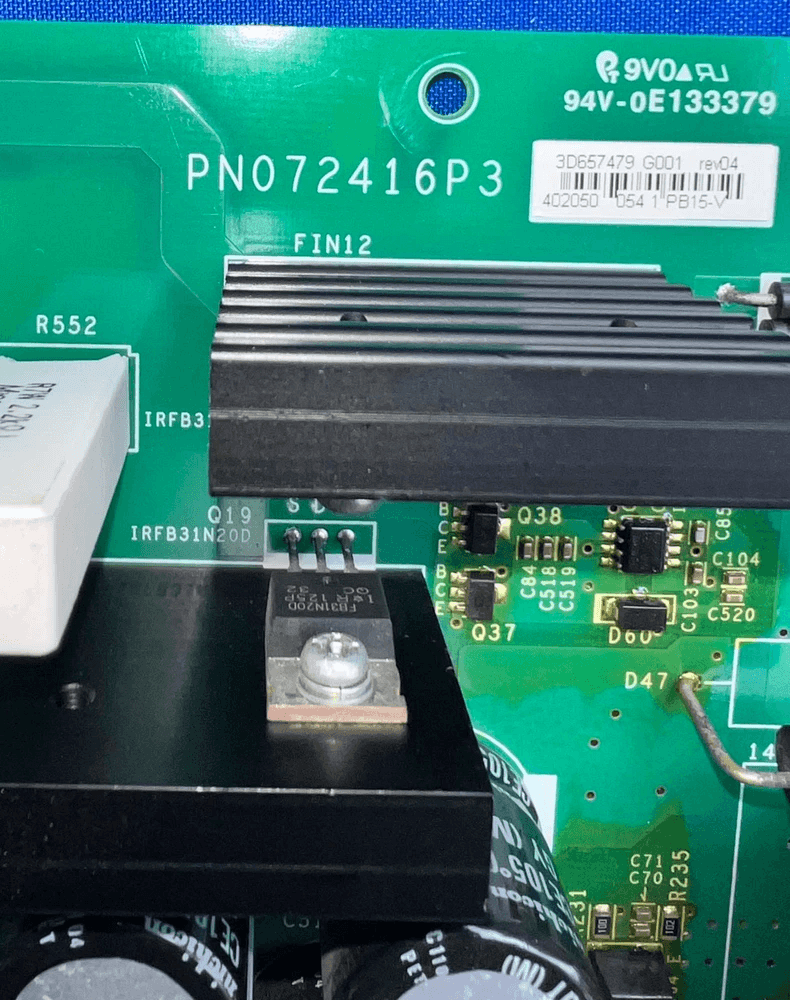

• A close-up photo of the PN072416P3 identification label.
• The complete ATV61 / ATV71 drive nameplate.
• The drive model, power rating and voltage.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
