Schneider Terminal I/O Board – ATV61/71 Series VFD Spare – Tested

Product Overview

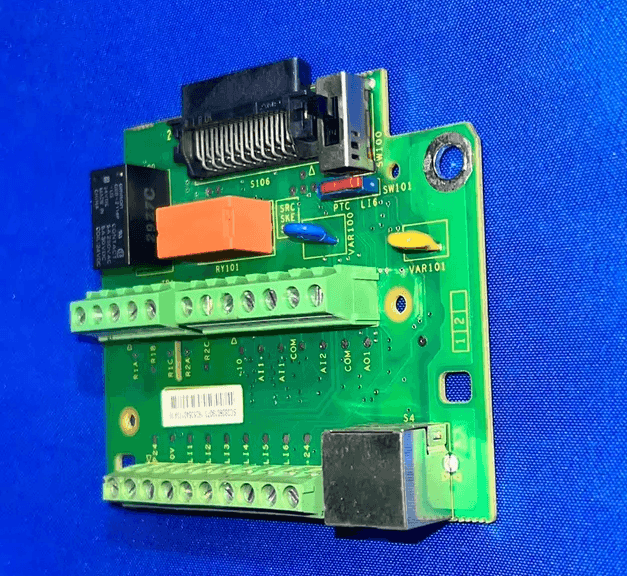

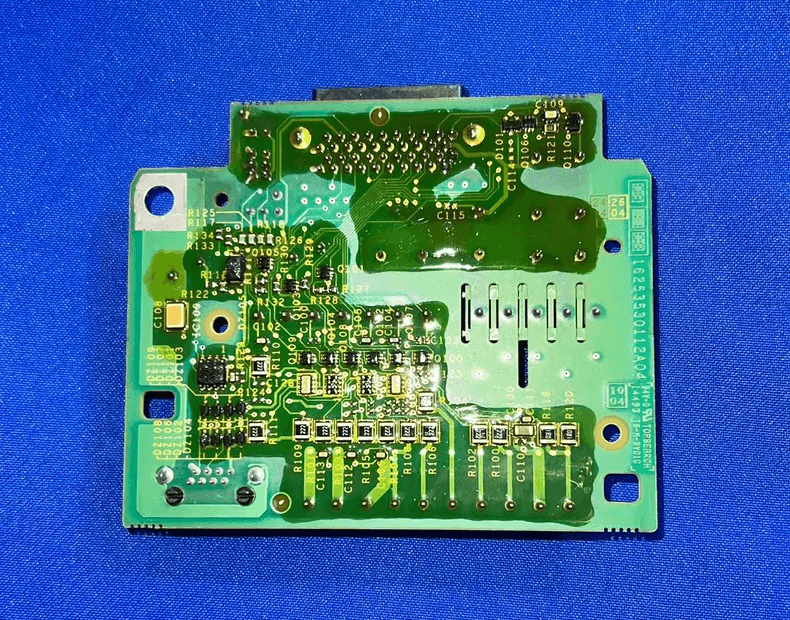

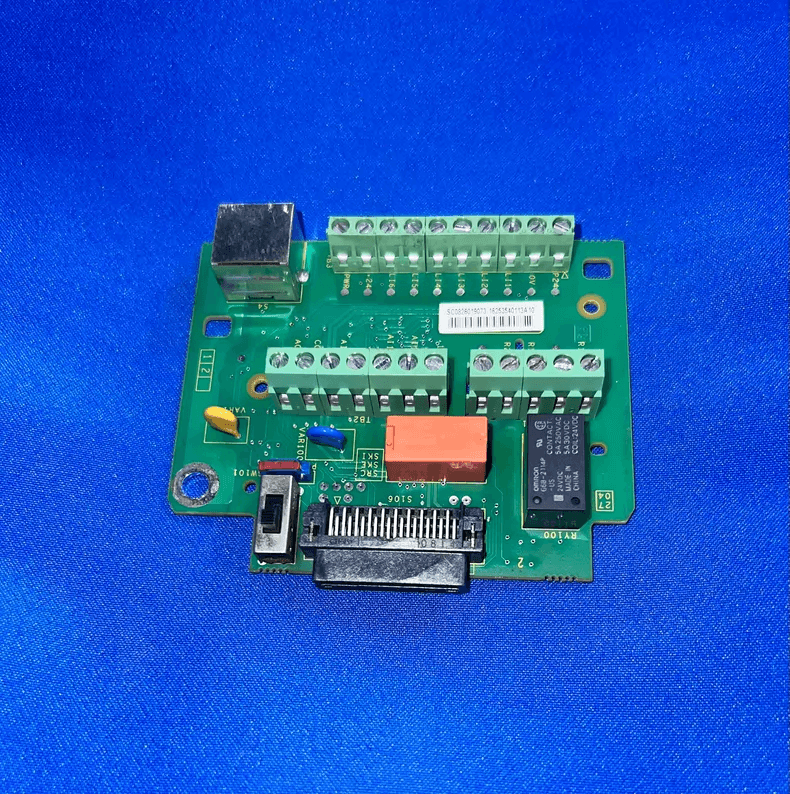

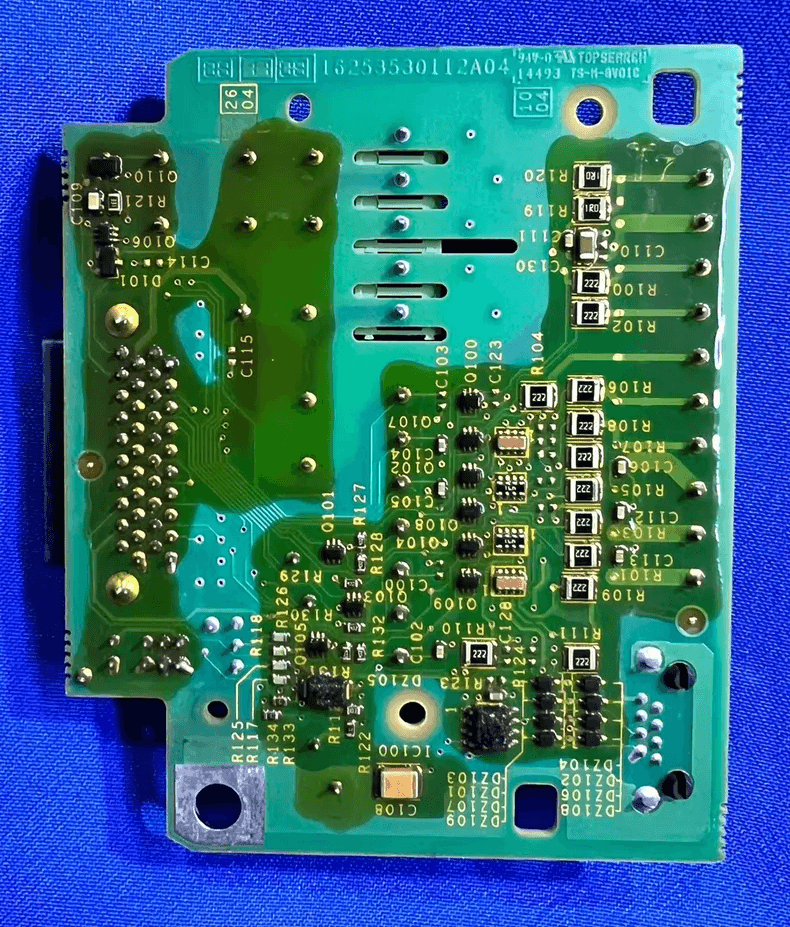

Original Schneider terminal I/O board for Altivar ATV61 and ATV71 series drives. This board provides the terminal interface for digital and analog input/output signals, enabling connection of external sensors, switches, relays, and control signals to the drive’s control system. It serves as the interface between field wiring and the drive’s main control board, handling signal conditioning and terminal connections for reliable drive control and monitoring.

Key Features

• Genuine Schneider original – terminal I/O board for ATV61/71 series
• Compatible with Altivar ATV61 and ATV71 series drives
• Provides digital and analog I/O terminal connectivity
• Signal conditioning and terminal interface for field wiring
• Enables connection of sensors, switches, relays, and analog signals
• Designed for industrial drive control and monitoring
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with Schneider Altivar ATV61 and ATV71 series drives
• CRITICAL: Part number and original board marking required – different drive configurations and frame sizes may use different terminal board variants
• If mismatched: Incorrect board selection may result in I/O terminals not functioning, missing signals, or terminal connection errors
• This is a terminal I/O board – provides digital and analog terminal connectivity for drive control
• Typical applications: industrial pumps, fans, conveyors, material handling, process control
• Please provide drive model, frame size, and original board part number for accurate matching
• Send drive nameplate photo and original board photo for precise identification

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
