Schneider VX4A61100Y Main CPU Board – Tested ATV61 Frame 1–9

What Is the VX4A61100Y Main Control Board?

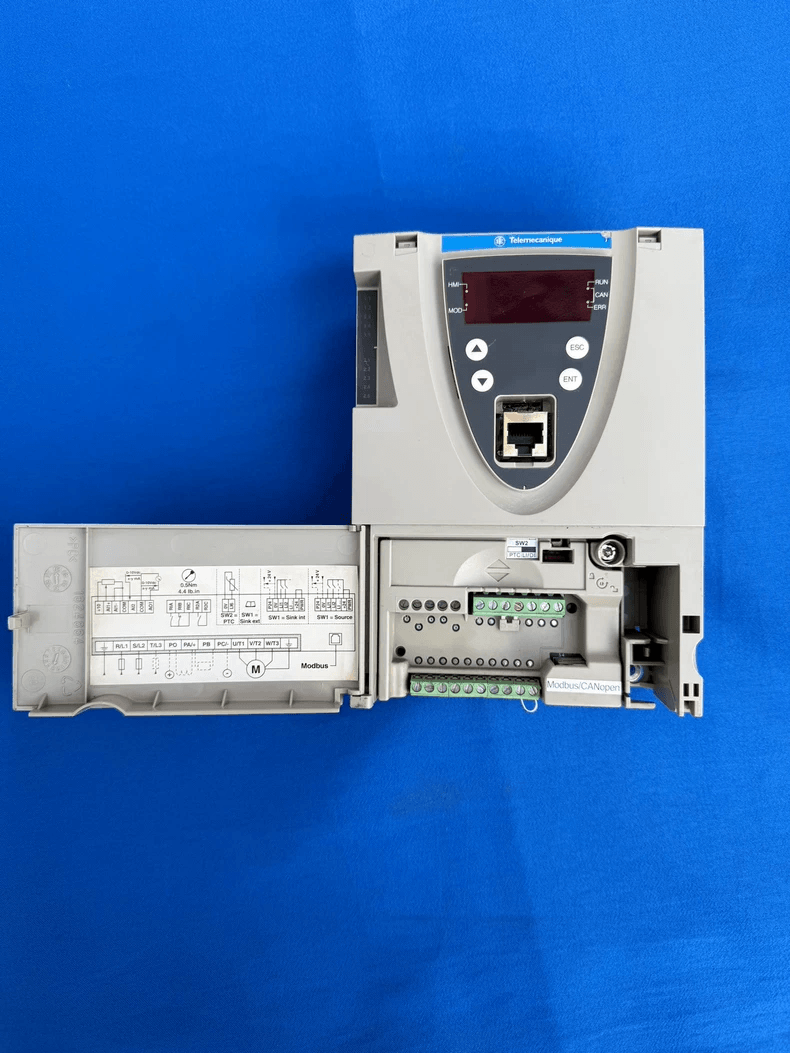

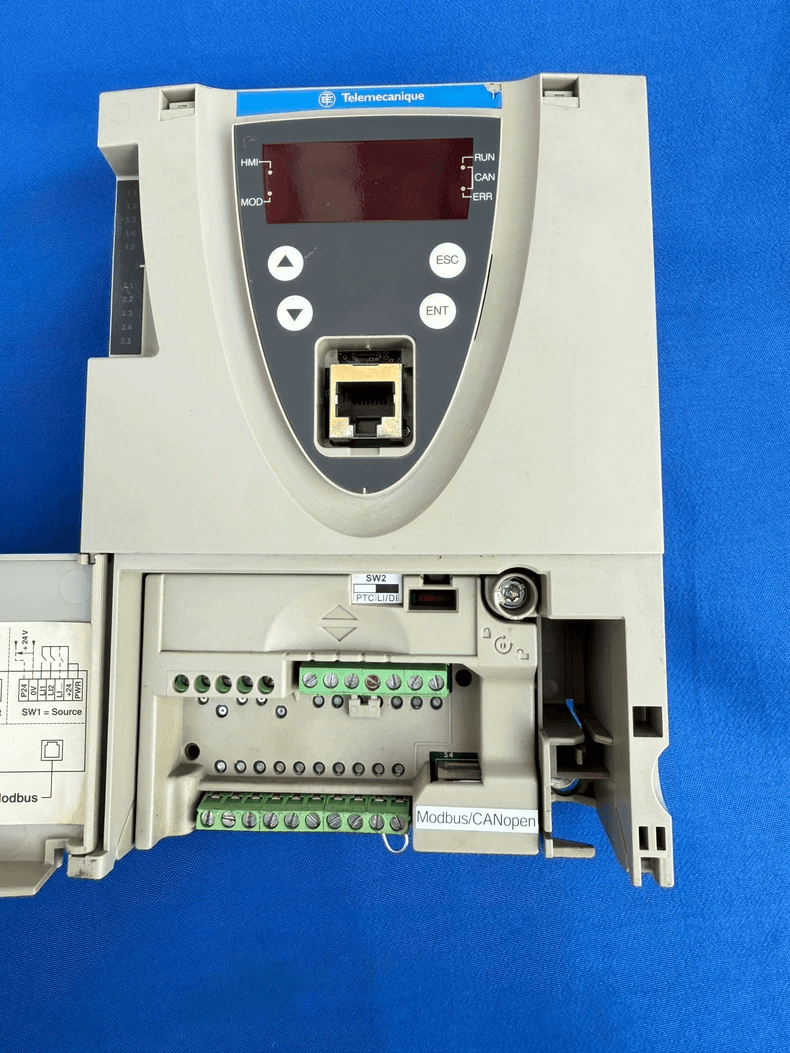

The Schneider VX4A61100Y is the main control (CPU) board for Altivar ATV61 drives in frame sizes 1 through 9. It handles the drive’s core processing, parameter storage, and communication. When this board fails, the drive may show no display, loss of communication, or an InF-series internal fault——not a terminal wiring symptom.

It is a CPU-level control board, not a terminal board or power board. Supplied as Tested replacement stock.

Key Specifications

When This Board Is the Suspect

The main control board becomes the replacement target when CPU-level symptoms are present and external wiring/power have been excluded:

• No display / dead panel with power confirmed present — the drive receives supply but shows no indication. A CPU board fault can produce this.
• InF4 (Internal Fabrication Error) — Schneider defines InF4 as incoherent internal data on the EEPROM, and lists changing the control block as a resolution path。
• InF1 (power card mismatch) — the power board does not match the stored configuration. This can occur after a board swap without matching parameters.
• Persistent communication loss — the drive does not respond on its communication port, with cabling and settings verified.

Compatibility Check

Before ordering, confirm:

• Frame size — confirm the drive is Frame 1–9。 Frame 10–16 requires VX4A61101Y，not this board。
• Drive series — this board is for ATV61，not ATV71. The ATV71 equivalent is a different kit number。
• Firmware / parameter expectation — drive firmware cannot be upgraded in the field on ATV61/71。 If the replacement board carries a different parameter set, the drive’s stored configuration may need to be restored or matched after installation.

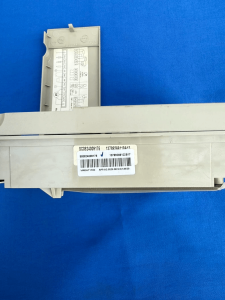

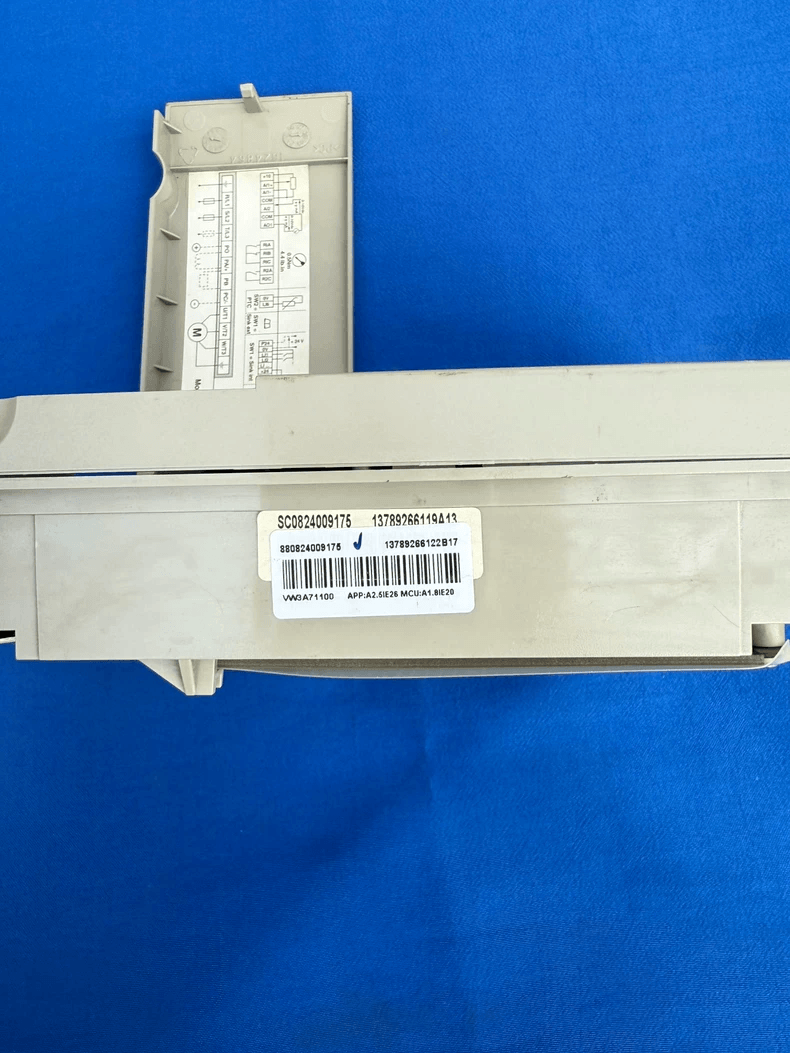

• If unsure, send a photo of the original board label and the drive nameplate before purchase.

FAQ

Is VX4A61100 the same as VX4A61101Y?

No. VX4A61100Y is for ATV61 Frame 1–9；VX4A61101Y is for Frame 10–16. They are not interchangeable

Does InF4 always mean the CPU board is faulty?

No. InF4 indicates incoherent EEPROM data. Schneider lists control block replacement as one resolution, but diagnostic recalibration should be attempted first where available

Will a replacement board come with the correct parameters for my drive?

Not necessarily. ATV61/71 firmware cannot be upgraded in the field, and parameter sets may vary. Confirm with the supplier whether the board’s stored configuration matches your drive before installation
