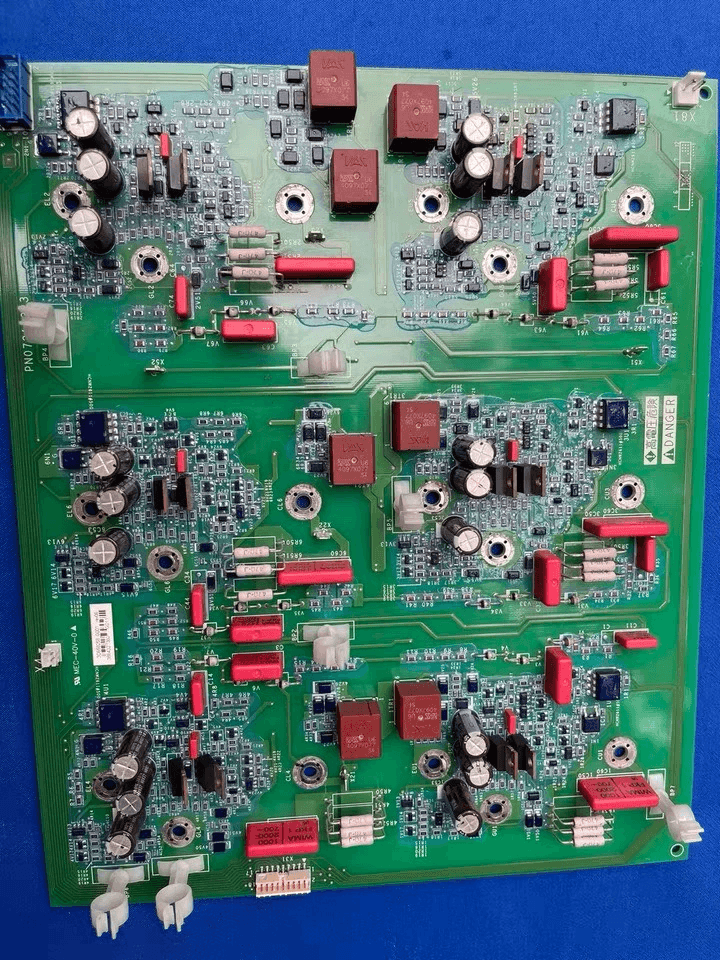

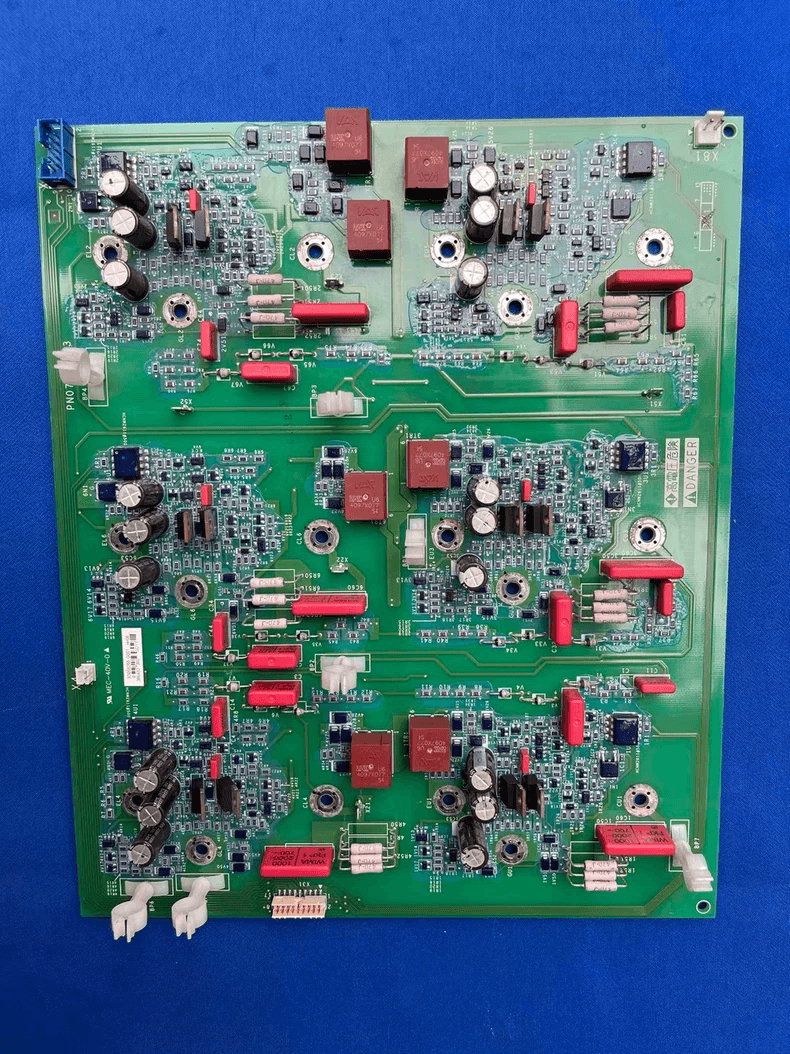

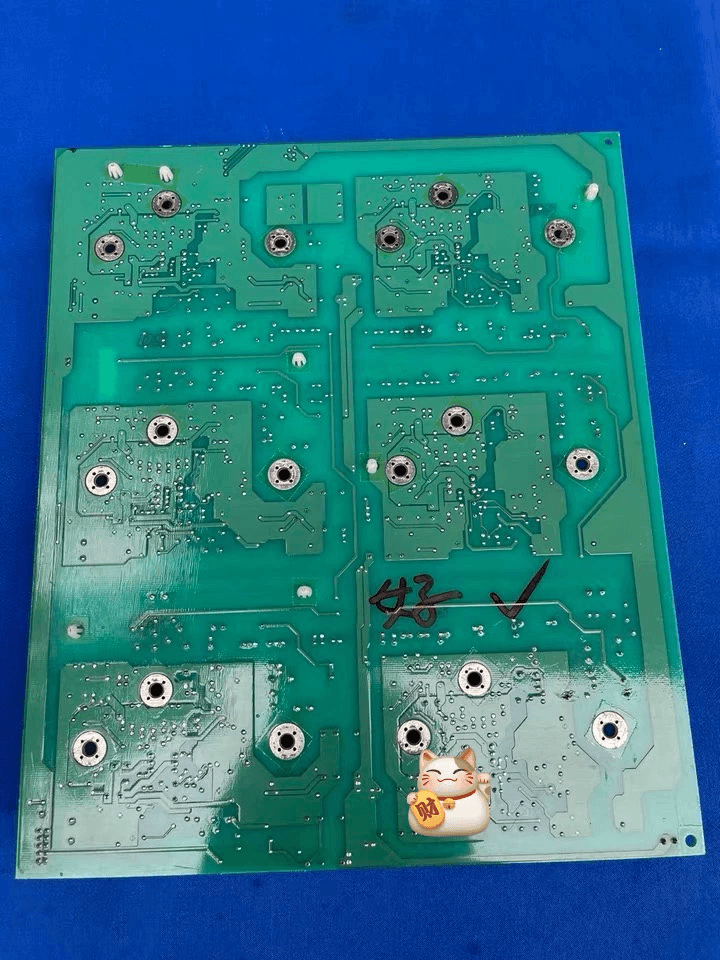

Schneider VX5A1200 / PN072183P3 Gate Driver Board – ATV61 160kW

What Is the VX5A1200 / PN072183P3?

The Schneider Electric VX5A1200 is an IGBT gate driver board used in selected high-power Altivar 61 and Altivar 71 variable frequency drive configurations.

It is an internal electronic board responsible for controlling the gate signals of the drive’s IGBT power modules.

The VX5A1200 is identified in Schneider Electric’s spare parts documentation as a Gate Driver Board for the ATV61HC16N4 and ATV71HC13N4 drive configurations.

PN072183P3 is also used as a related board identification in third-party spare parts listings.

This unit is offered as tested stock for industrial VFD maintenance, repair and replacement applications.

Before ordering, verify both the original board identification and complete drive model to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Schneider Spare Part Reference	VX5A1200
Related PCB Part Number	PN072183P3
Brand	Schneider Electric
Product Type	IGBT Gate Driver Board
Drive Series	Altivar 61 / Altivar 71
ATV61 Application	ATV61HC16N4 – 160kW
ATV71 Application	ATV71HC13N4 – 132kW
Voltage Class	380–480V AC (verify drive nameplate)
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	High-Power Industrial VFD IGBT Drive Control

Applications and Compatibility

The Schneider VX5A1200 gate driver board is documented for selected high-power Altivar 61 and Altivar 71 drive configurations.

The documented drive references include:

• ATV61HC16N4 – 160kW / 250HP.
• ATV71HC13N4 – 132kW / 200HP.

These drive references are identified in Schneider Electric spare parts documentation for the VX5A1200 gate driver board.

Important Compatibility Checks:

Before ordering, verify:

• Confirm whether the original board is marked VX5A1200 or PN072183P3.
• Check the complete ATV61 / ATV71 drive model.
• Verify the drive power rating and voltage class.
• Compare the original board revision and identification markings.
• Check connector positions and pin configuration.
• Verify the IGBT manufacturer and hardware configuration.
• Confirm whether the replacement board requires an additional F suffix.

Do not assume that every ATV61 or ATV71 drive with the same power rating uses the VX5A1200 board.

Important IGBT Version Check:

Some ATV61 drives use Fuji IGBTs instead of standard Mitsubishi IGBTs.

Schneider Electric specifies that if the eighth digit of the drive serial number is 2, the drive uses Fuji IGBTs. The corresponding replacement gate driver board may require an additional F suffix.

Always check the original board number and drive serial number before ordering.

How to Identify the Correct Replacement Gate Driver Board

When replacing an IGBT gate driver board, carefully compare the existing board with the replacement unit.

Check the following details:

• VX5A1200 spare part reference.

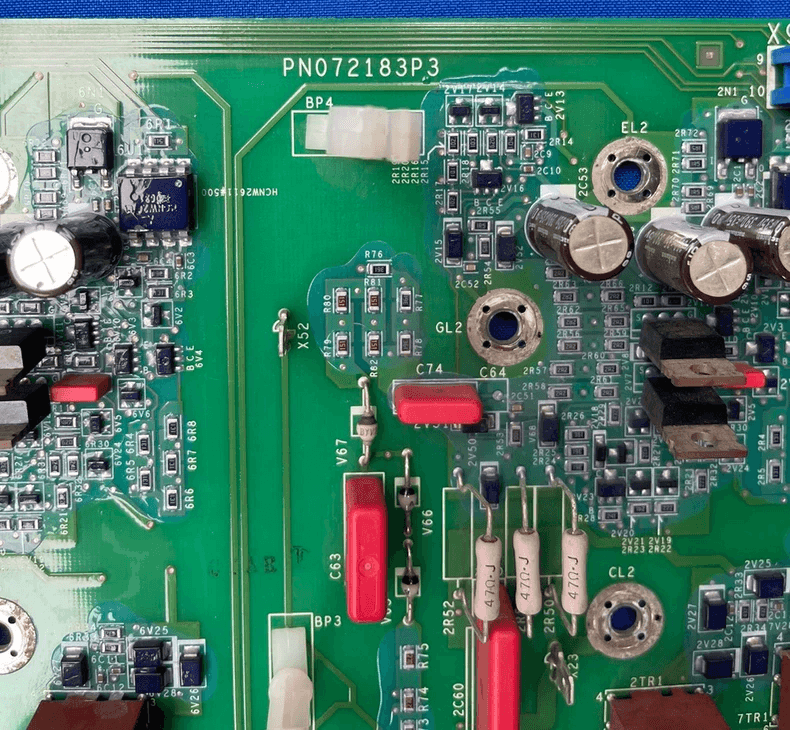

• PN072183P3 identification on the PCB, where applicable.
• Board revision and identification labels.
• Connector positions and pin configuration.
• IGBT configuration and related hardware.
• Mounting positions and electrical connections.
• Complete ATV61 / ATV71 drive nameplate and serial number.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Gate Driver Board Be Replaced?

A gate driver board may require inspection when the inverter experiences IGBT-related faults or abnormal power-stage operation.

Before replacing the board:

• Inspect the board for visible damage or burnt components.
• Check connectors and electrical connections.
• Inspect the associated IGBT power modules.
• Review the drive fault history and diagnostic results.
• Verify the correct board number and hardware version.

A drive fault does not automatically mean the gate driver board is defective. Other power-stage components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available inspection and functional testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the VX5A1200 used for?

The VX5A1200 is an IGBT gate driver board used in selected Schneider Altivar 61 and Altivar 71 high-power drive configurations.

Is PN072183P3 the same as VX5A1200?

Third-party spare parts listings associate PN072183P3 with VX5A1200. Check the original board label and hardware configuration before treating the two references as interchangeable.

Is VX5A1200 suitable for ATV61HC16N4?

Yes. Schneider Electric spare parts documentation identifies VX5A1200 as the gate driver board for the ATV61HC16N4 160kW drive configuration.

Is VX5A1200 also used in ATV71HC13N4?

Yes. Schneider’s spare parts documentation also lists ATV71HC13N4 as an applicable drive configuration. This model is rated at 132kW, not 160kW.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider VX5A1200 / PN072183P3 IGBT gate driver board?

Send us:

• A clear photo of the existing board.
• A close-up photo of the VX5A1200 / PN072183P3 identification.
• The complete ATV61 / ATV71 drive nameplate.
• The drive serial number.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
