Schneider VX5A1HD30N4 Power Board – ATV61/ATV71 30kW

What Is the VX5A1HD30N4?

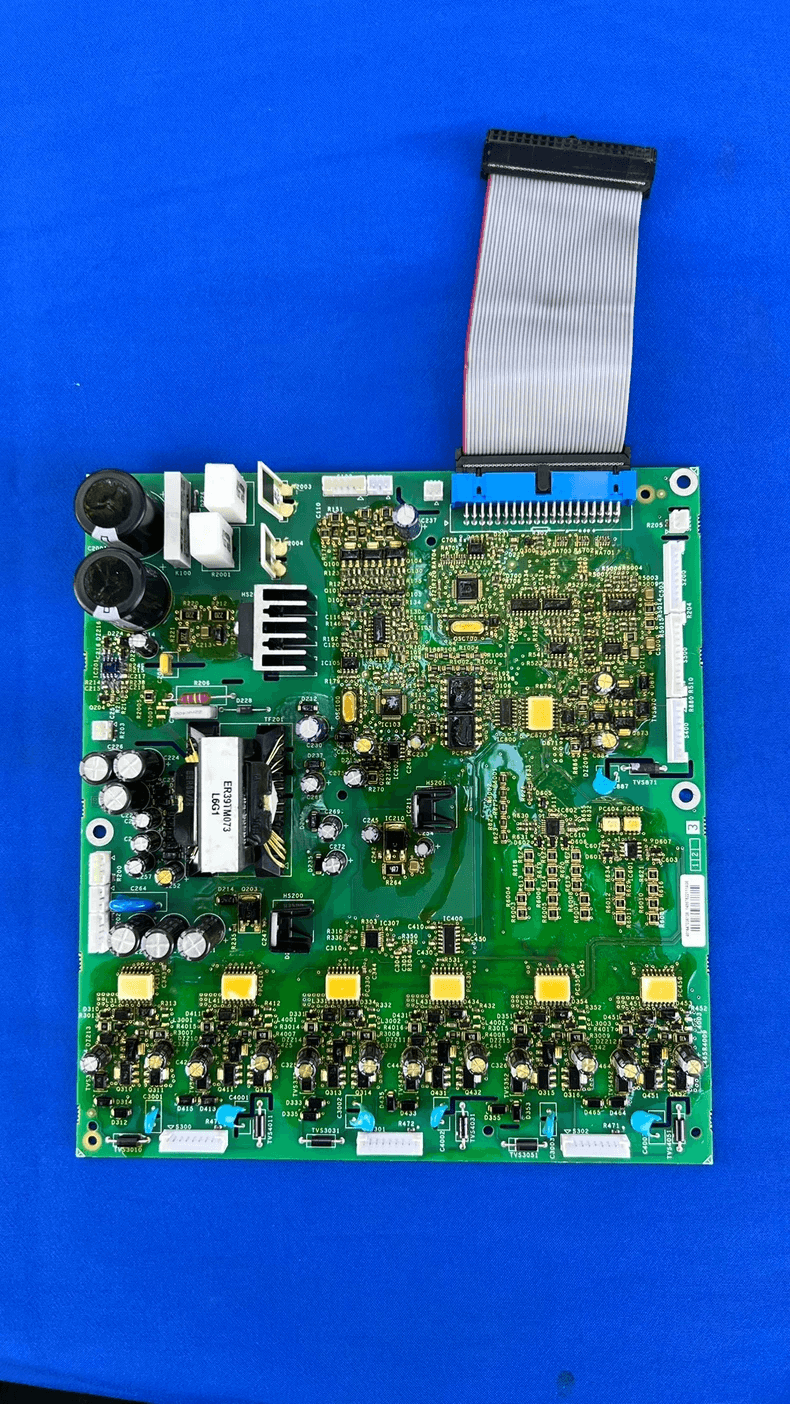

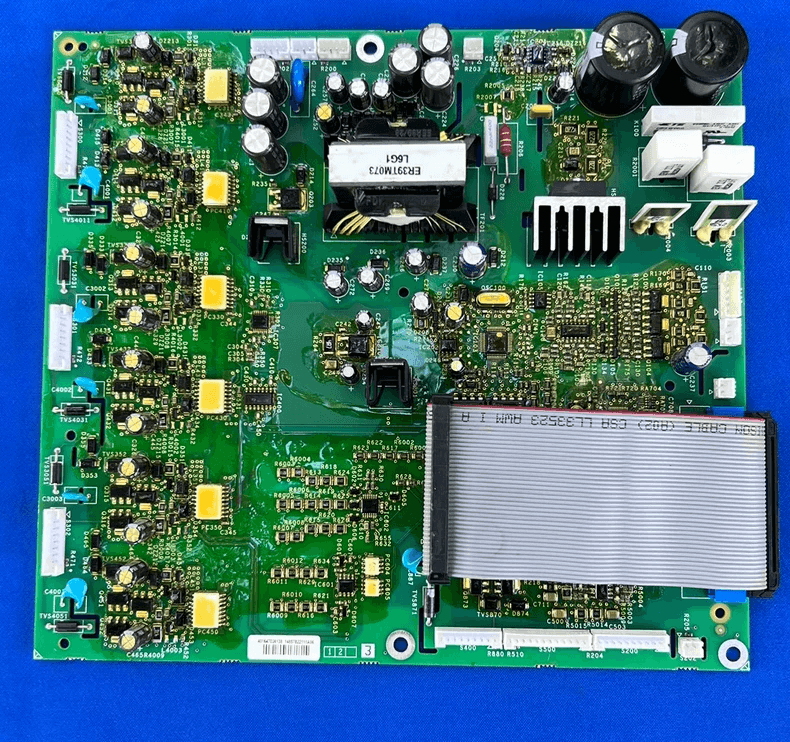

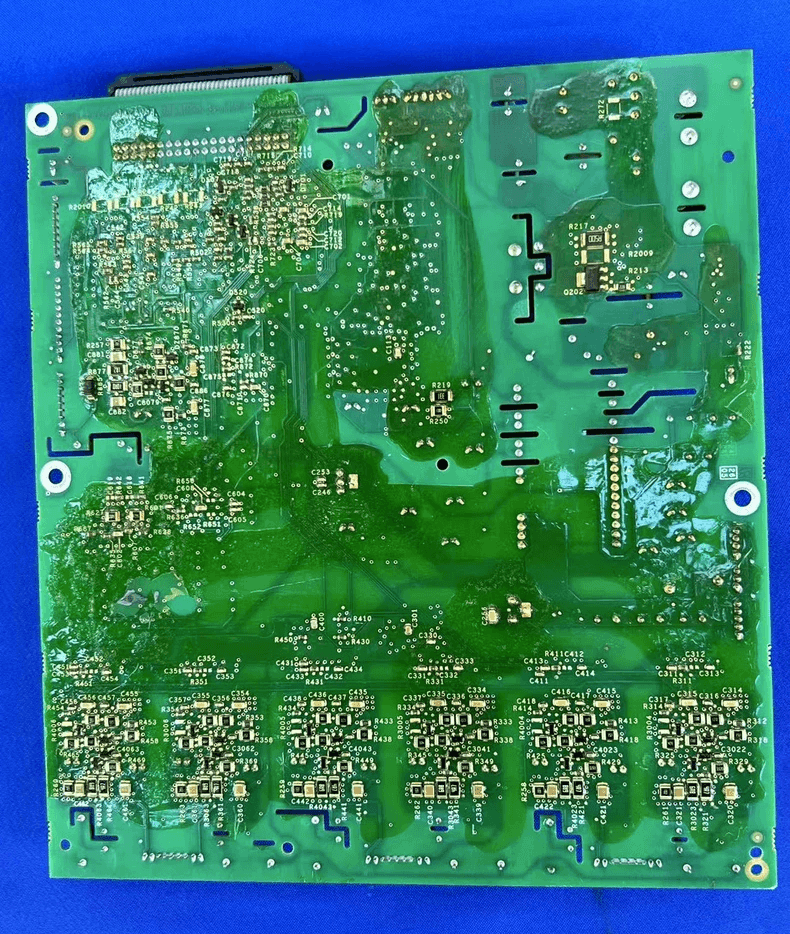

The Schneider Electric VX5A1HD30N4 is a power drive board listed for selected Altivar 61 and Altivar 71 variable frequency drive applications.

It is an internal power electronics component intended for industrial inverter maintenance, repair and replacement applications.

This board is associated with 30kW ATV61/ATV71 drive configurations. It is offered as tested stock for customers requiring a replacement power board.

Before ordering, verify the original board part number and complete drive model to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	VX5A1HD30N4
Brand	Schneider Electric
Product Type	Power Drive Board
Drive Series	Altivar 61 / Altivar 71
Application Power Rating	30kW
Related Drive Models	ATV61HD30N4 / ATV71HD30N4 (verify exact configuration)
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Maintenance and Replacement

Applications and Compatibility

The VX5A1HD30N4 is listed by industrial spare parts suppliers as a power drive board for selected Schneider Altivar 61 and Altivar 71 applications.

The associated 30kW drive models include:

• ATV61HD30N4
• ATV71HD30N4

Important Compatibility Checks:

Before ordering, verify:

• Confirm that the original board carries the part number VX5A1HD30N4.
• Check the complete ATV61 or ATV71 drive model.
• Verify the drive power rating and voltage configuration.
• Compare the board revision and identification labels.
• Check connector positions and pin configuration.
• Confirm the IGBT configuration and relevant replacement hardware.

Do not assume that every 30kW ATV61 or ATV71 drive uses the same power board.

Schneider’s service documentation also lists a power board and power IGBT replacement kit for the ATV61HD30N4 and ATV71HD30N4 configurations. Confirm the correct service replacement arrangement before installation.

How to Identify the Correct Replacement Power Board

When replacing a power drive board, carefully compare the original board with the replacement unit.

Check the following details:

• Part number printed on the original PCB.
• Board revision and identification markings.
• IGBT configuration and related power components.
• Connector positions and pin configuration.
• Component layout and mounting points.
• Complete drive model and serial number.

If you are unsure about compatibility, send us clear photos of the existing board and drive nameplate before ordering.

When Should the Power Board Be Replaced?

A power board may require inspection when the inverter experiences power-stage faults or abnormal operation.

Before replacing the board:

• Check for visible damage or burnt components.
• Inspect connectors and wiring connections.
• Check the associated IGBT power modules.
• Review the drive fault history and diagnostic results.
• Verify the correct board part number and hardware configuration.

A drive fault does not automatically mean the power board is defective. Other power-stage components and connections should also be inspected.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the VX5A1HD30N4 used for?

The VX5A1HD30N4 is listed as a power drive board for selected Schneider Altivar 61 and Altivar 71 30kW inverter applications.

Is VX5A1HD30N4 compatible with ATV61HD30N4 and ATV71HD30N4?

These drive models are associated with the 30kW application. However, confirm the original board number, IGBT configuration and complete drive reference before ordering.

Is VX5A1HD30N4 a main control board or a power board?

It is listed as a power drive board. It should not be confused with the main control board or other inverter circuit boards.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider VX5A1HD30N4 power board?

Send us:

• A clear photo of the existing board.

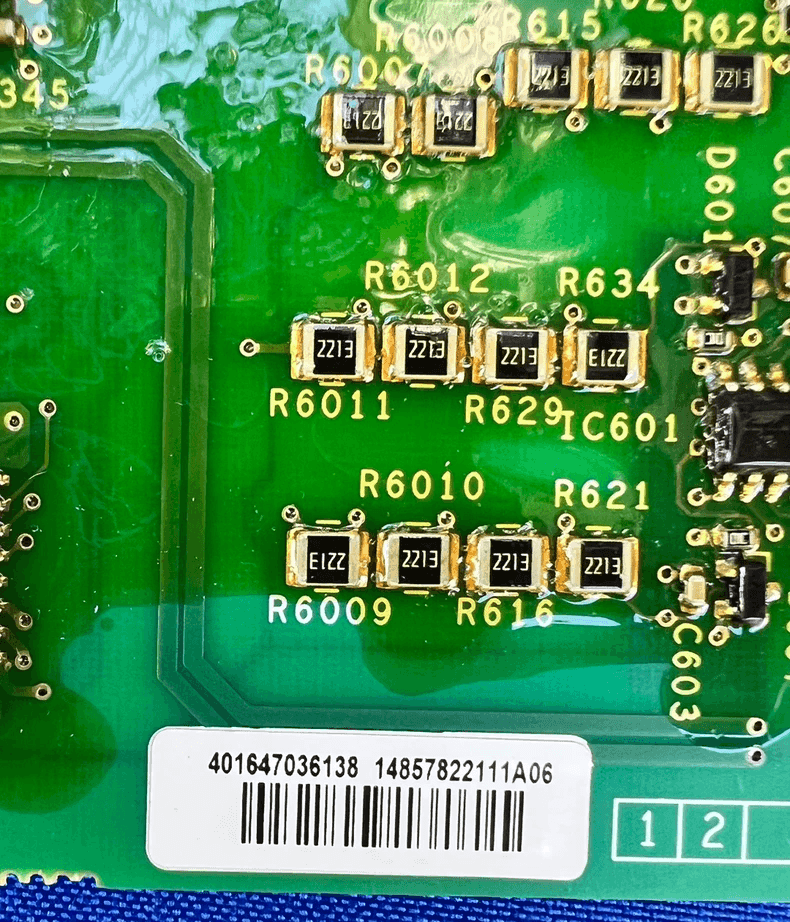

• A close-up photo of the VX5A1HD30N4 identification label.
• The complete ATV61 / ATV71 drive nameplate.
• The drive model and serial number.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
