Schneider VX5A1HD45N4 Power Driver Board – ATV61/ATV71 45kW

What Is the VX5A1HD45N4?

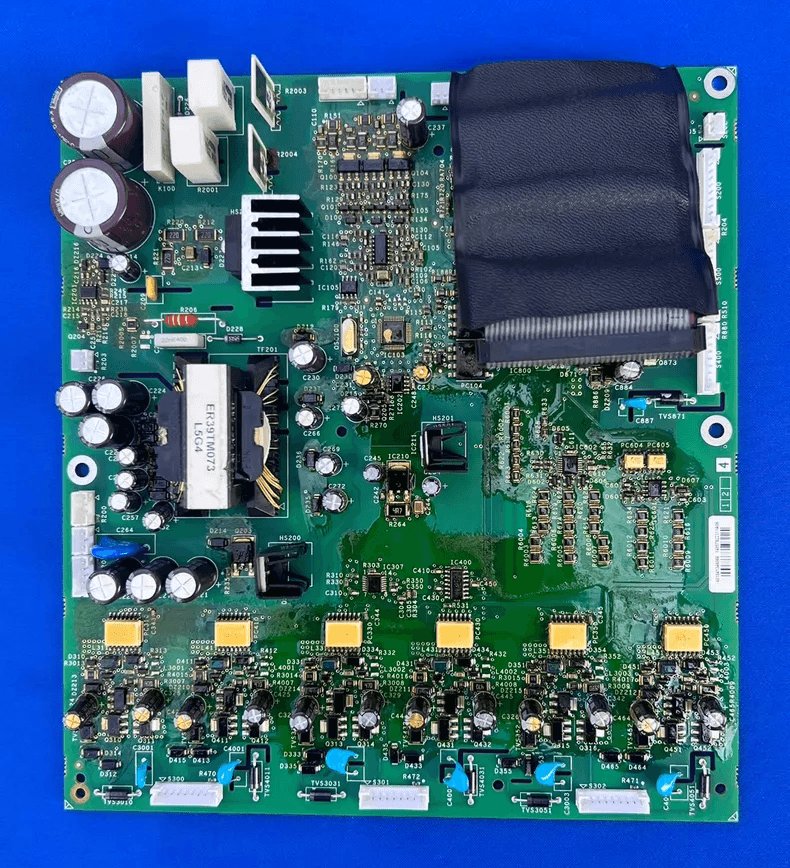

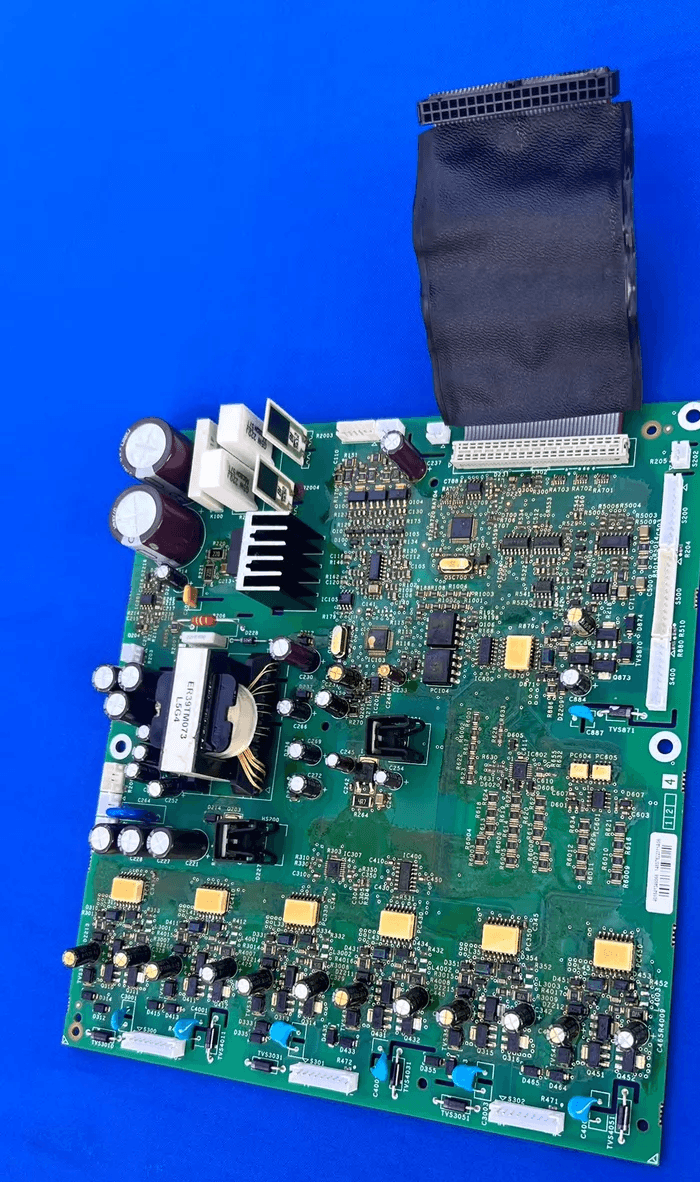

The Schneider Electric VX5A1HD45N4 is an inverter power / driver board listed for selected Altivar 61 and Altivar 71 45kW drive applications.

It is an internal electronic component associated with the drive’s power electronics system and is intended for industrial VFD maintenance, repair and replacement applications.

This board is offered as tested stock for customers requiring a Schneider inverter power board replacement.

Before ordering, verify the complete original board number, drive model and hardware configuration to ensure correct replacement compatibility.

Key Specifications

Specification	Details
Part Number	VX5A1HD45N4
Brand	Schneider Electric
Product Type	Power / Driver Board
Drive Series	Altivar 61 / Altivar 71
Application Power Rating	45kW
Related Drive References	ATV61HD45N4 / ATV71HD45N4 (verify exact board compatibility)
Board Version	N4
Condition	Tested Stock
Testing Status	Tested; confirm available test details before ordering
Application	Industrial VFD Maintenance and Replacement

Applications and Compatibility

The Schneider VX5A1HD45N4 is listed by industrial spare parts suppliers as a 45kW power / driver board for selected Altivar 61 and Altivar 71 drive applications.

Relevant 45kW drive references include:

• ATV61HD45N4
• ATV71HD45N4

Important Compatibility Checks:

Schneider’s official spare parts documentation identifies a specific replacement arrangement for the ATV61HD45N4 and ATV71HD45N4 models. The listed service kit VX5IM2200M1271 includes a power board and power IGBT modules.

Before ordering, verify:

• Confirm that the original board carries the exact part number VX5A1HD45N4.
• Check the complete ATV61 or ATV71 drive model.
• Verify the N4 or M3X hardware version.
• Check the drive serial number and IGBT configuration.
• Compare the board revision and identification markings.
• Check connector positions and pin configuration.
• Confirm whether the original replacement requires a board-only part or a complete power board and IGBT kit.

Important: Do not confuse VX5A1HD45N4 with VX5A1HD45M3X. These are different board references associated with different drive configurations.

How to Identify the Correct Replacement Board

When replacing a power / driver board, carefully compare the existing board with the replacement unit.

Check the following details:

• Part number printed on the original PCB.
• Board revision and identification labels.
• Connector positions and pin configuration.
• Power electronic component layout.
• Mounting positions and electrical connections.
• Complete ATV61 / ATV71 drive nameplate.
• Drive serial number and IGBT configuration.

If you are unsure about compatibility, send us clear photos of the existing board and the drive nameplate before ordering.

When Should the Power / Driver Board Be Replaced?

A power / driver board may require inspection when the inverter experiences abnormal power-stage operation or related electronic faults.

Before replacing the board:

• Inspect the board for visible damage or burnt components.
• Check connectors and electrical connections.
• Inspect the associated IGBT power modules.
• Review the drive fault history and diagnostic results.
• Verify the correct board number and hardware version.

A drive fault does not automatically mean the power / driver board is defective. Other power-stage components and connections should also be inspected by qualified personnel.

Condition and Testing

This product is offered as tested stock for industrial inverter maintenance and replacement.

Please contact us for available inspection and functional testing details, actual product photos and current stock availability.

Confirm the physical condition and testing scope before purchase.

Frequently Asked Questions

What is the VX5A1HD45N4 used for?

The VX5A1HD45N4 is listed as a Schneider power / driver board for selected Altivar 61 and Altivar 71 45kW inverter applications.

Is VX5A1HD45N4 suitable for ATV61HD45N4 and ATV71HD45N4?

These are relevant 45kW drive references. However, Schneider’s official service documentation specifies a power board and IGBT replacement kit for these N4 configurations. Confirm the original board identification and replacement arrangement before ordering.

What is the difference between VX5A1HD45N4 and VX5A1HD45M3X?

They are different part number versions associated with different drive configurations. Do not assume they are interchangeable. Check the complete drive reference and original board label.

Is this board tested?

This listing is for tested stock. Please request available inspection and functional testing details before purchase.

Need Help Confirming Compatibility?

Looking for a replacement Schneider VX5A1HD45N4 power / driver board?

Send us:

• A clear photo of the existing board.

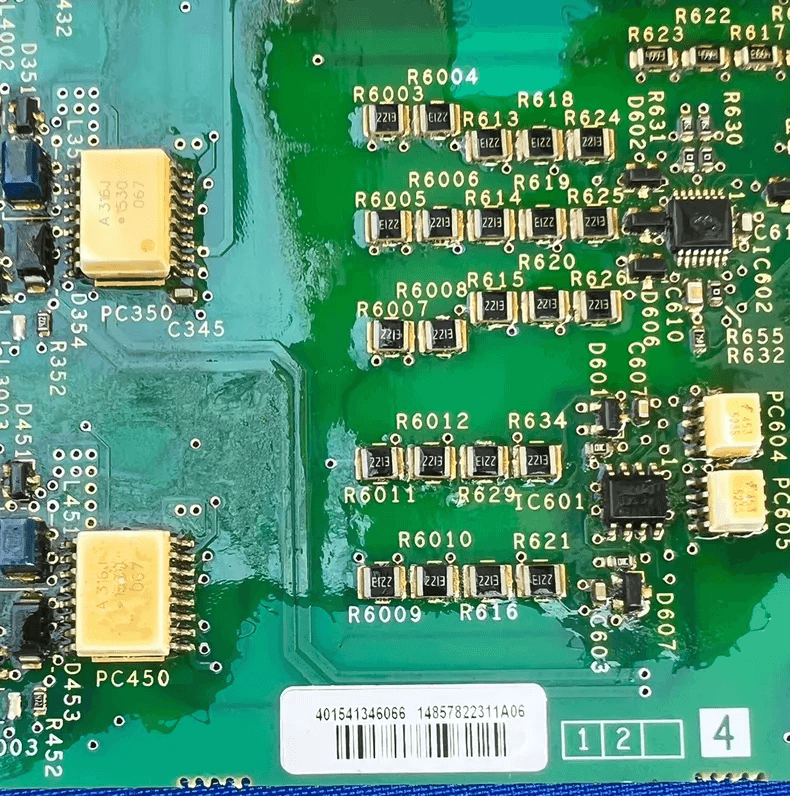

• A close-up photo of the VX5A1HD45N4 identification label.
• The complete ATV61 / ATV71 drive nameplate.
• The drive serial number.
• Your required quantity.

Contact us for product identification, compatibility assistance and quotation.
