Siemens A5E00496080 Capacitor/Power Board – G120/240 Series 45–55KW – Tested

Product Overview

Original Siemens A5E00496080 power board for SINAMICS G120 PM240 power modules. Identified by Siemens as repair part “BGR. PM240-CBO1-400V/45KW FSF R3 LACK.” Designed for 45KW (high overload) and 55KW (low overload) configurations at 380–480V 3-phase input. Direct replacement for A5E00496050.

Key Features

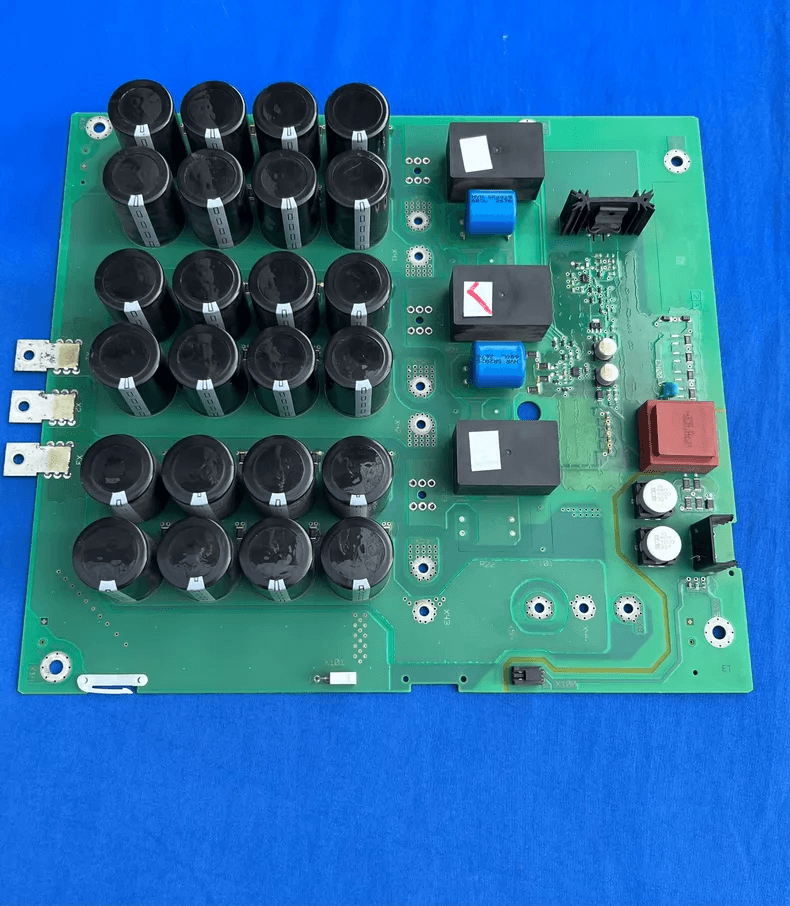

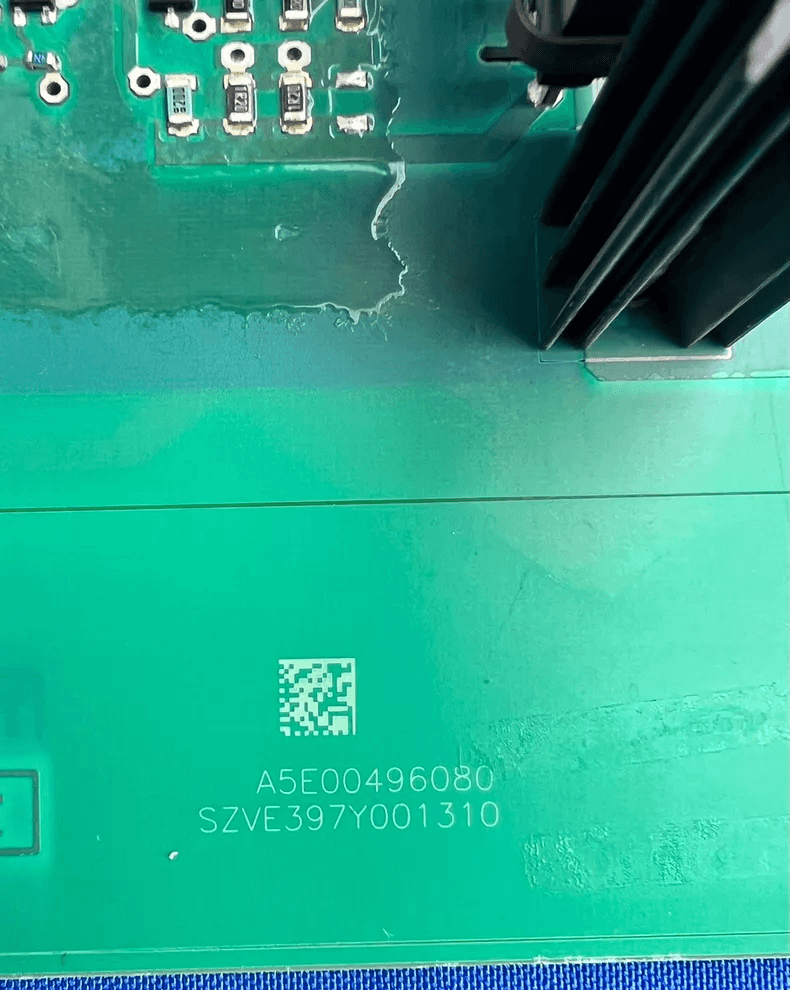

• Genuine Siemens original – A5E00496080 power board (capacitor board)
• Compatible with SINAMICS G120 PM240 power modules
• Designed for 45KW (HO) / 55KW (LO) configurations at 400V

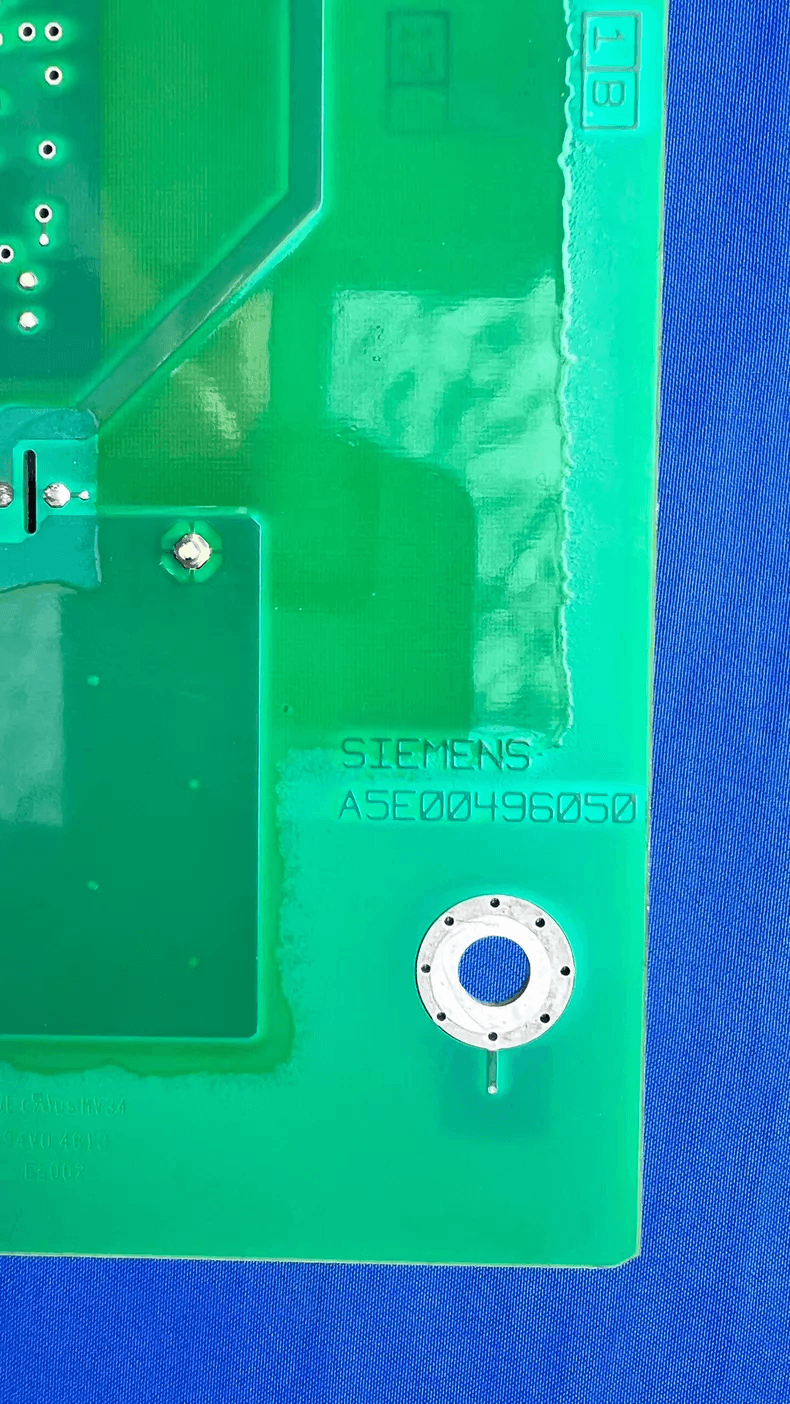

• Direct replacement for A5E00496050
• Siemens repair part designation: BGR. PM240-CBO1-400V/45KW FSF R3 LACK
• Part of PM240 power module platform (380–480V 3-phase, 47–63Hz)
• Integrated braking chopper in PM240 platform
• Frame size FSF (R3 form factor)
• Original pulled – no repair history

Specifications

Compatibility Note

• Compatible with SINAMICS G120 PM240 power modules
• Specifically for 45KW (high overload) / 55KW (low overload) configurations at 400V
• Direct replacement for A5E00496050 – verify original board marking before ordering
• Related part numbers in the same family: A5E00496050, A5E00496051, A5E00496081, A5E01206074, A5E01206075, A5E01206076
• CRITICAL: Nameplate photo required – different power ratings and frame sizes may use different board revisions
• If mismatched: Incorrect board selection may result in drive failing to power up, DC link voltage errors, or power module faults
• Frame size FSF (R3) – verify your PM240 frame size before ordering
• Verify drive model, power rating, and original board marking before ordering
• Send drive nameplate photo for accurate matching

Quality Assurance

• Original pulled from working drive; tested functional with no repair history
• Actual photos sent before shipping
• Test video available upon request
• ESD anti-static packaging
